Optika INSPECTION SYSTEMS Series Manual de usuario
INSPECTION SYSTEMS Series
Version: 1
Issued: 1.0.0
INSTRUCTION MANUAL
Model
IS
-
01
Pag. 2
IS-01
Compact Inspection Video Microscope
INSTRUCTIONS
This instruction manual is for the operation guide, troubleshooting and maintenance to IS-01 compact
Inspection Video Microscope. Please study this manual thoroughly before operating, and keep it with the
instrument. The manufacturer reserves the rights to the modifications by technology development.
On the basis of operation ensured, technical specifications may be subject to changes without notice
Pag. 3
Contents
Hardware
1. Getting Ready 4
1.1 Operation 4
1.2 Maintenance 4
1.3 Components 5
2. Assembling 7
2.1 Assembling Scheme 7
2.2 Assembling Steps 8
3. How to Use 11
3.1 Adjust the Focusing Tension 11
3.2 Set Illumination 11
3.3 Place the Specimen 12
3.4 Adjust the Focus 12
3.5 Lock the Magnification 12
3.6 Use the Button and Interface 13
4. Troubleshooting 14
5. Optical Data 15
Software
6. Overview 16
6.1 Software Start and Quit 16
6.1.1 Software Start 16
6.1.2 Software Quit 16
6.2 Main Commands 17
6.2.1 Command introduction 17
6.2.2 Command’s icon introduction 17
7. Operation Instructions 19
7.1 Local browse 19
7.2 Colour and exposure adjustment 19
7.2.1 Exposure Adjustment 20
7.2.2 Colour Adjustment 20
7.3 Calibration 20
7.4 Drawing mark tool 25
7.5 AWB (Automatic White Balance) 26
7.6 WDR Function 26
7.7 Setting Button 27
7.8 Image real-time transmission 28
7.8.1 WiFi transmission 28
7.8.2 USB Transmission 30
7.9 Image / Video Switch 31
7.9.1 Image function 31
7.9.2 Video Function 31
7.10 Zoom Picture 32
8 Troubleshooting 33
Pag. 4
1 Getting Ready
1.1 Operation
1) Do not expose the microscope in the sun directly. The microscope ought to be placed where is dry and
clean. Avoid high temperature and violent vibration.
2) As the microscope is a high precision instrument, always operate it with care, and avoid physical shock or
crash during the transportation.
3) To keep the image clear, please do not leave fingerprints or stains on the surfaces of lens.
4) Never rotate the left and right focusing knobs in reverse direction; otherwise the microscope will be
damaged.
1.2 Maintenance
1) Keep all the surface of the lens clean. Wipe the lens gently with a soft lens tissue or blow away the dust.
Carefully wipe off oil or fingerprints on the lens surfaces with tissue moistened with a little of 3:7 mixture of
alcohol and ether.
2) Do not use organic solution to wipe the surface of other components, especially the surface of plastic
components. Please use the neutral detergent if necessary.
3) Never disassemble the microscope yourself, otherwise it will influence its function or damage it.
4) After using, cover the microscope with a dust cover to prevent it from the dust, and store it in a place free
from moisture to avoid rusting.
To keep the performance of the microscope, please check it periodically. For more details, please contact the
agents nearby.
Pag. 5
1.3 Components
Display
HDMI connector
MINI connector
USB connector
Video button
Image button
Power switch
Microscope
body
Magnification
changer
LED
ringlight
Microscope
stand
Coarse focus
knob
LED light
adjustment
knobs
Pag. 6
SD card slot
Power
supply
input
Lock for
magnification
changer
Pag. 7
2. Assembling
2-1 Assembling Scheme
Below is the Assembling Scheme to describe how to assemble the components, and the numbers denote the
assembling order.
Before assembling, make sure there is no dust, dirt or other materials which will disturb it.
Assemble carefully and do not scrap any part or touch the glass surface.
Preserve the hexagon spanner, and it will be used when changing the parts.
Pag. 8
2.2 Assembling Steps
2
-
2
-
1
Assemble the extension ring (Fig. 1
-
2)
1. Unscrew the three screws on the bottom of
the stand in order to remove the microscope
arm.
2. Install the extension ring on the stand, then
reinstall the microscope arm.
•The extension ring is used to increase the
length of the microscope arm, thus
increasing the working distance.
2
-
2
-
2
Assemble the HDMI monitor (fig.3
-
4)
1. Unscrew the three screws on the top of the
microscope arm, then remove the cap.
2.
Install the provided cap by screwing the
three screws
.
Fig. 2
Fig. 1
Fig. 3
Fig. 4
3. Install the rectangular HDMI monitor holder
using the two provided screws.
4. Assemble the HDMI monitor on the
rectangular bracket using the provided
screws.
Pag. 9

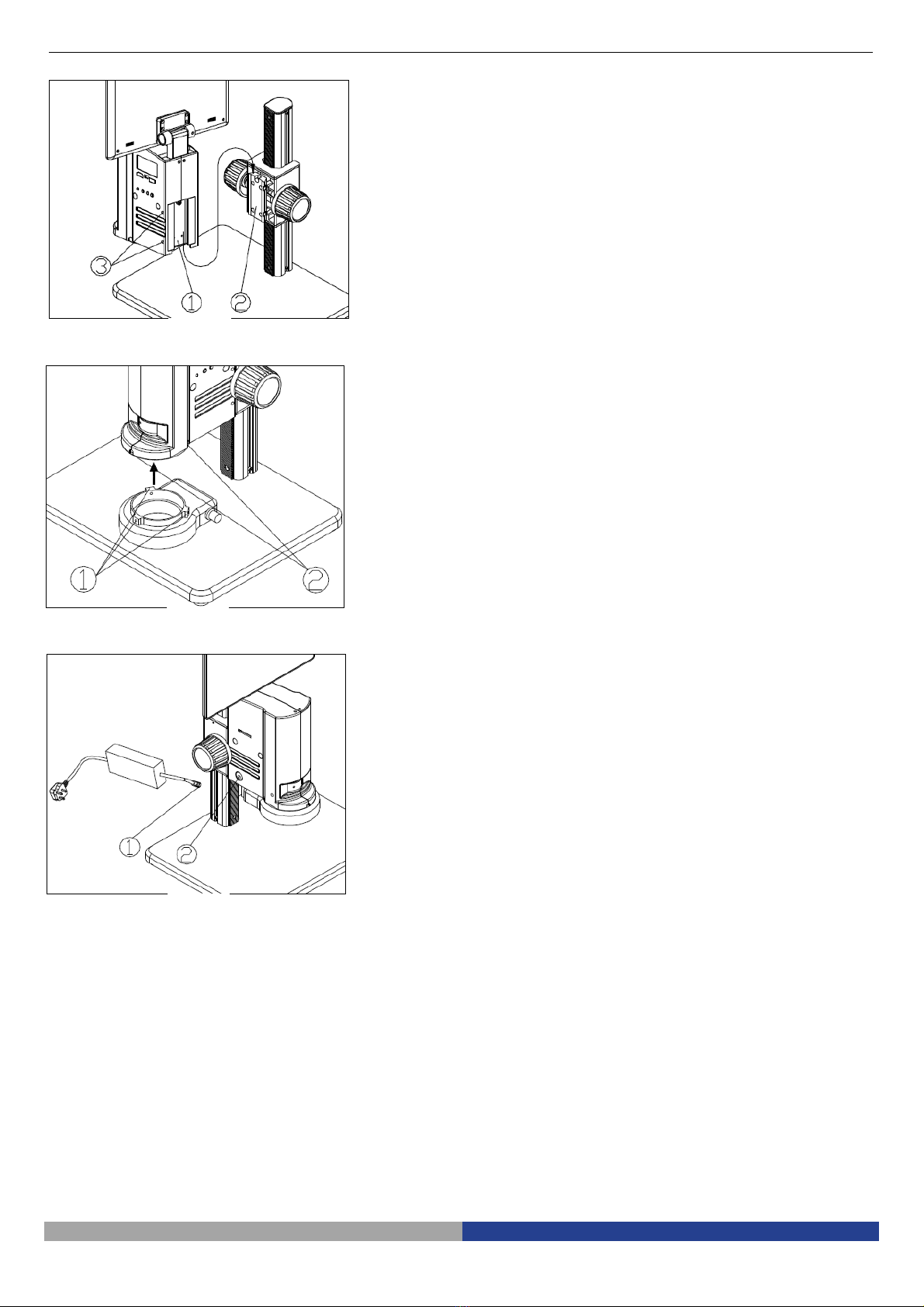

Fig. 5
Fig. 6
Fig. 7
2
-
2
-
3
Assemble the Microscope Body (Fig.
5)
1. Match the dovetail interface ①of the
microscope body with the dovetail groove
②of the focus bracket group, and insert it
from top to bottom as the direction shown
in the figure.
2. Tighten the M4 inner hexagon screw on the
body group ③with a M4 inner hexagon
spanner (side length 2mm).
2
-
2
-
4
Assemble the LED Ring Light
(Fig. 6)
1. Move the LED right light close to the
microscope body according to the
arrowhead direction, align the three screw
holes ①with the thread groove ②, and
lock the screw with a M4 inner hexagon
spanner(side length 2mm).
2
-
2
-
5
Connect the Power Cord (Fig. 7)
1. Insert the external adapter plug
①
into the
power supply adapter socket ②of the
microscope body to the bottom, and the
power will be switched on.
Don’t use excessive force when the
power cord is bended or twisted,
otherwise it will be damaged.
Use the special wire supplied by our
company. If lost or damaged, choose an
external power adapter with the same
specifications (power cord/charger).
Pag. 10
Fig. 10
Fig. 8
Fig. 9
2
-
2
-
6 Installing Additional lenses
(Fig. 8
-
9
-
10)
It is possible to install any of the available
additional lenses (0.5x or 1.4x). To do this,
please follow these steps:
1. Remove the LED ring light from the bottom
of the microscope body. (Fig. 8)
2.
Using the provided Allen wrench, loosen
the screws placed on the front, on the right
and on the left sides of the microscope
body, in order to remove the LED ring light
holder.(Fig. 9)
3. Unscrew the existing lens installed on the
microscope and replace with the desired
additional lens. (Fig. 10)
4. Reverse the disassembly procedure to
reinstall the removed parts.
