PCMCIA-FBUS-2

INSTALLATION GUIDE

FOUNDATION Fieldbus Hardware and

NI-FBUS Software for Windows

This guide contains installation and configuration instructions for the

PCI-FBUS, PCMCIA-FBUS, USB-8486, and the FBUS-HSE/H1 linking

device on Windows.

Notes Install the NI-FBUS software before you install the hardware.

Contents

Installing the Software ............................................................................ 1

Installing the Hardware........................................................................... 2

Install Your PCI-FBUS Card........................................................... 2

Install Your PCMCIA-FBUS Card.................................................. 3

Install Your USB-8486 .................................................................... 5

Install Your FBUS-HSE/H1 LD ...................................................... 7

Installing the Software

Complete the following steps to install the NI-FBUS software.

Caution If you are reinstalling the NI-FBUS software over a previous version, write down

your card configuration and any port configuration parameters you changed from their

defaults. Reinstalling the software may cause you to lose any existing card and port

configuration information.

1. Log in as Administrator or as a user that has Administrator

privileges.

2. Insert the NI-FBUS Software for Windows CD into the CD-ROM drive.

If the installer does not launch automatically, navigate to the CD using

Windows Explorer and launch the autorun.exe file from the CD.

™

NI-FBUS Installation Guide for Windows 2 ni.com

3. The interactive setup program guides you through the necessary steps

to install the NI-FBUS software. You may go back and change values

where appropriate by clicking Back. You can exit the setup where

appropriate by clicking Cancel.

4. Power down your computer when the setup is complete.

5. Continue to the Installing the Hardware section to configure and

install your hardware.

Installing the Hardware

This section describes how to install your PCI-FBUS, PCMCIA-FBUS,

USB-8486, and FBUS-HSE/H1 linking device.

Note Here, the term PCI-FBUS represents PCI-FBUS/2; the term PCMCIA-FBUS

represents PCMCIA-FBUS, PCMCIA-FBUS/2, PCMCIA-FBUS Series 2, and

PCMCIA-FBUS/2 Series 2.

Install Your PCI-FBUS Card

Caution Before you remove the card from the package, touch the antistatic plastic package

to a metal part of the system chassis to discharge electrostatic energy, which can damage

several components on the PCI-FBUS card.

To install the PCI-FBUS card, complete the following steps.

1. Shut down and power off the computer. Keep the computer plugged in

so that it remains grounded while you install the PCI-FBUS card.

2. Remove the top cover or access port of the I/O channel.

3. Remove the expansion slot cover on the back panel of the computer.

4. As shown in Figure 1, insert the PCI-FBUS card into any unused PCI

slot with the Fieldbus connector protruding from the opening on the

back panel. Make sure all pins are inserted an equal depth into the

connector. Although it might be a tight fit, do not force the card into

place.

©National Instruments Corporation 3 NI-FBUS Installation Guide for Windows

Figure 1. Installing the PCI-FBUS Card

5. Screw the mounting bracket of the PCI-FBUS card to the back panel

rail of the computer.

6. Keep the top cover or access port off until you have verified that the

hardware resources do not conflict.

7. Power on the computer.

8. Launch the Interface Configuration Utility. Find the PCI-FBUS card

and right-click to enable.

9. Close the Interface Configuration Utility and start the NI-FBUS

Communications Manager or NI-FBUS Configurator.

Install Your PCMCIA-FBUS Card

Caution Before you remove the card from the package, touch the antistatic plastic package

to a metal part of the system chassis to discharge electrostatic energy, which can damage

several components on the PCMCIA-FBUS card.

To install the PCMCIA-FBUS card, complete the following steps.

1. Power on the computer and allow the operating system to boot.

2. Insert the card into a free PCMCIA (or Cardbus) socket. The card has

no jumpers or switches to set. Figure 2 shows how to insert the

PCMCIA-FBUS and how to connect the PCMCIA-FBUS cable

and connector to the PCMCIA-FBUS card. However, the

Personal

Computer

PCI/ISA Slot

PCI-FBUS

NI-FBUS Installation Guide for Windows 4 ni.com

PCMCIA-FBUS/2 cable has two connectors. Refer to Chapter 3,

Connector and Cabling, of the NI-FBUS Hardware and Software User

Manual, for more information about these two connectors.

Figure 2. Inserting the PCMCIA-FBUS Card

3. Connect the PCMCIA-FBUS to the Fieldbus network.

Your kit contains a PCMCIA-FBUS cable. Refer to Chapter 3,

Connector and Cabling, of the NI-FBUS Hardware and Software User

Manual, if you need a longer cable than the PCMCIA-FBUS cable

provided.

1Portable Computer 2 PCMCIA Socket 3 PCMCIA-FBUSCable

©National Instruments Corporation 5 NI-FBUS Installation Guide for Windows

Install Your USB-8486

Caution Operate the USB-8486 only as described in the operating instructions. Do not

unplug the USB-8486 when the NI-FBUS software is running.

Figure 3. Connecting the USB-8486 to a Desktop PC

1Desktop PC 2USB-8486 3 DB-9 Connector

NI-FBUS Installation Guide for Windows 6 ni.com

Figure 4. Inserting the USB-8486

To install the USB-8486, complete the following steps.

1. Power on the computer and allow the operating system to boot.

2. Insert the USB-8486 into a free USB port, as shown in Figure 3 and

Figure 4.

3. Connect the USB-8486 to the Fieldbus network. Refer to the NI-FBUS

Hardware and Software User Manual for more information about the

connectors.

4. Launch the Interface Configuration Utility.

5. Right-click the USB-8486 to enable if it is disabled.

6. Close the Interface Configuration Utility and start the NI-FBUS

Communications Manager or NI-FBUS Configurator.

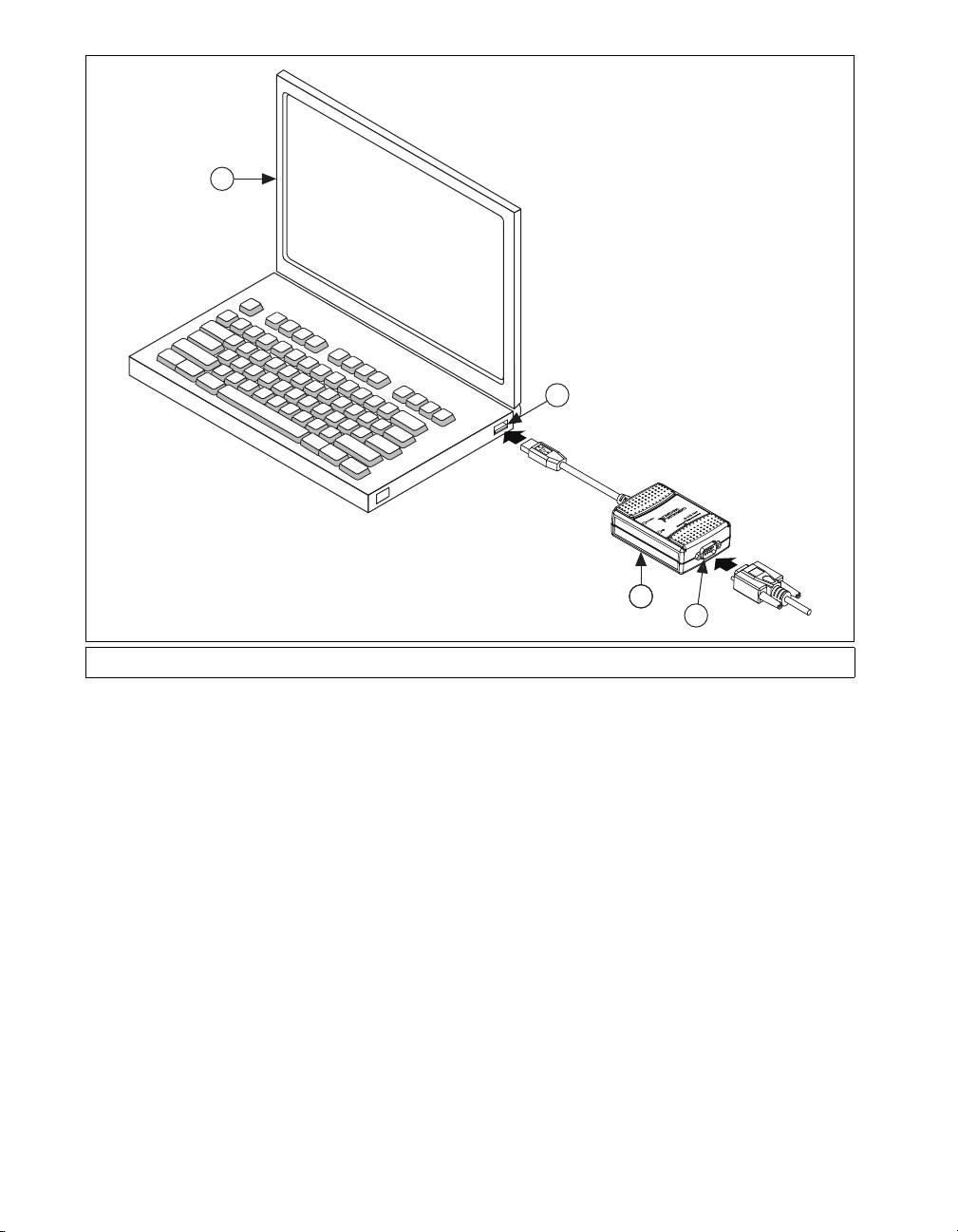

1Portable Computer 2USB Port 3USB-8486 4 DB-9 Connector

©National Instruments Corporation 7 NI-FBUS Installation Guide for Windows

Install Your FBUS-HSE/H1 LD

The FBUS-HSE/H1 LD has a simple rail clip for reliable mounting onto a

standard 35 mm DIN rail.

To install the FBUS-HSE/H1 LD, complete the following steps.

1. Use a flathead screwdriver to open the DIN rail clip to the unlocked

position, as shown in Figure 5.

Figure 5. DIN Rail Clip

2. Hook the lip on the rear of the FBUS-HSE/H1 LD onto the top of a

35 mm DIN rail and press the FBUS-HSE/H1 LD down onto the DIN

rail, as shown in Figure 6.

Figure 6. Mounting the FBUS-HSE/H1 LD on a DIN Rail

1 Cover 2Lip 3 35 mm DIN Rail 4Press on to Rail

Rail Clip Locked Rail Clip Unlocked

NI-FBUS Installation Guide for Windows 8 ni.com

3. Slide the FBUS-HSE/H1 LD to the desired position along the DIN rail.

After the FBUS-HSE/H1 LD is in position, lock it to the DIN rail by

pushing the rail clip to the locked position, as shown in Figure 5.

4. Connect the RJ-45 Ethernet port of the FBUS-HSE/H1 LD to an

Ethernet hub using a standard Category 5 Ethernet cable.

Note Do not use a cable longer than 100 m. If you are using a 10 Mbps Ethernet,

National Instruments recommends using a Category 5 shielded twisted-pair Ethernet

cable.

5. Figure 7 shows the power, H1, and Ethernet connectors on the

FBUS-HSE/H1 LD.

Figure 7. Connectors on the FBUS-HSE/H1 LD

6. Use the Fieldbus cable with 9-pin female D-sub connector to connect

the H1 ports of FBUS-HSE/H1 LD to a Fieldbus network.

1H1Port1 2H1Port2 3 Power 4 Ethernet

1 2 3

©National Instruments Corporation 9 NI-FBUS Installation Guide for Windows

7. Connect the primary 11–30 VDC power supply to the center V and C

pair with the positive and negative wires on your power cable in the

V and C terminals, respectively. You can connect an optional backup

power supply to the left V and C pair. The power connector is a 6-pin

screw terminal power connector whose pinout is shown in Figure 8.

Figure 8. FBUS-HSE/H1 Power Connector Pinout

8. Power on your FBUS-HSE/H1 LD. At power-up, the FBUS-HSE/H1

LD runs a set of power-on self tests (POST) that take several seconds,

and the green POWER LED is lit. For more information about reading

the POST status, refer to the LED Indicators section of Appendix B,

Troubleshooting and Common Questions, of the NI-FBUS Hardware

and Software User Manual.

Note If you are using the third-party HSE/H1 linking device, refer to the related user

manual or reference materials to install the hardware.

vvv

ccc

–

To Adjacent Device

(optional Connection)

11-30 VDC

Backup Power

Supply

(Optional)

11-30 VDC

Primary Power

Supply
