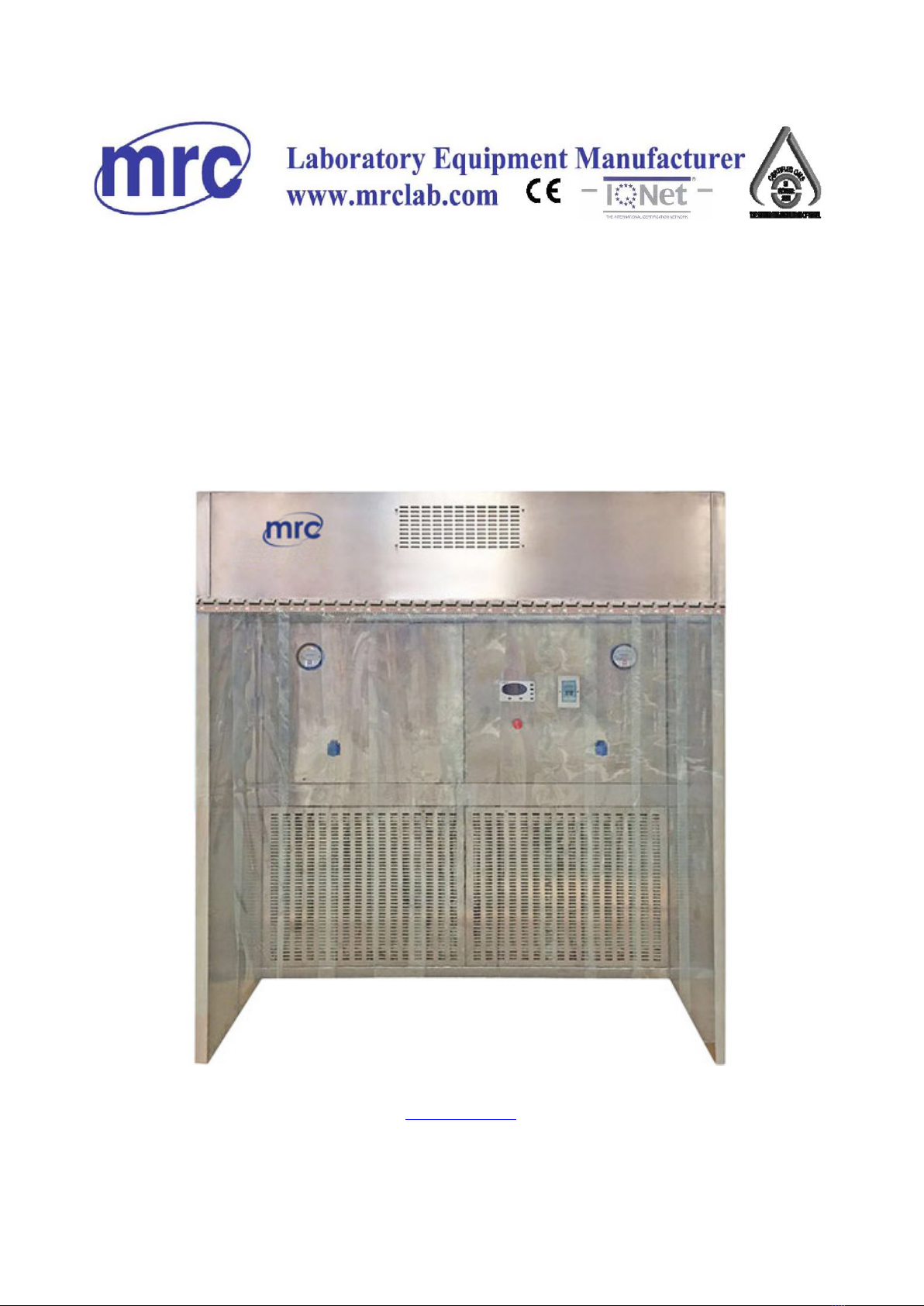

MRC FH-12-DB Manual de usuario

Dispensing Booth

FH-12/18/24-DB

User Manual

3, Hagavish st. Israel 58817 Tel: 972 35595252, Fax: 972 3 5594529

[email protected]

MRC. 10.22

Content

Content................................................................................................................................................... 1

Foreword................................................................................................................................................ 2

1. Unpacking, Installation and Commissioning..................................................................................... 3

1.1 Unpacking................................................................................................................................. 3

1.2 Accessories Check.....................................................................................................................4

1.3 Precautions before Installation.................................................................................................. 7

1.4 Machine Installation Placement and Use Environment............................................................ 7

1.5 Installation................................................................................................................................. 7

2. Instructions for Use.......................................................................................................................... 15

2.1 Function...................................................................................................................................15

2.1.1 Product Concept............................................................................................................ 15

2.1.2 Working Principle / Airflow Mode Protection Area Drawing...................................... 15

2.1.3 Protected objects............................................................................................................15

2.1.4 Technical Parameters Performance Indicators.............................................................. 16

2.2 Product Structure.....................................................................................................................16

2.3 Precautions for Use................................................................................................................. 20

2.4 Daily Maintenance.................................................................................................................. 20

2.5 Storage Conditions.................................................................................................................. 21

2.6 Replacement Parts List............................................................................................................22

3. Common Fault Analysis and Solution..............................................................................................24

3.1 Common Fault Analysis..........................................................................................................24

3.2 Method for Replacing Simple Parts........................................................................................ 25

3.2.1 Replace protective tube (fuse).......................................................................................25

3.2.2 Replace LED fluorescent lamp......................................................................................25

3.2.3 Replace the UV lamp.................................................................................................... 26

3.3 Label Description.................................................................................................................... 26

4. Warranty...........................................................................................................................................27

5. Appendix A Circuit diagram............................................................................................................ 28

Foreword

Dear respected user

Welcome to select and purchase MRC dispensing booth series, here please accept our sincere thanks

We sincerely hope that our products can bring the greatest help for your work

● For the first time to use the product, please read this manual carefully!

● To ensure the safe and reliable operation of the product, please specify someone as the operation

manager of the product, when the product fails, please immediately report to the manager and

contact our company.

●Please check and maintain the dispensing booth within the specified time.

●Please observe the operating instructions and precautions in this manual.

After having been familiar with the instructions, please keep this manual in a place which is

convenient to use for easy access.

1. Unpacking, Installation and Commissioning

Please check whether the outer box is intact, if not, please take pictures.

1.1 Unpacking

Program I. Disassembled with a wrench

Figure 1

Program II. Disassembled with an electric drill

Figure 2

Quick unpacking diagram

（Remove the screws, as are shown below，and then take the wooden box

to the left.）

Figure 3

1.2 Accessories Check

Please refer to the packing list, carefully check whether the accessories and information are

complete.

FH-12-DB Packing List

Item

Quantity

Position

Main Body

1pc

Wooden Package

Power Cord

1pc

Fuse (5A)

1pc

Fuse (10A)

1pc

UV Lamp (T8 30W)

1pc

Anti-static Curtain

1set

User Manual

1copy

Test Report

1copy

Quality Certification

Card

1pc

Warranty Card

1pc

FH-18-DB Packing List

Item

Quantity

Position

Rear Cabinet, Left and Right Side Panels

1pc

Wooden Package 1

Accessory Box

Power Cord

1pc

Fuse（5A）

1pc

Fuse（10A）

1pc

UV Lamp（T8 40W）

1pc

User Manual

1copy

Test Report

1 copy

Quality Certification Card

1pc

Warranty Card

1pc

304 Cross Recessed Pocket Hexagon

Head Combination Screw with Flat

Gasket and Spring Gasket M4 * 30

12 sets

Hexagon Socket Head Cap Screws M10

* 25

8 sets

Stainless Steel Nut M10

14 sets

Flat Gasket 10+Spring Gasket 10

22 groups

Large Flat Gasket 10

9 pcs

Transparent Glue

1pc

Inner Hexagon Wrench（S=8mm）

1pc

Upper Front Cabinet

1pc

Wooden Package 2

Anti-static Curtain

1set

Homogeneous Flow Film

3pcs

Upper Rear Cabinet

1pc

Wooden Package 3

FH-24-DB Packing List

Item

Quantity

Position

Rear Cabinet, Left and Right Side Panels

1pc

Wooden Package 1

Accessory Box

Power Cord

1pc

Fuse（5A）

1pc

Fuse（10A）

1pc

UV Lamp（T8 30W）

2pcs

User Manual

1copy

Test Report

1 copy

Quality Certification Card

1pc

Warranty Card

1pc

304 Cross Recessed Pocket Hexagon

Head Combination Screw with Flat

Gasket and Spring Gasket M4 * 30

12 sets

Hexagon Socket Head Cap Screws M10

* 25

8 sets

Stainless Steel Nut M10

14 sets

Flat Gasket 10+Spring Gasket 10

22 groups

Large Flat Gasket 10

9 pcs

Transparent Glue

1pc

Inner Hexagon Wrench（S=8mm）

1pc

Upper Front Cabinet

1pc

Wooden Package 2

Anti-static Curtain

1set

Homogeneous Flow Film

3pcs

Upper Rear Cabinet

1pc

Wooden Package 3

1.3 Precautions before Installation

Please note the following points：

• Please choose the ground, wall structure which can withstand the weight of the equipment, the

plane of the installation site should be flat.

• The equipment is prohibited to use in the following places: dust, oil mist, chemical corrosion

and other harsh places.

• Dispensing booth should be without explosion-proof device, flammable, explosive items are

prohibited to be placed into the cabinet for weighing.

• To rinse with water is prohibited, so as not to damage the electrical components of the

equipment or cause personal injury. Alcohol, stainless steel cleaner can be used to clean the

equipment regularly.

• The dispensing booth should be placed in a well ventilated room.

1.4 Machine Installation Placement and Use Environment

Installation Position

Installation position of dispensing booth should be avoided to face road and sites people frequently

go through, avoidedto clogwindows and places where ventilation and lighting are not good,

avoidedto block the entrance and exit and place where the open or close of the door is affected ,and

avoided to place oppositely or in the corner of the wall.

At least 400mm must be left in each side of the dispensing booth for the purpose of installation and

check.

Use ambient: (1) For indoor use only;

(2) Ambient temperature：15℃～35℃；

(3) Relative humidity：≤75%；

(4) Atmospheric pressure range：70 kPa～106 kPa；

(5) Power requirement ：The voltage required by the power are the same with the rated voltage

required by the technical parameters（as is shown in Table 2.1.4）；

(6) Use a multimeter to test the voltage of the live line to ground and the voltage of the null line to

ground respectively, among which, the voltage of the live line to ground should be the grid power,

and the voltage of the null line to ground should be 0, otherwise, the power is not grounded well).

1.5 Installation

Remove all packaging components

Check whether the outer surface of the host has scratches, deformations or foreign objects

Check carefully the accessories and information by referring to the packing list in the operating

manual

Move the entire equipment to a site which is as close as possible to the position where the equipment

is placed finally and convenient for installation

(Field installation (take FH-24-DB dispensing boothas an example

（1）Method and steps for connecting the rear cabinet with the left and right side panels are as

follows:

Figure 4

Place the rear cabinet in a suitable position, remove the 304 cross recessed pocket hexagon head

combination screw with a flat gasket and spring gasket M4 * 12 bolts attached to the rear panel with

a flat-blade screwdriver, and remove the rear panel (as is shown Figure 4 ).

Note: The rear cabinet of FH-12-DB, FH-18-DB dispensing booth has two rear panels, and the rear

cabinet of FH-24-DB dispensing booth has one rear panel, and the remove method is the same with

the above.

Flat-

blade

Screwd

river

Rear Cabinet

Rear panel

304 Cross recessed pocket

hexagon head combination

screw with flat gasket and spring

gasket M4 * 12

Figure 5

Take the left side panel, and insert the M10 * 25 bolt on the left side panel into the rear cabinet

mounting hole (as is indicated by the arrow) and fix it with 3 groups of flat gaskets 10 + spring

gaskets 10 + 3 sets M10 hex nuts, and fasten it withNo.17 wrench, the two positioning M10 * 25

bolts at the bottom side play the role of positioning, which do not need nuts for fastening,The top is

fastened with hexagon socket head cap screws M10 * 25.

The installation steps of the right side panel is the same with the left side panel.

Insert the M10*25 bolt into

thecorresponding mounting

hole

Left Side Panel

Rear Cabinet

Positioning bolt

The back of the

bolt is fixed with

a nut

Partial enlarged drawing
