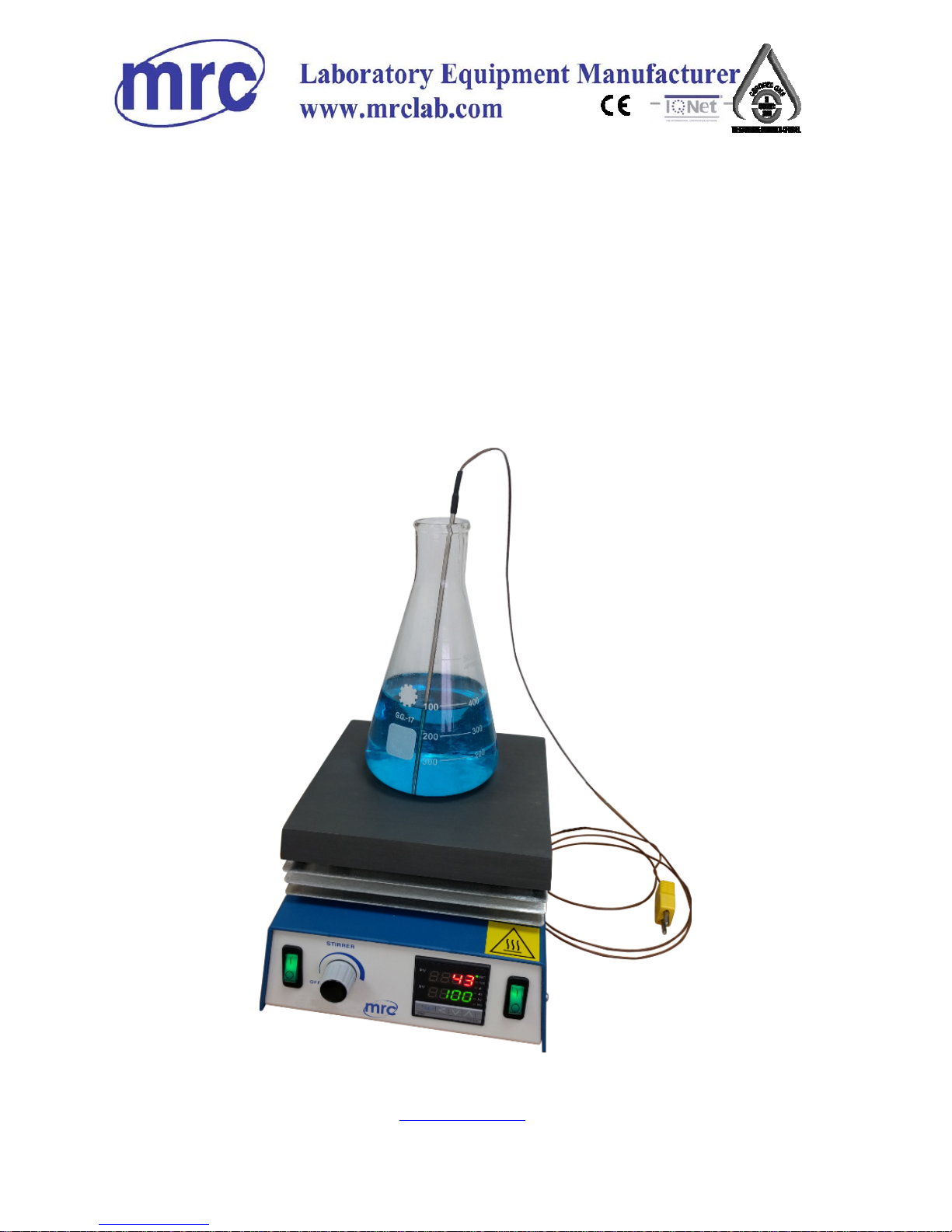

Digital Hotplate

With Stirrer

MH-4D

Operation Manual

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529com.mrclab@mrc

Important Before using this product, read this

entire operation manual carefully. Users should

follow all of the operational guidelines contained in

this manual and take all necessary safety

precautions while using this product. Failure to

follow these guidelines could result in potentially

irreparable bodily harm and/or property damage.

Caution All internal adjustments and maintenance must be

performed by qualified service personnel.

Material in this manual is for information purposes only. MRC is

committed to a continuing program of product development and

improvement, and reserves the right to change information, such as

specifications, appearance, and dimensions, described in this

document without notice. MRC makes no representations or

warranties with respect to this manual. In no event shall MRC be held

liable for any damages, direct or incidental, arising out of or related

to the use of this manual.

This manual contains important safety and operation information.

You must carefully read, understand, and follow all the instructions in

this manual prior to operating this instrument. Keep this manual in a

safe place nearby for reference and make it easily available to all

users.

1) This manual highlight DANGER/WARNING/CAUTION/NOTICE

alerts to prevent injury or property damage and also to achieve

optimum performance of your instrument.

2) These alerts are classified into four types in this manual

depending on the importance and the risk levels as described

below

3) The claim which is out of the quality guarantee published by

the Manufacturer is out of Manufacturer’s responsibility.

4) The damage which is from unexpected fault or damage of user

by Acts of God is out of Manufacturer’s responsibility.

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529com.mrclab@mrc

Table of content

Section 1 Warning and Cautions………….…..……………………………1-1

Section 2 General Description ………….………………..…………………2-1

Features

Safety

Convenience

Construction

Section 3 Unpacking and installation…………………….……….………3-1

Installation environment

Connecting to Power Supply

Location Condition

Connecting to the main power

Section 4 Operation……………………………………….…………………….4-1

Power On

Change the Set Value (SV)

Change the Alarm Value

Autotuning (AT)

Temperature Offsetting (OFFSET)

Stir Control Knob

External Temperature Probe Input (optional)

Section 5 Maintenance………………………..…………….……….….………5-1

Cleaning Product

Relocation

Keeping Product

Section 6 Troubleshooting …………….……………………………….….…6-1

Section 8 Warranty Information………….…………………………..….….7-1

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529com.mrclab@mrc

Section 1 Warnings and Cautions

DANGER

Ignoring the following warnings could cause serious injuries or

even fatal accidents.

Understand all alert labels prior to operating this equipment.

Never remove or damage the alert labels.

Never move this equipment while under operation.

Never install or use this equipment in explosive or flammable

atmospheres.

Never use or store flammable or hazardous substances near to

this equipment.

Never use the equipment to heat flammable or hazardous

substances.

Always wear proper protective gear (such as goggles, gloves,

masks or an apron) when using this equipment.

Never allow water, organic solvents, dust, or corrosive gases to

get inside the equipment.

Never immerse this equipment in water or operate it under

water.

Never reach for this equipment if it has fallen into water.

Check electrical requirements described in this operation

manual or on the ID plate of this equipment before use.

Connect this equipment to a dedicated power outlet nearby.

Connect this equipment only to properly grounded power

outlets to protect you and your instrument. Do not ground to

gas pipes or water pipes.

Never install this equipment closer than 30 cm (12 inches) to a

wall of combustible material. Observe minimum distances (in

general, 30 cm) from other devices.

If you observe strange smoke, odor or noise from the

instrument, unplug the power cord immediately and turn off

the main power switch. After the smoke or odor disappears,

contact your dealer or MRC if any repair is required.

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529com.mrclab@mrc

Never disassemble, repair, or modify this equipment on your

own. Doing so will void your warranty and may result in injuries

or product damages.

Do not heat any substances above temperature which will

cause hazards of explosion, implosion or release of toxic or

flammable gases from the material being heated.

Do not use in the presence of pressurized or sealed containers.

Fire or explosion may result causing injury or death

Do not operate the plate with external temperature probe

in the air or out of the liquid.

The external probe must be properly placed into a liquid

on the top surface during the whole process, to prevent

damage to the plate

The plate might be covered with aluminum foil to protect

it, DO NOT cover any other parts of the device and make

sure the radiation sheets underneath are not covered.

The Aluminum topped plates are not designed to be used with

metal containers. For heating of such containers it's advisable

to use a ceramic top hot plate.

To avoid electric shock, always use a property grounded

electrical outlet of correct voltage, and correct handling

capacity equipment

CAUTION

Ignoring the following cautions could cause injuries or property

damages.

Keep away the power cord from the hot plate, to prevent

melting and damages.

Do not touch the top plate or any object near it even when the

heater is turned off. You may get burned due to residual heat.

After using this equipment, make sure to turn off the main

power switch and also to disconnect the power cord from the

power outlet for the safety of other users.

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529com.mrclab@mrc

Do not place heavy objects, including this equipment, on top

of the power cord and do not strip, scratch, bend, twist, pull, or

heat the power cord. A damaged power cord is a fire and

electrical shock hazard.

Make sure to set up this equipment on a flat, stable, clean,

non-slip, dry, and fireproof surface inside a lab with proper

safety measures.

Do not touch the power outlet, power socket, or power cord

with wet hands. And make sure to connect the power cord

directly and firmly to the power outlet and power socket.

Do not put or insert any objects (especially if conductive or

flammable) inside this equipment.

Do not expose this equipment to any heat sources including

direct sunlight.

Mechanical shock or vibration can damage this equipment. Pay

extra attention while moving it. Damages caused by

mechanical shock or vibration may result in injury or fire.

Do not impact the top plate or heat sink. You can damage the

equipment or get injured.

Do not install this equipment near any device that generates

high frequency noise such as high frequency welding

machines, high frequency sewing machines, or SCR power

controllers.

Before cleaning, make sure to unplug the power cord to avoid

electric shock or fire.

Do not use chlorine bleach, ammonia-based cleaners,

abrasives, ammonia, or metal scouring pads. Wipe with a soft

damped cloth or a sponge soaked in water or diluted neutral

detergent.

The user shall be aware that, if the equipment is used in a

manner not specified by the manufacturer, the protection

provided by the equipment may be impaired.

The instrument should be placed so, that handy operation of

the ON-OFF Switch is possible.

Service only by a qualified Service engineer.

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529com.mrclab@mrc

Always disconnect from power supply prior to maintenance

and servicing.

Connect the instrument to a ground mains outlet, after

ensuring that the Voltage is the same as given on the name

plate

The Instrument must be connected to an earthen (grounded)

supply

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529com.mrclab@mrc

Section 2 General Description

Congratulations of your purchase of MRC hotplate which is specially

designed to provide maximum benefit for your investment with

respect to performance, safety, ease of use, and durability.

Item/Model MH-4D

Dimension (W x D x H, mm) 200 X 250 X 130

Top plate dimension (mm) 175 X 175 mm

Maximum heating capacity 800W

Current consumption (110V) 7.3A

Temp. range Up to 300°C

Temp. control Digital

Magnetic stirrer 100 – 1200 rpm

Features Performance

Microprocessor PID Feedback Control

Fast and precise temperature control is provided by the

microprocessor PID controller

Quick Heat Up Time

Ample heating capacity and superb heat transfer rate of the

tightly integrated structure of heater and top plate allow quick

heat up time (up to 300°C).

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529com.mrclab@mrc

Auto-tuning (AT)

Automatic tuning of the PID parameters provides more

accurate temperature control.

Temperature Offsetting

In case your own thermometer is to be used for temperature

control for specific applications, there can be some differences

between the temperature of your thermometer and the

displayed temperature of this unit.

Safety

High and Low Temperature Limits

The high temperature limit of the top plate is set to 300°C to

protect you and your media. However, you can set your own

high and low temperature limits to reduce operation time and

also to avoid inadvertent mistakes.

Convenience

Two large digital displays on the control panel clearly show

both set and actual temperatures of the top plate side by side.

You can easily set your own temperature limit at any value

between 0 and 300°C.

Heating rate can be set from 0 to 100% at 1% interval for

delicate temperature control.

One support rod (optional) can be attached to hold various

kinds of devices such as temperature sensors, thermometers,

and so on.

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529com.mrclab@mrc

Construction

(1) Top Plat

(2) Radiation Sheets

(3) Main Power Switch

(4) FY-400 Temperature Controller

(5) Stirring Control Knob

(6) Stirring Switch

(7) Stirring motor

(8) Socket for Temperature Probe

(9) Identification Label

(10) Threaded Holes for Support Rod (Optional)

(11) Power Cord

Tabla de contenidos

Otros manuales de Equipo de laboratorio de MRC

Manuales populares de Equipo de laboratorio de otras marcas

Qiagen

Qiagen DML 3000 Manual de usuario

Queensgate

Queensgate NANOSCAN OP400 Manual de programación

Conviron

Conviron GEN1000-GE Manual de usuario

Parr Instrument

Parr Instrument 4560 Manual de instrucciones

IKA

IKA IC control Manual de usuario

Integra

Integra DOSE IT Manual de usuario

Agilent Technologies

Agilent Technologies 5800 ICP-OES Manual de usuario

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Manual de usuario

NI PXI-5422 Manual

Collomix

Collomix Aqix Manual de usuario

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Manual de usuario

Ocean Insight

Ocean Insight FLAME-NIR+ Manual de usuario

Parker

Parker ALIGN-MG-NA Manual de usuario

BD 644787 Manual de usuario

DENTAURUM

DENTAURUM Compact Megaplus Manual de usuario

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Manual de usuario

VWR

VWR SAS Super IAQ Manual de usuario

illumina

illumina MiSeqDx Manual de usuario
