Moxa Technologies ETHERDEVICE EDS-305 Manual

MOXA EtherDevice Switch

EDS-308/305 Hardware Installation Guide

Fourth Edition, September 2004

Moxa Networking Co., Ltd.

Tel: +886-2-8919-1230

Fax: +886-2-8919-1231

www.moxa.com

[email protected] (Worldwide)

support@moxa.com (The Americas)

P/N: 18020030003

—1 —

Overview

The MOXA EtherDevice™ Smart Switches, EDS-308/305 Series, are 8- and 5- port Ethernet

Switches that provide an economical solution for your Ethernet connections, and the built-in smart

alarm function helps system maintainers monitor the health of your Ethernet network.

These products have a wide operating temperature range, from -40 to 75°C, and are designed to

withstand a high degree of vibration and shock. The rugged hardware design makes EDS-308/305

Series perfect for ensuring that your Ethernet equipment can withstand critical industrial

applications, such as in hazardous locations (Class 1 Division 2/ Zone 2), and complies with FCC,

TÜV, UL, and CE Standards.

NOTE Throughout this Hardware Installation Guide, we use EDS as an abbreviation for MOXA

EtherDevice Switch:

EDS = MOXA EtherDevice Switch

Package Checklist

MOXA EtherDevice Switch is shipped with the following items. If any of these items is missing

or damaged, please contact your customer service representative for assistance.

!MOXA EtherDevice™ Switch

!Hardware Installation Guide

!MOXA Product Warranty booklet

!Protective caps for unused ports

Features

High Performance Network Switching Technology

!10/100BaseT(X) (RJ45), 100BaseFX (SC type, Multi/Single mode

!IEEE 802.3/802.3u/802.3x

!Store and Forward switching process type, 1024 address entries

!10/100M, Full/Half-Duplex, MDI/MDIX auto-sensing

Industrial Grade Reliablity

!Power failure, port break alarm by relay output

!Redundant dual DC power inputs

Rugged Design

!Operating temperature ranges from 0 to 60℃, or extended operating temperature from -40 to

75°C for (-T) models

!IP 30, rugged high-strength case

!DIN-Rail or panel mounting ability

—2 —

Panel Layout of EDS-305 Series

EDS-305

Front Panel View

EDS-305-M-SC

Front Panel View

EDS-305-S-SC

Front Panel View

V1 V2 INPUTS: 24 VDC

PWR2

V2+

V2-

V1-

V1+

12345

ON DIP

PORT ALARM

FAULT

PWR1

Top Panel View

Rear Panel View

1. Grounding screw

2. Terminal block for power input P1/P2 and relay output

3. Heat dissipation orifices

4. DIP switches

5. Power input P1 LED

6. Power input P2 LED

7. Fault LED

8. 10/100BaseT(X) Port

9. TP port’s 100 Mbps LED

10. TP port’s 10 Mbps LED

11. Model Name

12. 100BaseFX Port

13. FX port’s 100 Mbps LED

14. Screw hole for wall mounting kit

15. DIN-Rail Kit

—3 —

Panel Layout of EDS-308 Series

EDS-308

Front Panel View

EDS-308-SS-SC

Front Panel View

EDS-308-M-SC

Front Panel View

V1 V2 INPUTS: 24 VDC

PWR2

V2+

V2-

V1-

V1+

FAULT

PWR1

12345678

ON DIP

PORT ALARM

Top Panel View

Rear Panel View

NOTE: The appearance of EDS-308-S-SC is identical to

EDS-308-M-SC, and the appearance of EDS-308-MM-SC is

identical to EDS-308-SS-SC.

1. Grounding screw

2. Terminal block for power input P1/P2 and relay output

3. Heat dissipation orifices

4. DIP switches

5. Power input P1 LED

6. Power input P2 LED

7. Fault LED

8. 10/100BaseT(X) Port

9. TP port’s 100 Mbps LED

10. TP port’s 10 Mbps LED

11. Model Name

12. 100BaseFX Port

13. FX port’s 100 Mbps LED

14. Screw hole for wall mounting kit

15. DIN-Rail Kit

—4 —

Mounting Dimensions (unit = mm)

Side View

135.00

30.00

9.50 54.00

Back ViewFront View

10.65 10.65

30.50

9.75

13.90

Panel Mount Kit

135.00

13.10

15.10

25.40 13.90

18.20

25.7123.15

7.75

30.50

7.75

3.50

6.00

3.50

6.00

39.3746.77

131813

—5 —

DIN-Rail Mounting

The aluminum DIN-Rail attachment plate should already be fixed to the back panel of EDS when

you take it out of the box. If you need to reattach the DIN-Rail attachment plate to EDS, make sure

the stiff metal spring is situated towards the top, as shown in the figures below.

STEP 1:

Insert the top of the DIN-Rail into the

slot just below the stiff metal spring.

STEP 2:

The DIN-Rail attachment unit will

snap into place as shown below.

metal

spring

DIN-Rail

metal

spring

DIN-Rail

To remove MOXA EtherDevice Switch from the DIN-Rail, simply reverse Steps 1 and 2 above.

—6 —

Wall Mounting (OPTIONAL)

For some applications, you will find it convenient to mount MOXA EtherDevice Switch on the

wall, as illustrated below.

STEP 1:

Remove the aluminum DIN-Rail attachment plate from MOXA EtherDevice Switch’s rear panel,

and then attach the wall mount plates, as shown in the diagram below.

⇒

top

plate

bottom

plate

STEP 2:

Mounting MOXA EtherDevice Switch on the wall requires 4 screws. Use the

Switch, with wall mount plates attached, as a guide to mark the correct

locations of the 4 screws. The heads of the screws should be less than 6.0 mm

in diameter, and the shafts should be less than 3.5 mm in diameter, as shown

in the figure at the right.

NOTE Before tightening screws into the wall, make sure the screw head

and shank size are suitable by inserting the screw into one of the

keyhole-shaped apertures of the Wall Mounting Plates.

Do not screw the screws in all the way—leave about 2 mm to allow room for

sliding the wall mount panel between the wall and the screws.

6.0 mm

3.5 mm

STEP 3: Once the screws are fixed in the wall, insert the four screw heads through the large parts

of the keyhole-shaped apertures, and then slide MOXA EtherDevice Switch downwards,

as indicated below. Tighten the four screws for added stability.

⇒

—7 —

Wiring Requirements

WARNING

Do not disconnect modules or wires unless the power supply has been switched off or the area is known

to be non-hazardous.

The devices may only be connected to the supply voltage shown on the type plate.

The devices are designed for operation with a safety extra-low voltage. Thus, they may only be

connected to the supply voltage connections and to the signal contact with the safety extra-low voltages

(SELV) in compliance with IEC950/ EN60950/ VDE0805.

WARNING

Substitution of components may impair suitability for Class

I, Division 2 and Zone 2.

These devices must be supplied by a SELV source as defined in the Low Voltage Directive

73/23/EEC and 93/68/EEC.

WARNING

This equipment has been evaluated as EEx nC IIC T4 equipment under DEMKO Certificate No.

03 ATEX 0324537U. Each module is marked II 3G and is suitable for use in Zone 2

Explosive Atmospheres. The device must be installed in a minimum IP 54 enclosure as defined in

IEC 60529 and EN 60529.

ATTENTION

This unit is a built-in type. When the unit is installed in another piece of equipment, the equipment

enclosing the unit must comply with fire enclosure regulation IEC 60950/EN60950 (or similar

regulation).

ATTENTION

Safety First!

Be sure to disconnect the power cord before installing and/or wiring your MOXA EtherDevice

Switch.

Calculate the maximum possible current in each power wire and common wire. Observe all

electrical codes dictating the maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could overheat, causing serious

damage to your equipment.

You should also pay attention to the following items:

!Use separate paths to route wiring for power and devices. If power wiring and device wiring

paths must cross, make sure the wires are perpendicular at the intersection point.

!NOTE: Do not run signal or communications wiring and power wiring in the same wire

conduit. To avoid interference, wires with different signal characteristics should be routed

separately.

!You can use the type of signal transmitted through a wire to determine which wires should be

kept separate. The rule of thumb is that wiring that shares similar electrical characteristics

can be bundled together.

!Keep input wiring and output wiring separated.

!It is strongly advised that you label wiring to all devices in the system when necessary.

—8 —

Grounding MOXA EtherDevice Switch

Grounding and wire routing help limit the effects of noise due to electromagnetic interference

(EMI). Run the ground connection from the ground screw to the grounding surface prior to

connecting devices.

ATTENTION

This product is intended to be mounted to a well-grounded mounting surface, such as a metal

panel.

Wiring the Alarm Contact

The Alarm Contact consists of the two middle contacts of the terminal block on EDS’s top panel.

You may refer to the next section for detailed instructions on how to connect the wires to the

terminal block connector, and how to attach the terminal block connector to the terminal block

receptor.

In this section, we explain the meaning of the two contacts used to connect the Alarm Contact.

FAULT

Top View

Front View

FAULT: The two middle contacts of the 6-contact

terminal block connector are used to detect both

power faults and port faults. The two wires

attached to the Fault contacts form an open circuit

when:

1. EDS has lost power from one of the DC power

inputs.

2. One of the ports for which the corresponding

PORT ALARM DIP Switch is set to ON is not

properly connected.

If neither of these two conditions is satisfied, the

Fault circuit will be closed.

—9 —

Wiring the Redundant Power Inputs

The top two contacts and the bottom two contacts of the 6-contact terminal block connector on

EDS’s top panel are used for EDS’s two DC inputs. Top and front views of one of the terminal

block connectors are shown here.

Top View

Front View

STEP 1: Insert the negative/positive DC wires into the

V-/V+ terminals.

STEP 2: To keep the DC wires from pulling loose, use

a small flat-blade screwdriver to tighten the

wire-clamp screws on the front of the terminal block

connector.

STEP 3: Insert the plastic terminal block connector

prongs into the terminal block receptor, which is

located on EDS’s top panel.

ATTENTION

Before connecting EDS to the DC power inputs, make sure the DC power source voltage is stable.

Otros manuales para ETHERDEVICE EDS-305

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de Moxa Technologies

Moxa Technologies

Moxa Technologies UPort 400A Series Manual de usuario

Moxa Technologies

Moxa Technologies TN-G4516-8GPoE-4XGPoE-WV-T Manual de usuario

Moxa Technologies

Moxa Technologies TN-5500A Series Manual de usuario

Moxa Technologies

Moxa Technologies IEX-408E-2VDSL2-HV Manual de usuario

Moxa Technologies

Moxa Technologies EDS-G2008-EL Series Manual de usuario

Moxa Technologies

Moxa Technologies ToughNet TN-G4500 Series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-408A Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-P510-T Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-828 Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-G205-T Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-G205A-4PoE-1GSFP Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-728 Series Manual

Moxa Technologies

Moxa Technologies EtherDevice Switch EDS-G205 Manual

Moxa Technologies

Moxa Technologies ToughNet TN-4500A Series Manual de usuario

Moxa Technologies

Moxa Technologies ToughNet TN-5524-8PoE Manual

Moxa Technologies

Moxa Technologies ToughNet TN-5508 Series Manual

Moxa Technologies

Moxa Technologies EDS-208 series Manual de usuario

Moxa Technologies

Moxa Technologies IKS-6726-8PoE Series Manual

Moxa Technologies

Moxa Technologies EDS-508 Series Manual de usuario

Moxa Technologies

Moxa Technologies PT-7828 Series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-510E Series Manual

Moxa Technologies

Moxa Technologies ToughNet TN-5524-8PoE-P24-T Manual de usuario

Moxa Technologies

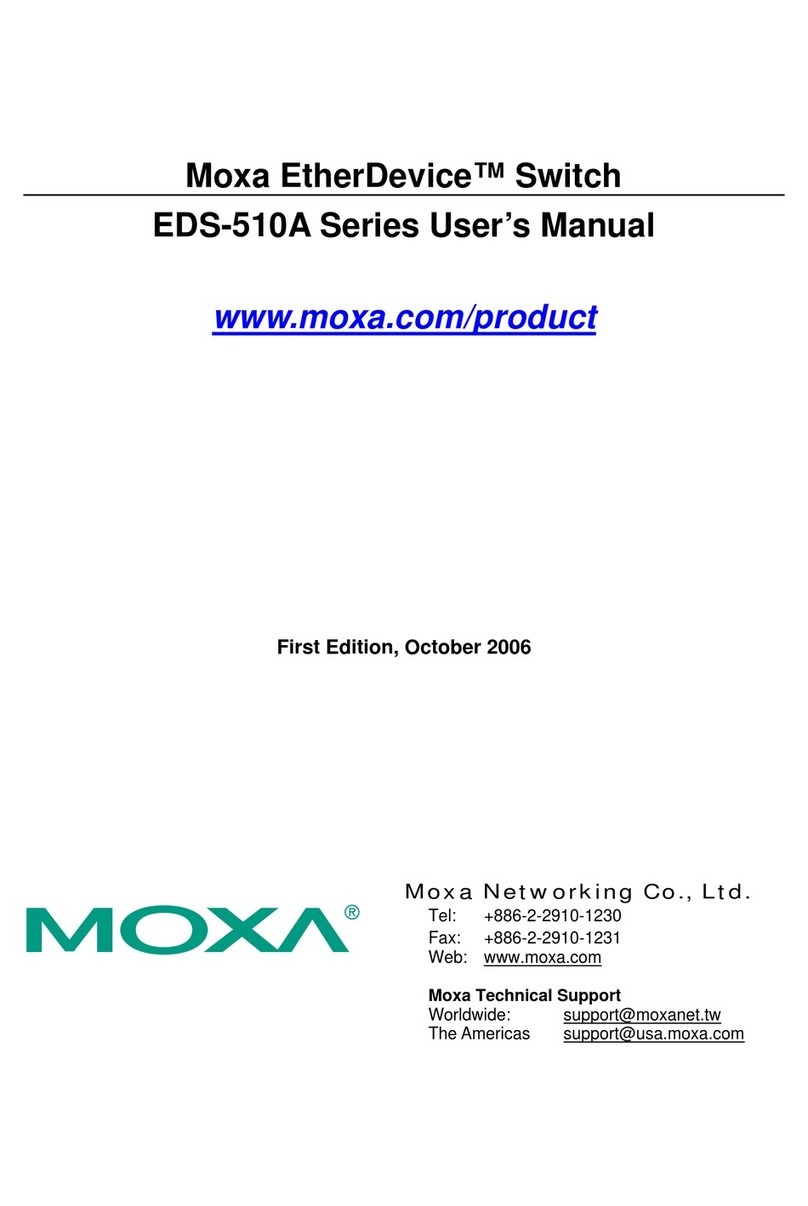

Moxa Technologies EtherDevice EDS-510A Series Manual de usuario

Moxa Technologies

Moxa Technologies NPort S8000 Series Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
