Mountup MU2002 Manual de usuario
Polished Aluminium Dual Monitor Wall Mount
Instruction Manual
If you have any questions , please contact us.
75x75
100x100 32"
MU2002
V2.0
(1.5~8kg)x2
(3.3~17.6lbs)x2
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of
this product, please contact us.
Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or
serious injury. Do not use this product for any purpose that is not explicitly specied in this manual. Do not exceed
weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
This product contains small items that could be a choking hazard if swallowed. NOT FOR CHILDREN UNDER 3 YEARS.
ADULT SUPERVISION IS REQUIRED.
WARNING!
01
NOTE: Not all hardware included will be used.
PACKAGE CONTENTSPACKAGE CONTENTS
A (x1)
Arm Assembly
D (x3)
Decorative Cover
E(x1)
6mm Allen Key
B (x2)
VESA Plate
C (x2)
Bolt
M-E (x8)
D6 Washer
M-C (x8)
M6x12
M-B (x8)
M4x16
M-D (x8)
M6x16
M-A (x8)
M4x12 M-F (x8)
Spacer
W-B (x3)
Anchor
W-C (x3)
Washer
W-A (x3)
Lag Bolt
( )
Installation Tools
Awl
02
ASSEMBLY STEPS
STEP 1: Attach Arm Assembly to Wall
OPTION A: Wood Stud Installation
ø 4.5mm
(ø 3/16")
55mm
(2.2")
A
Locate your studs. Verify and mark
Position the Arm Assembly (A) at your
desired height and line up the holes
withyour stud center line. Level the
Arm Assembly (A) and mark the pilot
hole locations.
Drill pilot holes using a ø3/16 in.
(ø4.5 mm) diameter drill bit.
X
Caution:
Do notuse anchor in drywall
or wood！A
Install Arm Assembly (A) using lag
bolts (W-A) and washers (W-C).
Tighten the lag bolts until they are
Assembly (A).
W-C W-A
03
STEP 1: (Continued)
60mm
(2.4")
ø10mm
(ø 3/8")

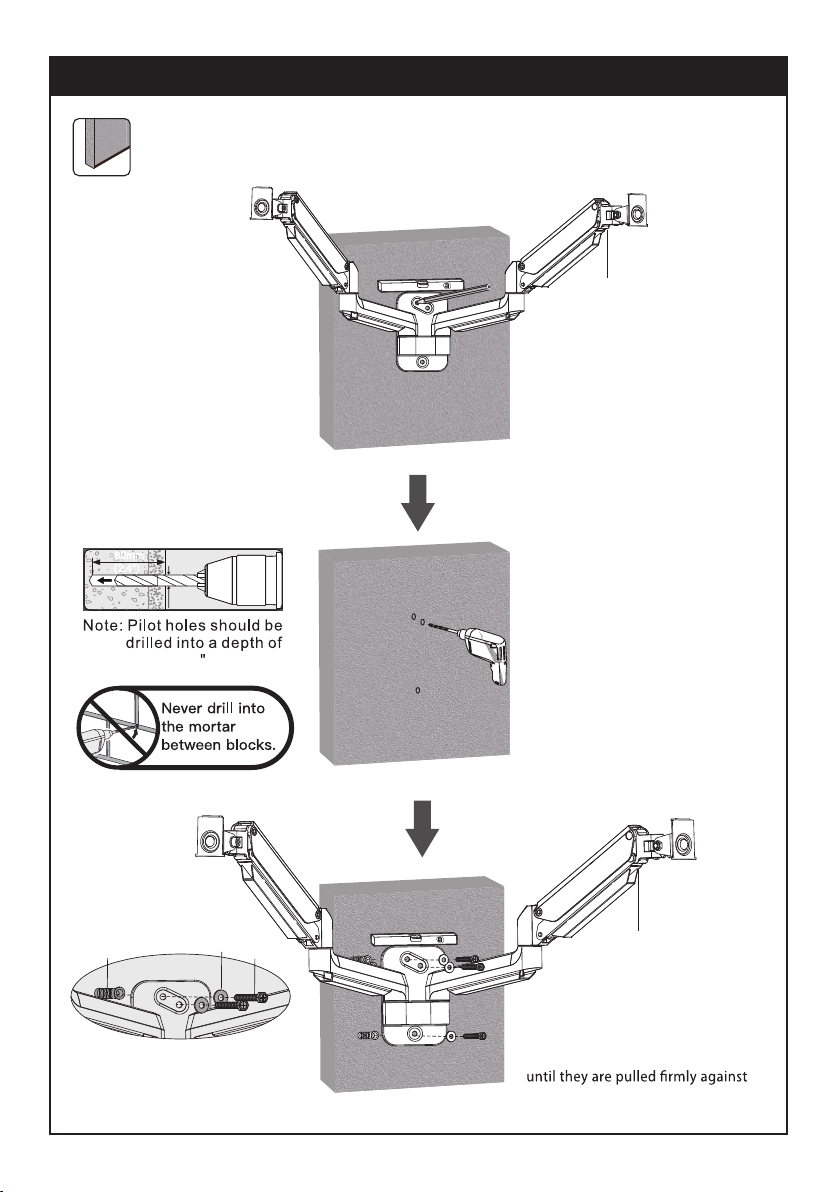

OPTION B: Solid Concrete Wall Installation
60mm (2.4 )
Position the Arm Assembly (A) at
yourdesired height , level the Arm
Assembly (A) and mark the pilot hole
locations.
Drill pilot holes using a ø3/8 in.
(ø10 mm) diameter drill bit.
Install Arm Assembly (A) using lag
bolts (W-A), anchors (W-B)and
washers (W-C). Tighten the lag bolts
the Arm Assembly (A).
A
A
W-C W-A
W-B
04
STEP 2: Attach Decorative Cover
D
Attach Decorative Covers (D) to Lag Bolts (W-A).
W-A
NOTE: Hand tighten screws toavoid over tightening.
STEP 3 : Attach Monitor
05
M-A
M-C
M-E
E
M-B
M-D
M-E
M-F
E
OPTION B: Curved Back Monitor
Attach the VESA plate (B) to back of monitor and secure
with screws (M-B) or (M-D) with washers (M-E)and
washers(M-F)using 6 mm Allen Key (E). Do not tighten
the screws excessively or your monitor might be damaged.
OPTION A: Flat Back Monitor
Attach the VESA plate (B) to back of monitor and
secure with screws(M-A)or(M-C) with washers(M-E)
using 6 mm Allen Key (E). Do not tighten the screws
excessively or your monitor might be damaged.
B
B
06
STEP 4: Hang Monitor
Slide the monitor onto the head of swivel arm, install the security bolt (C). Make sure the security
bolt is installed before you rotate the monitor.
Refer to below illustrations to adjust tilting angle of your monitor.
Tilts down
Note:
1. Loosen the tilting bolt.
2. Adjust monitor to your
desired tilting angle.
3. Retighten the tilting bolt to
Important Notice:
The gas spring tension is pre-set to the weakest level by default, please hold your monitor
by both hands and do not let go so soon after the VESA plate is attached to the swivel arm.
It's suggested to loose hold of the monitor in a slow & gentle way while observing if the gas
spring arm falls down greatly.
C
E
07
STEP 5: Adjust Tension
Note1:
Be sure to keep the arm in horizontal position during adjustment.
CAUTION
For proper functioning of this mount, depending on dierent weight of monitor you might need to adjust
tension in upper arm using 6 mm allen key (E).
E
Falls down
After being attached to the arm, the monitor fallsdown
and can not stay at the desired height by itself.
Turn counter-clockwise(“+”direction) to increase gas
spring tension until the monitor canstay at the desired
height by itself.
After being attached to the arm, the monitor rises up and
can notstay at the desired heightby itself.
Turn clockwise(“-”direction) to reduce gas spring tension
until the monitor canstay at the desired height by itself.
Rises up
As for how many circles the screw should be turned, the table below is for reference.
Note2:
Monitor Weight 1.5kg 3kg 4kg 5kg 6kg 7kg 8kg
Circles (AT LEAST) 108643min 12
08
STEP 5: (Continued)
STEP 6: Cable Management
On the bottom portion of the spring arm, insert the cable and slide the cable cover down;
On the upper portion of the spring arm, insert the cable and press the tabs on the inside of the cable cover
slightly inward and slide down to reattach the cable cover.
For both bottom and upper portion of the spring arm, just slide the cable cover up and away from the spring
arm, do not need to take much eort to pull the ends of the cable cover away from the spring arm.
1
2
Adjust as Desired
09
max280mm
+90°
-45°
180°
360°
180°
360°
Note: When tilted, if the monitor sags or does not stay,
please fasten the tilting bolt on the mount until the
monitor canbe held at any angle as needed.
Adjust monitor position and rotation.
