PerformAir Upright Vacuum

Please read and keep these instructions

Getting the best from your new cleaner...

If your cleaner is not picking up as well as it should, please check

Filters

It is important that the pleated filter is clicked clean each time

the dust canister is emptied to maintain suction. Regularly

remove and wash the pleated filter, thoroughly dry before

re-fitting. The spare filter allows one filter to be washed whilst

the other is in use. (See page 5).

Blockages

Check nozzles, tubes and hose and dust canister connector

for blockages. (See page 7).

Safety cut-out

Both the suction and beater bar motors are protected by

safety cut-outs. See page 7 for more details. If these

operate it is important to unplug from the main supply

before attempting any remedial action.

VC73350MUK Rev 2

For replacement parts, help with using your Morphy Richards, problems

and lots more, contact us by phone or through our website.

UUKKHHeellpplliinnee::0088770000660022660044

RReeppllaacceemmeennttppaarrttss::0088770011667766663355

IIrreellaanndd11880000440099111199

73350 rev2 22/6/06 11:03 Page 1

IMPORTANT

SAFETY

INSTRUCTIONS

The use of any electrical

appliance requires the

following common sense

safety rules.

Primarily there is danger of

injury or death and

secondly the danger of

damage to the appliance.

Location

• Do not use or keep this

product outside in the rain.

• Do not store the appliance

near hot surfaces eg ovens

or heating appliances.

Mains lead

• Do not allow the mains

lead to become strained or

run this appliance over it.

• If the electrical cable

becomes damaged the

cable assembly must be

replaced. Do not attempt

this task yourself, contact

the helpline number that is

found at the bottom of the

page.

Personal safety

•WARNING: Keep loose

clothing, hair, fingers etc.

away from the floor

nozzle whenever the

cleaner is connected to

the mains.

WARNING:Only lift and

carry the product by

the dust canister

handle ‡. Never place

hands/fingers in the

vicinity of the floor

nozzle beater bar

mouth when lifting/

carrying the product.

• Disconnect from the mains

supply before attempting to

clear blockages and clear

the brush.

• The plug must be removed

from the wall socket before

cleaning or maintaining the

appliance.

• Never modify the cleaner in

any way.

• Never use in the presence

of explosive liquid or

vapours.

• Never pick up inflammable

or poisonous liquids such

as petrol, copier toner or

other volatile substances.

Never pick up acids,

asbestos or asbestos dust.

• Never touch the plug or

cable with wet hands.

• Unprofessional repairs can

be dangerous for users.

• Use only Morphy Richards

spare parts and

accessories.

• The appliance must never

be left running

unsupervised.

• This appliance is intended

for domestic use only.

Misuse or use for

commercial or any other

purpose will render the

guarantee invalid.

• Always disconnect the

appliance from the main

supply after use or prior to

emptying or cleaning.

• To protect against fire,

electric shock and personal

injury do not immerse cord,

plug or cleaner in water or

other liquid.

Product safety

• Never use the appliance

without the filters being

installed.

• Never use the appliance to

vacuum hot ashes, broken

glass, sharp objects or

liquids.

Children

• Children do not understand

the dangers associated

with operating electrical

appliances. Never allow

children to use this

appliance.

ELECTRICAL

REQUIREMENTS

Check that the voltage on

the rating plate of your

appliance corresponds with

your house electricity

supply which must be A.C.

(Alternating current).

If the socket outlets in your

home are not suitable for

the plug supplied with this

appliance the plug should

be removed and the

appropriate one fitted.

WARNING: The plug

removed from the mains

lead, if severed, must be

destroyed as a plug with

a bared flexible cord is

hazardous if engaged

into a live socket outlet.

Should the fuse in the 13

amp plug require changing

a 13 amp BS1362 fuse

must be fitted.

UK Helpline 0870 060 2604 Replacement Parts 0870 167 6635 Ireland Helpline 1800 409119

73350 rev2 22/6/06 11:03 Page 2

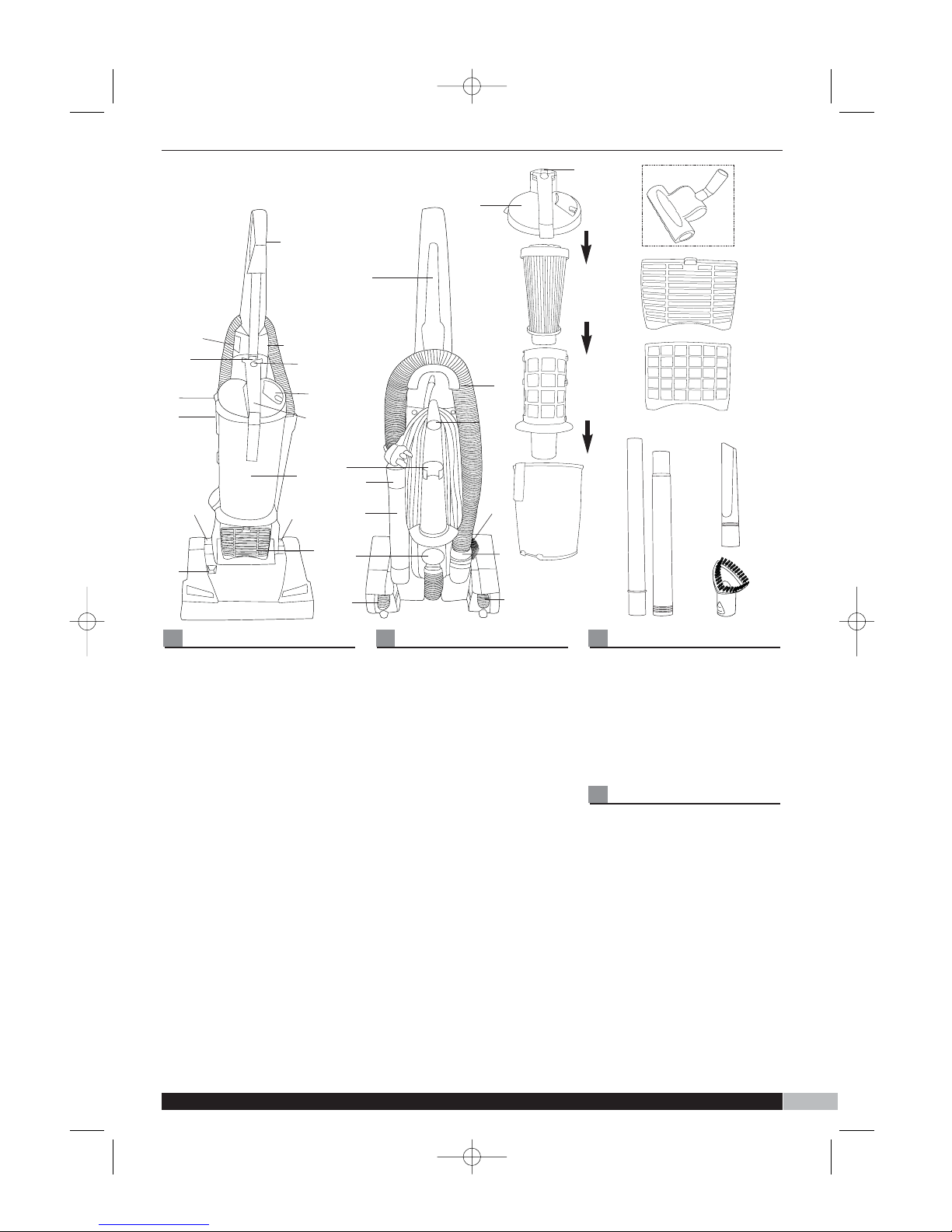

FEATURES

⁄Upper handle

¤Power switch/Beater bar

on/off switch

‹Variable power slider

›Canister release button

ﬁ‘Bits and bobs’ tray

ﬂFilter cleaning clicker lever

‡Canister handle

·Dust canister

‚Handle upright release

pedal

„Floor type adjustment

pedal

‰Exhaust filter grille

ÂFloor type adjustment

indicator

ÊExhaust filter

Back

ÁFlexible hose

ËCord storage quick release

cleat

ÈHose connector

ÍPolish holder

ÎDust canister connector

ÏTube connector

ÌHose connector flap

ÓCrevice tool storage

ÔFurniture brush locater

Accessories

Furniture brush

ÒCrevice tool

ÚExtension tubes

ÛTurbo nozzle (certain

models only)

Filter

ÙPleated circular filter

ıCentral mesh filter

ˆMotor protection filter

(unseen)

˜Dust canister lid

¯One touch empty button

⁄

¤‹

›

ﬁ

ﬂ

‡

‚

„

‚„

‰

Â

www.morphyrichards.com

Ó‰

73350 rev2 22/6/06 11:03 Page 3

4UK Helpline 0870 060 2604 Replacement Parts 0870 167 6635 Ireland Helpline 1800 409119

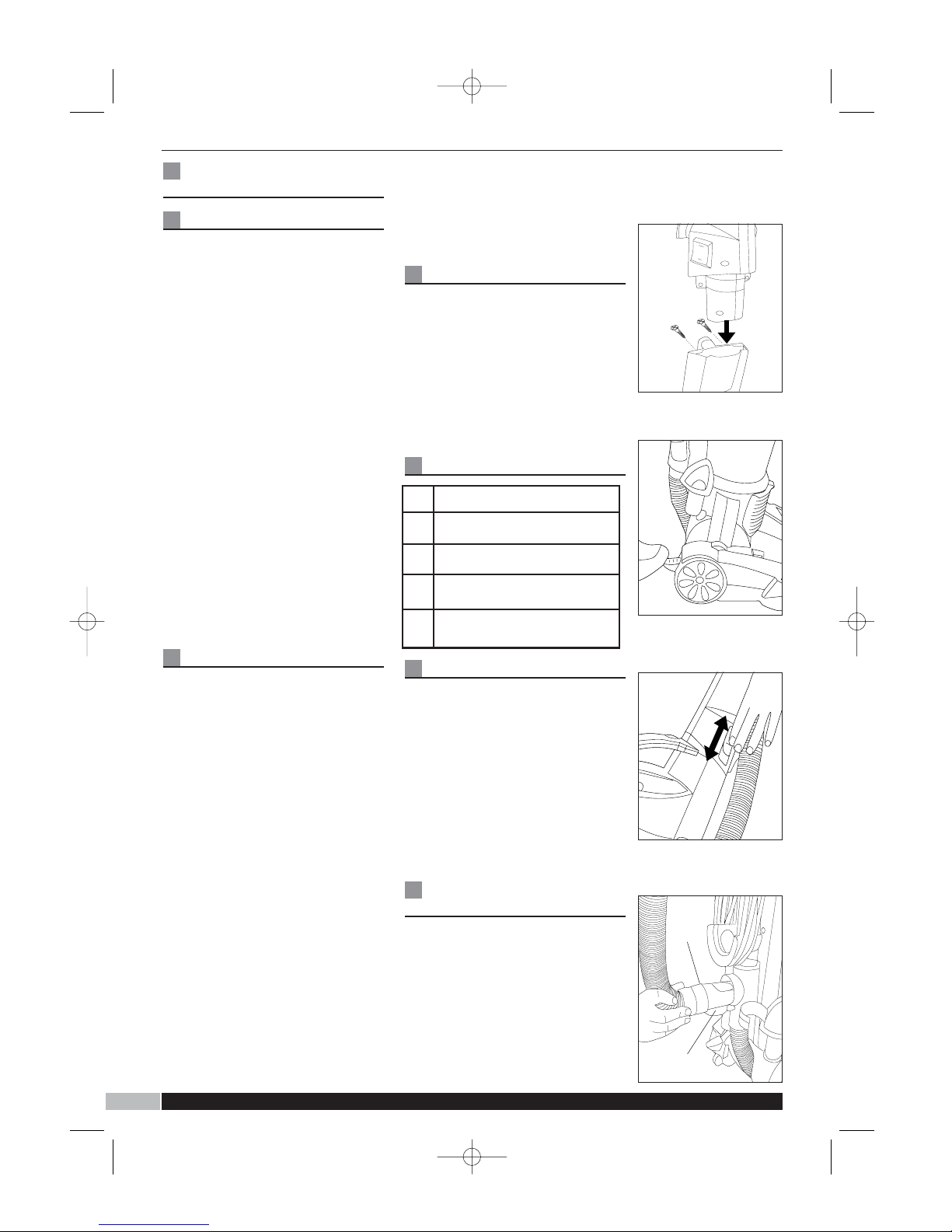

Operating the

appliance

Assembly

WARNING: Do not plug in

the cleaner until it is

assembled.

1Carefully unpack all

components.

2Lift cleaner body to upright

position.

3Remove the two upper screws

that are either side of the cable

storage and remove the dust

canister.

4Insert the handle into the main

body of the cleaner and push

down firmly before re-fitting and

tightening the screws. A.

5Re-attach the dust canister.

IMPORTANT: The cleaner may

not operate correctly if the

canister is not securely in

position so please ensure that

the handle is correctly fitted

before attaching the canister

Using on carpets

1Place cleaner in its upright

position.

2Set the floor type adjustment to

the desired position using the

pedal „ B.

3Release the mains cable by

turning the quick release cleat

Ëhalf a turn and extend the

cable fully.

4Plug the cable into the mains

socket.

5Step on the upright release

pedal ‚to release the handle

to the desired position.

6Press the control switch on the

handle to setting ‘II’ (carpet).

• Note: The beater bar will

automatically switch off when

the cleaner is parked upright.

IMPORTANT: To prevent damage

to carpets, never leave the

cleaner switched on in one

place for an extended period.

• Note: Never have the floor

nozzle set too low such that the

cleaner is hard to push.

Using on hard floors

Follow steps 1-5 from the

instructions for ‘Using on

carpets’

6Press the control switch on the

handle to ‘I’ (hardfloor)

NOTE: The beater bar does not

rotate with the power switch set

to ‘I’ (hardfloor)

Nozzle height settings

Variable power

Slide the variable power switch

‹Cupwards to increase the

suction power or downward to

decrease suction. This feature is

most useful when using the

hose and accessories. Use the

minimum setting when

vacuuming delicate

fabrics/curtains etc. When not

using the hose it is advisable to

keep the variable slider set to

maximum.

Using the hose and

attachments

1Take the hose connector out of

the storage clip.

2 Pull down the hose connector

flap Ìand insert the hose

connector with its ‘mouth’

pointing upwards D.

IMPORTANT: Push the hose

connector fully in such that the

flap Ìlatches on to the È

1Wood and laminate

2Short pile carpet and vinyl

3Medium carpet

4Deep carpet

5Tools

„

73350 rev2 22/6/06 11:03 Page 4

5www.morphyrichards.com

hose connector.

3Add the required accessory to

the extension tubes or directly

to the tube connector Ïwhen

using the hose and tools.

IMPORTANT: Turning the cleaner

sideways helps prevent the

cleaner being pulled along by

the stretch hose.

IMPORTANT: Remove the hose

connector before returning to

floor cleaning with the main

nozzle. Push the flap down to

disengage the latch before

pulling out the connector.

Using & cleaning the

turbo nozzle

(Certain models only)

Attach the turbo nozzle to the

tube connector for use on

upholstery and stairs.

After use your turbo nozzle may

become clogged. Turn over the

nozzle and pull away any hairs

or fibres. If they are tightly

wound around the brush

carefully snip the fibres with

scissors, being careful not to

damage the brush bar, pull away

from the bar and dispose.

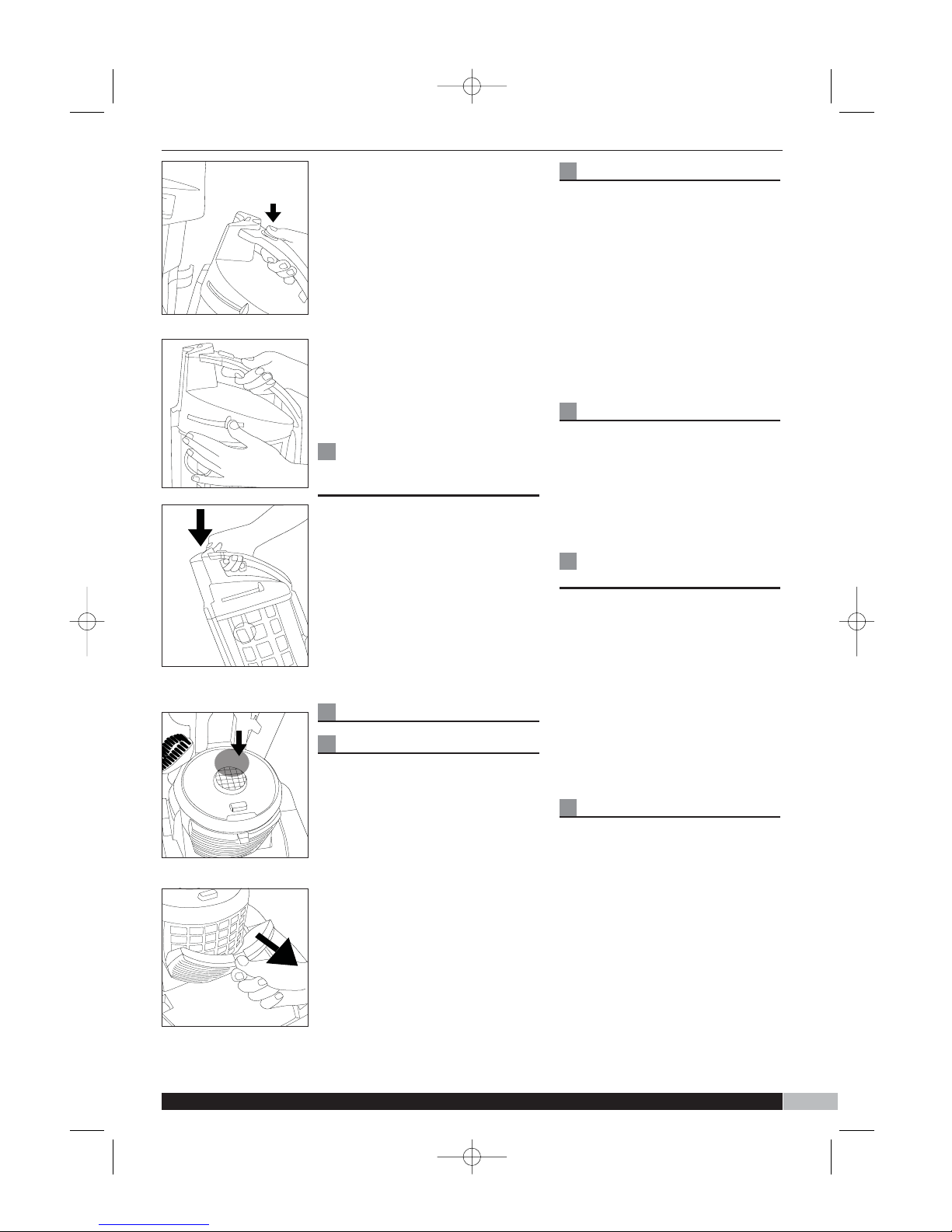

DUST CANISTER

Emptying

1Remove the dust canister from

the product by pressing the

canister release button E ›.

2Every time the dust canister is

emptied, slide the filter cleaning

clicker lever Fﬂseveral times

before emptying (this will agitate

the fine dust between the filter

pleats and restore the air flow).

3Holding the canister over a

dustbin press the one touch

empty button G¯and the

bottom of the canister will drop

down and release the dirt.

4Close the bottom of the dust

canister by pressing the base

upwards until it clicks into place.

5Re-fit dust canister and push

back into position.

Allergy sufferers

If the allergy suffer is emptying

the product it is recommended

that the container is placed into

a plastic bag to empty.

1Place the container inside the

plastic bag, releasing the

container with one hand whilst

holding the top of the bag

closed with the other, leave the

dust to settle for a few seconds

before removing the canister.

The plastic bag can then be

sealed and disposed of.

FILTERS

Using the filter cleaning lever at

every emptying will help

maintain good suction however

for a through clean the dust

canister and dust canister filters

may be dissembled and

washed.

Motor protection

filter

The motor protection filter ˆis

located underneath the dust

canister. H

1Remove the dust canister. E

2Lift out the filter and shake over

a dustbin. The filter may also be

washed in water (no detergents)

but must be totally dry before

re-fitting.

3Replace the filter.

Exhaust filter

The exhaust filter should be

washed every 6 months to

maintain efficiency.

The exhaust filter is located

below the dust canister

compartment.

1Remove the exhaust filter grille.

‰ I

2Remove the exhaust filter Êby

pulling forward at the top and

lifting away.

3Wash the filter in warm water.

No detergent. Leave the filter to

air dry before refitting.

‰

73350 rev2 22/6/06 11:03 Page 5

6 UK Helpline 0870 060 2604 Replacement Parts 0870 167 6635 Ireland Helpline 1800 409119

4Refit the filter and the exhaust

filter grille.

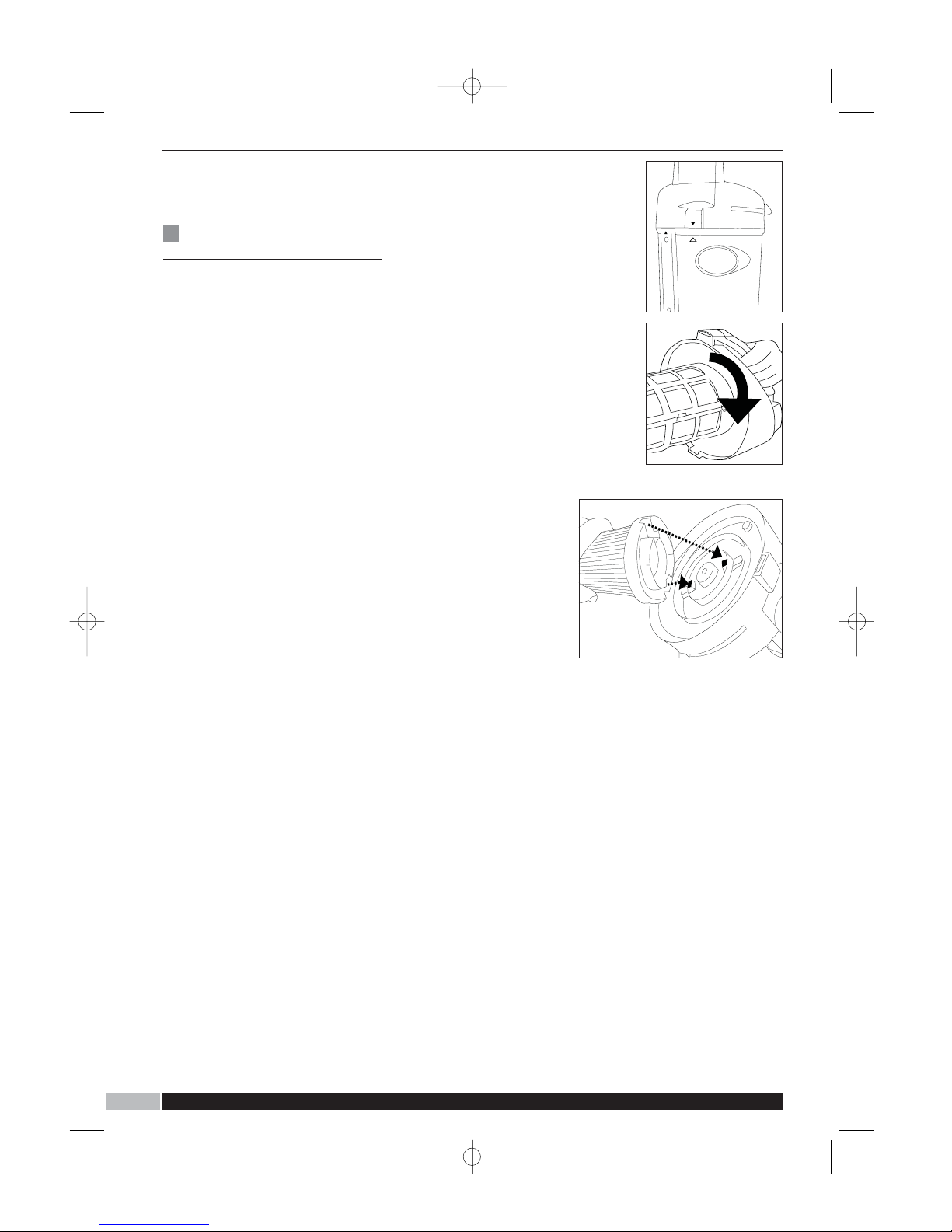

Cleaning the dust

canister filter

1Operate the filter cleaning

clicker lever ﬂ several times

and empty the canister over a

bin and then close the canister.

2To access the filter assembly

rotate the dust canister lid ˜

anti clockwise and remove from

the dust canister J.

3Turn the central mesh filter ı

clockwise to remove and clean

as required K.

4Detach the pleated circular filter

Ùfrom the canister lid ˜by a

firm pull action L.

5Both the mesh and pleated

filters may be washed (in warm

water only) but must be

thoroughly air-dried before re-

fitting.

The spare pleated filter allows

one filter to be washed and

dried whilst the other is in use.

6Re-locate the pleated filter back

into position on the canister lid

by aligning the tabs on the dust

canister lid ˜(marked by

arrows) Lwith cut away

sections on the top of the

pleated filter before pushing into

place.

Refit the mesh filter and turn

anti-clockwise to lock into

position on the dust canister lid.

Re-attach the canister lid on to

the canister by aligning the

arrows on the canister lid and

the canister J. Then rotating

the canister lid clockwise.

73350 rev2 22/6/06 11:03 Page 6

www.morphyrichards.com

HINTS AND TIPS

Safety cut-out

(Suction motor)

If the cleaner overheats a motor

protection thermostat will

automatically switch the motor

off. If this happens, switch the

cleaner off, unplug from the

power supply and leave the

cleaner to cool for at least 60

minutes. Check the airways for

blockages, empty dust canister

and clean the filters before

restarting.

Safety cut out

(beater bar motor)

If a large item or rug edge etc

jams the beater bar a safety

cut-out will stop the beater bar

motor. If this happens switch off

the cleaner and unplug from the

mains supply. Clear the

obstruction then wait a few

minutes for the cut-out to reset

before restarting.

CLEANING AND

MAINTENANCE

Unplug from the mains before

cleaning. The vacuum cleaner,

especially the dust

compartment and all

accessories can be cleaned

using a damp cloth or a non-

abrasive cleaner and wiped dry.

Blockages

If the performance has

deteriorated there may be a

blockage. Check the hose tube

and nozzles. The dust canister

connector may be removed for

access to the air path by

pressing the button (top and

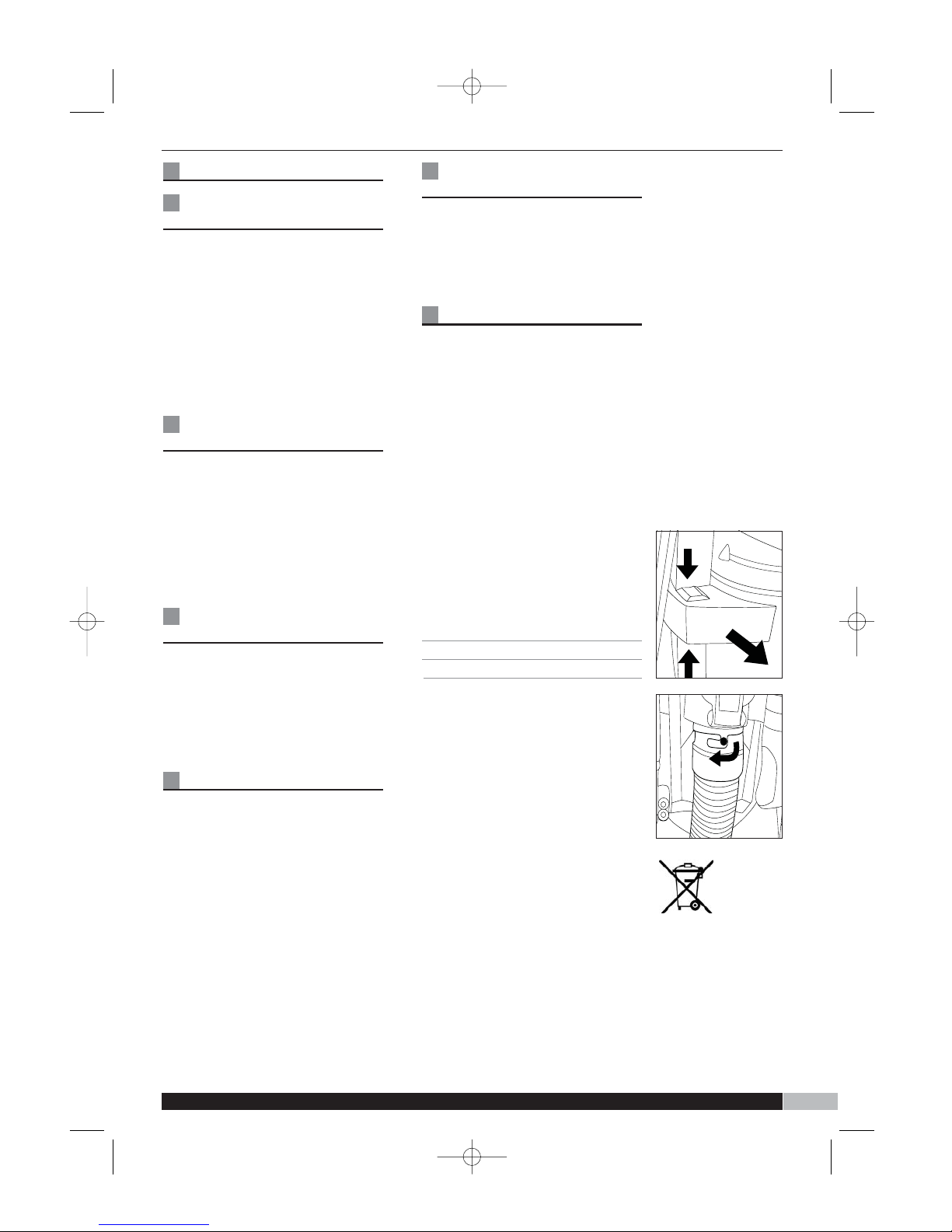

bottom) N. When re-fitting

make certain the catches are

fully locked in place.

The floor nozzle tube may also

be disconnected at the upper

end to clear any blockages.

Rotate the bayonet connector

and pull down to disconnect O.

Purchasing

replacement filters

Use only original Morphy

Richards filters. These can be

purchased from Morphy

Richards on Replacement parts

line.

Helpline

If you have any difficulty with

your appliance, do not hesitate

to call us.

We are more likely to be able to

help than the store from where

you bought it.

Please have the following

information ready to enable our

staff to deal with your query

quickly.

• Name of the product

• Model number as shown on the

underside of the appliance.

• Serial number as shown on

underside of the appliance.

UUKK

HHeellpplliinnee0088770000660022660044

RReeppllaacceemmeennttPPaarrttss0088770011667766663355

IIrreellaannddHHeellpplliinnee11880000440099111199

For electrical products

sold within the European

Community. At the end of

the electrical products

useful life it should not be

disposed of with

household waste.

Please recycle where

facilities exist. Check with

your Local Authority or

retailer for recycling

advice in your country.

73350 rev2 22/6/06 11:03 Page 7

Morphy Richards products are intended for household use only.

Morphy Richards has a policy of continuous improvement in product quality and

design. The company, therefore reserves the right to change the specification of its

models at any time.

The After Sales Division

Morphy Richards Ltd

Mexborough, South Yorkshire,

England, S64 8AJ

Helpline (office hours)

UK 0870 060 2604

Republic of Ireland 1800 409119

VC73350MUK Rev2 06/06

FFoorrddeettaaiillssooffootthheerrpprroodduuccttssiinntthheeMMoorrpphhyyRRiicchhaarrddssrraannggeepplleeaasseesseeeeoouurrwweebbssiittee......

www.morphyrichards.com

YOUR TWO YEAR

GUARANTEE

It is important to retain

the retailers receipt as

proof of purchase. Staple

your receipt to this back

cover for future reference.

Please quote the following

information if the product

develops a fault. These

numbers can be found on

the base of the product.

Model no. Serial no.

All Morphy Richards

products are individually

tested before leaving the

factory. In the unlikely event

of any appliance proving to

be faulty within 28 days of

purchase it should be

returned to the place of

purchase for it to be

replaced.

If the fault develops after

28 days and within 24

months of original

purchase, you should

contact the Helpline

number quoting Model

number and Serial number

on the product, or write to

Morphy Richards at the

address shown.

You may be asked to return

a copy of proof of

purchase.

Subject to the exclusions

set out below (see

Exclusions) the faulty

appliance will then be

repaired or replaced and

dispatched usually within 7

working days of receipt.

If you suspect a fault,

follow the simple checks

detailed below before

retrying the appliance or

calling the helpline.

• Check the filters for

blockages.

• Check the tools / tubes for

blockages.

• Check the plug is firmly in the

socket is working by trying

another appliance.

• Check the fuse in the plug.

If for any reason this item is

replaced during the 2 year

guarantee period, the

guarantee on the new item

will be calculated from

original purchase date.

Therefore it is vital to retain

your original till receipt or

invoice to indicate the date

of initial purchase.

To qualify for the 2 year

guarantee the appliance

must have been used

according to the

instructions supplied.

Exclusions

Morphy Richards shall not

be liable to replace or

repair the goods under the

terms of the guarantee

where:

1The fault has been caused

or is attributable to

accidental use, misuse,

negligent use or used

contrary to the

manufacturers

recommendations or where

the fault has been caused

by power surges or

damage caused in transit.

2The appliance has been

used on a voltage supply

other than that stamped on

the products.

3Repairs have been

attempted by persons

other than our service staff

(or authorised dealer).

4Where the appliance has

been used for hire

purposes or non domestic

use.

5Morphy Richards are not

liable to carry out any type

of servicing work, under

the guarantee.

6The guarantee excludes

consumables such as

some filters.

• This guarantee does not

confer any rights other than

those expressly set out

above and does not cover

any claims for

consequential loss or

damage. This guarantee is

offered as an additional

benefit and does not affect

your statutory rights as a

consumer.

• This guarantee is valid in

the UK and Ireland only.

73350 rev2 22/6/06 11:03 Page 8

Tabla de contenidos

Otros manuales de Aspiradora de Morphy Richards

Morphy Richards

Morphy Richards 73106 Manual de usuario

Morphy Richards

Morphy Richards POD VACUUM CLEANER Manual de usuario

Morphy Richards

Morphy Richards ORB CYCLONE VACUUM CLEANER - REV 3 Manual de usuario

Morphy Richards

Morphy Richards CYCLONIC BAGLESS UPRIGHT VACUUM CLEANER Manual de usuario

Morphy Richards

Morphy Richards Upright and Handheld Steam Cleaner Manual de usuario

Morphy Richards

Morphy Richards ECO PRIUS Manual de usuario

Morphy Richards

Morphy Richards Bagless Cylinder Vacuum Cleaner Manual de usuario

Morphy Richards

Morphy Richards VC73215 MUK Manual de usuario

Morphy Richards

Morphy Richards Storm pets cylinder vacuum cleaner Manual de usuario

Morphy Richards

Morphy Richards SpillMaster Manual de usuario

Morphy Richards

Morphy Richards LOX VACUUM CLEANER Manual de usuario

Morphy Richards

Morphy Richards 73270 Manual de usuario

Morphy Richards

Morphy Richards IB71051 Manual de usuario

Morphy Richards

Morphy Richards GrimeBuster steam cleaner Manual de usuario

Morphy Richards

Morphy Richards Allergy cylinder vacuum cleaner Manual de usuario

Morphy Richards

Morphy Richards IB71053 Manual de usuario

Morphy Richards

Morphy Richards PerformAir Upright Vacuum Manual de usuario

Morphy Richards

Morphy Richards SuperVac 732102 Manual de usuario

Morphy Richards

Morphy Richards 73285 BAGLESS UPRIGHT VACUUM CLEANER Manual de usuario

Morphy Richards

Morphy Richards Supervac Sleek Pro Manual de usuario

Morphy Richards

Morphy Richards ORB PETS CYCLONE VACUUM CLEANER - REV 1 Manual de usuario

Morphy Richards

Morphy Richards Pod vacuum cleaner Manual de usuario

Morphy Richards

Morphy Richards ESSENTIAL MINI VACUUM CLEANER - REV 1 Manual de usuario

Morphy Richards

Morphy Richards IB73120 Manual de usuario

Manuales populares de Aspiradora de otras marcas

Bissell

Bissell LittleGreen Proheat 1425 Series Manual de usuario

Panasonic

Panasonic MC-YL637S147-AE Manual de usuario

NEFF

NEFF N17XH10 0 Series Manual de usuario

LG A9 Series Manual de usuario

Oreck

Oreck Cordless Captura BK51700 Series Manual de usuario

Kogan

Kogan KAVACROBVWA Manual de usuario

Kränzle

Kränzle VENTOS 50 ID Guía del usuario

EVVO

EVVO Ai35 Manual de usuario

DeWalt

DeWalt DWH200D Manual de usuario

Pontec

Pontec Pondomatic Vacuum Cleaner Manual de usuario

Cleanmaxx

Cleanmaxx PC-P007E Manual de usuario

Exido

Exido 240-114 Manual de usuario

RIDGID

RIDGID WD1685AU0 Manual de usuario

Ezviz

Ezviz RE4P Manual de usuario

STG global

STG global TANVAC HDV3000 Manual de usuario

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manual de usuario

Factory

Factory M3340 Manual de usuario

Shop-Vac

Shop-Vac VN92 SERIES Manual de usuario
