Storm pets cylinder vacuum cleaner

Please read and keep these instructions

getting the best from

your new cleaner...

If your cleaner isn’t picking up as well as

it should, please check

• Dustbags

It is important to replace them when the dustbag indicator

shows red, otherwise the performance of the cleaner will

be impaired. Call our parts helpline.

• Filters

It is important that the filters are cleaned regularly or

replaced to allow air through the appliance.

• Blockages

Check the nozzle, tubes and hose for blockages.

• Stairlock

The stairlock mechanism makes a slight clicking when the

wheels turn, this is normal.

www.morphyrichards.com

70313 Rev 2 15/10/04 11:10 AM Page 1

Important safety

instructions

The use of any electrical appliance

requires the following of common sense

safety rules.

Primarily there is danger of personal

injury and secondly danger of damage to the

appliance and property. These are indicated

in the instructions text by the following two

conventions:

WARNING: Danger of personal injury

IMPORTANT: Damage to the appliance

In addition we offer the following

essential safety advice.

Location

•Do not use or keep this product outside

when it is raining.

•Do not store the appliance near hot ovens

or heating appliances.

Mains lead

•Do not allow the mains lead to become

strained or run this appliance over it.

•If the electrical cable becomes damaged

the complete cable assembly must be

replaced. Do not attempt this task

yourself, contact us using the helpline

number.

Children

•Children do not understand the dangers

associated with operating electrical

appliances. Never allow children to use

this appliance.

Other safety considerations

•Never use in the presence of explosive

liquids or vapours.

•Never pick up inflammable or poisonous

liquids such as petrol, copier toner, or

other volatile substances. Never pick up

acids, asbestos or asbestos dust.

•Always disconnect the appliance from the

mains supply after use or prior to

cleaning or replacing dust bags.

•The appliance should never be left

running unsupervised.

Product safety

•Never use the appliance without the filter

installed.

•Never use the appliance to vacuum hot

ashes, broken glass, sharp objects or

liquids.

•Never modify the cleaner in any way.

•Repairs to electrical appliances are only

to be undertaken by trained personnel.

Unprofessional repairs can be dangerous

for users.

•Use only genuine Morphy richards spare

parts and accessories.

Electrical

requirements

Check that the voltage on the rating plate

of your appliance corresponds with your

house electricity supply which must be A.C.

(Alternating Current).

If the socket outlets in your home are not

suitable for the plug supplied with this

appliance, the plug should be removed and

the appropriate one fitted.

If you cut off the plug and let go of the

cable it will rewind into the machine.

Therefore you must pull out a length of cable

and secure it before cutting off the plug and

refitting a new one.

WARNING: The plug removed from

the mains lead, if severed, must be

destroyed as a plug with bared flexible

cord is hazardous if engaged into a live

socket outlet.

Should the fuse in the 13 amp plug

require replacement, a BS1362 13 amp fuse

must be fitted.

70313 Rev 2 15/10/04 11:10 AM Page 2

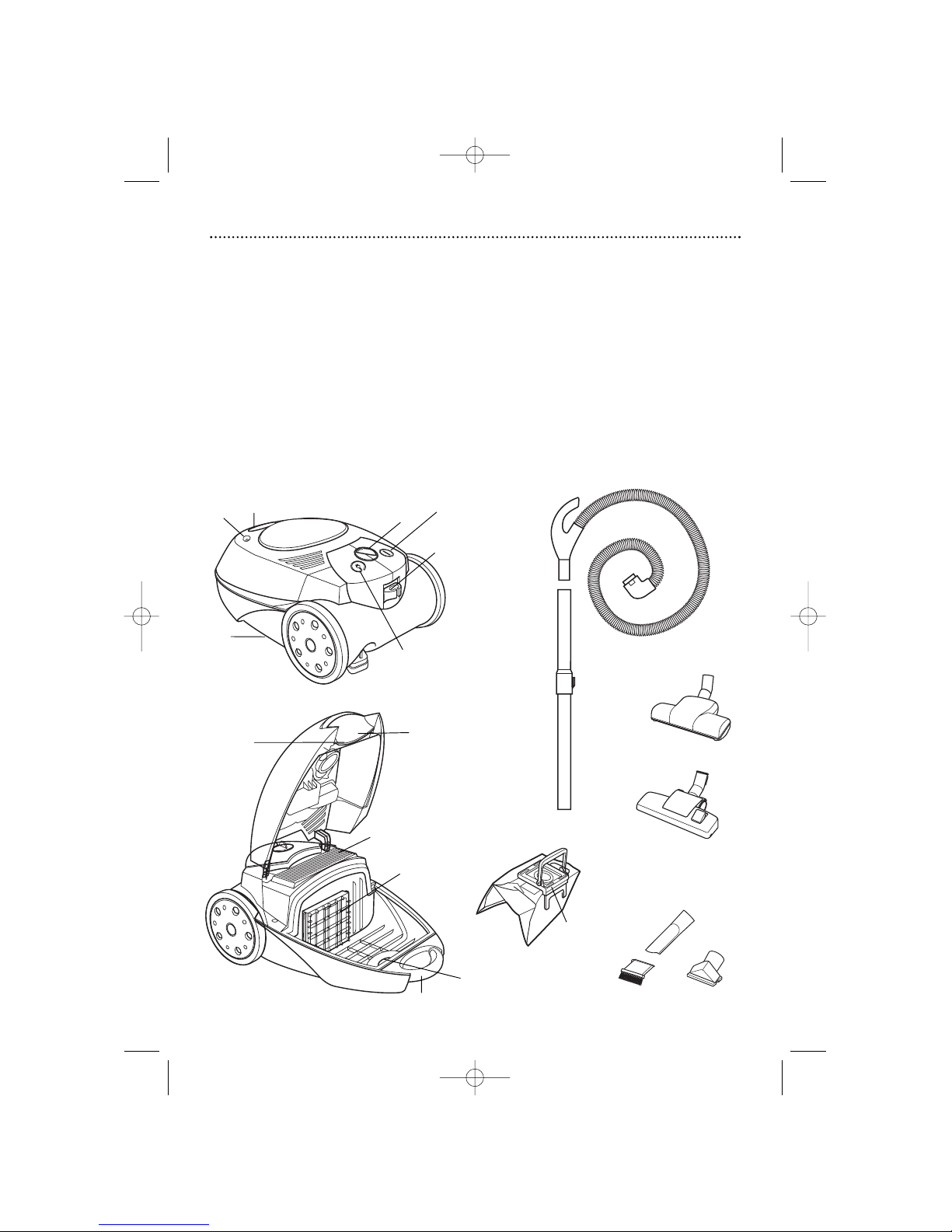

Features

⁄

›

‹‚

‡

Ê„

‰



ﬂ

ﬁ

⁄Dust compartment cover

¤Hose inlet

‹Bag full indicator

›Tool storage compartment cover

ﬁVariable power control

ﬂCable rewind switch

‡Tube standby slot

·Tube park

‚On/off switch

„Dust compartment release lever

‰Exhaust filter

ÂMotor protection filter

ÊDust bag safety lock

ÁSlot for attaching dust bag holder

ËCarrying handle

Accessories you should have:

ÈSuction hose with air flow control

ÍTelescopic metal tubes

ÎTurbo brush

ÏFloor nozzle

ÌPaper dust bag

ÓDust bag holder

ÔCrevice tool

Brush attachment

ÒUpholstery nozzle

70313 Rev 2 15/10/04 11:10 AM Page 3

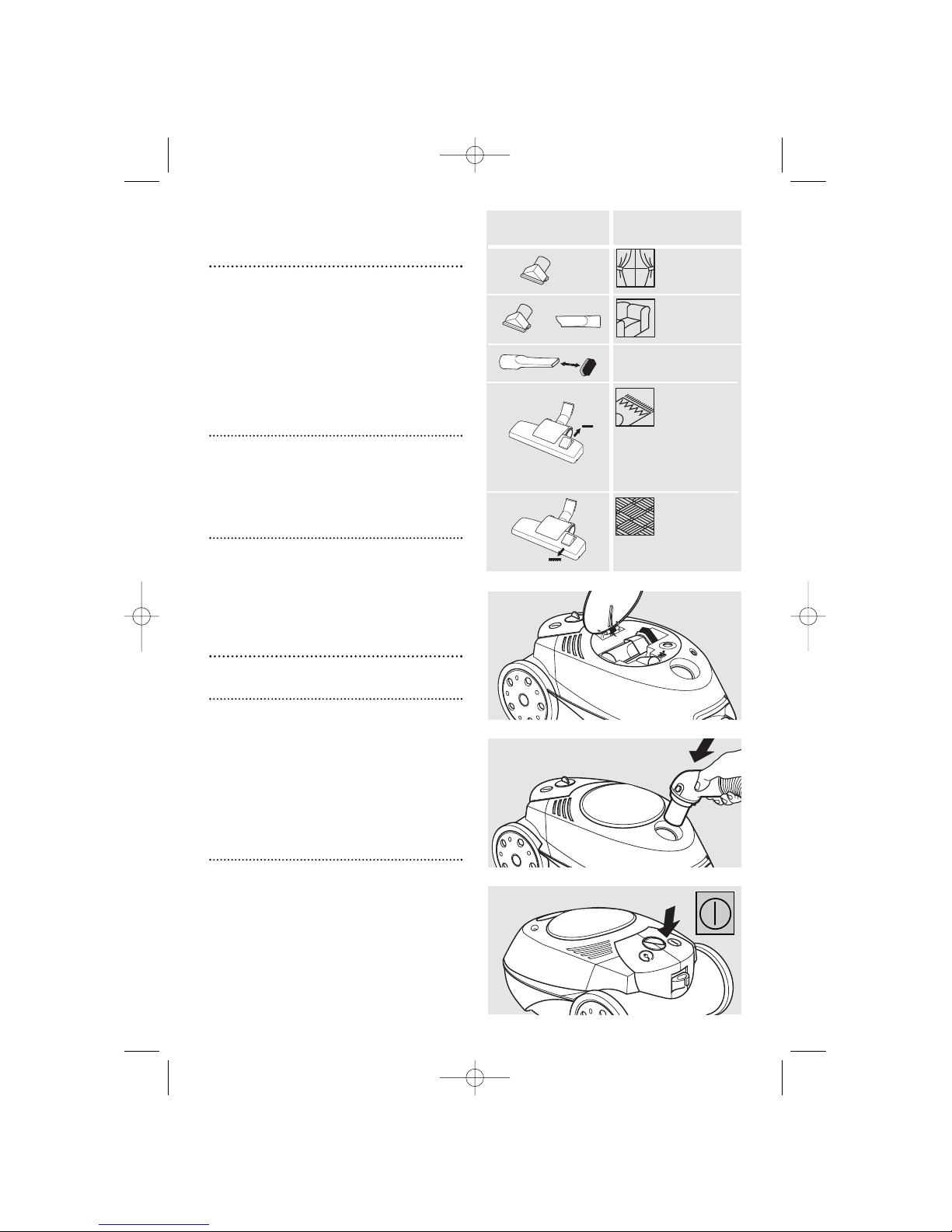

Standard

accessories Application

Curtains and

delicate

fabrics

Textiles and

upholstery

Shelves and

hard surfaces

Carpets and

other textile

floor coverings

(brushes up)

Settings for

heavy dirt and

smooth floors

(brushes down)

Tools and

accessories

Standard floor nozzle Ï

This nozzle is suitable for general

purpose cleaning on a wide variety of floor

coverings.

Turbo brush Î

This nozzle is suitable for cleaning and

rejuvenating cut pile carpets and is ideal for

picking up stubborn dirt and pet hairs.

Cleaning the turbo nozzle

The turbo nozzle should be regularly

cleaned and any hairs or fibres wrapped

around the brush bar removed to maintain

optimum performance.

Tool storage

The upholstery nozzle Ò, and the crevice

tool Ô and brush attachment  are stored

in the internal storage compartment. Lift to

open.

Operation

Suction hose

Push the 360° rotating head on the

suction hose È into the suction hose

opening ¤on the vacuum cleaner.

The appropriate cleaning tool can be

attached directly to the other end of the

suction hose or the telescopic metal tube

can be used between the suction hose and

the tool.

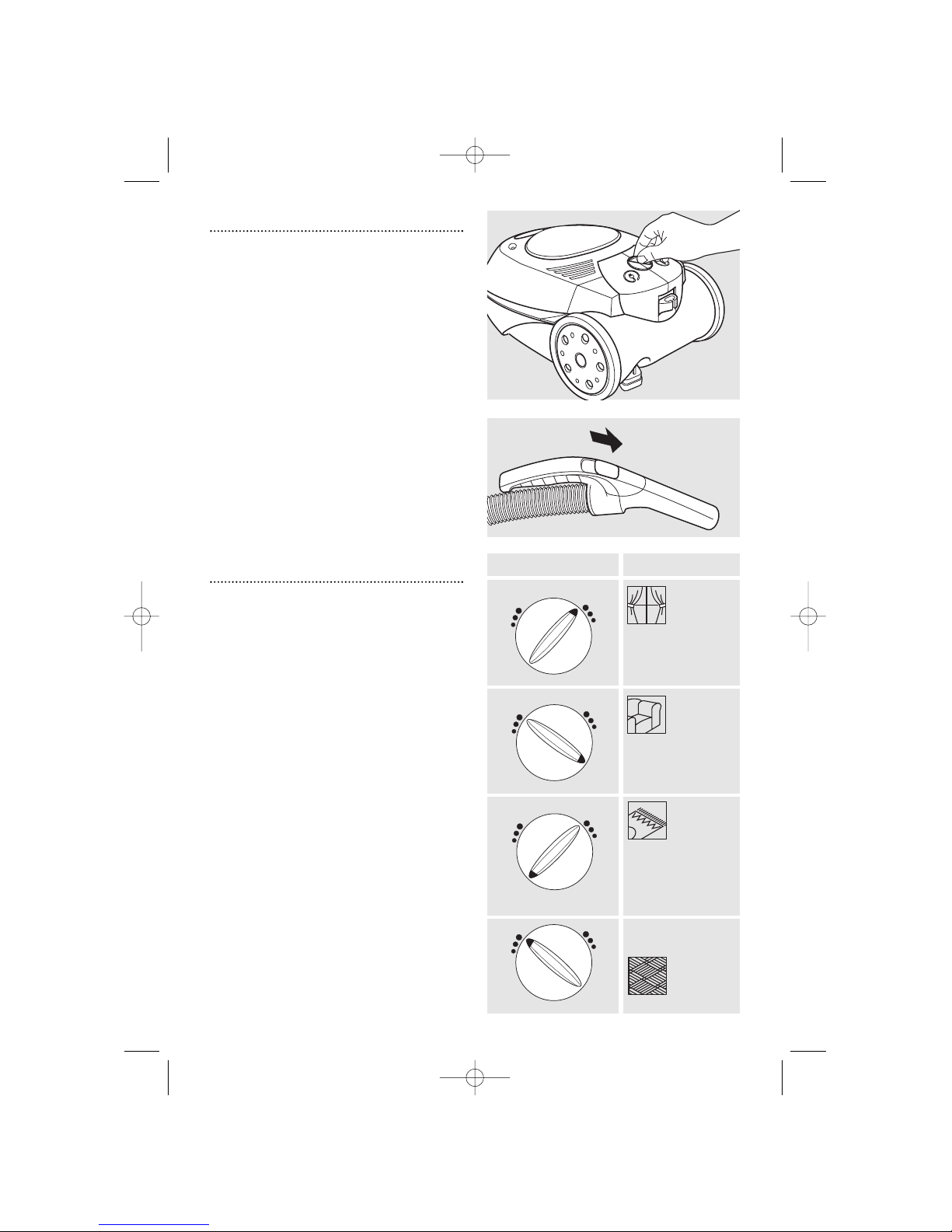

Switching on

Always pull out the supply cable to its

maximum length. Plug the appliance into the

mains supply. Ensure that the variable power

control ﬁ is set to minimum by turning the

dial anti-clockwise as far as it will go. Push

the on/off switch ‚to start the motor. Turn

the variable power dial clockwise to the

desired power.

70313 Rev 2 15/10/04 11:10 AM Page 4

Power setting Application

Curtains

and delicate

fabrics

Textiles and

upholstery

Floor

coverings

such as

rugs or economy

setting for carpets

Carpets or

hard floor

coverings

Open Closed

Controlling suction power

The suction power can be varied to suit

the surface being cleaned, by using the

variable power control ﬁ. See table for

guideline settings.

The suction power can also be adjusted

using the fingertip control on the handle.

Closed: full suction

Open: reduced suction

Recommended settings

Alter the power setting to suit surface.

70313 Rev 2 15/10/04 11:10 AM Page 5

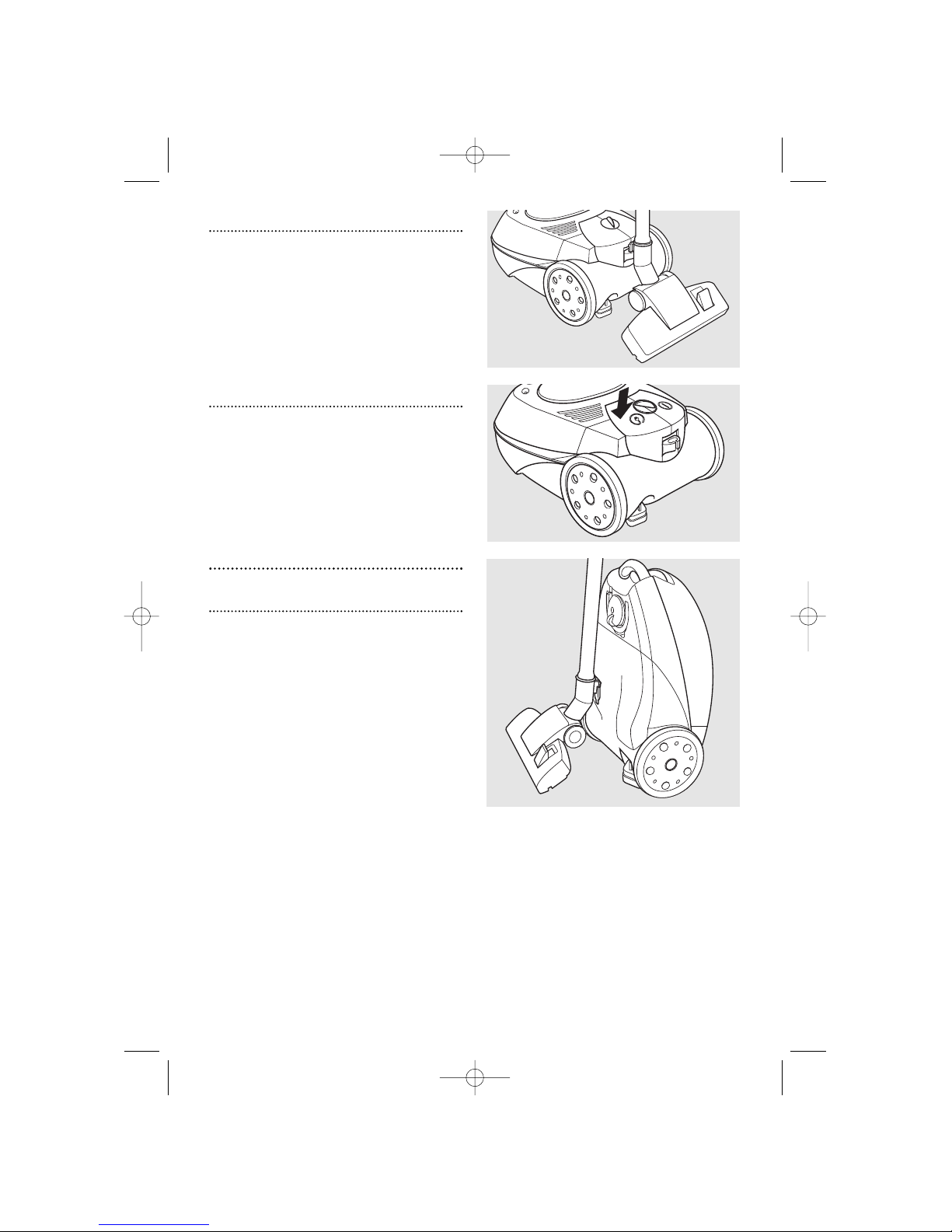

Tube standby

During short breaks in cleaning the tubes

can be held in an upright, ‘standby’ position

‡, whilst you move furniture for instance.

IMPORTANT: Ensure that the appliance is

never left unattended whilst it is switched on.

Switching off

Switch off the appliance. Remove the

plug from the mains supply and rewind the

power cable using the cable rewind switch

ﬂ.

WARNING: When using the cable

rewind, always hold the plug as the

cable will rewind quickly.

Storage

Tube park

The vacuum cleaner can be stored in an

upright position. Rotate the floor nozzle until

the lug on the back of it can be fitted into

the tube park slot on the base of the

appliance ·.

70313 Rev 2 15/10/04 11:10 AM Page 6

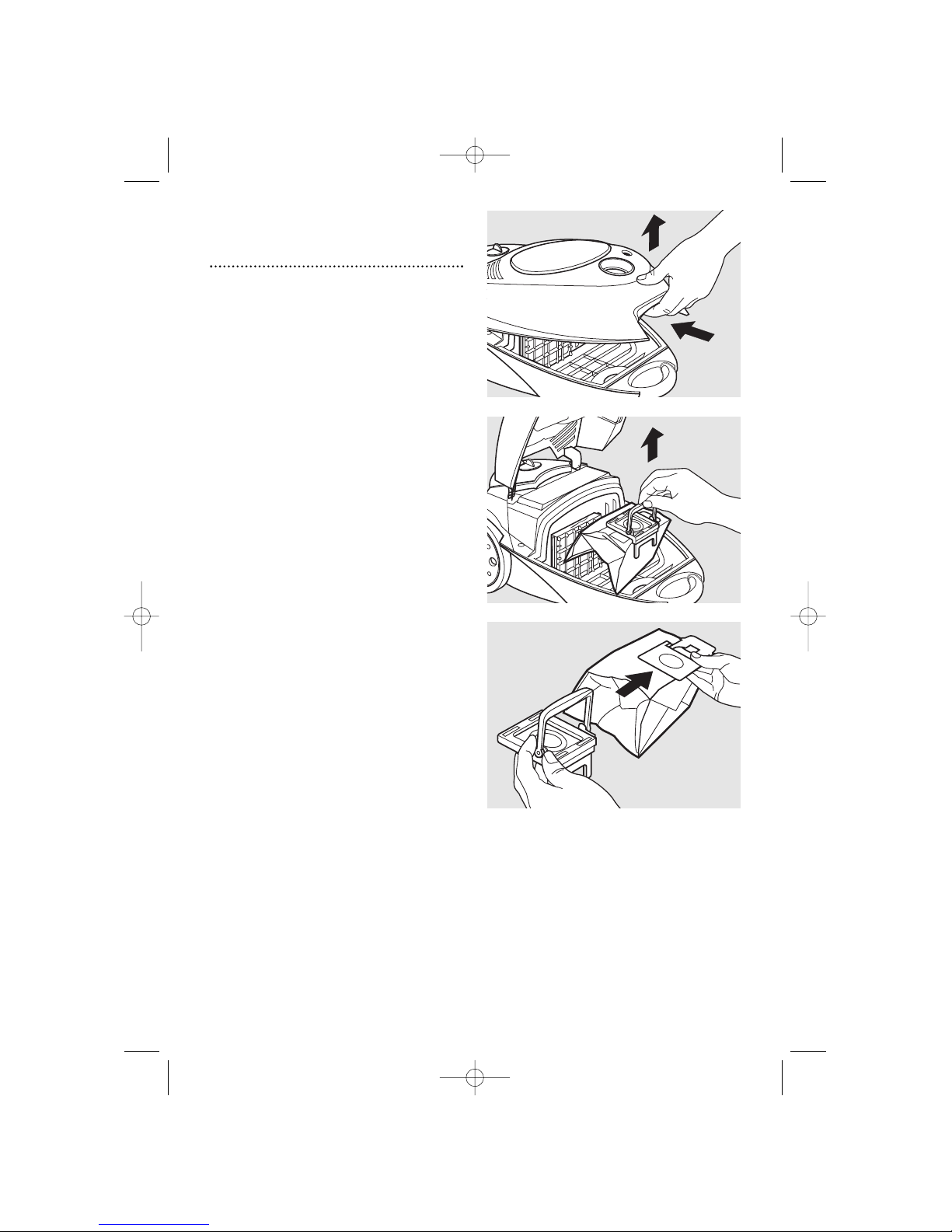

Changing the

dustbag

If suction power is reduced or if the ‘dust

bag full’ indicator ‹is permanently fully red,

the dust bag needs changing. Also check

whether the suction hose, tube or nozzle are

blocked.

To access the dust bag, press the dust

compartment release lever „to open the

cover.

1Pull the tab on the dust bag to one side

so that the opening is hygienically sealed.

2Pull out the dust bag holder and dust bag

in an upward direction.

3Pull the bag sideways out of the holder.

4Dispose of the bag with your household

waste.

5Insert a new dust bag in the holder.

6Replace the dust bag holder and close

the cover.

IMPORTANT: The dust bag compartment

cover can only be closed once a dust bag

has been correctly fitted.

70313 Rev 2 15/10/04 11:10 AM Page 7

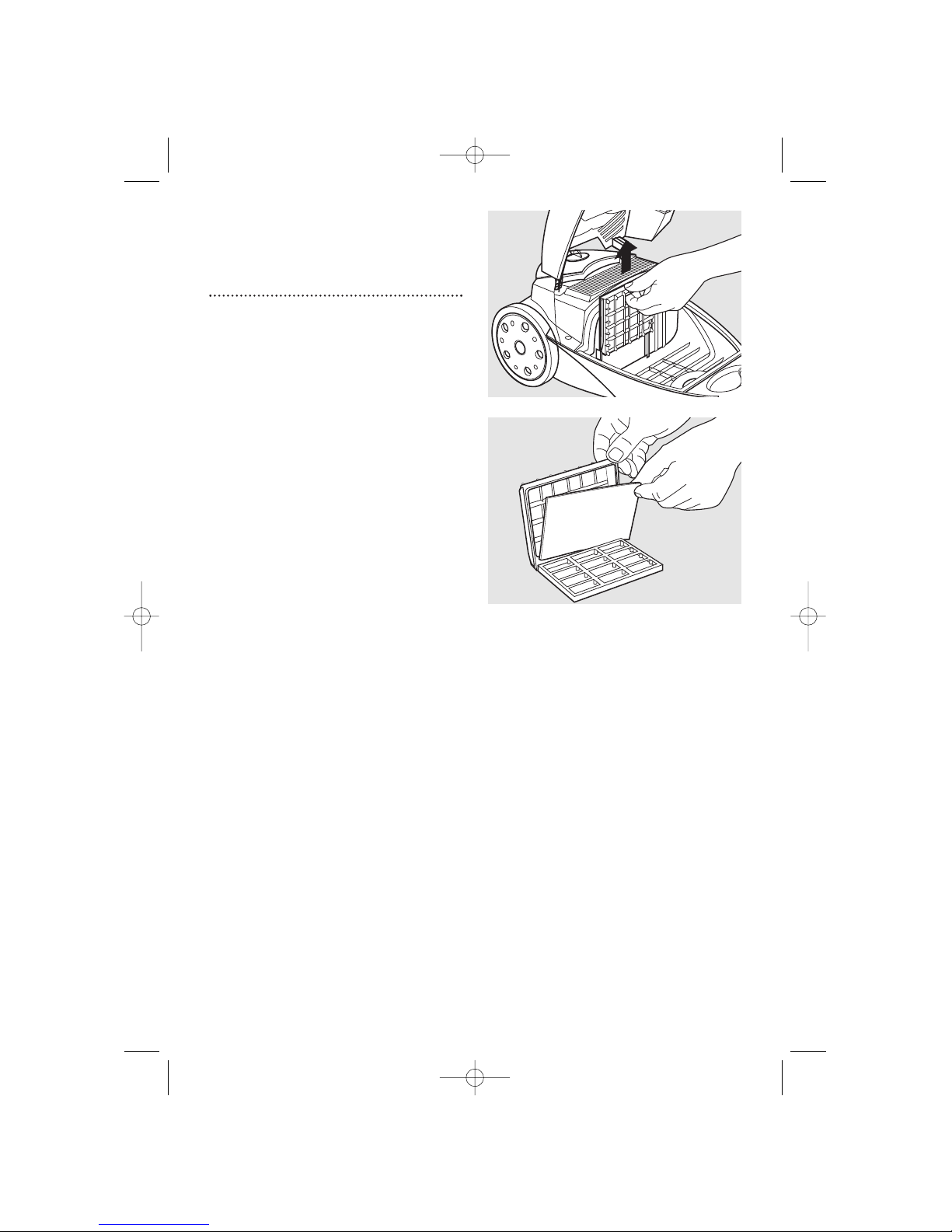

Changing/cleaning

the motor

protection filter

The motor protection is accessible from

the dust compartment only when the dust

bag has been removed first.

IMPORTANT: Never use the appliance

without the motor protection filter installed,

otherwise damage to the motor may occur

which would not be covered by the

guarantee.

1Slide the filter upwards to remove.

2Open the flap on the filter holder.

3Take out the filter and clean (by shaking)

or wash.

4To wash the filter, gently wash in warm

water and leave to air dry. Do not use

detergents. Ensure the filter is fully dry

before replacing into the machine.

5Close the filter holder and place back into

position before removed.

It is recommended that this filter is

cleaned everytime the dustbag is changed,

and is replaced every 5 dustbag changes.

70313 Rev 2 15/10/04 11:10 AM Page 8

Changing/cleaning

the exhaust air

filter

The exhaust air filter should be cleaned

by shaking every time the dustbag is

changed. The exhaust filter is non-washable.

Cleaning and

maintenance

Unplug from the mains before cleaning.

The vacuum cleaner, especially the dust

compartment and all accessories can be

cleaned using a damp cloth or a non-

abrasive domestic cleaner and wiped dry.

To keep the underside of the floor nozzle

clean, vacuum it at regular intervals using

the crevice tool.

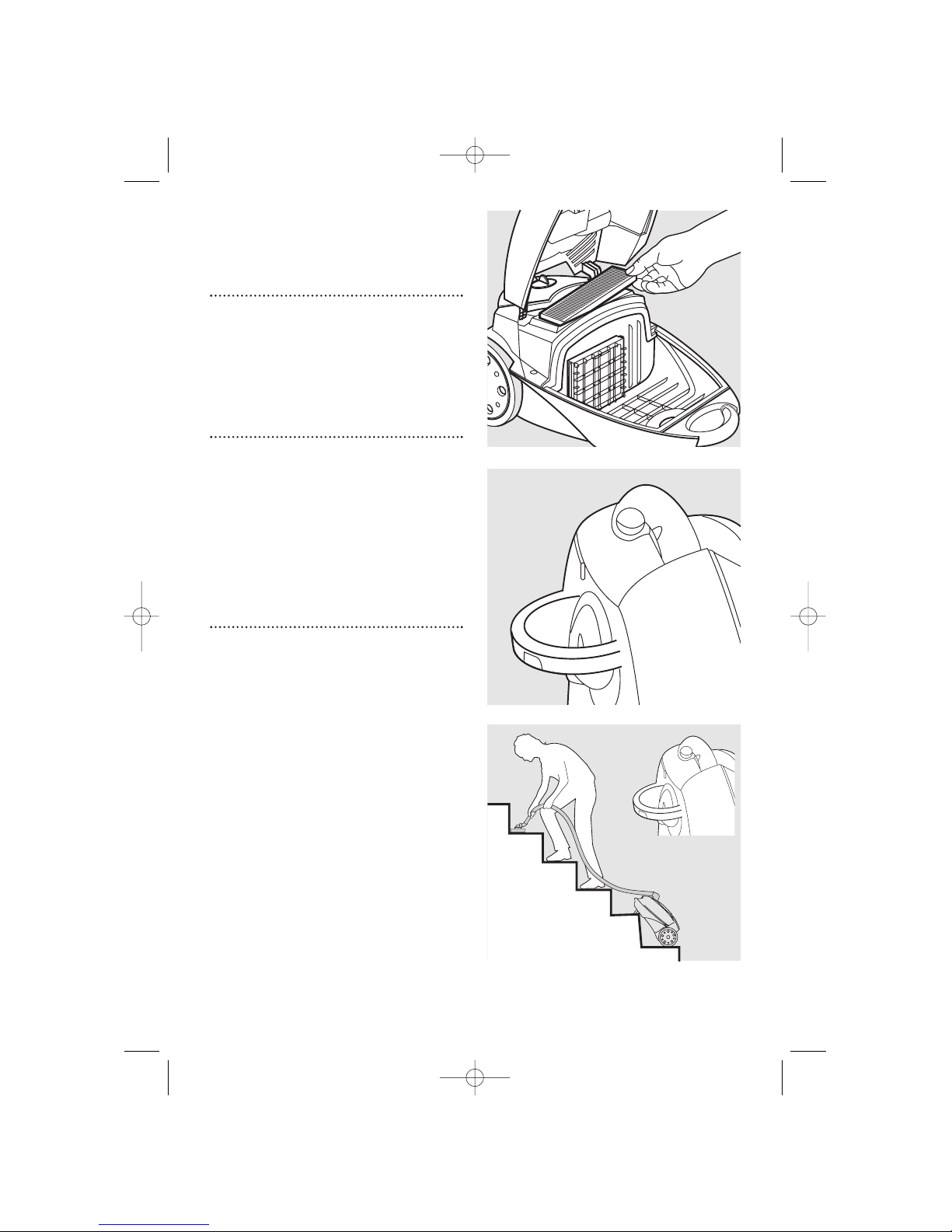

Stair lock

This unique system assists with stair

cleaning. The stairhook, found underneath, is

lifted out as shown and locked onto the

stairs. In addition, the rear wheels

automatically lock in position as further

security.

After use, simply push the stairhook

firmly back into position.

IMPORTANT: When cleaning on stairs, for

convenience and safety, work from the

bottom to the top with the desired accessory

connected directly onto the hose handle. It is

recommended not to use the extension tube.

Note: The stairlock mechanism makes a

slight clicking sound when the wheels turn,

this is normal.

70313 Rev 2 15/10/04 11:10 AM Page 9

Purchasing dustbags

replacement filters

Use only genuine replacement dustbags

and filters which can be purchased from

specialist retailers or by calling the number

on the front page of this leaflet.

Helpline

If you have any difficulty with your

appliance, do not hesitate to call us. We’re

more likely able to help than the store from

where you bought it.

Please have the following information

ready to enable our staff to deal with your

query quickly:

•Name of the product

•Model number as shown on the

underside of the appliance

•Serial number

70313 Rev 2 15/10/04 11:10 AM Page 10

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Aspiradora de Morphy Richards

Morphy Richards

Morphy Richards CYCLONIC BAGLESS VACUUM CLEANER - REV 4 Manual de usuario

Morphy Richards

Morphy Richards IB73350 Manual de usuario

Morphy Richards

Morphy Richards IB70191 Manual de usuario

Morphy Richards

Morphy Richards VC73111 MUK Manual de usuario

Morphy Richards

Morphy Richards IB73105 Manual de usuario

Morphy Richards

Morphy Richards ULTRALIGHT CYCLONE VACUUM CLEANER Manual de usuario

Morphy Richards

Morphy Richards VC73410 MUK Manual de usuario

Morphy Richards

Morphy Richards 73281 Manual de usuario

Morphy Richards

Morphy Richards VC73270MUK Manual de usuario

Morphy Richards

Morphy Richards SpillMaster Manual de usuario

Morphy Richards

Morphy Richards POD CYCLONE VACUUM CLEANER - REV 1 Manual de usuario

Morphy Richards

Morphy Richards ESSENTIALS CYCLONIC BAGLESS UPRIGHT VACUUM CLEANER - REV... Manual de usuario

Morphy Richards

Morphy Richards 73313 Manual de usuario

Morphy Richards

Morphy Richards Upright Bagless Vacuum Cleaner Manual de usuario

Morphy Richards

Morphy Richards IB70061 Manual de usuario

Morphy Richards

Morphy Richards GrimeBuster steam cleaner Manual de usuario

Morphy Richards

Morphy Richards 73332 Manual de usuario

Morphy Richards

Morphy Richards Bagged cylinder Vacuum Manual de usuario

Morphy Richards

Morphy Richards 73106 Manual de usuario

Morphy Richards

Morphy Richards IB73090 Manual de usuario

Morphy Richards

Morphy Richards 70317 Manual de usuario

Morphy Richards

Morphy Richards BIG POD BAGLESS VACUUM CLEANER - REV 2 Manual de usuario

Morphy Richards

Morphy Richards 73199 Manual de usuario

Morphy Richards

Morphy Richards Orb vacuum cleaner Manual de usuario

Manuales populares de Aspiradora de otras marcas

Bissell

Bissell LittleGreen Proheat 1425 Series Manual de usuario

Panasonic

Panasonic MC-YL637S147-AE Manual de usuario

NEFF

NEFF N17XH10 0 Series Manual de usuario

LG A9 Series Manual de usuario

Oreck

Oreck Cordless Captura BK51700 Series Manual de usuario

Kogan

Kogan KAVACROBVWA Manual de usuario

Kränzle

Kränzle VENTOS 50 ID Guía del usuario

EVVO

EVVO Ai35 Manual de usuario

DeWalt

DeWalt DWH200D Manual de usuario

Pontec

Pontec Pondomatic Vacuum Cleaner Manual de usuario

Cleanmaxx

Cleanmaxx PC-P007E Manual de usuario

Exido

Exido 240-114 Manual de usuario

RIDGID

RIDGID WD1685AU0 Manual de usuario

Ezviz

Ezviz RE4P Manual de usuario

STG global

STG global TANVAC HDV3000 Manual de usuario

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manual de usuario

Factory

Factory M3340 Manual de usuario

Shop-Vac

Shop-Vac VN92 SERIES Manual de usuario
