Microtek ScanMaker i480 Manual de instrucciones

Step 2: Install Software

Step 1: Unpack Contents

Start Here

Installing your Microtek ScanMaker i480

Unpack your scanner package and check for

major components.

1. Scanner with built-in transparency adapter

2. Hi-Speed USB cable

3. Power adapter

4. Black mat

5. Software CDs/DVDs

6. Film holders

I49-004880 B, September 2013

Important: Do not remove the yellow stickers from your

scanner until you are told to do so. You must install

software before connecting your scanner.

Always close any open programs and turn off Anti-virus

utilities before installing software.

PC:

A. Place the Microtek Software CD/DVD into

a drive, and follow the on-screen

instructions to install the scanner driver

and software.

B. Restart your computer at the end of all

software installation.

NOTE: If the Microtek Software Installer screen

does not come up automatically, double-click the

following in succession: “My Computer”; the CD/

DVD-ROM icon; then cdsetup.exe to start the

installer program.

MAC:

A. Place the Microtek Software CD/DVD

(ScanPotter) into a drive, and double-click

the ScanPotter installer icon to install

ScanPotter.

B. Install the remaining software

components, then restart your computer

at the end of all software installation.

NOTE: After rebooting your Macintosh, the Microtek

software will attempt to locate your scanner on the

system. Since this is your first install and you have

not yet connected the scanner, simply ignore the

message that appears and proceed to the next step.

Unlocked Locked

Step 3: Unlock Scanner

NOTE: To lock the scanner (for shipping and other reasons), tilt the scanner and look for the locking

switch on the right corner at the back, then push the locking switch to the "Locked" position. DO

NOT turn the scanner upside down when attempting to lock the unit.

A. Remove the yellow “Step 3” sticker from

your scanner.

B. With the scanner power off, tilt the back

right corner of the scanner to see the

locking switch at the bottom.

C. Push the locking switch to the position as

indicated in the graphic, with the icon on

the lock showing as “Unlocked”.

Step 4: Connect Scanner

To the scanner lid

Make sure the scanner lid (with built-in transparency

adapter) is properly connected to the scanner’s 9-pin

accessory port. Plug the connector into the port if the

scanner lid is not securely connected.

To the power adapter

A. Remove the yellow “Step 4”

sticker from your scanner.

B. Connect the power adapter to the

back of the scanner.

C. Plug the power adapter

into a power source.

To the Hi-Speed USB cable

D. Connect one end of the cable to your computer.

E. Connect the other end of the cable to the scanner.

Scanner Buttons

The ScanMaker i480 is equipped with seven scanner

buttons, providing quick access to the most frequently used

functions. These buttons are Cancel/Setup, Scan, Copy, E-

mail,OCR,PDF,and Custom.

Step 4: Connect Scanner (cont.)

F. Turn the power switch at

the back panel of your

scanner to “On”; the LED

lights up at the front panel of

the scanner.

The system will detect your

scanner automatically.

Cancel/Setup: Cancels the scanning job when the scanner is scanning. Launches the

Microtek Scanner Configuration (MSC) utility when the scanner is not scanning.

Scan: Captures images that can be saved as files or sent to an image-editing application.

Copy: Scans the image and sends it to your printer.

E-mail: Scans the image and delivers it directly to your e-mail editor.

OCR: Scans a text document, converts, and saves it in text file format.

PDF: Scans the image and saves it in the Adobe Acrobat PDF format.

Custom: Customizes this button to perform your preferred function, such as Power

Saving, Scan, Fax, or Launch Application.

Scanner Buttons

Position the Scan Material

Position Reflective Materials

To scan reflective materials such as photos and prints, place the

photo to be scanned on the scan bed. The top end of the original

should be positioned towards the back of the scanner, with the

surface to be scanned facing down. Then, place the Black Mat on

top of the photo.

Position Transparencies

To scan transparent film such as 35mm slides , 35mm filmstrips, 4" x 5" film, and medium

format film, use the film holder.

A. To load film:

1. Load the film inside the holder, with the film’s shiny base facing down. Slide the film

along the slots of the holder until the film is fully loaded.

2. Raise the scanner lid, and place the film

holder with the film on the scan bed. The

holder should be flush against the top ruler

of the scanner.

Make sure that the red arrow marks on

both the holder and the scanner are

pointing to each other when the holder are

put together.

B. To load slides:

1. Raise the scanner lid, and place the film

holder on the scan bed. The holder should

be flush against the top ruler of the

scanner.

Make sure that the red arrow marks on

both the holder and the scanner are

pointing to each other when the holder are

put together.

2. Place the slide in the film holder, with the

slide facing down.

Do not block

calibration window

Do not block

calibration window

Basic Scanning for PC Users

Scanning Photos

1. Place the photo.

To scan photos, place the photo to be scanned on the scan bed, as detailed in the “Position

Reflective Materials” section in this guide.

NOTE: Use of the Black Mat on top of your photo filters out unwanted light during scanning, and

ensures the correct functioning of the automatic cropping feature when you do a preview scan.

2. Launch ScanWizard EZ.

To launch ScanWizard EZ as a stand-alone program, double-click the

ScanWizard EZ icon on your desktop. When ScanWizard EZ is launched for

the first time, the control panel of ScanWizard EZ - EZ Mode appears

automatically.

Select preferences if necessary

Before you start scanning, specify image settings related to your output image in the

Preferences window according to your preferences.

Auto Settings – Switches on/off Auto-crop and Auto-deskew, and applies ACE

(Automatic Color Enhancement) to the image.

Scan Mode – Sets the image resolution and scan quality to match your target application.

Save – Assigns the folder location, a file name, and the file format for the output image.

Also, it allows you to specify an application to open the image.

Theme – Changes the appearance of the control panel for the EZ mode.

NOTE: For details about how to use the ScanWizard EZ‘s Advanced Mode and

Professional Mode, refer to the ScanMaker i480 Supplement.

3. Scan your material.

Click the Scan button on the control panel of EZ Mode to start scanning.

The ScanWizard EZ will detect the photo on the scanner glass surface first, next

automatically calibrate the scanner, crop the image, and finally perform the image scan

with factory settings. When done, the scanned image can be saved in a file and delivered

to the specified location.

Switches to the

Professional Mode

Switches to the

Advanced Mode

Activates the

Preferences window

Press the Scan button

to start scanning

Minimizes ScanWizard EZ

Exits ScanWizard EZ

Scanning Film

1. Place the film.

To scan film, use the film holder, as detailed in the “Position Transparencies” section in this

guide.

2. Launch ScanWizard EZ.

Follow the step 2 in “Scanning Photos” on the previous page to launch ScanWizard EZ.

3. Switch to ScanWizard EZ - Professional Mode.

Click the Professional Mode button on the control panel of the EZ Mode to switch to the

Professional Mode.

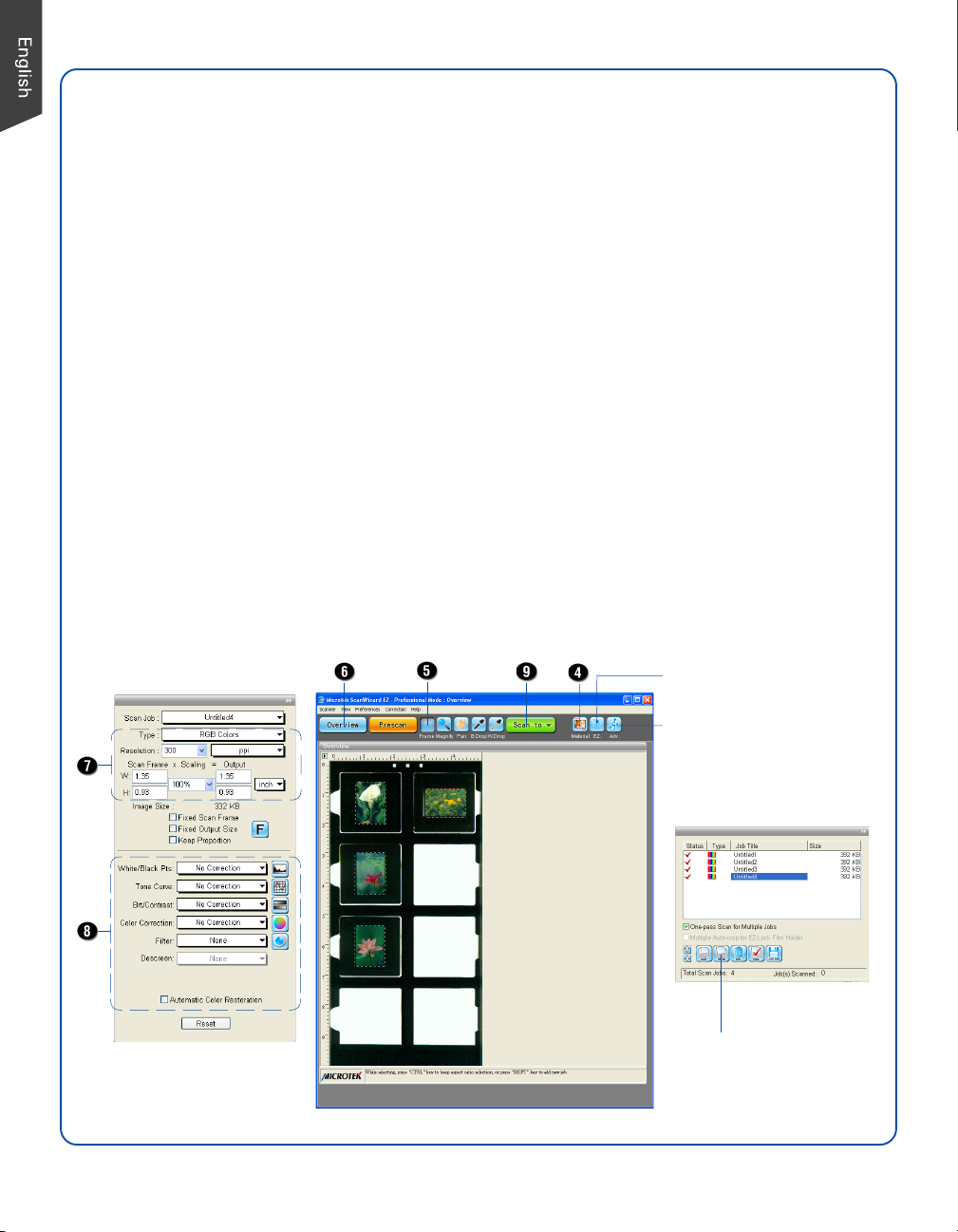

4. In the Preview window of the Professional Mode, click the Scan Material button to choose

Negative Film for negatives; choose Positive Film for transparencies and slides, depending

on the film type you are using.

5. Select the Scan Frame tool, and choose the area to be scanned by sizing the marquee

around the targeted area.

6. Click the Overview button to perform a preliminary scan of the film loaded onto the

scanner.

7. Specify your scanning requirements in the Settings window. Choose the desired image type

and resolution, and adjust the scan frame settings if necessary.

8. Adjust image quality if necessary, using the Advanced Image Correction tools.

9. Click the Scan to button in the Preview window to scan the film.

Scan Job Queue

window

Press to switch to

ScanWizard EZ - EZ Mode

Preview window

Settings window

Press to switch to

ScanWizard EZ - Advanced

Mode

Click NEW to create

more scan frames

Basic Scanning for Mac Users

1. Place the scan material.

•To scan photos, place the photo to be scanned on the scan bed, as detailed in the

“Position Reflective Materials” section in this guide.

•To scan film, use the film holder, as detailed in the “Position Transparencies” section in

this guide.

2. Launch ScanPotter as a stand-alone by clicking on the program icon, or by selecting it from

the application folder in your Mac OS X system.

3. In the Scan Source options menu, depending on the scan material you are using, choose

either Reflective for photos, Negative Film for negatives, or Positive Film for transparencies

and slides.

4. Specify your scanning requirements in the Scanner Settings column.

a)Select the appropriate image type (e.g., RGB Color) in the Color Type as your image

output type.

- Select Color to scan the image in color.

- Select Grayscale to scan the image in grayscale.

- Select Black & White to scan the image in black-and-white.

b)Select a desired resolution in the Resolution for your image output resolution.

c)Select Automatic Detection or a desired dimension in the Scan Frame as your preview

image size.

5. Click the Preview button to perform a preliminary scan of the image in the Preview

window.

6. If necessary, resize the scan frame (floating dotted rectangle) around the image by

dragging on the square spots on the edge or on the corner of the scan frame to determine

the final size of the actual scan.

7. If necessary, specify file settings for your output image files, using the options offered in

the File Saving Settings column.

8. If necessary, click the Image Settings button to switch to a window in which you can

select a preset image effect to the image directly or adjust image quality manually by using

the additional image correction tools.

9. Click the Scan button to start scanning.

NOTE: For details on scanning photos and film, see the ScanMaker i480 Supplement in the Microtek

software CD/DVD.

Click the Image Settings

button to switch to a

window where contains

a composite display of

nine-image-effects (Filter

column) and additional

image correction tools

(Additional Adjustment

column) for your

scanned image.

Click the Scan Settings button

to switch back to the default

control panel of ScanPotter

Scan frame

(enclosed by dotted lines)

Preview window when

scanning slides

Preview

window when

scanning

photos

Problems?

The LED on the button panel indicates the status of the scanner.

If you encounter any problems, check the section below and follow the suggested solution if your

problem is listed. You may also want to go over installation steps 1 to 4 of this "Start Here"

document to make sure that you have followed all procedures properly.

1. No light comes on when the scanner is turned on.

Make sure your scanner is connected to your computer and plugged into a power source.

2. Add/Remove Hardware Wizard appears on your screen.

Click the “Cancel” button and close the control panel. Disconnect the USB cable from the back of

your computer, and refer to the installation instructions in this guide.

3. When trying to scan, an error message appears on your screen that reads, “Can’t Find Scanners”.

Make sure your scanner is unlocked (see Step 3).

Make sure your scanner is connected to your computer and plugged in to a power source (see Step

4).

Uninstall and reinstall the ScanWizard EZ or ScanPotter software.

4. After clicking scan, a blank screen appears.

Make sure your scanner is unlocked (see Step 3).

Uninstall and reinstall the ScanWizard EZ or ScanPotter software.

5. Having trouble scanning negatives or slides?

Make sure the scanner lid (with built-in transparency adapter) is properly installed, with its connector

securely connected to the scanner’s 9-pin accessory port.

Make sure you place the film holder with the loaded film properly on the scan bed. Do not block the

calibration area (as indicated in the “Position Transparencies” section).

From the ScanWizard EZ - Professional Mode, go to the Preview window, then click the Scan Material

button to select either the Positive Film or Negative Film option.

From the ScanPotter, go to the Scanner Settings column, then click the Scan Source drop-down menu

to select either the Positive Film or Negative Film option.

Uninstall and reinstall the ScanWizard EZ or ScanPotter software.

On -Ready to scan

LED (green)

Flashing - Scanning

Off - Scanner is off

DoYou Need Assistance?

Manuals

If you have additional questions and need further instruction or information, we provide

electronic manuals for:

1. Using your ScanMaker i480 (Supplementary information)

2. Using the ScanWizard EZ or ScanPotter scanning software

3. Using the bundled third-party software

To access the electronic manuals: Insert the scanner’s software CD/DVD into your

computer’s CD/DVD-ROM drive. Next, locate and click the “Manuals” option when the

software installer window appears on your screen. Finally, select and click the title of the

manual you wish to view.

Missing Items

If your package is missing items, please call the Microtek Customer Service Department.

Drivers & Software Upgrades

After you finish the installation of software, if you found that the installed drivers and software

cannot run your product or your computer system properly later, please go to the Microtek

Download Service site at ww7.microtek.com.tw/service.php to download and install any

updates you may require.

For additional information about Microtek products, please visit our website at

www.microtek.com.

ColoRescue are trademarks or registered trademarks of Microtek International, Inc. All

other trademarks or registered trademarks are the property of their respective holders.

Specifications, software and hardware bundles are subject to change without notice.

Delivery of technical support services subject to change without notice. Not

responsible for typographical errors.

Power Adapter

Use only power supplies (AC/DC adapters) listed below:

Voltage Manufacturer Model No.

100V to 240V WUXI HARD HDAD-120015-3C (U.S./TWN)

100V to 240V WUXI HARD HDAD-120015-3B (Europe)

100V to 240V WUXI HARD HDAD-120015-3D (AUS)

100V to 240V WUXI HARD HDAD-120015-3E (UK)

NOTE: Please make sure that the electrical outlet to where the scanner will

be connected is nearby and readily accessible.

Tabla de contenidos

Otros manuales de Escáner de Microtek

Microtek

Microtek ScanMaker 9800XL Manual de usuario

Microtek

Microtek ArtixScan 6000XY Manual de usuario

Microtek

Microtek ScanMaker s430 Manual del propietario

Microtek

Microtek ScanMaker 3880 Manual de usuario

Microtek

Microtek ScanMaker i800 Plus Manual de instrucciones

Microtek

Microtek ScanMaker 3600 Manual de usuario

Microtek

Microtek LightLid 35 Manual de usuario

Microtek

Microtek ArtixScan DI 2125c Manual de usuario

Microtek

Microtek FileScan 3125c Manual de usuario

Microtek

Microtek ScanMaker s380 Manual de instrucciones

Microtek

Microtek XT5820 HS Manual de usuario

Microtek

Microtek ScanMaker 4850 Manual de usuario

Microtek

Microtek ScanMaker 3700 Manual de usuario

Microtek

Microtek ArtixScan DI 2020 Instrucciones de montaje

Microtek

Microtek ScanMaker i800 Plus Manual de instrucciones

Microtek

Microtek ScanMaker i4800 Manual de usuario

Microtek

Microtek ObjectScan 1600 Manual de usuario

Microtek

Microtek ScanMaker 5700 Manual de usuario

Microtek

Microtek ArtixScan F1 Manual de instrucciones

Microtek

Microtek Bio-5000 Manual de instrucciones

Microtek

Microtek ScanMaker i2400 Manual del propietario

Microtek

Microtek ArtixScanDI 5230 Manual de usuario

Microtek

Microtek ScanMaker 8700 Pro Manual de usuario

Microtek

Microtek ScanMaker 3700 Manual de usuario

Manuales populares de Escáner de otras marcas

Plustek

Plustek Scanner Manual de usuario

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manual de usuario

Renkforce

Renkforce DS100-5M Manual de usuario

Image Access

Image Access WideTEK A2 Manual de usuario

Canon

Canon imageFORMULA CR-120N Manual de usuario

Fujitsu

Fujitsu FI-4860C2 Manual de usuario

GeoSlam

GeoSlam ZEB Horizon Instrucciones de instalación

Kodak

Kodak i5800 Scanner Manual de usuario

Kodak

Kodak i7300 Manual de usuario

Revopoint

Revopoint POP Manual de usuario

Fujitsu

Fujitsu fi-4860C Manual de usuario

Eddyfi Technologies

Eddyfi Technologies Floormap X Manual de usuario

Faselase

Faselase F6 Manual de usuario

Fujitsu

Fujitsu CardMinder Manual de usuario

Uniden

Uniden BC340CRS Manual de usuario

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manual de usuario

Mustek

Mustek PageExpress 4800 Pro Manual de usuario

Optex

Optex 750830 Manual de usuario
