Microtek Vantas 3000 Manual de usuario

Contents

Introduction 3

Installation 4

Installing the software 5

Connecting the scanner 6

Uninstalling the scanner 6

Start scanning 7

Where to find the scanner commands 7

Scanning 8

Scanning settings 9

Appendices 14

Troubleshooting 14

Index 17

FCC STATEMENT

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this

device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and the receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Introduction

Scanning is changing the way people work with computers. With your

new scanner, you can now take photographs, magazine clippings, books

and other visual material and incorporate them into your everyday

communication. This manual shows you how.

•The Installation shows you how to connect the scanner to your PC and

install the software.

•The next chapters, Start scanning, provide step by step instructions for

scanning photos and documents.

•The Appendices provide a Troubleshooting section and a summary of

the scanner characteristics. If you have a problem, we recommend you

look at the section first before contacting technical support.

If you’re looking for something in particular, try the Index at the end. We

have included many of the words and terminology you may encounter

while using this scanner.

Installation

You have already unpacked the box to get to this manual, so we hope you

can find the following to continue with the installation:

Power adapter (12V)

Scanner cable

Scanner

Software on CD-ROM

We also assume that you have checked out the system requirements and

that your PC is suitable for this scanner. Just to make sure, please check

that your computer:

•is a 486, Pentium or higher, IBM-compatible

•has 16MB RAM, 32MB or more recommended

•has at least 80MB hard disk space for software installation and some

working space

•provides a printer (USB) port

•has access to a CD-ROM drive ð

•is operating under Windows 98

Check out your system - Windows 98

Go to the System option in the Control Panel.

STOP! Please install the software before connecting the scanner, otherwise

your scanner may not be detected.

Installing the software

The scanner's software comes on CD-ROM and includes a setup wizard

that makes installation a snap. Before starting, close any open

applications:

Under Windows 98

1. Insert the CD into your drive.

2. The Setup Wizard pops up automatically with a few choices for you to make. Make your choices and follow the

instructions.

3. The last screen in the setup wizard asks you to restart Windows.

4. Move on to the next section “Connecting the Scanner” for instructions on how to connect the scanner to your

PC.

Note: If for any reason, the Setup doesn’t run automatically, please use theStart menu Run command to launch

the Setup.exe file on the CD-ROM.

Note: To ensure that the software driver and application softwarehave been properly installed, under the Windows

Start menu, select Settings, followed by Control Panel. Double-click “Add/Remove Programs.” If properly installed,

your scanner driver and application software will be displayed in the list that pops up.

If you try the above and it doesn't seem to work, please check out the

Troubleshooting section at the end of this manual.

Connecting the scanner

Start with your computer, monitor, and any other peripherals turned off.

Connection is then simple. Each cable has a clear destination as follows:

ŒŒ PLUG THE POWER

ADAPTER INTO THE

SCANNER’S POWER

RECEPTOR.

•• PLUG THE USB CABLE

(SQUARE END) INTO THE

SCANNER PORT.

ŽŽ PLUG THE USB

CABLE (FLAT END) INTO

YOUR PC’S USB PORT.

•• PLUG THE POWER

ADAPTER INTO AN

ELECTRICAL OUTLET.

Uninstalling the scanner

Windows 98 provides an Uninstall Wizard for uninstalling your scanner

software driver and application programs:

Uninstall from the “Start menu” (Uninstall Wizard)

1. From the Windows Start menu, select Programs, followed by the name of your scanner.

2. From the drop-down menu, select Uninstall.

3. A window will pop up, asking you to confirm the deletion of the selected application and all of its components.

Click O.K. and the UninstallShield program will run automatically and delete the scanner software driver.

4. Once completed, restart Windows.

Start scanning

If you want to scan from any image editing, OCR, or other program that

can accept scans, you can do so via a standard link called TWAIN. Any

program that supports TWAIN can access the scanner and make full use

of its functions. Such programs include CorelDraw, IphotoPlus, Painter,

PhotoDeluxe, PhotoImpact, PhotoShop, PhotoSuite, Presto!

PageManager, TextBridge, etc. This chapter describes the TWAIN

interface in detail and explains all the scanning settings.

Where to find the scanner commands

After installing the scanner and associated software, you should be able to

find the scanner commands, as follows:

1. From within the Twain-compliant application,

choose Select Sourcein the File menu and

the Select Source dialog appears. Select the name of

the scanner (and, if applicable, the correct model

number). The dialog box closes.

2. Choose Acquire in the File menu, and the

TWAIN window opens:

Scanning

Regardless of what you want to scan, once the TWAIN window is open,

the process is the same:

1. Put your photo or document face down

onto the scanner glass and close the cover. 2. Press preview to see what

the scan will look like.

3. Move your cursor to the top left of

the photo or document. Click and

drag down to the bottom right of

the area to scan.

4. Select the settings you want to use.

For more information, see pages 14-

17, Scanningsettings.

5. Click on the Scan button

If you are scanning multiple photos or documents, you can continue to

scan and transfer until you’re finished. When you want to return to the

TWAIN-compliant application, press the Close button.

The image appears in your TWAIN-compliant

application after scanning.

Scanning settings

Preview window

After clicking the preview button, this window shows the document or

photo on the scanner glass. You can then view changes made to settings

and define an area to scan: simply drag your mouse to outline the area.

You can adjust this area’s size by dragging its handles, or its position by

clicking on it and dragging. At the top left of the window there is a ruler

type button, click this to select the ruler units from inches, cm, or pixels.

Message bar

The message bar displays the predicted size of your scan, the current units

and the amount of free space on your hard disk. The predicted size

changes if you change the scan area size, the scan mode and/or the

resolution. If the image size exceeds the amount of free space, you will

not be able to complete the scan. In this case, you can reduce the scan

mode, resolution, scan area, or clear some space on your hard disk.

Setting area

Ruler type button

Crop box

Preview window

Photo or document

to scan

Click to scan

Click to display the scan in

the preview window

Click to open the

TWAIN Help

Click to close

TWAIN and return

to the application

Message bar

Click for Color

Options

Setting area

Scan Mode

The scan mode determines the amount of color information collected from your original. Choose this option based

on what the original is - color or black & white- and what you want to use the scan for: color display, black & white

printing, OCR, etc. Your choice also influences the file size: true-color being the largest, grayscale the next and black

& white the smallest. When you change this option, look at the projected file size in the message bar: true-color

images are three times larger than grayscale and twenty-four times larger than black & white!

True-color

This scan mode collects the maximum amount of color

information from the original, up to around 16.7

million colors! Choose this option for a color original

that you want to display, print or edit in color.

Grayscale

Use this mode for black & white photos or scanning

color material to print on a black & white printer.

Line-art

Use this mode to scan text or line drawings - a picture

containing no colors or shades of gray, but black lines

only.

Resolution

Resolution determines the amount of detail collected from an original. The higher the resolution, the more detail.

Select a value based on what you want to use the scan for. In general, we recommend you keep the resolutionaslow

aspossiblebecause the higher the resolution, the slower your scan and the larger the resulting file size. A lower

resolution (100-200dpi) can capture more color and detailed information than mostprinters and displays can

show. When you adjust the resolution, keep an eye on the projected file size in the message bar. Try the following:

100dpi

For images to display on screen at about the same size

as the original in a presentation or on your web page.

Also use this for larger images that you will reduce in

size to include in a report or presentation and print out

on a normal color or black & white printer (with a print

resolution of 300~360dpi).

200dpi

For small images to display at a larger size on screen, or

for any size to print out at original size on a color or

black & white printer (up to 720dpi print resolution).

Also use 200dpi (with black & white scan mode) to OCR

clear text (over 10pt); for small text, use 300dpi.

Brightness

Contrast

Color correction

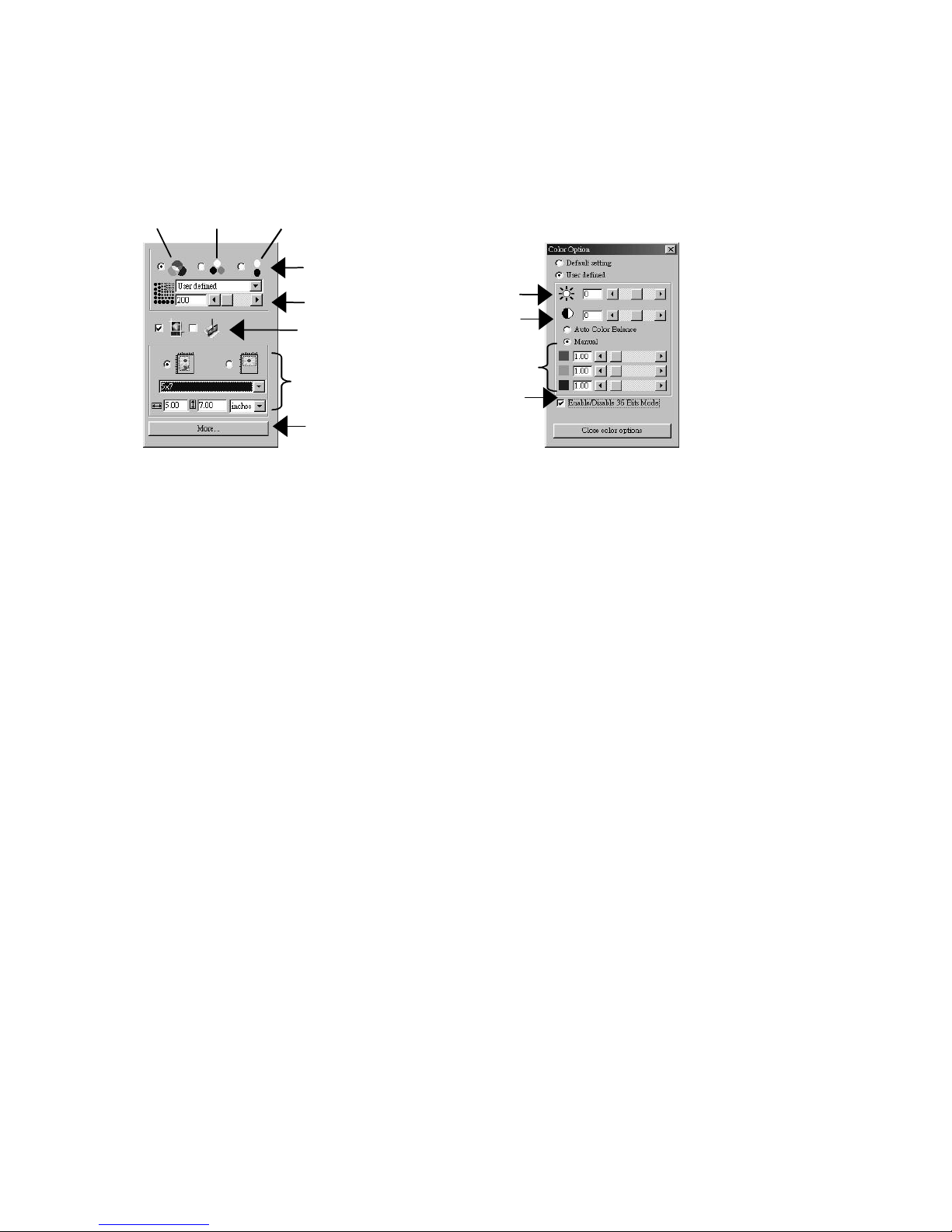

True Color Lineart

Grayscale

Scan mode

Resolution

Scan size

Button opens Color Options

Auto Crop &

Descreen mode

36-bit color

mode
