Microtek ScanMaker i460 Manual de instrucciones

Step 2: Install Software

Step 1: Unpack Contents

Start Here

Installing your Microtek ScanMaker i460

Unpack your scanner package and check for

major components.

1. ScanMaker i460 scanner

2. Power adapter

3. Software CDs/DVDs

4. Hi-Speed USB cable

5. LightLid 35 IV*

Important: Do not remove the yellow stickers from your

scanner until you are told to do so. You must install software

before connecting your scanner.

Always close any open programs and turn off Anti-virus

utilities before installing software.

I49-004750 B, September 2013

* The LightLid 35 IV is either as a standard equipment or an

optional accessory depending on the scanner configuration that

you purchased.

PC:

A. Place the Microtek Software CD/DVD

into a drive, and follow the on-screen

instructions to install the scanner

driver and software.

B. Restart your computer at the end of

all software installation.

NOTE: If the Microtek Software Installer screen does

not come up automatically, double-click the

following in succession: “My Computer”; the CD/

DVD-ROM icon; then cdsetup.exe to start the

installer program.

MAC:

A. Place the Microtek Software CD/DVD

(ScanPotter) into a drive, and double-click

the ScanPotter installer icon to install

ScanPotter.

B. Install the remaining software

components, then restart your computer

at the end of all software installation.

NOTE: After rebooting your Macintosh, the Microtek

software will attempt to locate your scanner on the

system. Since this is your first install and you have not

yet connected the scanner, simply ignore the message

that appears and proceed to the next step.

Step 3: Unlock Scanner

NOTE: To lock the scanner (for shipping and other reasons), tilt the scanner and look for the locking

switch on the left corner at the back, then push the locking switch to the "Locked" position. DO

NOT turn the scanner upside down when attempting to lock the unit.

A. Remove the yellow “Step 3” sticker

from your scanner.

B. With the scanner power off, tilt the

back left corner of the scanner to see

the locking switch at the bottom.

C. Push the locking switch to the position

as indicated in the graphic, with the

icon on the lock showing as

“Unlocked”.

Step 4: Connect Scanner

To the power adapter

A. Remove the yellow “Step 4” sticker from your scanner.

B. Connect the power adapter to the back of the scanner.

C. Plug the power adapter into a power source.

Unlocked Locked

To the Hi-Speed USB cable

D. Connect one end of the cable to your computer.

E. Connect the other end of the cable to the scanner.

Step 4: Connect Scanner (cont.)

F. Press and hold the Power button ( ) on

the button panel for a while. Once the

scanner is detected by your system,

the LED (green) will brighten, and the

scanner is ready to scan.

WEB

PDF

OCR

COPY

SCAN

POWER

E-MAIL

Scanner Buttons

The ScanMaker i460 is equipped with six scanner buttons, providing quick access to the

most frequently used functions. These buttons are WEB, PDF,OCR,E-mail, Copy, and

Scan.

WEB: Scans the image and directly links to your assigned photo-sharing

website.

PDF: Scans the image and saves it in the Adobe Acrobat PDF format.

OCR: Scans a text document, converts, and saves it in text file format.

Files may be immediately edited if configured in the MSC utility.

E-mail: Scans the image and delivers it directly to your e-mail editor.

Copy: Scans the image and sends it to your printer.

Scan: Captures images that can be saved as files or sent to an image-

editing application.

E-mail

Copy

OCR

PDF

Power

WEB

PDF

OCR

COPY

SCAN

POWER

E-MAIL

IV

POWER

WEB

Scan

LED (orange)

LED (green)

Using the LightLid 35 IV

NOTE: If your scanner configuration does not contain the LightLid 35 IV and you do not have

intention to use this device, please ignore this section.

Connecting the LightLid 35 IV

1. Remove the scanner lid.

2. Ensure that the scanner is powered off;

then plug the connector of the LightLid

into the scanner’s 9-pin accessory port.

To load film

A. To load filmstrips:

Turn the LightLid 35 IV over. Load the

filmstrip inside the upper slot of the

LightLid, with the film’s shiny base

facing up.

B. To load slides:

Turn the LightLid 35 IV over. Load the

slide inside the lower slot of the LightLid,

with the slide facing up.

Do not block

calibration window Do not block

calibration window

To place the LightLid 35 IV

Place the LightLid 35 IV with the loaded film vertically on the scan bed. The LightLid

should be flush against the top ruler of the bed, with the slot running down the center.

Align the top of the LightLid with

the recessed area, as label “Place

LightLid 35 IV Here”.

WEB

PDF

OCR

COPY

SCAN

POWER

E-MAIL

WEB

PDF

OCR

Basic Scanning for PC Users

WEB

PDF

OCR

COPY

SCAN

POWER

E-MAIL

IV

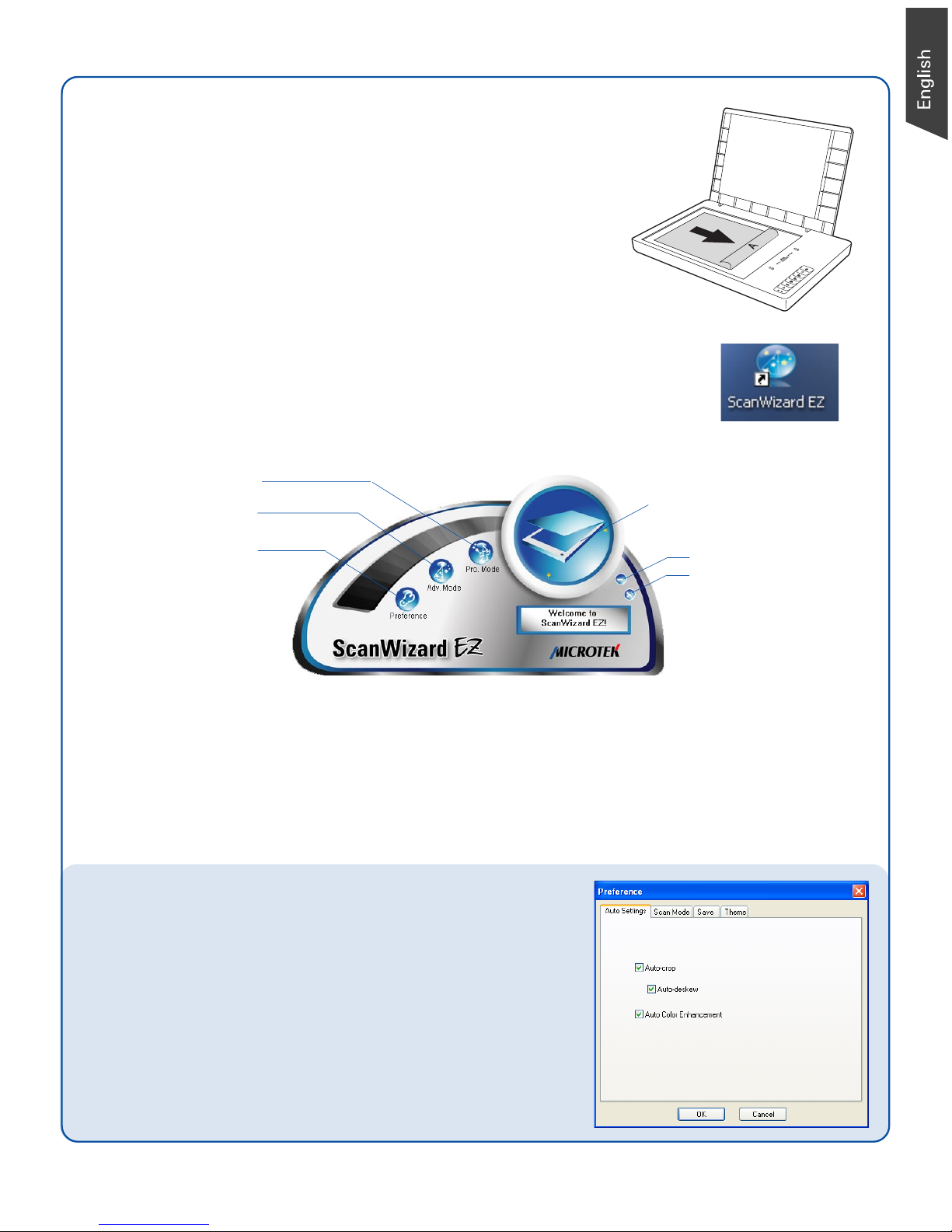

Scanning Photos

1. Place the photo.

To scan a photo, place the photo on the scanner

bed. The top end of the original should be positioned

towards the right of the scanner, with the surface to

be scanned facing down.

2. Launch ScanWizard EZ.

To launch ScanWizard EZ as a stand-alone program, double-click

the ScanWizard EZ icon on your desktop. When ScanWizard EZ is

launched for the first time, the control panel of ScanWizard EZ -

EZ Mode appears automatically.

3. Scan your material.

Click the Scan button on the control panel of EZ Mode to start scanning.

The ScanWizard EZ will detect the photo on the scanner glass surface first, next

automatically calibrate the scanner, crop the image, and finally perform the image

scan with factory settings. When done, the scanned image can be saved in a file and

delivered to the specified location.

Press the Scan

button to start

scanning

Switches to

the Professional Mode

Switches to

the Advanced Mode

Activates

the Preferences window

Minimizes ScanWizard EZ

Exits ScanWizard EZ

Select preferences if necessary

Before you start scanning, specify image settings related to your output image in

the Preferences window according to your preferences.

Auto Settings – Switches on/off Auto-crop and Auto-deskew, and applies ACE

(Automatic Color Enhancement) to the image.

Scan Mode – Sets the image resolution and scan quality to match your target

application.

Save – Assigns the folder location, a file name, and the file format for the output

image.Also, it allows you to specify an application to open the image.

Theme – Changes the appearance of the control panel for the EZ mode.

NOTE: For details about how to use the ScanWizard EZ‘s Advanced Mode and

Professional Mode, refer to the ScanMaker i460 Supplement.

Scanning Film

1. Place the film.

To scan film, use the LightLid 35 IV. Refer to “Using the LightLid 35 IV” in this guide

to load film.

2. Launch ScanWizard EZ.

Follow the step 2 in “Scanning Photos” on previous page to launch ScanWizard EZ.

3. Switch to ScanWizard EZ - Professional Mode.

Click the Professional Mode button on the control panel of the EZ Mode to switch to

the Professional Mode.

4. In the Preview window of the Professional Mode, click the Scan Material button to

choose Negative Film for negatives; choose Positive Film for transparencies and slides,

depending on the film type you are using.

5. Click the Overview button to perform a preliminary scan of the film loaded onto the

scanner.

6. Select the Scan Frame tool, and choose the area to be scanned by sizing the marquee

around the targeted area.

7. Specify your scanning requirements in the Settings window. Choose the desired image

type and resolution, and adjust the scan frame settings if necessary.

8. Adjust image quality if necessary, using the Advanced Image Correction tools.

9. Click the Scan to button in the Preview window to scan the film.

Scan Job Queue

window

Press to switch to

ScanWizard EZ - EZ Mode

Preview window

Settings window

Press to switch to

ScanWizard EZ - Advanced

Mode

Click NEW to create

more scan frames

Basic Scanning for Mac Users

1. Place the scan material.

•To scan photos, place the photo to be scanned on the scan bed, as detailed in the

“Basic Scanning for PC Users” section in this guide.

•To scan film, use the LightLid 35 IV, as detailed in the “Using the LightLid 35 IV”

section in this guide.

2. Launch ScanPotter as a stand-alone by clicking on the program icon, or by selecting it

from the application folder in your Mac OS X system.

3. In the Scan Source options menu, depending on the scan material you are using,

choose either Reflective for photos, Negative Film for negatives, or Positive Film for

transparencies and slides.

4. Specify your scanning requirements in the Scanner Settings column.

a) Select the appropriate image type (e.g., RGB Color) in the Color Type as your

image output type.

- Select Color to scan the image in color.

- Select Grayscale to scan the image in grayscale.

- Select Black & White to scan the image in black-and-white.

b) Select a desired resolution in the Resolution for your image output resolution.

c) Select Automatic Detection or a desired dimension in the Scan Frame as your

preview image size.

5. Click the Preview button to perform a preliminary scan of the image in the Preview

window.

6. If necessary, resize the scan frame (floating dotted rectangle) around the image by

dragging on the square spots on the edge or on the corner of the scan frame to

determine the final size of the actual scan.

7. If necessary, specify file settings for your output image files, using the options offered

in the File Saving Settings column.

8. If necessary, click the Image Settings button to switch to a window in which you can

select a preset image effect to the image directly or adjust image quality manually by

using the additional image correction tools.

9. Click the Scan button to start scanning.

NOTE: For details on scanning photos and film, see the ScanMaker i460 Supplement in the Microtek

Software CD/DVD.

Click the Image Settings

button to switch to a

window where contains a

composite display of nine-

image-effects (Filter

column) and additional

image correction tools

(Additional Adjustment

column) for your scanned

image.

Click the Scan Settings button

to switch back to the default

control panel of ScanPotter

Scan frame

(enclosed by dotted lines)

Preview window when

scanning slides

Preview

window when

scanning

photos

Problems?

The LEDs on the button panel indicate the status of the scanner.

If you encounter any problems, check the section below and follow the suggested solution if your

problem is listed. You may also want to go over installation steps 1 to 4 of this “Start Here”

document to make sure that you have followed all procedures properly.

1. No light comes on when the scanner is turned on.

Make sure your scanner is connected to your computer and plugged into a power source.

Make sure your scanner is detected by your computer.

2. Add/Remove Hardware Wizard appears on your screen.

Click the “Cancel” button and close the control panel. Disconnect the USB cable from the back of

your computer, and refer to the installation instructions in this guide.

3. When trying to scan, an error message appears on your screen that reads, “Can’t Find Scanners”.

Make sure your scanner is unlocked (see Step 3).

Make sure your scanner is connected to your computer and plugged in to a power source

(see Step 4).

Uninstall and reinstall the ScanWizard EZ or ScanPotter software.

4. After clicking scan, a blank screen appears.

Make sure your scanner is unlocked (see Step 3).

Uninstall and reinstall the ScanWizard EZ or ScanPotter software.

5. Having trouble scanning negatives or slides?

Make sure the LightLid 35 IV is properly installed, with its connector securely connected to the

scanner’s 9-pin accessory port.

Make sure you place the LightLid 35 IV with the film loaded properly on the scan bed. Do not block

the calibration area (as indicated in the “Using the LightLid 35 IV” section).

From the ScanWizard EZ - Professional Mode, go to the Preview window, then click the Scan

Material button to select either the Positive Film or Negative Film option.

From the ScanPotter, go to the Scanner Settings column, then click the Scan Source drop-down

menu to select either the Positive Film or Negative Film option.

Uninstall and reinstall the ScanWizard EZ or ScanPotter software.

WEB

PDF

OCR

COPY

SCAN

POWER

E-MAIL

IV

On - Scanner is on

LED (orange)

LED (green)

Both on - Ready to scan

Flashing - Scanning or error happened

Off - Scanner is off

DoYou Need Assistance?

Manuals

If you have additional questions and need further instruction or information, we provide

electronic manuals for:

1. Using your ScanMaker i460 (Supplementary information)

2. Using the ScanWizard EZ or ScanPotter scanning software

3. Using the bundled third-party software

To access the electronic manuals: Insert the scanner’s software CD/DVD into your

computer’s CD/DVD-ROM drive. Next, locate and click the “Manuals” option when the

software installer window appears on your screen. Finally, select and click the title of the

manual you wish to view.

Missing Items

If your package is missing items, please call the Microtek Customer Service Department.

Drivers & Software Upgrades

After you finish the installation of software, if you found that the installed drivers and

software cannot run your product or your computer system properly later, please go to

the Microtek Download Service site at ww7.microtek.com.tw/service.php to download

and install any updates you may require.

For additional information about Microtek products, please visit our website at

www.microtek.com.

ScanWizard and ColoRescue are trademarks or registered trademarks of

Microtek International, Inc. All other trademarks or registered

trademarks are the property of their respective holders. Specifications,

software and hardware bundles are subject to change without notice.

Delivery of technical support services subject to change without notice.

Not responsible for typographical errors.

Power Adapter

Use only power supplies (AC/DC adapters) listed below:

Voltage Manufacturer Model No.

100V to 240V WUXI HARD HDAD-120015-3C (U.S./TWN)

100V to 240V WUXI HARD HDAD-120015-3B (Europe)

100V to 240V WUXI HARD HDAD-120015-3D (AUS)

100V to 240V WUXI HARD HDAD-120015-3E (UK)

NOTE: Please make sure that the electrical outlet to where the scanner will be

connected is nearby and readily accessible.

Otros manuales para ScanMaker i460

Tabla de contenidos

Otros manuales de Escáner de Microtek

Microtek

Microtek ScanMaker 3630 Manual de usuario

Microtek

Microtek ArtixScan DI 2020 Manual de usuario

Microtek

Microtek ScanMaker 9800XL Plus Manual de usuario

Microtek

Microtek ArtixScan DI 3130c Manual de instrucciones

Microtek

Microtek ScanMaker i280 Manual del propietario

Microtek

Microtek ObjectScan 1600 Manual de usuario

Microtek

Microtek ScanMaker 1000XL Manual de usuario

Microtek

Microtek Vantas 3100 Manual de usuario

Microtek

Microtek ArtixScanDI 4020 Plus Manual de usuario

Microtek

Microtek ScanMaker s380 Manual del propietario

Microtek

Microtek ArtixScanDI 2015c Manual de usuario

Microtek

Microtek ScanMaker 3700 Manual de usuario

Microtek

Microtek ScanMaker i800 Manual de usuario

Microtek

Microtek ScanMaker i800 Manual de usuario

Microtek

Microtek ScanMaker 5950 Manual de usuario

Microtek

Microtek ScanMaker i800 Plus Manual del propietario

Microtek

Microtek Bio-1000F Manual de usuario

Microtek

Microtek ArtixScan 120tf Manual de usuario

Microtek

Microtek LightLid EL Manual de usuario

Microtek

Microtek ArtixScan 1200DF Manual de instrucciones

Microtek

Microtek XT5750 HS Manual de usuario

Microtek

Microtek ArtixScan 1800f Manual

Microtek

Microtek ArtixScan M2 Instrucciones de montaje

Microtek

Microtek ScanMaker 5700 Manual de usuario

Manuales populares de Escáner de otras marcas

Plustek

Plustek Scanner Manual de usuario

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manual de usuario

Renkforce

Renkforce DS100-5M Manual de usuario

Image Access

Image Access WideTEK A2 Manual de usuario

Canon

Canon imageFORMULA CR-120N Manual de usuario

Fujitsu

Fujitsu FI-4860C2 Manual de usuario

GeoSlam

GeoSlam ZEB Horizon Instrucciones de instalación

Kodak

Kodak i5800 Scanner Manual de usuario

Kodak

Kodak i7300 Manual de usuario

Revopoint

Revopoint POP Manual de usuario

Fujitsu

Fujitsu fi-4860C Manual de usuario

Eddyfi Technologies

Eddyfi Technologies Floormap X Manual de usuario

Faselase

Faselase F6 Manual de usuario

Fujitsu

Fujitsu CardMinder Manual de usuario

Uniden

Uniden BC340CRS Manual de usuario

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manual de usuario

Mustek

Mustek PageExpress 4800 Pro Manual de usuario

Optex

Optex 750830 Manual de usuario
