User’s Manual

Gigabit Smart Switch

Model No.: SP698A

http://www.micronet.info

Table of Content

-------------------------------------------------------------------------------------------------------------------------

1. Introduction...............................................................................2

1.1 Package Contents.............................................................................2

1.2 Features............................................................................................2

1.3 Physical Description..........................................................................3

2. Installation.................................................................................4

2.1 Preparing the Site..............................................................................4

2.2 Settling the Switch.............................................................................4

2.3 Connecting to Power.........................................................................4

2.4 Connecting to Network......................................................................4

3. Console Interface Configuration................................................6

3.1 Setting UP Connection......................................................................6

3.2 Main Menu.........................................................................................6

3.3 System Configuration........................................................................7

3.4 Port Status.........................................................................................8

3.5 VLAN Configuration ..........................................................................9

3.6 Trunk Configuration.........................................................................10

3.7 Port Mirror Configuration................................................................. 11

3.8 Reset and Save............................................................................... 11

4. Specifications..........................................................................13

1. Introduction

This switch provides 8 Gigabit Ethernet ports to offer an economical way for small to medium

business users to benefit from the increased bandwidth. It upgrades your network to Gigabit

connections has never been cost-effective. Also, it is perfect for graphics, multimedia, and other

applications that have to move large files across the network quickly.

The built-in powerful smart capabilities, such as VLAN, port-trunking, port mirror, empower

system administrator to monitor and control the network easily. With its intelligent addressing

engine, it provides users with a wire-speed filtering and forwarding of the traffic.All ports support

auto-uplink detection, so users don't have to worry about the cable type. Each port will

automatically communicate for best speed and to run in half- or full-duplex mode.

1.1 Package Contents

Verify your package contains the following items:

Gigabit Smart Switch

Quick installation guide

Manual disk

RS-232 cable

Rack-mount brackets

Rubber foot and screws

Power cord

1.2 Features

Micronet SP698Aprovides the following features:

Compliant with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, and IEEE802.3x flow

control standards

Support auto-negotiation function to automatically select optimal speed (10/100/1000M)

and mode (full/half duplex)

Support 802.3x flow control for full-duplex mode and back-pressure flow control for

half-duplex mode

Support 8 groups of port-based VLAN

Support 2 groups of port-trunking

Support jumbo frame up to 12K

Support 4K MAC address entries

Support 128K bytes memory buffer

Support auto uplink, no more cross-over cable

Forward and filter packets at non-blocking, full wire speed

Support console port for management

Standard 19" rack-mount size, one-unit-height

1.3 Physical Description

Front view

POWER LED

This LED comes on when the switch is properly connected to power.

Port LEDs

Every RJ-45 port on the front panel relevant four LEDs (10M LINK, 100M LINK, 1000M

LINK and ACT) for indicating the connection speed and activity status.

LEDs Status

LED Status Operation

Steady Green Power is on

Power Off Power is off

Steady Green Trunk mode enable

Trunk A/B Off Trunk mode disable

Steady Green 1000M network connection

established

1000M LINK

Off No connection in 1000M speed

Steady Green 100M network connection

established

100M LINK

Off No connection in 100M speed

Steady Green 10M network connection

established

10M LINK

Off No connection in 10M speed

Blinking Transmitting or receiving data

ACT

Off No connection

2. Installation

2.1 Preparing the Site

Select the site that meets the following requirements:

Characteristic Requirement

Temperature 32 to 122˚F (0 to 50˚C)

Humidity 10% ~ 90%, non-condensing

2.2 Settling the Switch

Mounted to 19-inch standard rack

Locate the accessories provided in the product package. Use the rack-mount brackets and

screws to install the switch into any EIA 19” standard rack.

Step 1: Attach the brackets to each side of the chassis.

Step 2: Apply the screws to each side and secure them tightly.

Step 3: Carefully position the switch into the rack.

Step 4: Align the brackets to the side holes on the rack and use rack screws to secure the

chassis with the rack.

Desktop or any flat surface

The switch can sit on desktop or any flat surface with adequate space and ventilation. If

you want to place it onto a shelf, make sure the shelf can withstand the weight of the

switch.

Step 1: Simply put the switch on the desired place.

Step 2: Ensure the switch receives good ventilation.

Step 3: Proceed to the “Connecting to Power” section.

2.3 Connecting to Power

Locate the provided AC power cord.

Step 1: Connect the AC power cord to the receptacle at the back of the switch.

Step 2: Attach the plug into a standard AC outlet with a voltage ranging from 100 to 240

VAC.

Step 3: The power LED on the front panel will come on then.

2.4 Connecting to Network

Step 1: First, ensure the power of the switch (and end devices) is turned off.

LIt may cause electric shock or any possible harm to you if the power is not switched off.

Step 2: Prepare cable with corresponding connectors for each type of port in use.

Step 3: Connect one end of the cable to the switch and the other end to a desired device.

Step 4: Once the connections between two end-devices are made successfully, turn on the

power.

In making a switch interconnection, you could use any port to connect another switch with

straight or crossover cable. As all the ports support auto-uplink (MDI / MDI-X) function,

using a straight cable to make a switch-to-switch connection is allowed.

For cable selection, refer to the following table：

Network

Speed Connector Port Speed

Half/Full Duplex Cable Type Max. Length

10Base-T RJ-45 10/20 M Cat. 3, 4, 5 UTP/STP 100 meters

100Base-TX RJ-45 100/200 M Cat. 5 UTP/STP 100 meters

1000Base-T RJ-45 1000/2000 M Cat. 5, 5e UTP/STP 100 meters

Note: To prevent costly equipment damage and downtime, please consider installing a

surge suppression device or a UPS (Un-interrupted Power Supply).

3. Console Interface Configuration

3.1 Setting UP Connection

Users can configure the switch in command line via console port. The operating mode of

the console port is

y9600 (Fix baud rate)

yn (No parity checking)

y8 (8 Data bits)

y1 (1 stop bit)

yNone (No flow control)

After attaching a RS-232 cable to the serial port of a PC running a terminal emulation

program, press “Enter” key then login screen appears. Enter your password to login the

configuration UI. The default password is “admin”.

3.2 Main Menu

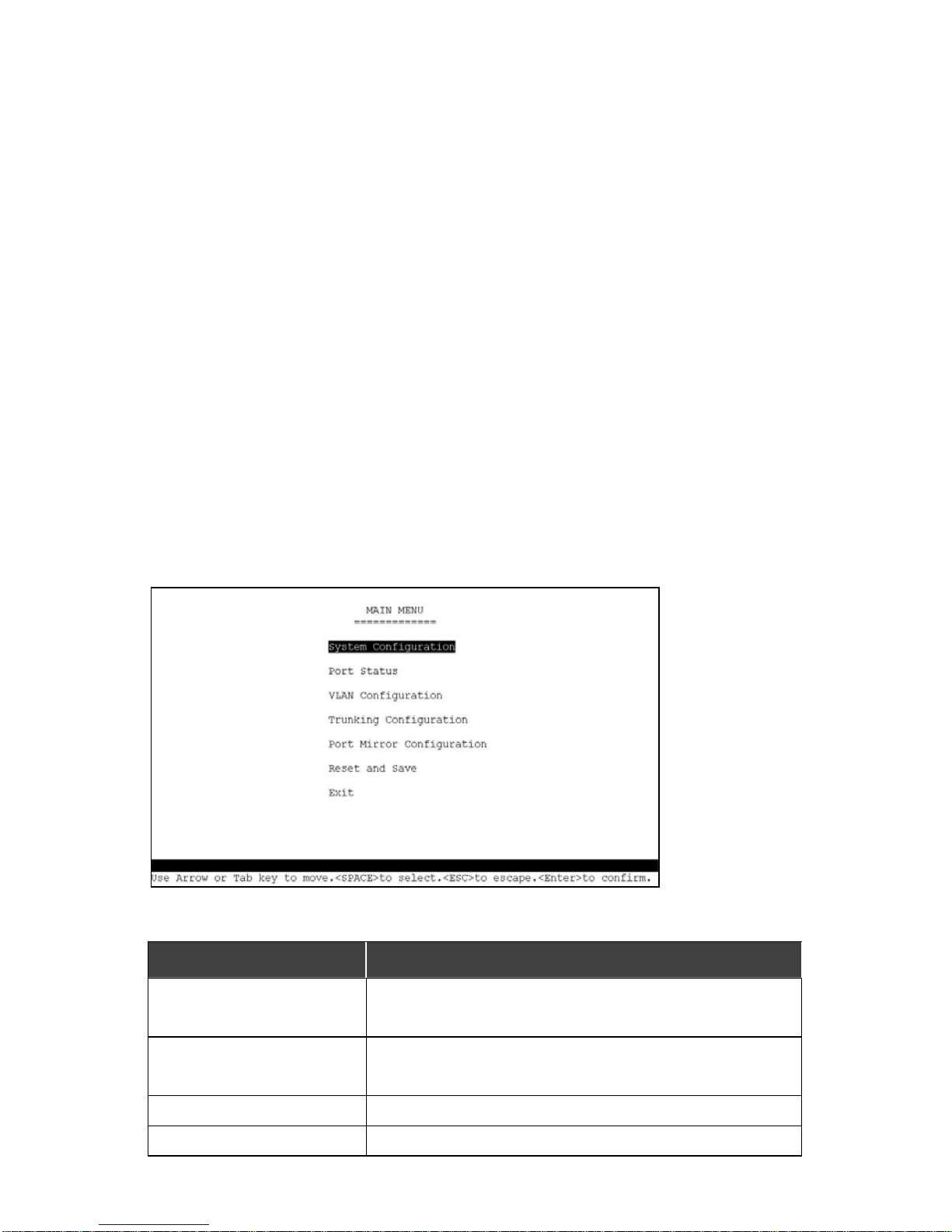

After key in the password, the main page will show as below. By default, all ports are set at

auto-negotiation and flow control on.

This switch provides the following management function:

Function Statement

System Configuration Provides Password, Aging time, Maximum broadcast,

Hash Algorithm and Jumbo packet configuration.

Port Status Provides ports configuration, including enable/ disable

ports, set-up duplex mode and flow control

VLAN Configuration Supports up to 8 groups port-base VLAN

Trunking Configuration Supports 2 port-trunk groups

Port Mirror Configuration Configure source port and target port for mirroring.

Reset and Save Save the configured values or reset the switch.

Exit Exit the management program.

<TAB> Next Item Move to the next item.

<ESC> Back Return to previous hierarch or screen.

<Enter> Confirm Access a specific function or confirm the values that

changed.

<Space Bar> Select Change or adjust the values for a specific function.

↑↓←→Move to items

3.3 System Configuration

After pressing enter on the system configuration on the main menu, the screen will show as

below:

The [System Configuration] Menu includes:

zPassword Setting:

Allow users to change the password.

zAging Time (Sec):

Aging time of Mac address entry. The switch provides 3 aging time modes: 300secs,

360secs and aging time disable.

zMaximum Broadcast:

Maximum broadcast configuration. You can select 32, 48, 64 or disable for maximum

broadcast.

zHash Algorithm:

Select XOR or Linear mode for Hash Algorithm.

zJumbo Packet:

Select Jumbo Packet for 9K, 12K or disable Jumbo Packet.

3.4 Port Status

Ports Configuration is applied to change the setting of each port. After pressing enter on the

port status on the main menu, the screen will show as below:

The [Port Config] menu includes:

zAdmin:

Enable a port (On) or disable a port(Off).

zPort speed and duplex mode setting:

The modes for each port are: Auto, 1000Mbps Full duplex, 100 Mbps Full/Half duplex, 10

Mbps Full/Half duplex mode.

Note: If user configures it as a specific speed and duplex mode please make sure the other

port that the switch communicate with is also on the same speed and duplex mode.

The following table summarized the function the media supports.

Communication Mode Description

Auto Auto-Negotiation

1000full 1000Mbps at full duplex mode

100full 100Mbps at full duplex mode

100half 100Mbps at half duplex mode

10full 10Mbps at full duplex mode

10half 10Mbps at half duplex mode

zFlow control:

There are two modes to choose in flow control, including Enable and Disable. If flow

control is set Enable, both parties can send PAUSE frame to the transmitting device(s)

if the receiving port is too busy to handle. When it is set Disable, there will be no flow

control in the port. It drops the packet if too much to handle. Default: Enable.

3.5 VLAN Configuration

This 8-port Gigabit Smart Switch provides 8 port-base VLAN groups and each VLAN groups

could comprise 1-8 port.

You can select some ports into the same VLAN group by symbol “＊”. If the packets come into

one port, which only belongs to one VLAN group, the packets just can be forwarded to other

ports of this VLAN group.

The VLAN setting: follow these steps to assign VLAN groups.

yMove the [↑↓]to VLAN Group 1 ~ 8 column

yPress [ENTER] to the desires group

yPress [←→] to the desires port

yPress [SPACE] to select and mark＊to the desired port

yPress [ENTER] to apply the setting

For example:

We set port-1, 3, 5, 6, 8 as VLAN1 and port-1, 3, 7 as VLAN2.

When one packet comes from port-1 or port-3, the packet could be forward to VLAN 1 and VLAN

2. It means only port-1, 3, 5, 6, 8 (VLAN1) and port-1, 3, 7 (VLAN2) will receive the packet. But

when packet comes from port-8, only port-1, 3, 5, 6, 8 (VLAN1) will receive the packet. On the

other hand, if one packet comes from port-2, only port-4 will receive this packet.

Tabla de contenidos

Otros manuales de Cambiar de MicroNet

MicroNet

MicroNet SP6510P8 Manual de usuario

MicroNet

MicroNet SP607FA Manual de usuario

MicroNet

MicroNet SP684C Manual de usuario

MicroNet

MicroNet SP6824P Manual de usuario

MicroNet

MicroNet SP6524PWS Manual de usuario

MicroNet

MicroNet SP659A Manual de usuario

MicroNet

MicroNet SP6005P4 Manual de usuario

MicroNet

MicroNet SP676C Manual de usuario

MicroNet

MicroNet SP684C Manual de usuario

MicroNet

MicroNet SP648B Manual de usuario

MicroNet

MicroNet SP659B Manual de usuario

MicroNet

MicroNet SP6108WS Manual de usuario

MicroNet

MicroNet SP6008P Manual de usuario

MicroNet

MicroNet SP6008P Manual de usuario

MicroNet

MicroNet SP1684B Manual de usuario

MicroNet

MicroNet SP508C Manual de usuario

MicroNet

MicroNet SP6528 Manual de usuario

MicroNet

MicroNet SP659C Manual de usuario

MicroNet

MicroNet SP3524A Manual de usuario

MicroNet

MicroNet SP6008P Manual de usuario

MicroNet

MicroNet SP6008PWS Manual de usuario

MicroNet

MicroNet SP6510P Manual de usuario

MicroNet

MicroNet SP212E Manual de usuario

MicroNet

MicroNet SP616R Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manual de usuario
