MicroNet SP6008PWS Manual de usuario
User’s Manual
8-Port Web Smart Switch with PoE
Model No.: SP6008PWS
http://www.micronet.info
Table of Contents
Chapter 1 Introduction................................................................................... 1
1.1 Key Features.................................................................................... 1
1.2 Package Contents............................................................................ 1
Chapter 2 Hardware Installation.................................................................... 2
2.1 Hardware Installation ....................................................................... 3
Chapter 3 Web Administration ...................................................................... 9
3.1 Administrator.................................................................................... 9
3.2 Port Management .......................................................................... 12
3.3 VLAN Setting ................................................................................. 14
3.4 QoS Setting.................................................................................... 15
3.5 Port Security .................................................................................. 17
3.6 Logout ............................................................................................ 18
Chapter 4 Specification ............................................................................... 19
1
Chapter 1 Introduction
Micronet SP6008PWS 8-Port Web Smart Switch with PoE offers Broadcast storm
protection, Port-based VLAN and QoS to manage your networks. Moreover, it
automatically detects the presence of IEEE 802.3af-compliant devices (PD) and supplies
power to each appliance such as IP Camera, VoIP, and Wireless Access Point.
1.1 Key Features
●Compliant with IEEE 802.3af standard
●Each PoE port supplies power up to 15.4Watts
●Support broadcast storm protection
●Support short-circuit protection
●Support port-based VLAN
●Support port security setting
●Support one key multi to one VLAN setting
●Support remote management
Note: Contact your dealer immediately if any of the above items are missing, damaged, or
if the unit does not work.
1.2 Package Contents
Before you start installing SP6008PWS, please verify the following package contents:
ySP6008PW 8-Port Web Smart Switch with PoE
yQuick Installation Guide
yManual CD
yPower Cord
Note: Contact your local dealer immediately if any of the above items are missing,
damaged, or the unit does not work.
2

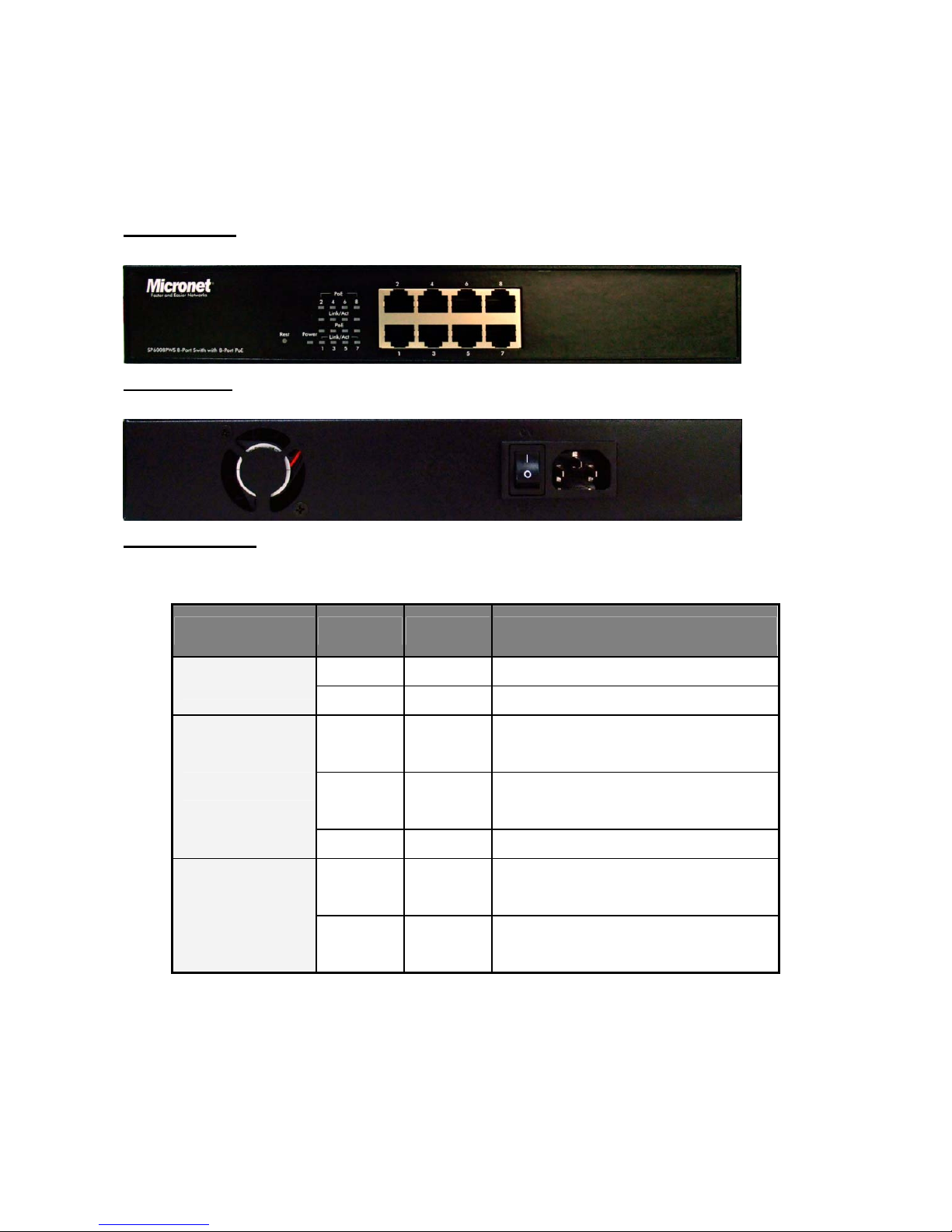

Chapter 2 Hardware Installation
Front Panel
RJ-45 PoE ports and LED indicators
Back Panel
Work with AC 90-260V AC, 50-60Hz.
LED Indicator
For definitions of LED indicators, please refer to the following table:
LED Status Color Description
On Yellow Power On
POWER Off -- Power is not connected.
On Green The Ethernet port is
connecting with the device.
Blink Green Receiving or transmitting
data.
LINK/ACT
Off -- No device attached.
On Yellow
Power is transmitting to the
device
PoE
Off -- Power is not transmitting to
the device
3
2.1 Hardware Installation
The setup of the Switch can be performed using the following steps:
Step 1: Connect a RJ-45 Ethernet cable from IEEE802.3af-compliant devices (PD) to an
available PoE port of SP6008PWS.
4
Step 2: Make sure the power switch on the rear panel of the SP6008PWS is turned
off(O). Connect the AC Power Adaptor to SP6008PWS and then to a power
outlet.
5
Tour the system
The configuration of the switch can be performed using the following steps:
Step1:
•Click the Start button followed by Control Panel.
• In the Control Panel, double-click the Network Connections.
• In the Network Connections window, double-click Local Area Connection.
6
Step 2:
• Click Internet Protocol (TCP/IP) from the components list and then click the
Properties
Step 3:
• In the Internet Protocol (TCP/IP) Properties window,
click the Use the following IP address.
• Enter the following information:
7
IP Address: 192.168.2.xxx ( xxx = 2~254)
Subnet Mask:
255.255.255.0
Note: Do not use 192.168.2.1 as this address is reserved for
the web management tool.
Step 4:
Step 5:
• The Login screen will show up.
8
Step1:
Step:
• Login in with User Username:admin
Password :admin
• Click OK
