INSTRUCTION MANUAL

THERMOCOUPLE INPUT MODULE, 4 points

(High-speed Link System) MODEL R7HL-TS4

BEFORE USE ....

Thank you for choosing M-System. Before use, please check

contents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact M-System’s Sales Ofﬁce or representatives.

■PACKAGE INCLUDES:

Thermocouple input module (body + 4 CJC sensors)........(1)

■MODEL NO.

Conﬁrm Model No. marking on the product to be exactly

what you ordered.

■INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

POINTS OF CAUTION

■CONFORMITY WITH EU DIRECTIVE

• Use dual-shield cables (Shinko Seisen Industry Model

ZHY262 PBA) for the network. If it is not sufﬁcient, use

a ferrite core (Kitagawa Industries Model GRFC-13) for

the network cable.

• The equipment must be mounted inside the instrument

panel of a metal enclosure.

• The actual installation environments such as panel con-

ﬁgurations, connected devices, connected wires, may af-

fect the protection level of this unit when it is integrated

in a panel system. The user may have to review the CE

requirements in regard to the whole system and employ

additional protective measures to ensure the CE conform-

ity.

■POWER INPUT RATING & OPERATIONAL RANGE

• Locate the power input rating marked on the product and

conﬁrm its operational range as indicated below:

24V DC rating: 24V ±10%, approx. 90mA

■GENERAL PRECAUTIONS

• Before you remove the unit or mount it, turn off the power

supply and input signal for safety.

• DO NOT set the switches on the module while the power

is supplied. The switches are used only for maintenance

without the power.

■ENVIRONMENT

• Indoor use.

• When heavy dust or metal particles are present in the

air, install the unit inside proper housing with sufﬁcient

ventilation.

• Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

• Environmental temperature must be within -10 to +55°C

(14 to 131°F) with relative humidity within 30 to 90% RH

in order to ensure adequate life span and operation.

■WIRING

• Do not install cables close to noise sources (relay drive

cable, high frequency line, etc.).

• Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

■AND ....

• The unit is designed to function as soon as power is sup-

plied, however, a warm up for 10 minutes is required for

satisfying complete performance described in the data

sheet.

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7HL-TS4

EM-7812-B Rev.5 P. 2 / 5

COMPONENT IDENTIFICATION

X10 X1

STATION ADD.

CNFG.

12345678

10 11 12 13

2341

15 16 17 18

7896

4567

123

■FRONT VIEW■SIDE VIEW

TERM

ON OFF

RUNPWR

Status Indicator LED

Station Address Setting Rotary SW

Operating Mode Setting DIP SW (SW1)

PC Configurator Jack

Input Terminals

Network, Power Supply

Terminals

Terminating Resistor SW

■STATUS INDICATOR LED

ID COLOR FUNCTION

PWR Green Turns on when the internal 5V is sup-

plied normally.

RUN Green Turns on when the refresh data is re-

ceived normally.

■STATION ADDRESS

The left switch determines the sixteenths place digit, while

the right switch does the ones place digit of the address.

The data allocation is 4.

• Full-duplex communication

Setting “n” with the rotary switches, the addresses are n,

n+2, n+4 and n+6. (Range: 01H to 39H)

• Half-duplex communication

Four (4) addresses are assigned from the one set with the

rotary switch. (Range: 01H to 3CH)

Station Address Setting (x1)

Station Address Setting (x16)

■OPERATING MODE

(*) Factory setting

• Burnout (SW1-2)

SW1-2 BURNOUT

OFF Upscale (*)

ON Downscale

• Thermocouple Type (SW1-3, 1-4, 1-5, 1-6)

SW1-3 SW1-4 SW1-5 SW1-6 THERMOCOUPLE TYPE

OFF OFF OFF OFF K (CA) (*)

ON OFF OFF OFF E (CRC)

OFF ON OFF OFF J (IC)

ON ON OFF OFF T (CC)

OFF OFF ON OFF B (RH)

ON OFF ON OFF R

OFF ON ON OFF S

ON ON ON OFF C (WRe 5-26)

OFF OFF OFF ON N

ON OFF OFF ON U

OFF ON OFF ON L

ON ON OFF ON P (Platinel II)

OFF OFF ON ON (PR)

ON ON ON ON PC Conﬁgurator setting

• Transfer Rate (SW1-8)

SW1-8 TRANSFER RATE

OFF 12 Mbps (*)

ON 6 Mbps

Note : Be sure to set unused SW1-1 and 1-7 to OFF.

■TERMINATING RESISTOR

To use the terminating resistor, turn the switch ON, and

OFF to invalidate. (Factory setting OFF)

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7HL-TS4

EM-7812-B Rev.5 P. 3 / 5

■NETWORK, POWER SUPPLY TERMINAL ASSIGNMENT

• Full-duplex communication

RXD+

567

123

RXD–

24V

TXD+ TXD–

NO. ID FUNCTION, NOTES

1 TXD+ Network (slave, transmission +)

2 TXD– Network (slave, transmission –)

3 FG FG

4 RXD+ Network (master, transmission +)

5 RXD– Network (master, transmission –)

6 +24V Power input (24V DC)

7 0V Power input (0V)

• Half-duplex communication

567

123

–+

24V 0V

NC NC

NO. ID FUNCTION, NOTES

1 NC No connection

2 NC No connection

3 FG FG

4 TR+ Network

5 TR– Network

6 +24V Power input (24V DC)

7 0V Power input (0V)

■INPUT TERMINAL ASSIGNMENT

+IN0

–IN0

+IN1

+CJ0

–CJ0

+CJ1

–IN1

–CJ1

+IN2

+CJ2

–IN2

–CJ2

+IN3

+CJ3

–CJ3

–IN3

NO. ID FUNCTION NO. ID FUNCTION

1 +CJ0 CJC 0 10 +IN0 T/C + 0

2 –CJ0 CJC 0 11 –IN0 T/C – 0

3 +CJ1 CJC 1 12 +IN1 T/C + 1

4 –CJ1 CJC 1 13 –IN1 T/C – 1

5 NC No connection 14 NC No connection

6 +CJ2 CJC 2 15 +IN2 T/C + 2

7 –CJ2 CJC 2 16 –IN2 T/C – 2

8 +CJ3 CJC 3 17 +IN3 T/C + 3

9 –CJ3 CJC 3 18 –IN3 T/C – 3

PC CONFIGURATOR

With conﬁgurator software, settings shown below are available.

Refer to the software manual of R7CON for detailed operation.

■CHANNEL INDIVIDUAL SETTING

PARAMETER AVAILABLE RANGE DEFAULT SETTING

TC Type K (CA)

E (CRC)

J (IC)

T (CC)

B (RH)

C (WRe 5-26)

P (Platinel II)

(PR)

K (CA)

Temp Unit C, F, K C

Zero scale -32000 to +32000 0

Full scale -32000 to +32000 10000

Bias -320.00 to +320.00 0.00

Gain -3.2000 to +3.2000 1.0000

Zero temp Depends on sensor type 0.00 (degC)

Full temp Depends on sensor type 0.00 (degC)

■CHANNEL BATCH SETTING

PARAMETER AVAILABLE RANGE DEFAULT SETTING

Conversion rate 0: 250 msec.

1: 500 msec.

0: 250 msec.

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7HL-TS4

EM-7812-B Rev.5 P. 4 / 5

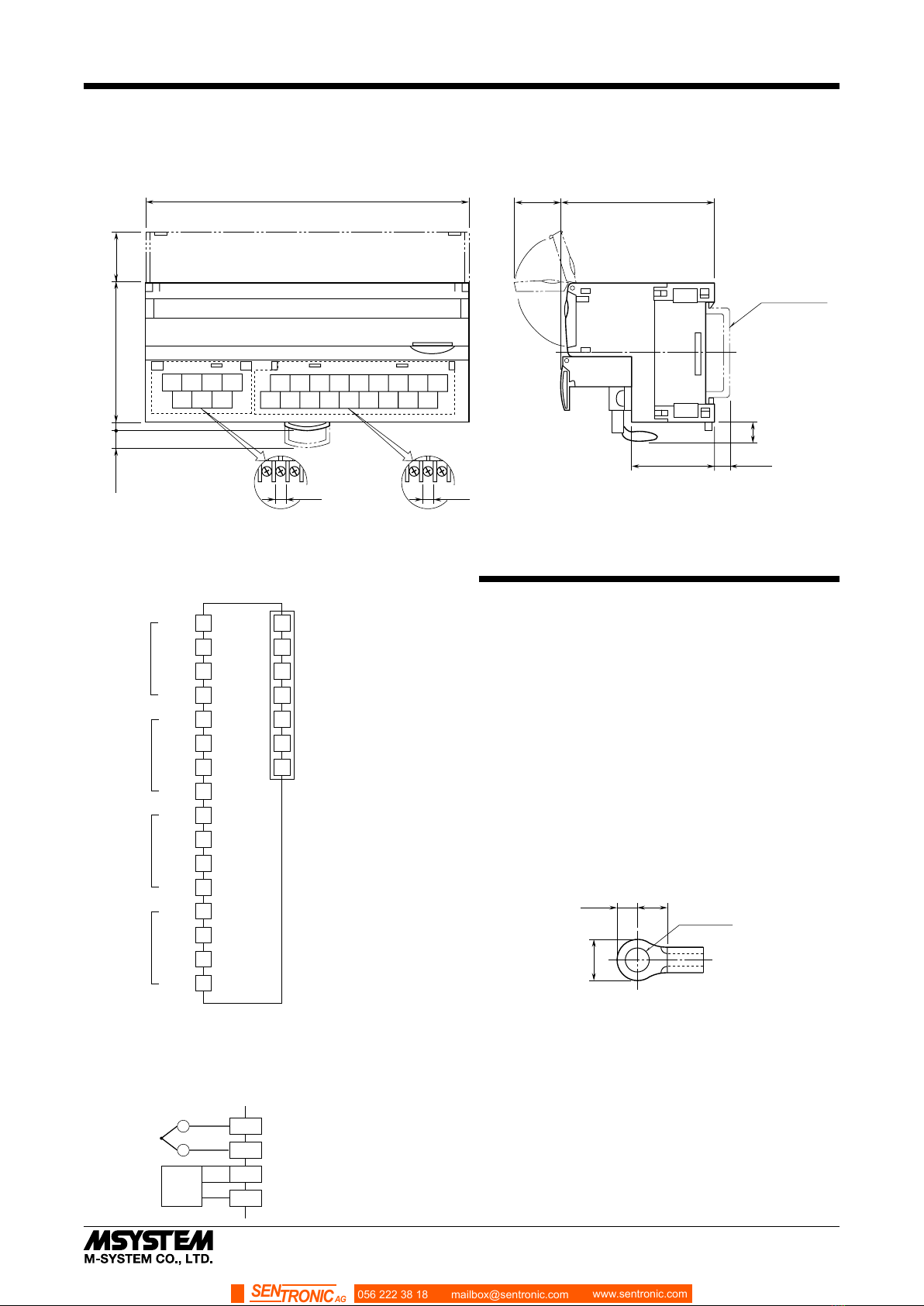

TERMINAL CONNECTIONS

Connect the unit as in the diagram.

■EXTERNAL DIMENSIONS unit: mm (inch)

4567

123

10 11 12 13

2341

15 16 17 18

789

(.28)

7–M3 SCREW

TERMINALS

for Network, POWER

18–M3 SCREW

TERMINALS

for INPUT

DIN RAIL

35mm wide

54 (2.13)

17 (.66)

115 (4.53)

[5 (.20)]

30 (1.18)

3 (.12)5.5 (.22) 50 (1.97) 18.5 (.73)

6 (.24) 6 (.24)

■CONNECTION DIAGRAM

+IN1

–IN1

+CJ1

–CJ1

+IN2

–IN2

+CJ2

–CJ2

+IN3

–IN3

+CJ3

–CJ3

+IN0

–IN0

+CJ0

–CJ0

24V DC

TXD– (NC)

TXD+(NC)

RXD– (TR–)

RXD+ (TR+)

INPUT 0

INPUT 1

INPUT 3

INPUT 2

+INn

–INn

+CJn

–CJn

T/C

–

CJC

SENSOR

■ Input Connection Examples

Note 1: Te rminal numbers in parentheses are for half-duplex

communication model.

Note 2: In order to improve EMC performance, bond the FG

terminal to ground.

Caution: FG terminal is NOT a protective conductor terminal.

WIRING INSTRUCTIONS

■SCREW TERMINAL

Torque: 0.5 N·m

■SOLDERLESS TERMINAL

Refer to the drawing below for recommended ring tongue

terminal size. Spade tongue type is also applicable.

Recommended solderless terminal:

• Communication cables

Applicable wire size: 0.2 to 0.5 mm2(AWG 26 to 22)

Recommended manufacturer: Japan Solderless Terminal

MFG. Co., Ltd.

• Others

Applicable wire size: 0.25 to 1.65 mm2(AWG 22 to 16)

Recommended manufacturer: Japan Solderless Terminal

MFG. Co., Ltd. or Nichifu Co., Ltd.

4 (.16) min

3.2 (.13) dia.

mm (inch)

6 (.24) max

3.3 (.13) max

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7HL-TS4

EM-7812-B Rev.5 P. 5 / 5

COMMUNICATION CABLE CONNECTIONS

Master Module

RXD+

RXD–

TXD+

TXD–

(SHIELD)

Slave Module

RXD+

RXD–

TXD+

TXD–

(SHIELD)

Slave Module

TXD+

Terminating

Resistor

TXD–

RXD+

RXD–

SHIELD

Terminating

Resistor

Master Module

TR+

TR–

(SHIELD)

Slave Module

TR+

TR–

(SHIELD)

Slave Module

TR+

TR–

SHIELD

Note: Be sure to turn ON the switch of the terminating resistor located at both ends of the modules.

Terminating

Resistor

Terminating

Resistor

■

MASTER CONNECTION

• Full-duplex communication

• Half-duplex communication

I/O DATA DESCRIPTIONS

Scaling of analog input is conﬁgurable with the conﬁgurator software (model: R7CON). Refer to the software manual for

details.

■ANALOG INPUT

• Di

ADD.n CH0 Unused

Unused

CH1

CH2

CH3

(ADD.n)

ADD.n+2

(ADD.n+1)

ADD.n+4

(ADD.n+2)

ADD.n+6

(ADD.n+3)

• Do

The data is 16-bit binary.

Negative value is represented in 2’s complements.

Address in parentheses are for half-duplex mode.

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

Tabla de contenidos

Otros manuales de Unidad de control de M-system

M-system

M-system R3-PD16A Manual de usuario

M-system

M-system R7F4HML3-D-DAC32B Manual de usuario

M-system

M-system R7ML-YS2 Manual de usuario

M-system

M-system R3-NP1 Manual de usuario

M-system

M-system Mini-M M2ADS Manual de usuario

M-system

M-system Devicenet R7F4HD-DAC32D Manual de usuario

M-system

M-system R5-NM1 Manual de usuario

M-system

M-system R7D-EC8A Manual de usuario

M-system

M-system R7C-EC8C Manual de usuario

M-system

M-system R3Y-DS8N Manual de usuario

M-system

M-system R3-DS4 Manual de usuario

M-system

M-system R7M-YS2 Manual de usuario

M-system

M-system R7C-EA16/UL Manual de usuario

M-system

M-system R7HL-DC8C Manual de usuario

M-system

M-system R8-SVT8 Manual de usuario

M-system

M-system R7E-DC16B Manual de usuario

M-system

M-system R7F4DD-DC16A-H Manual de usuario

M-system

M-system R7M-EC16B Manual de usuario

M-system

M-system Mini-M M2MNV Manual de usuario

M-system

M-system M6DXF1 Manual de usuario

M-system

M-system R3-SV8B Manual de usuario

M-system

M-system R6-NP1 Manual de usuario

M-system

M-system R3-PT4 Manual de usuario

M-system

M-system R3-NM4 Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
