LevelOne WAP-6101 Manual de usuario

LevelOne

WAP-6101

300Mbps Wireless Ceiling Gigabit PoE Access Point

Quick Installation Guide

English

Português

Deutsch

Svenska

Français

Slovenščina

Español

繁體中文

Nederlands

한국어

Dansk

Русский

Italiano

Polski

Ελληνικά

Table of Contents

English ......................................................................................... 8

Deutsch...................................................................................... 10

Français ..................................................................................... 12

Español ...................................................................................... 14

Nederlands................................................................................. 16

Dansk.......................................................................................... 18

Italiano........................................................................................ 20

Ελληνικά .................................................................................... 22

Português .................................................................................. 24

Svenska...................................................................................... 26

Slovenščina ............................................................................... 28

繁體中文...................................................................................... 30

한국어.......................................................................................... 32

Русский...................................................................................... 34

Polski.......................................................................................... 36

Default Settings

IP Address

192.168.1.1

Password

admin

Wireless Mode

Enable

Wireless SSID

LevelOne

Security

None

This Quick Installation Guide only describes the most basic

situations and settings. All detailed information is described in the

user manual.

Package Contents

WAP-6101

Power Adapter

RJ-45 Cable

CD-ROM with Manual and QIG

Quick Installation Guide

If any of the above items are missing, please contact your retailer

or distributor.

(Figure 1)

LAN(PoE) Port Power Jack

WEC/Reset Button Status LED WiFi LED LAN LED

Other LED indicator:

LED

Description

Status

Change Master Mode / Slave Mode

When System is ready: (without click button.)

Status LED in Solid : In Master Mode

Status LED in Flash: In Slave Mode

1.Press Reset/WEC button 3 sec to trigger WEC or

Reset_WEC function; Status LED flash very fast during this

period

2. Press Reset/WEC button 5~10 sec till WiFi Dark then

release Button to change Mode . Status LED flashes per

0.5 during this period.

3.Press Reset/WEC button 10 ~ 15sec WEC config status

release.

Status LED flashes per 1 sec during this period

4.Press Reset/WEC button 15 sec to reset to default. Status

LED will be blink during this period then device reboot.

Light Off: The device is power-off

WiFi

Green in flash: data packet transferred.

Green in very flash per second during 2min:WPS PBC

status

When press Reset /WEC Button about 5~10 sec,then WiFi

LED will be dark about 20 sec then blink.

Dark: Wireless Radio is disable

LED in Slow flash: Wireless Connection doesn't establish.

LED in Solid : Wireless Connection established

successfully.

LAN

LED in flash: data packet transferred

(Figure 2)

(Figure 3)

(Figure 4)

(Figure 5)

Installation (Figure 1)

1. Please connect the WAP-6101 to the RJ-45 Ethernet Port of

your PC. Then Power-On the WAP-6101.

2. Installation is now completed. You can now begin to

configure the device.

Check Your Network Settings to login web UI (Figure 2)

1. Please make sure your PC can get IP address automatically,

so the router can communicate with your PC during

configuration.

Select “Control Panel” > “Network Connections”.

Right click the “Local Area Connection” and choose

“Properties”.

Select the TCP/IP protocol for your network card.

Click on the Properties button. You should then see the

following screen and make sure you have selected “Obtain

IP address automatically”

Before you begin, please have your ISP‟s username and

password details ready.

English

Configuration

1. Start your WEB browser (Internet Explorer recommended).

In the Address box, enter the following:

http://192.168.1.1 (Figure 3)

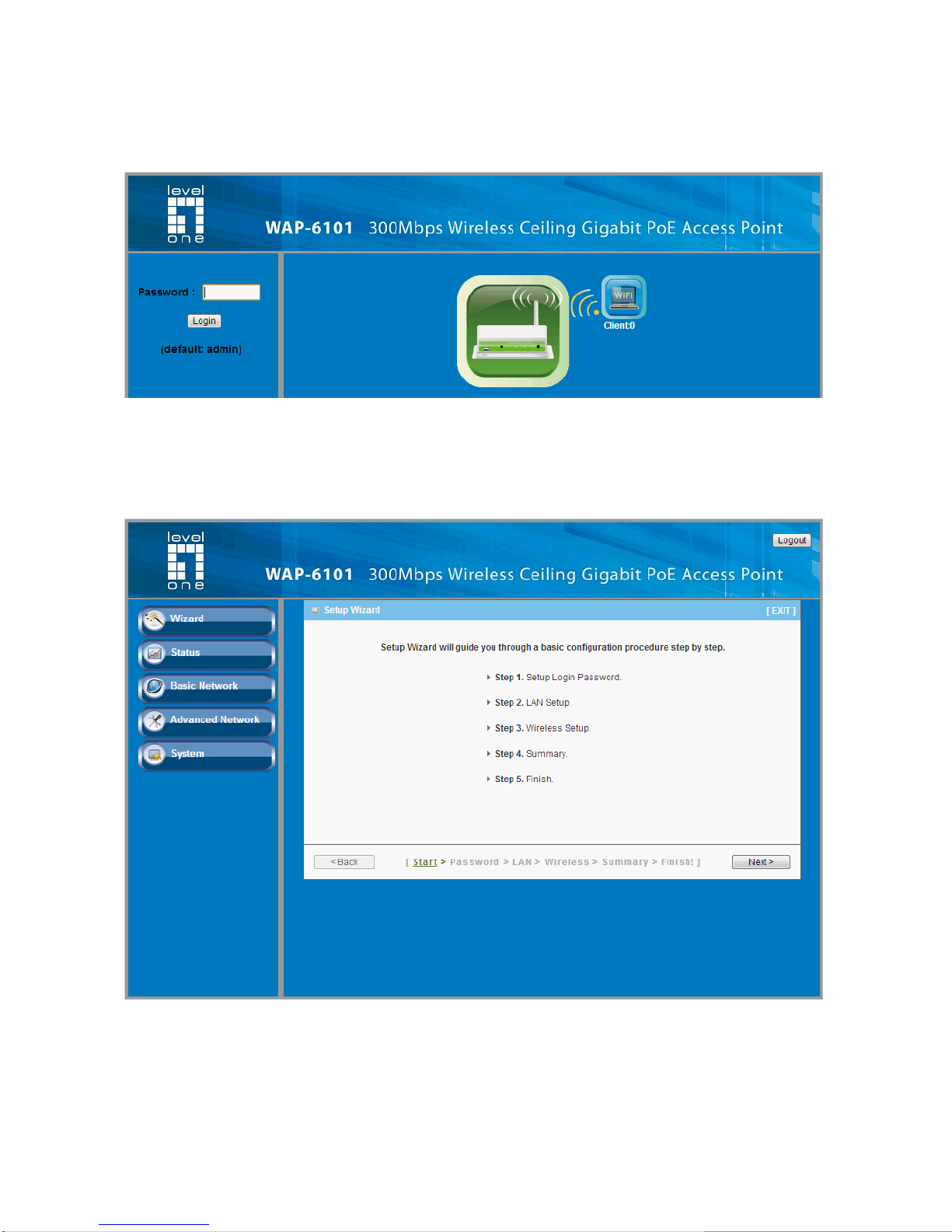

2. When prompted, use the following password.

Password: admin (Figure 4)

3. The first time you connect to the WAP-6101, you should run

the Setup Wizard to configure the Internet Connection.

Select Wizard and click Next. (Figure 5)

This wizard will guide you through the setup in 5 easy steps.

Note: For effective wireless security, LevelOne recommends

WPA2-PSK encryption methods.

Installation (Figure 1)

1. Bitte schließen Sie den WAP-6101 an den RJ-45 Ethernet

Port Ihres PC an.Schalten Sie anschließend den WAP-6101

ein.

2. Damit ist die Installation abgeschlossen. Sie können jetzt mit

der Konfiguration des Geräts beginnen.

Ü berprüfen Sie Ihre Netzwerkeinstellungen für die

Anmeldung auf der grafischen Web-Schnittstelle (Figure 2)

1. Bitte vergewissern Sie sich, dass Ihr PC automatisch eine

IP-Adresse erhalten kann, damit der Router während der

Konfiguration mit Ihrem PC kommunizieren kann.

Wählen Sie „Bedienfeld“ > „Netzwerkverbindungen“.

Rechtsklicken Sie auf „Ortsverbindungen“, und wählen Sie

„Eigenschaften“.

Wählen Sie das TCP/IP-Protokoll für Ihre Netzwerkkarte.

Klicken Sie auf die Schaltfläche Eigenschaften. Dann sollte

der folgende Bildschirm erscheinen. Vergewissern Sie sich,

dass Sie „IP-Adresse automatisch beziehen“ gewählt haben.

Bevor Sie beginnen, halten Sie den Namen Ihres

Internetanbieters und Ihr Passwort bereit.

Deutsch
