LevelOne WAP-6111 Manual de usuario

WAP-6111 Version: 1

N300 PoE Wireless (WLAN) Access Point,

Deckenhalterung, von Controller verwaltet

The LevelOne WAP-6111/-6111H is a high performance wireless access point designed for mounting on a

ceiling. Featuring PoE, the clever and stylish AP includes embedded antennas allowing for a high position,

low-profile deployment without sacrificing wireless performance. WAP-6111/-6111H can be configured in

Fat AP mode or, when used in Fit mode, allows central management by the wireless controllers designed

by LevelOne technologies. A captive portal provides one convenient location for authentication of WEP,

WPA-PSK, WPA-TKIP, WPA2 AES for secure authentication. The device supports up to four SSIDs

allowing the user to assign different configuration settings to each one, which will ensure the safety of each

SSID in different service zones.

Key-features

-Nutzen Sie Ihr drahtloses Netzwerk mit bis zu 300 MBit/s

-Kompatibel zu den Standards von IEEE-802.11b/g/n

-Unterstützt hohe Sicherheit durch WEP-, WPA- und WPA2-Verschlüsselung mit IEEE-802.1x

-Verfügt über bis zu 4 SSIDs um Netzwerkverkehr zu trennen und zur Verbesserung der Sicherheit

-Multi-Betriebsmodi für unterschiedliche Drahtlosanwendungen

-IEEE-802.3af PoE kompatibel zur einfachen Verwendung und Installation

-Fit mode for WLAN controller management

www.level1.com Page 1 of 5

Specifications

System Specifications

Standards & Protokolle:

"IEEE 802.3 10-BASE-T, Ethernet

IEEE 802.3u 100-BASE-TX, Fast Ethernet

IEEE 802.11e Wi-Fi Multimedia (WMM)

IEEE 802.3x Ethernet Flow Control

IEEE 802.11i Wi-Fi Protected Access (WPA2)

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Wireless Networking

IEEE 802.3 af Power over Ethernet"

Stecker und Verkabelung:

1x 10/100Mbps Base-TX PoE Port

1x 10/100Mbps Base-TX Port

Taster:

Reset button

Indikator:

WLAN

Leistungsaufnahme:

Power over Ethernet (IEEE802.3af) 48 VDC

Power supply DC12V / 1A

Wireless

Betriebsart:

AP, WDS (point-to-point/multi-point),Universal Repeater

Verschlüsselung:

WEP 64/128-bit Web share key encryption

WPA, WPA2 128-bit TKIP/AES encryption

WPA, WPA2-PSK TKIP/AES encryption

Empfangsempfindlichkeit (dBm):

"802.11n (20MHZ): Range (-72 ~ -87) dBm

802.11n (40MHZ): Range (-68 ~ -87) dBm

802.11g: Range (-72 ~ -91) dBm Error Rate = 10% at room temperature.

802.11b: Range (-89 ~ -91) dBm Error Rate = 8% at room temperature. "

Kanal:

Ch.1 ~ 11 USA

Ch.1 ~ 13 EU

EIRP(dBm):

802.11n: up to 14dBm ± 1dBm

802.11g: up to 16dBm ± 1dBm

802.11b: up to 19dBm ± 1dBm

802.11n: up to 17dBm ± 1dBm(for WAP-6111H)

802.11g: up to 20dBm ± 1dBm(for WAP-6111H)

802.11b: up to 20dBm ± 1dBm(for WAP-6111H)

Antenne:

2x 3dBi inside Omni Antenna

Frequenz:

2.4 ~ 2.4835 GHz

Datenübertragungsrate:

802.11n: 300 ~ 78 Mbps

802.11g: 54 ~ 6 Mbps

802.11b: 11 ~ 1 Mbps

www.level1.com Page 2 of 5

Features

Allgemein:

Multi-SSID: 4 SSIDs (fit model)

Single-SSID (fat model)

PoE:

IEEE 802.3af

Sicherheit:

SSID Broadcast On/Off

Management:

eb-Based GUI Configuration

Syslog monitoring (fit model)

Dienstgüte:

802.11e WMM Supported

Benutzerfreundlichkeit:

Web-based GUI with Quick Installation Wizard

Web-based (HTTP) firmware upgrade

Performance

Anzahl der Benutzer:

Maximum:63(fit and fat model)

Recommend:30(fit and fat model)

Environment

Temperatur (°C):

Operating: 0°C ~ 40°C,

Storage: -10°C ~ 70°C

Luftfeuchtigkeit (nicht kondensierend ):

Storage: 0 ~ 95%

Operating: 10 ~ 90%

Einsatz:

Ceiling Mount

Physical Specifications

Abmessungen (W x D x H mm):

200mm*175mm*41mm

Gewicht:

250

www.level1.com Page 3 of 5

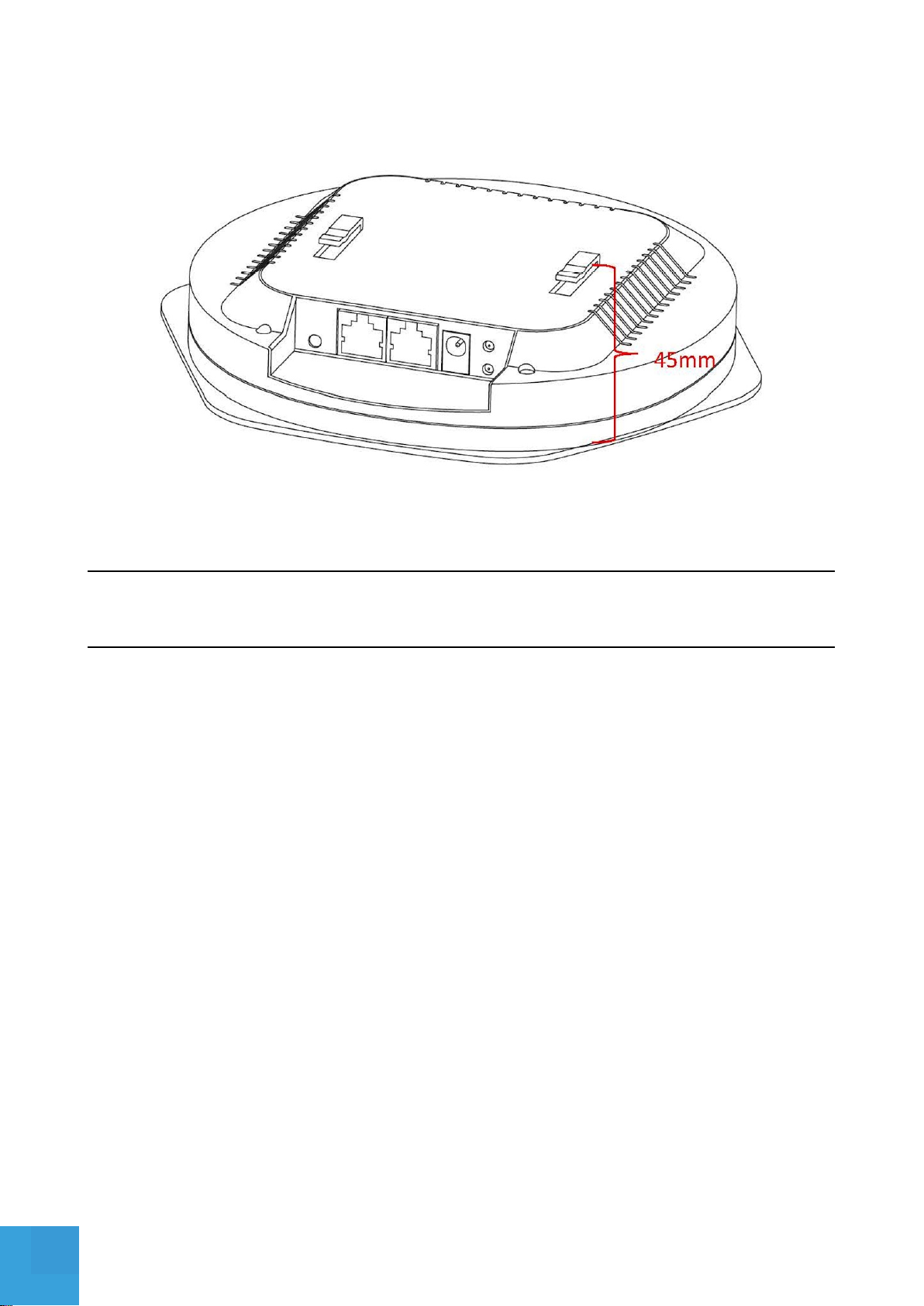

Diagramm

www.level1.com Page 4 of 5

Order Information

WAP-6111

Package Contents

WAP-6111

RJ45-Ethernet-Kabel

Ressource CD (Bedienungsanleitung, QIG)

No liability or responsibility for any errors or omissions in the content.

Specifications are subject to change without notice.

All mentioned brand names are registered trademarks and property of their owners.

www.level1.com Page 5 of 5
