LevelOne WAP-8131 Manual de programación

Web Management Guide

( WAP-8131 )

2

Web Management Guide

WAP-8131

AX1800 Dual Band Wi-Fi 6 PoE Wireless Access Point

3

Contents

Contents

3

Default Settings

5

Logging on to the equipment

5

Section I

Home

6

Section II

Wizard

9

Gateway Mode

9

Repeater Mode

15

AP Mode

19

Section III

WiFi

22

Section IV

Network (for AP / Repeater Mode)

38

Section V

Manage (for AP / Repeater Mode)

39

Section VI

Network (for Gateway Mode)

43

Section VII

Firewall (for Gateway Mode)

45

Section VIII

Manage (for Gateway Mode)

55

4

Default Settings

AP provides Web-based management login, you can configure your computers IP address manually

to log on to the AP. The default settings of the AP are shown below.

Note: WAP-8131 cannot be managed with Wireless LAN Controller (WAC-2000 / WAC-2003)

IP Address

192.168.188.253

Password

admin

Logging on to the equipment

l

Connect the RJ-45 interface cable of a switch with a computer using a network cable.

l

Set the TCP/IP properties of the computer.

Windows

1.

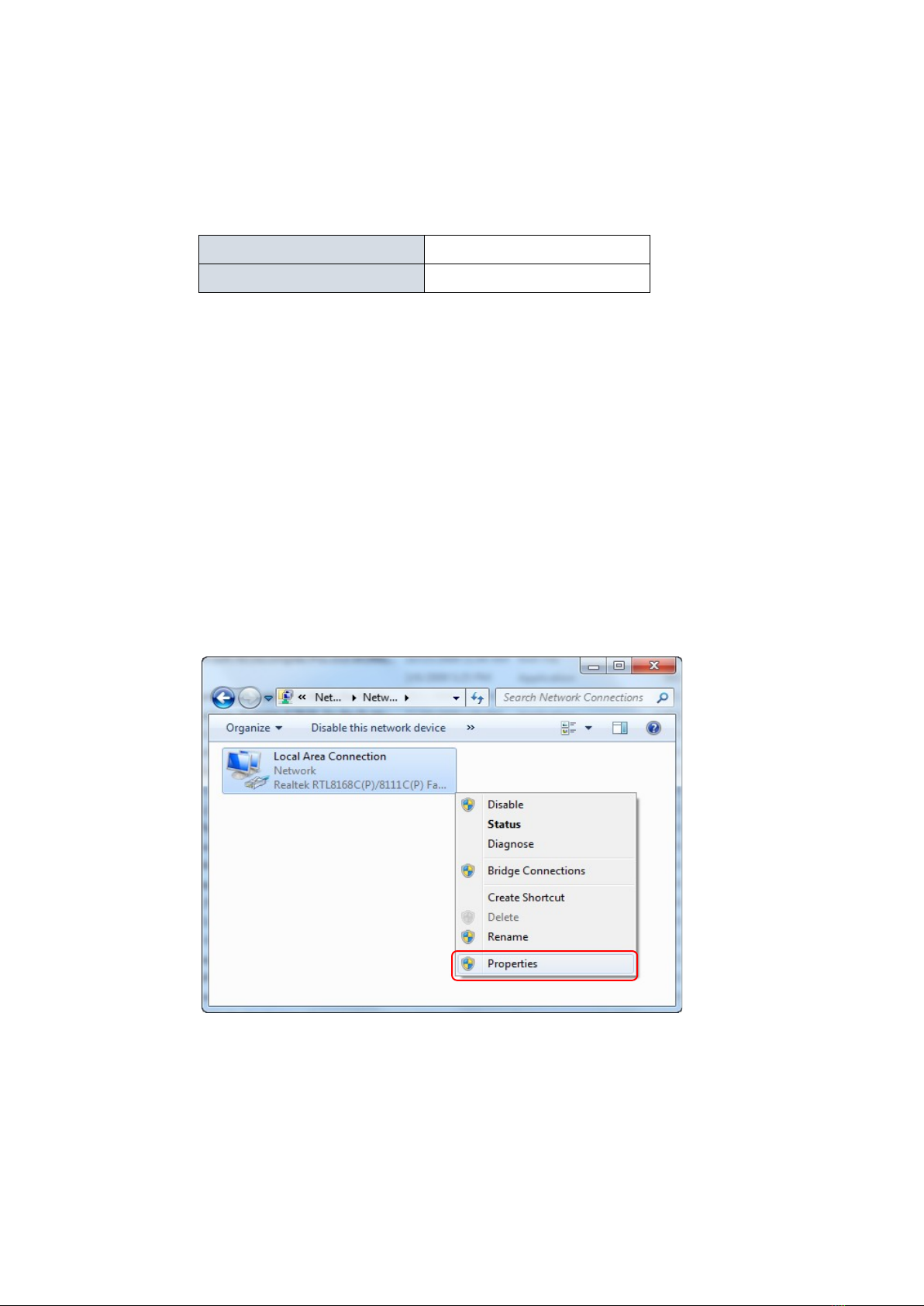

Click Start—> Control Panel—> Network and Internet—> Network and

Sharing Center—> Change adapter settings, right click Local connection and

select Properties;

2.

Double-click Internet Protocol 4 (TCP/IPv4); Set the computer's IP address:

The computer's IP address should be any one of the following free IP addresses

192.168.188.2 ~ 192.168.188.252, and then click OK, to return to the previous

page, click OK.

5

3.

Logging on to the equipment: Open a browser and type 192.168.188.253 in the

address bar, and then press Enter; in the pop-up login interface, enter the factory logon

password "admin" and click "Login".

6

Section I Home

Introduction

This page will show the Wireless AP’s default operation mode, channel, connection

status, CPU usage, Wireless settings, LAN Setting, Wireless AP’s Location,

hardware/firmware version. It includes a management agent that allows you to

configure the features listed in this manual.

1.Different operation modes are slightly different on the Home screen. The example below is

AP Mode. Can set the location of the remark AP, which is convenient for future management

(Note: Device name can only be letters, numbers, underscores, middle horizontal lines;

length 1-10 bits)

7

2.Confirm whether the location just set is displayed on the login page, which is convenient

for future identification and management

3.Different operation modes are slightly different on the Home screen. The example below

is Gateway Mode. set the hardware accelerate. but enabling the hardware forwarding will

cause user traffic statistics, some firewall, and flow control to fail.

8

4.Can view the current Wireless Online User

5.Can view the current wireless online users of 2.4G or 5G respectively

9

Section IIWizard

Click Wizard in Status page, will pop up following page to configure the operation mode and there

are explanation for each operation mode for better application.

Gateway Mode

In this mode,the device is supposed to connect to internet via ADSL/Cable Modem.The NAT is

enabled and PCs in LAN ports share the same IP to ISP through WAN port.The connection type can

be setup in WAN page by using PPPOE,DHCP client or static IP.

Static IP setting in Gateway Mode

1. Sample Static IP mode setting method, then click next to continue.

(Please contact with ISP for correct IP address and DNS address)

10

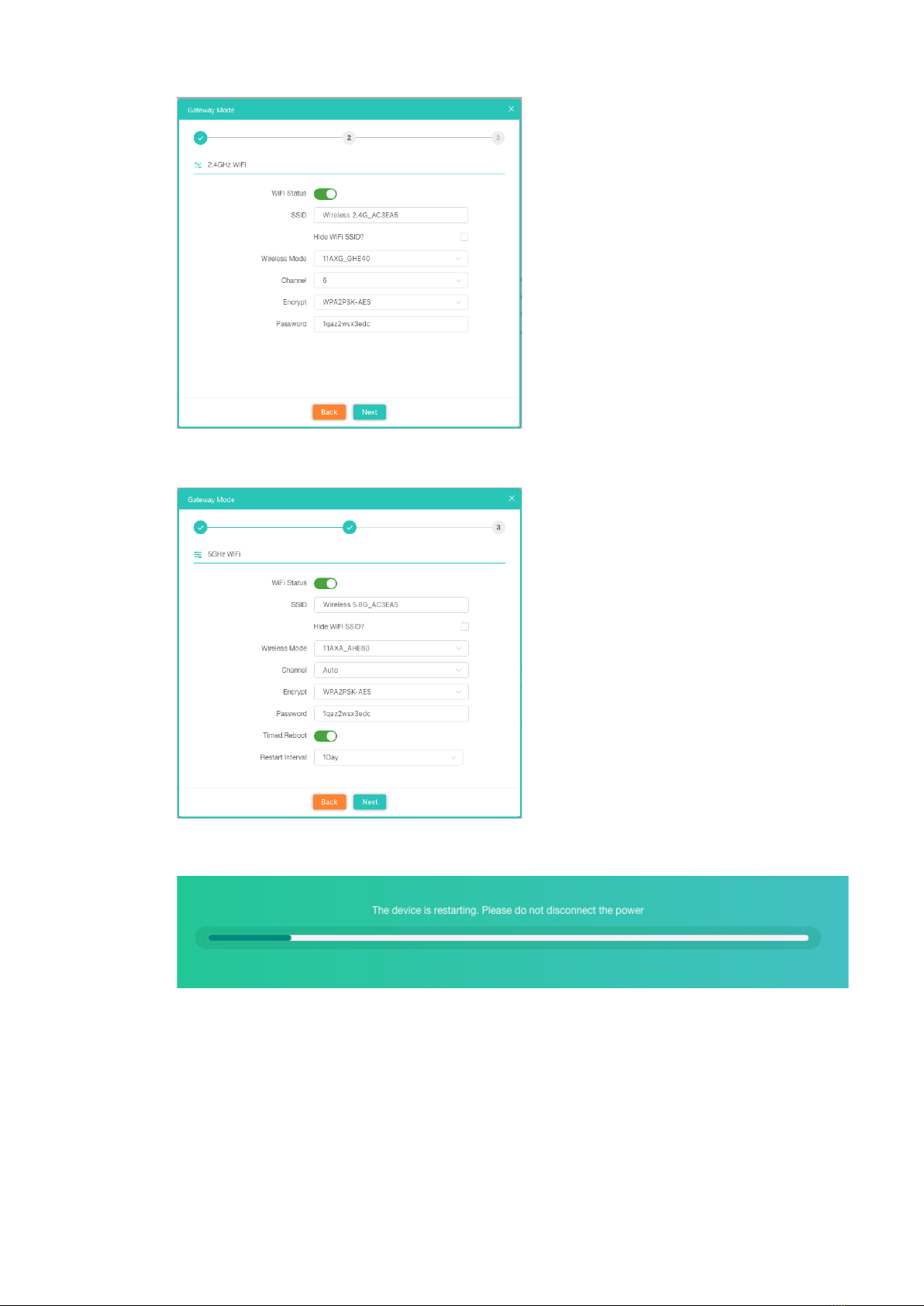

2. Wireless 2.4GHz Setting, Click Next

3.Wireless 5GHz Setting, Click Next

4.Please wait for the configuration to finis
