LevelOne GEP-0823 Manual de usuario

GEP-0823

Quick Installation Guide

English

Deutsch

Français

Español

Nederlands

Dansk

Italiano

Ελληνικά

Português

Svenska

Slovenščina

繁體中文

한국어

Русский

Polski

x 1

AC/DC adapter x 1

x 1AC power line

Package Content

GEP-0823

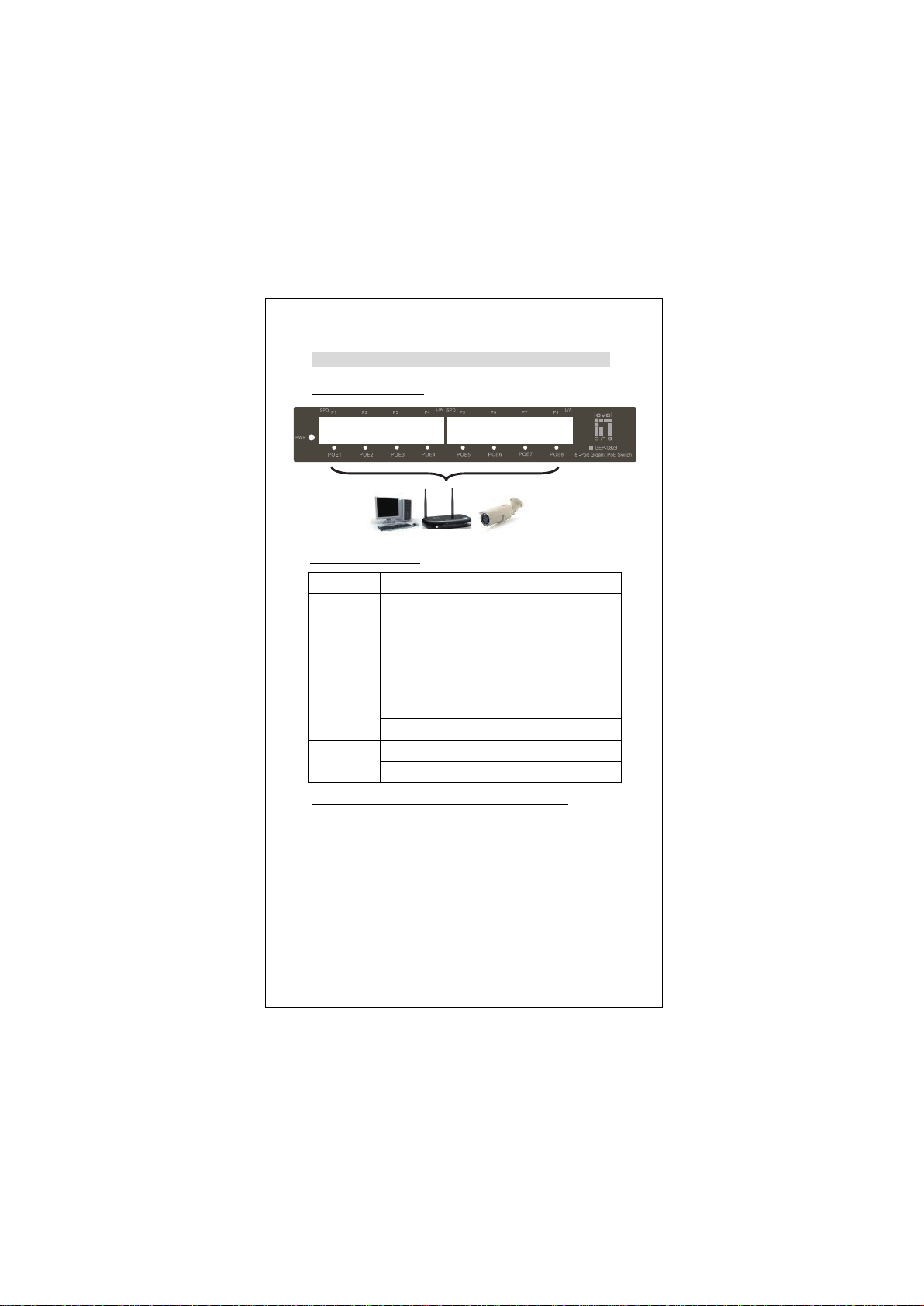

ENGLISH

Installation

LED Indicator

Connecting Equipment

Step1.Inspect the PowerAdapter carefully, and make

sure that it is properly connected to a power

source.

Step2.Plug-in the PowerAdapter to the Switch.

Step3.Connect your network devices with the switch

by using Ethernet cable. (e.g. Cat-5e)

LED

Status

Description

PWR

Green

Device active

POE P1~P8

Yellow

PoE function active and

Connected PD is supplied with PoE

OFF

PoE function deactivated or

No PD identified

L/A

P1~P8

Green

Link to port

Blink

Data transfer to port

SPD

P1~P8

Green

Transfer rate is 1000Mbps

OFF

Transfer rate is 10/100Mbps

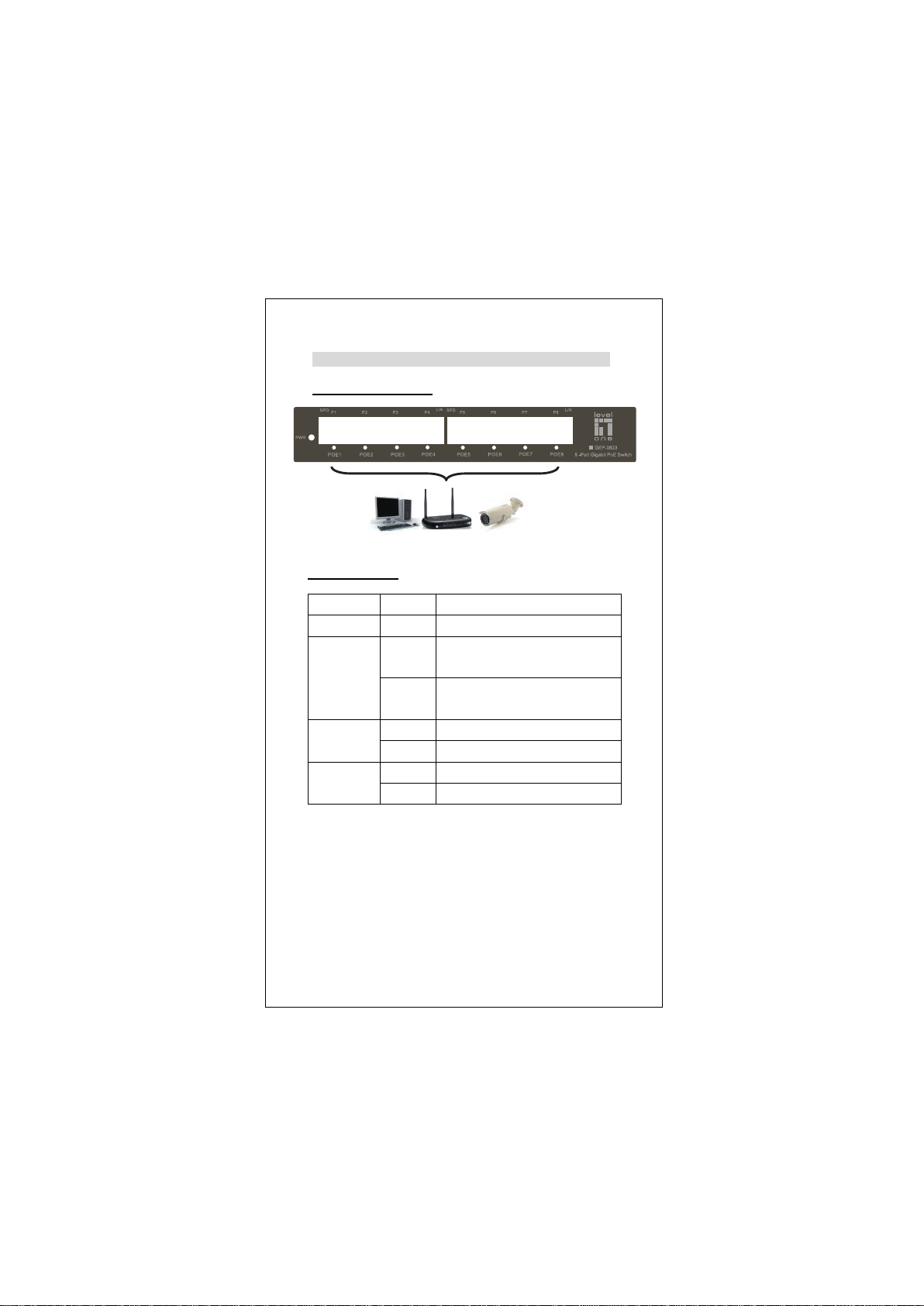

Deutsch

Installation

LED-Anzeige

Anschluss der Geräte

Schritt1. Bitte prüfen Sie die korrekte Verbindung

des Netzteils mit der Steckdose.

Schritt2. Verbinden Sie das Netzteil mit dem Switch.

Schritt3. Verbinden Sie weitere Geräte mit dem

Switch unter Verwendung von

Ethernet-Kabeln (z.B.: Cat.5e).

LED

Status

Description

PWR

Green

Device active

POE P1~P8

Yellow

PoE function active and

Connected PD is supplied with PoE

OFF

PoE function deactivated or

No PD identified

L/A

P1~P8

Green

Link to port

Blink

Data transfer to port

SPD

P1~P8

Green

Transfer rate is 1000Mbps

OFF

Transfer rate is 10/100Mbps

Français

Installation physique

Indicateur DEL

Branchement de l'équipement

Étape1. Inspectez soigneusement l'adaptateur

secteur et assurez-vous qu'il est

correctement connecté à une source

d'alimentation.

Étape2. Branchez l'adaptateur secteur sur le switch.

Étape3. Connectez vos périphériques réseau au

switch en utilisant un câble Ethernet. (Par

exemple, Cat-5e)

LED

Status

Description

PWR

Green

Device active

POE P1~P8

Yellow

PoE function active and

Connected PD is supplied with PoE

OFF

PoE function deactivated or

No PD identified

L/A

P1~P8

Green

Link to port

Blink

Data transfer to port

SPD

P1~P8

Green

Transfer rate is 1000Mbps

OFF

Transfer rate is 10/100Mbps

Español

Instalación física

Indicadores LED

Procedimiento de conexión del equipo

Paso1. Inspeccione el adaptador de corriente

con cuidado, y asegúrese de que está

correctamente conectado a una fuente de

energía.

Paso2. Conecte el adaptador de corriente al

Switch.

Paso3. Conecte sus dispositivos de red con el

switch mediante el uso de cable Ethernet.(Por

ejemplo, Cat-5e).

LED

Status

Description

PWR

Green

Device active

POE P1~P8

Yellow

PoE function active and

Connected PD is supplied with PoE

OFF

PoE function deactivated or

No PD identified

L/A

P1~P8

Green

Link to port

Blink

Data transfer to port

SPD

P1~P8

Green

Transfer rate is 1000Mbps

OFF

Transfer rate is 10/100Mbps

Nederlands

Fysieke installatie

Ledindicator

Apparatuur wordt aangesloten

Stap1.Controleer het voedingsapparaat nauwkeurig

en zorg er voor dat het goed op het stopcontact

is aangesloten.

Stap2.Sluit het voedingsapparaat op de switch aan.

Stap3.Sluit de netwerkapparaten op de switch aan

met een Ethernetkabel, bijvoorbeeld Cat 5e.

LED

Status

Description

PWR

Green

Device active

POE P1~P8

Yellow

PoE function active and

Connected PD is supplied with PoE

OFF

PoE function deactivated or

No PD identified

L/A

P1~P8

Green

Link to port

Blink

Data transfer to port

SPD

P1~P8

Green

Transfer rate is 1000Mbps

OFF

Transfer rate is 10/100Mbps

Dansk

Fysisk installation

LED indikator

Sammenkobling af udstyr

Step1.Tjek strøm adapteren omhyggeligt og sikker at

den er forbundet til strøm kilde.

Step2.Forbind strøm adapteren med switchen.

Step3.Forbind din netvæ rks enhed med switchen vha.

et ethernet kabel ( f.eks. Cat 5e).

LED

Status

Description

PWR

Green

Device active

POE P1~P8

Yellow

PoE function active and

Connected PD is supplied with PoE

OFF

PoE function deactivated or

No PD identified

L/A

P1~P8

Green

Link to port

Blink

Data transfer to port

SPD

P1~P8

Green

Transfer rate is 1000Mbps

OFF

Transfer rate is 10/100Mbps

Italiano

Installazione fisica

Indicatore LED

Equipaggiamento di connessione

Fase1. Controllare l'alimentatore con attenzione

e assicurarsi che sia correttamente collegata

alla sorgente elettrica.

Fase2. Collegare l'alimentatore allo switch.

Fase3. Collegare il proprio dispositivo di rete

allo switch con un cavo Ethernet (ad es.

Cat.5e)

LED

Status

Description

PWR

Green

Device active

POE P1~P8

Yellow

PoE function active and

Connected PD is supplied with PoE

OFF

PoE function deactivated or

No PD identified

L/A

P1~P8

Green

Link to port

Blink

Data transfer to port

SPD

P1~P8

Green

Transfer rate is 1000Mbps

OFF

Transfer rate is 10/100Mbps

Ελληνικά

Εγκατάσταση

Ενδεικτική λυχνία

Συνδεδεμένος εξοπλισμός

Βήμα1. Ελέγξτε προσεκτικά τον μετασχηματιστή

τροφοδοσίας και σιγουρευτείτε ότι έχει

συνδεθεί σωστά στην πρίζα ρεύματος.

Βήμα2. Τοποθετήστε το τροφοδοτικό στο Switch.

Βήμα3. Συνδέστε τις δικτυακές σας συσκευές με το

Switch χρησιμοποιώντας καλώδιο δικτύου

(π.χ. καλώδιο κατηγορίας Cat-5e)

LED

Status

Description

PWR

Green

Device active

POE P1~P8

Yellow

PoE function active and

Connected PD is supplied with PoE

OFF

PoE function deactivated or

No PD identified

L/A

P1~P8

Green

Link to port

Blink

Data transfer to port

SPD

P1~P8

Green

Transfer rate is 1000Mbps

OFF

Transfer rate is 10/100Mbps

Português

Instalação física

LED indicador

Conectando Equipamento

Passo1.Verifique o adaptador de energia

cuidadosamente, e assegure-se de tê-lo

conectado à tomada corretamente.

Passo2.Conecte o adaptador de energia ao Switch.

Passo3.Conecte seus dispositivos de rede no Switch

utilizando cabos ethernet. (ex. Cat-05e).

LED

Status

Description

PWR

Green

Device active

POE P1~P8

Yellow

PoE function active and

Connected PD is supplied with PoE

OFF

PoE function deactivated or

No PD identified

L/A

P1~P8

Green

Link to port

Blink

Data transfer to port

SPD

P1~P8

Green

Transfer rate is 1000Mbps

OFF

Transfer rate is 10/100Mbps
