Datasheet_FSW-1602TX

16-port 10/100 Mbps Compact Switch

LevelOne’s FSW-1602TX Fast Ethernet Switch is a wire-speed

and cost-effective networking device that provides 16 ports with

10/100 Mbps Ethernet connections. This device combines

dynamic memory allocation with a store-and-forward switching

method to ensure that the buffer is effectively allocated for each

port. It also controls the data flow between transmit and receive

nodes to guarantee against all possible packet loss. All ports

support Auto-MDIX allowing uplinking to another switch

straightly without cable selection hassle.

The FSW-1602TX is ideal to share bandwidth 10Mbps or

100Mbps workgroups with multiple high-speed servers. With

the highest bandwidth at 200Mbps, each port can provide

workstations with congestion-free data-pipes for simultaneous

access to the server. Furthermore, this device is also

expandable by cascading two or more switches together and

provide more Ethernet connections.

This unit is small and desktop-sized specially designed to fit in

space-limited locations. Users can immediately use any of the

features of this product simply by attaching the cables and

turning on the power. For instant error detection, the switch is

equipped with a full range of LEDs to help you monitor and

troubleshoot problems on your network.

FSW-1602TX

Key Features

 16-port 10/100BASE Ethernet Switch with RJ-

45 connectors

 Supports Auto-negotiation for speed and duplex

modes for each port

 Supports Auto-MDI/MDI-X for each port

 Store-and-Forward switching method

 Supports 8K absolute MAC addresses

 Supports 512Kbytes RAM for data buffering

 Front-panel diagnostic LEDs

 IEEE 802.3x flow control for full-duplex

 Back pressure flow control for half-duplex

Datasheet_FSW-1602TX

Technical Specification

 Standards Compliance

IEEE 802.3: 10 BASE-T

IEEE 802.3u: 100BASE-TX

IEEE 802.3x Flow Control for Full-Duplex

 Ports

16 x 10/100 Base-TX , RJ-45 ports

 Protocol

CSMA/CD

 Cabling

Ethernet: UTP Cat. 3,4,5, EIA/TIA-568 100-ohm

screened twisted-pair (STP)

Fast Ethernet: UTP Cat. 5, EIA/TIA-568 100-ohm

screened twisted-pair (STP)

 Bandwidth

10 BASE-T: 10/20 Mbps (Half/ Full Deplex)

100 BASE-TX: 100/200 Mbps (Half/ Full Deplex)

 MAC Address Table

8K entries per device

 Buffer

512 KB per device

 LEDs

Per Device:1 x Power

Per Port: 1 x Link/Act; 1x Full-Duplex/Collision; 1 x Speed

 Power Adapter

7.5V/ 1A

 Power Consumption

6 Watts (max)

 Temperature

Operating: 0°C ~40°C

Storage: -10°C ~70°C

 Humidity

Operating: 10% ~ 90% Non-Condensing

Storage: 5% ~ 90% Non-Condensing

 Dimension

184mm(W) * 124mm(H) * 44mm(D)

 EMI and Safety

FCC class A, CE

Product Diagram

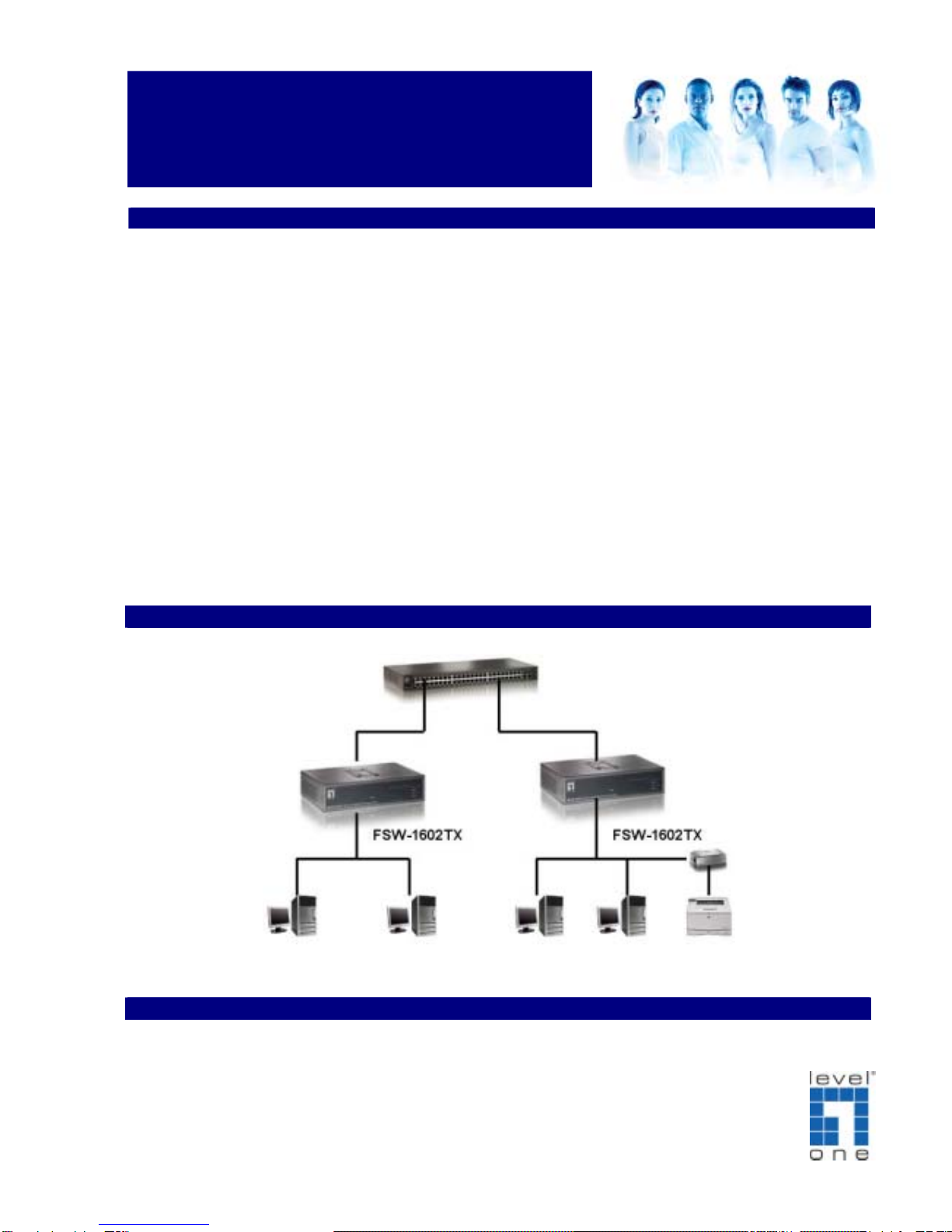

FSW-1602TX Network Diagram

Ordering Information

 FSW-1602TX: 16-port 10/100 Mbps Compact Switch
