LevelOne WBR-3470 Manual de usuario
WBR-3470
ADSL2+ VoIP Router 1W 4L
Quick Installation Guide
English Português
Deutsch 繁體中文
Français 한국어
Español 日本語
Nederlands Русский
Danish ไทย
Italiano ﻲﺑﺮﻋ
Ελληνικά
1
Front LED
LED Description
1 PWR：Lights when the power is ON.
2 SYS：Lights when the system is ready.
3-6 LAN Port
1-4：
Steady glow when connected to an Ethernet device.
Glows green for 100Mbps; Orange for 10Mbps.
Blinking light when data is Transmitted / Received.
7 WLAN：Lit green when the wireless connection is established.
Flashes when sending/receiving data.
8-9 Phone：Lit green when the phone is off-hook.
10 LINE：Lit when the inbound and outbound calls transmitted
through PSTN.
11 VoIP：Lit when SIP registration is OK.
12 PPP：Steady glow when there is a PPPoA / PPPoE connection.
13 ADSL：Lights when successfully connected to an ADSL DSLAM
(linesync).
2
Rear Ports
8 7 6 5 412
3
Port Description
1 Power
Switch Power ON/OFF switch.
2 PWR Connect the supplied power adapter to this jack.
3 RESET
After the router is powered on, press this recessed button using
the end of paper clip or other small pointed object to reset the
router or to restore it to factory default settings.
1. Recovery procedures for non-working routers (e.g. after a
failed firmware upgrade flash):
2. Recovery procedures for a lost web interface password:
4 LAN Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the
four LAN ports when connecting to a PC or an office/home
network of 10Mbps or 100Mbps.
5 Phone Connect RJ-11 cable to this port when connecting to an analog phone
set.
6 LINE Connect RJ-11 cable to this port when connecting to the telephone
wall jack
7 ADSL Connect the supplied RJ-11 (“telephone”) cable to this port when
connecting to the ADSL/telephone network.
8 Antenna Connect the detachable antenna to this port.
3
Package Contents
3WBR-3470
3AC-DC Power Adapter (12VDC, 1.2A)
3RJ-11 ADSL/telephone Cable
3Cat.5 Cable
3CD Manual
3Quick Installation Guide
Note
For more detailed instructions on configuring and using the ADSL2+ VoIP
Router, please refer to the User Manual
Warning
Do not use the WBR-3470 in high humidity or high temperatures.
Do not use the same power source for the WBR-3470 as other equipment.
Do not open or repair the case yourself. If the WBR-3470 is too hot, turn
off the power immediately and have it repaired at a qualified service
center.
Avoid using this product and all accessories outdoors.
Attention
Place the WBR-3470 on a stable surface.
Only use the power adapter that comes with the package. Using a
different voltage rating power adaptor may damage the router.
4

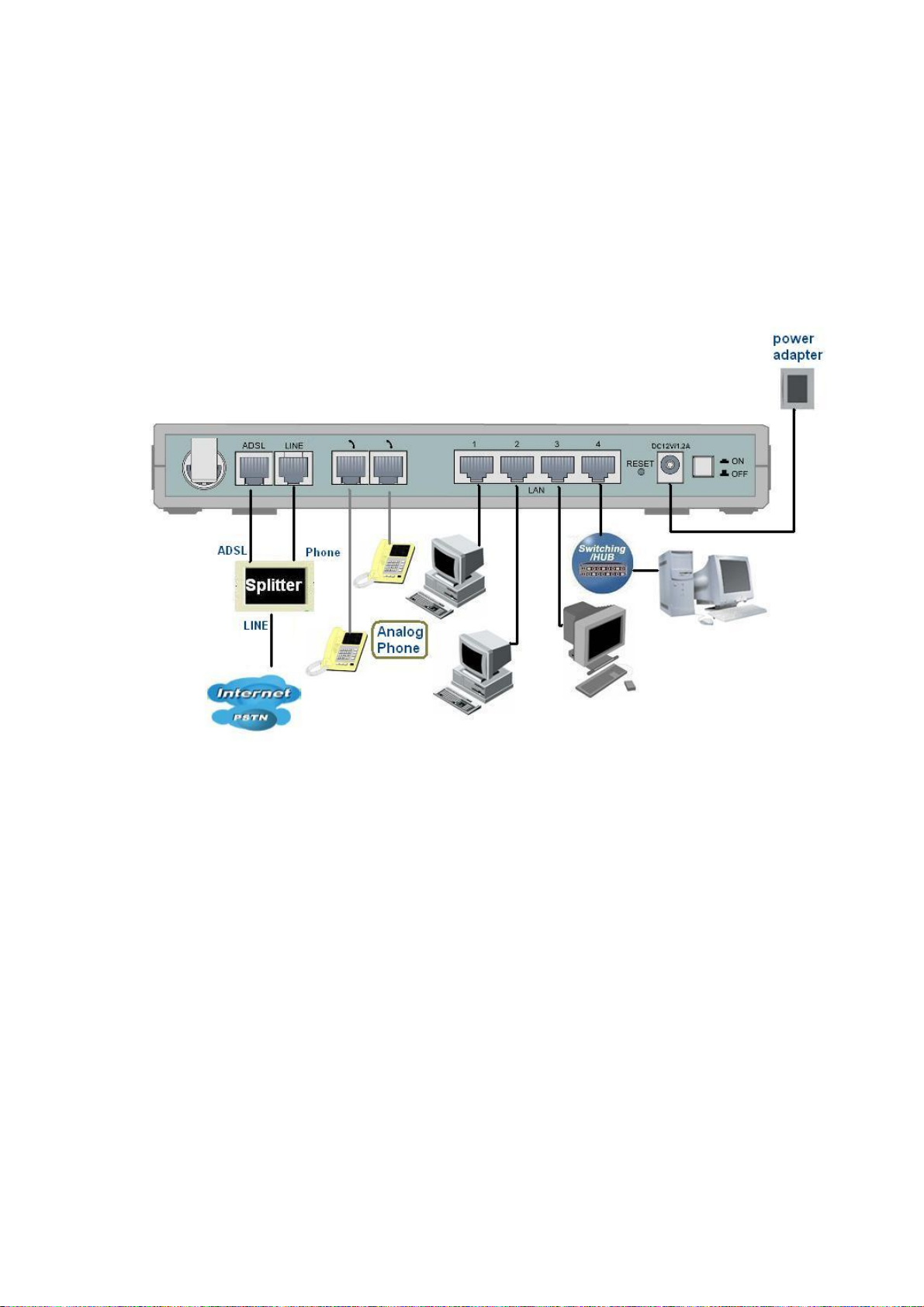

Connecting ADSL2+ VoIP Router
1. Connect the Router to a LAN (Local Area Network) and the ADSL/telephone (LINE) network.
2. Power on the device.
3. Make sure the PWR and SYS LEDs are lit steadily and that the relevant LAN LED is lit.
4. Connect an RJ11 cable to VoIP port when connecting to an analog phone set.
5. Connect an RJ11 cable to LINE port when connecting to the telephone wall jack
5
Configuring the Network Properties
Configuring PC in Windows XP
1. Go to Start / Control Panel (in Classic
View). In the Control Panel, double-click on
Network Connections
2. Double-click Local Area Connection.
3. In the Local Area Connection Status
window, click Properties.
4. Select Internet Protocol (TCP/IP) and click
Properties.
5. Select the Obtain an IP address
automatically and the Obtain DNS server
address automatically radio buttons.
6. Click OK to finish the configuration.
6
Configuring Your ADSL2+ VoIP Router
Note
To configure this device, you must have IE 5.0 / Netscape 4.5 or above
installed
1. Open the web browser and type
http://192.168.1.254 in the browser’s
address box. This number is the default IP
address for this router. Press Enter.
2. A username and password window will
appear. The default username and
password are admin and admin. Press
OK to proceed.
3. You will get a status report on web page.
7
Verifying Your Local Network Connection with the Device
To see if this ADSL Router is
visible on the local network, go
to Start / Run.In the Run dialog
box, type “ping 192.168.1.254”
then presses OK.
A command prompt window will
pop out. If your ping is
successful which means your
local network is able to reach to
the device, then the command
prompt window will close up
automatically.
Connection fails, when you see
“Request timed out” in the
command prompt window. You
may need to check your set up.
8
DE
Lieferumfang
3WBR-3470
3Netzteil (12 V Gleichspannung; 1,2 A)
3RJ-11-ADSL/Telefonkabel
3Cat.5-Kabel
3Anleitung auf CD
3Schnell-Installationsanleitung
Hinweis
Detailliertere Hinweise zur Konfiguration und zum Einsatz des
ADSL2+-VoIPs/Routers finden Sie in der Bedienungsanleitung.
Warnung
Verwenden Sie das Gerät nicht an feuchten oder heißen Orten.
Schließen Sie das Gerät an eine eigene Stromquelle an.
Öffnen Sie nicht das Gehäuse, versuchen Sie nicht, das Gerät selbst zu
reparieren. Falls sich das Gerät überhitzen sollte, schalten Sie sofort den
Strom ab und lassen das Gerät in einem qualifizierten Servicecenter
reparieren.
Setzen Sie das Produkt und sämtliche Zubehörteile nicht im Freien ein.
Achtung
Stellen Sie das Produkt auf einem stabilen Untergrund auf.
Verwenden Sie ausschließlich das mitgelieferte Netzteil. Bei Verwendung
eines Netzteils mit abweichenden Ausgangswerten kann der Router
beschädigt werden.
9
ADSL2+ VoIP-Router anschließen
1. Verbinden Sie den Router mit dem LAN (lokales Netzwerk) und dem
(A)DSL/Telefon-Netzwerk (LINE).
2. Schalten Sie das Gerät ein.
3. Überzeugen Sie sich davon, dass die LEDs PWR und SYS sowie die entsprechende
LAN-LED dauerhaft leuchten.
4. Verbinden Sie den VoIP-Anschluss über ein RJ11-Kabel mit einem Analogtelefon.
5. Verbinden Sie den LINE-Anschluss über ein RJ11-Kabel mit der Telefonsteckdose.
