LevelOne WGR-8032 Manual de usuario

LevelOne

Wireless Router

WGR-8032

Quick Installation Guide

English Español

Deutsch Português

Français Italiano

V1.0_20180516

Table of Content

English ...................................................................... 14

Deutsch..................................................................... 17

Français .................................................................... 20

Español ..................................................................... 23

Português ................................................................. 26

Italiano ...................................................................... 29

- 1 –

Figure 1

* Actual Front Panel and ANTENNA may vary depending on model.

Figure 2

* Actual Rear Panel and ANTENNA may vary depending on model.

LAN Port WAN Port

WPS button

Power Port

Power on / off Switch

WLAN button

Reset Button

Power LED WPS LED

LAN LED

2.4G / 5G LED WAN LED

- 2 –

Default Settings

IP Address

192.168.1.1

User name

admin

Password

admin

Table1.LED function

Label

Color

Flash

Off

Green

Ready

Waiting for device

ready

Power Off

Green

The device has a

WAN IP address

from xDSL/Cable

Modem

Transmit / Receive

Data

Ethernet

Disconnected(No

WAN IP address

from xDSL/Cable

Modem)

Green

WLAN Ready

Transmit / Receive

Data

WLAN Off

Green

N/A

Start WPS pairing

within 2 minutes

WPS Idle

Green

Ethernet Connected

Transmit / Receive

Data

Ethernet

Disconnected

The icons appear on the products are for application indication only.

The trademark or intellectual property is belonging to their respective owners.

- 3 –

Table 2. Function / Description of Connectors

Connector

Description

ANTENNA

fixed ANTENNA

ON/OFF

SWITCH

Power on / off the device

POWER

Connects to the supplied power adaptor

LAN 4/3/2/1

Connects the device via LAN Ethernet to up to 4 PCs

WAN

Connects the device via WAN Ethernet to xDSL / Cable

Modem

WPS

Press this button for at least 3 full seconds and the WPS

LED will flash to start WPS.

Now go to the wireless adapter or device and press its WPS

button. Make sure to press the button within 120 seconds (2

minutes) after pressing the router's WPS button.

WLAN

Press this button for at least 3 full second to turn off/on

wireless signals

RESET

Reset button. RESET the router to its default settings.

Press this button for at least 6 full seconds to RESET device

to its default settings.

Note :

if you need user manual, please download from Levelone website:

http://global.level1.com/downloads.php

- 4 –

Figure 4

Figure 5

Figure 6

- 5 –

Figure 7

Figure 8

- 6 –

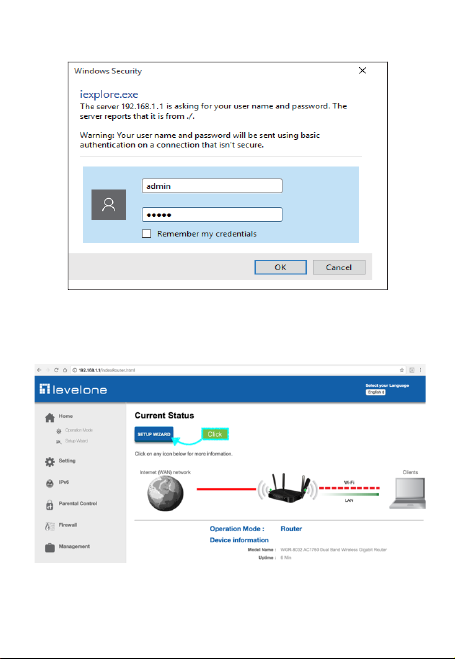

Figure 9-1

Figure 9-2
