675T/ 675R Quick Start

P/N:

2900- 301294QS

Rev:

Scan for full manual

675T/675R Quick Start Guide

This guide helps you install and use your 675T/675R for the first time.

Go to www.kramerav.com/downloads/675T to download the latest user manual and check if firmware

upgrades are available.

Step 1: Check what’s in the box

675T HDMI Optical Transmitter or

1 Power adapter and cord per device

1 Quick start guide

675R HDMI Optical Receiver

4 Rubber feet

1 Bracket set per device

Step 2: Get to know your 675T and 675R

675T

# Feature Function

IN LED

Lights green when a connected source device (with an active HDMI signal) is

detected.

Flashes 4 times green when resetting the device.

Off when a connected source device with an active signal is not detected.

OUT LED

Lights green when both a connected HDMI source (with an active HDMI signal) and

a connected far-end HDMI acceptor are detected.

Off if either the source or the acceptor is not connected, or an active signal is not

present.

LINK Tx and Rx LEDs

Light green when an optical module is connected and an active optical link is

detected.

Light red when an optical module is connected, but an active optical link is not

detected.

Off when the optical module is disconnected.

ON LED

Lights green when the device receives power.

HDMI™ IN Connector

Connect to an HDMI source.

6 OUT IN SFP+ Connector Opening Connect the Kramer certified optical module and connect the fiber optic cable to the

module (purchased separately).

RESET Recessed Button

Press and hold to reset settings to factory default values.

SERVICE Micro USB Port

Connect to a PC to perform firmware upgrade (via K-Upload).

12V DC Power Connector

12V DC connector for powering the unit.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

12 3 4 56 7 8 9

12V DC

675R

# Feature Function

IN LED

Lights green when a connected far-end source device (with an active HDMI signal)

is detected.

Off when a connected source device with an active signal is not detected.

OUT LED

Lights green when both a connected HDMI source (with an active HDMI signal) and

a connected HDMI acceptor are detected.

Off if either the source or the acceptor is not connected, or an active signal is not

present.

LINK Tx and Rx LEDs

Light green when an optical module is connected, and an active optical link is

detected.

Light red when an optical module is connected but an active optical link is not

detected.

Off when the optical module is disconnected.

ON LED

Lights green when the device receives power.

HDMI™ OUT Connector

Connect to an HDMI acceptor.

OUT IN SFP+ Connector opening

Connect the Kramer certified optical module and connect the fiber optic cable to the

module (purchased separately).

SERVICE Mini USB Port

Connect to a PC to perform firmware upgrade (via K-Upload).

12V DC Power Connector

12V DC connector for powering the unit.

Step 3: Install 675T/675R

Install 675T/675R using one of the following methods:

•Attach the rubber feet and place the unit on a flat surface.

•Fasten a bracket (included) on each side of the unit and attach it to a flat surface

(see www.kramerav.com/downloads/675T).

•Mount the unit in a rack using the recommended rack adapter

(see www.kramerav.com/downloads/675T).

•Ensure that the environment (e.g., maximum ambient temperature &

air flow) is compatible for the device.

•Avoid uneven mechanical loading.

•Appropriate consideration of equipment nameplate ratings should be

used for avoiding overloading of the circuits.

•

Reliable earthing of rack-mounted equipment should be maintained.

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your 675T/675R. For best results, we recommend that

you always use Kramer high-performance cables to connect AV equipment to 675T/675R.

When using a duplex OSP SFP+ transceiver, connected with 2 fiber strands, always cross-connect the fiber

connections, Rx OUT to Tx IN and Rx IN to Tx OUT, as unidirectional optical transmission is carried on simplex fiber

strands.

10 11 12 13 14 15 17

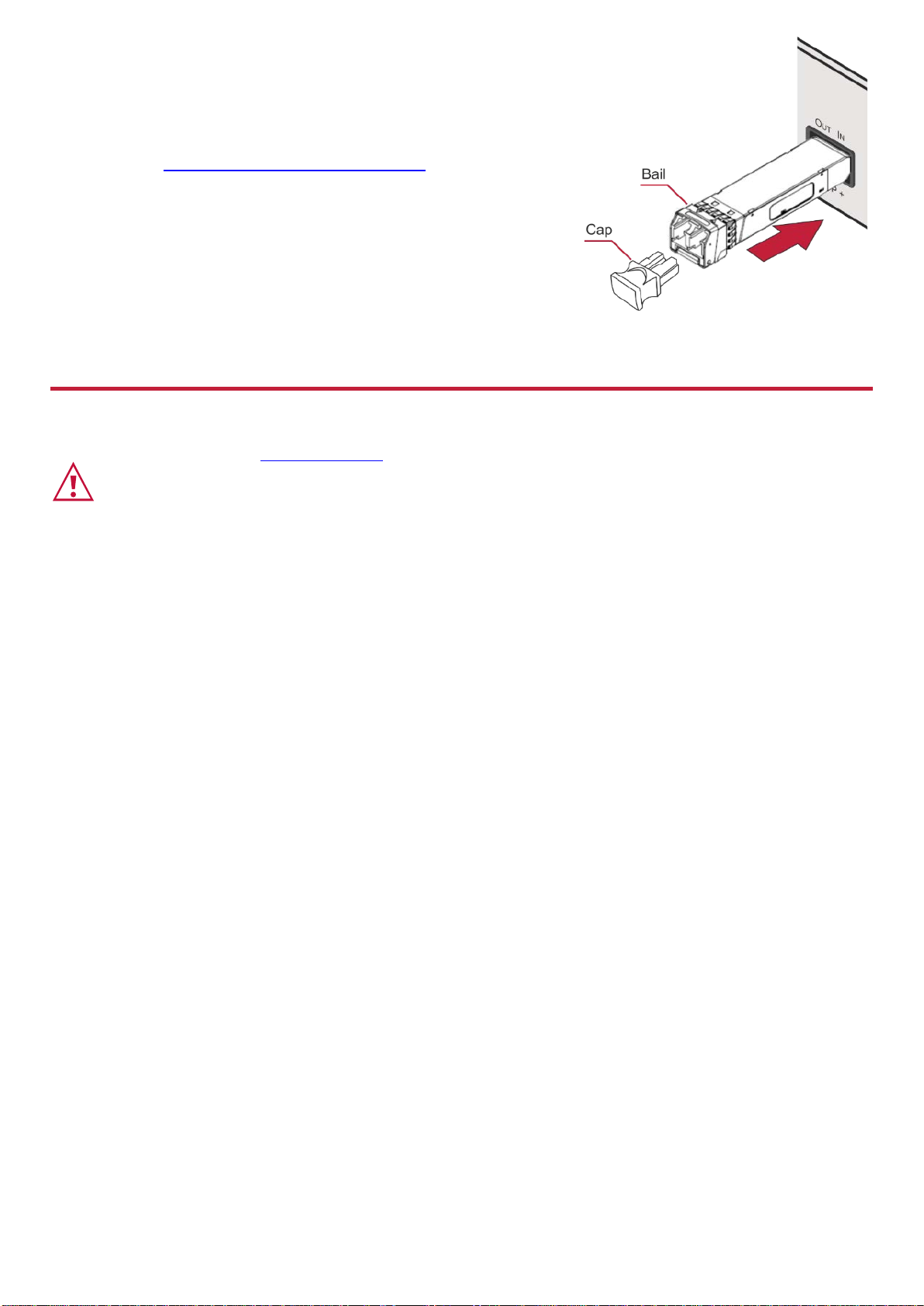

To install the OSP SFP+ transceiver (not included):

Make sure the bail is pushed up, in the closed position.

Insert the OSP SFP+ transceiver into the relevant optical device SFP+

slot and push it in until it clicks.

Remove the protective cap and store it in a safe place for future use.

Warning: Connecting the OSP SFP+ connector to an LC(APC) fiber

connector may cause poor performance and damage the connector!

Refer to www.kramerav.com/downloads/OSP-MM1 for more information.

Warning: Class 1 Laser Product

Invisible laser radiation present.

Avoid long-term viewing of laser.

Avoid the use of magnifying viewing aids or instruments (such as binoculars, telescopes, microscopes and magnifying

lenses, but not spectacles or contact lenses).

Avoid placing optical devices in the emitted beam that could cause the concentration of the laser radiation to be increased.

Step 5: Connect the power

Connect the power cord to 675T/675R and plug it into the mains electricity.

Safety Instructions (See www.kramerav.com for updated safety information).

Caution:

•There are no operator serviceable parts inside the unit.

Warning:

•Use only the power cord that is supplied with the unit.

•Disconnect the power and unplug the unit from the wall before installing.

Technical Specifications

675T

Input

HDMI

On a female HDMI connector

Output

Fiber Optic

On LC connector(s)

Port

USB

On a female micro USB connector

675R

Input

Fiber Optic

On LC connector(s)

Output

HDMI

On a female HDMI connector

Port

USB

On a female micro USB connector

General

Video

Max Bandwidth

18Gbps

Max Resolution

4096x2160@60Hz 4K@60 (4:4:4)

Compliance

HDMI 2.0 and HDCP 2.2

Extension Line

Optical Fiber

Multi-mode (MM) or single-mode (SM)

Optical Module

Kramer 10Gbps SFP+ IEEE 802.3ae compliant

modules (not included)

Multi-mode Line

Compliance

G.651.1 OFNR fiber

Max Reach over OM3 MM Fiber

3km (1.8 miles)

Single-mode Line

Compliance

G.652D OFNR fiber

Max Reach over OS1 SM Fiber

33km (20.5 miles)

Controls

Front Panel

IN, OUT, LINK and ON LED indicators; 675T:

RESET button

Power

Consumption

12V DC, 675T: 280mA; 675R: 220mA

Source

12V DC, 2A

Environmental

Conditions

Operating Temperature

0° to +40°C (32° to 104°F)

Storage Temperature

-40° to +70°C (-40° to 158°F)

Humidity

10% to 90%, RHL non-condensing

Regulatory

Compliance

Safety

CE, UL

Environmental

RoHs, WEEE

Enclosure

Size

Tool

Type

Aluminum

Cooling

Convection ventilation

Accessories

Included

1 power adapter, 1 power cord and 1 bracket set per

device

Specifications are subject to change without notice at www.kramerav.com
