Kramer WP-211T Manual de usuario

WP-211T Quick Start (P/N: 2900-300918QS REV 2)

P/N:

2 9 0 0 - 3 0 0 9 1 8 QS

Rev:

Scan for full manual

WP-211T Quick Start Guide

This guide helps you install and use your WP-211T for the first time.

Go to www.kramerav.com/downloads/WP-211T to download the latest user manual and check if firmware

upgrades are available.

Step 1: Check what’s in the box

WP-211T 1 Gang 4K60 4:2:0 2 HDMI to HDBaseTauto switcher

1 Power adapter and cord

1 Quick start guide

Step 2: Get to know your WP-211T

Feature

Function

INPUT 1

HDMI Connector

Connect to an HDMI source to route to HDBT OUT.

Button

Press momentarily to manually select HDMI 1 (button lights orange).

Operation Mode DIP-switches

By-defaultthe DIP-switches are both set to OFF (left)

DIP-switch 1 OFF (left) - Lastconnected mode; ON (right) - Priority mode according to

DIP-switch 2 settings.

DIP-switch 2 OFF (left) - INPUT 1 is the default priority; ON (right) INPUT2 is the default priority.

Controlling via the INPUT buttons overrides all DIP-switch settings and automatic switching until

the manually selected source disconnects, becomes inactive or WP-211T is powered off.

WP-211T DIP-switches are located behind the faceplate and should be set during installation,before placing the

faceplate. Pressing an input button manually selects that input, independent of the DIP-switch settings.

INPUT 2

HDMI Connector

Connect to an HDMI Source to route to HDBT OUT.

Button

Press momentarily to manually select HDMI 2 (button lights orange).

Grounding Screw

Connect to the common ground (optional) to prevent static electricity from impacting the

performance of the unit.

GND 5V DC 2-pin Terminal

Block Connector

Connect to the supplied power adapter. Not needed on the WP-211T if there is a PoE provider

over HDBaseT.

HDBT OUT RJ-45 Connector

Connect to an HDBaseT receiver (for example, TP-580R).

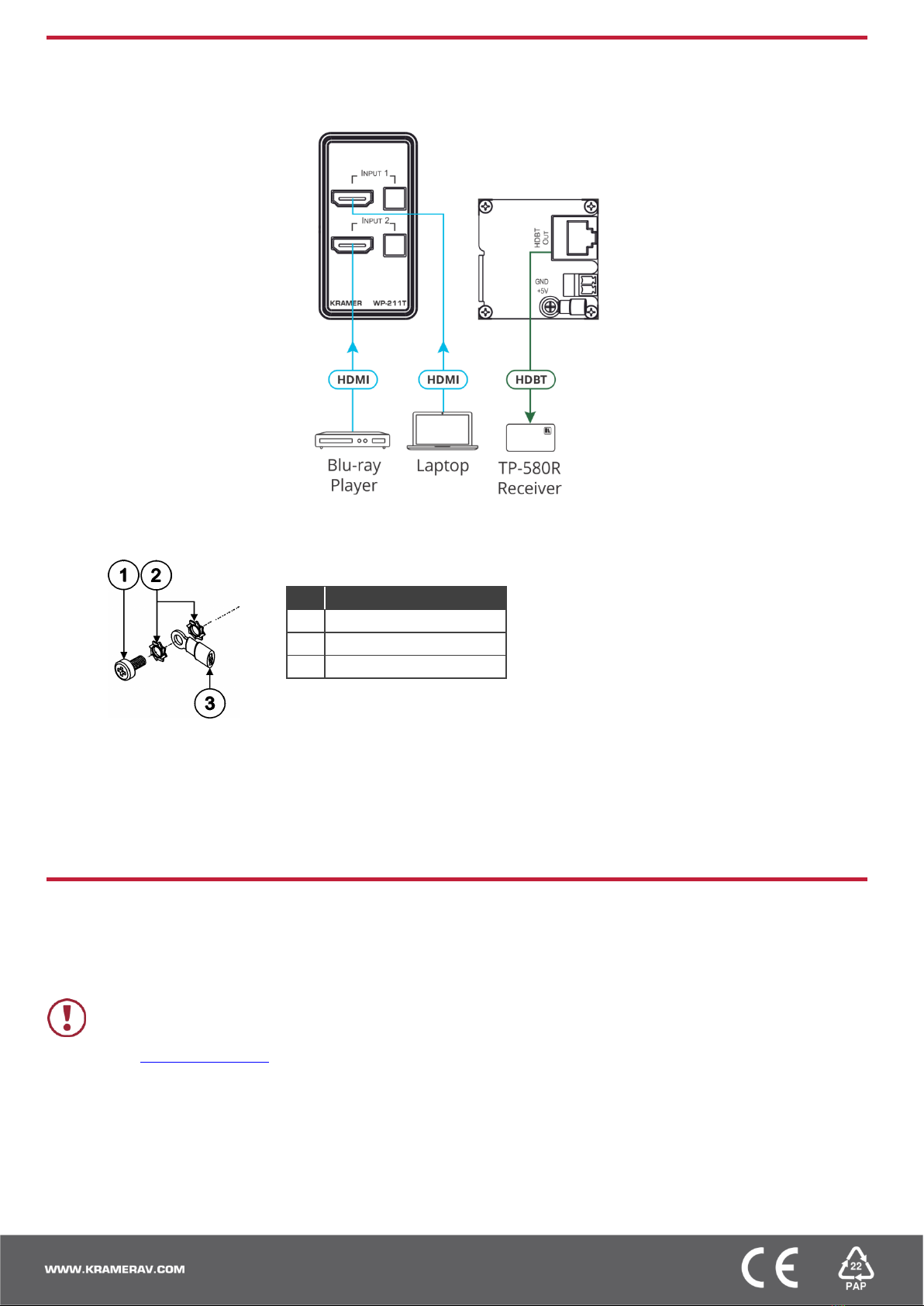

Step 3: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your WP-211T. For best results, we recommend that you

always use Kramer high-performance cables to connect AV equipment to the WP-211T.

Grounding the WP-211T

Component Description

M3X6 screw

1/8" Toothed Lock Washer

M3 Ring Tongue Terminal

To ground the WP-211T:

1. Connect the ring tongue terminal to the building grounding point wire (it is recommended to use a green-yellow AWG#18

(0.82mm) wire, crimped with a proper hand-tool).

2. Insert the M3x6 screw through the toothed lock washers and the tongue terminal in the order shown above.

3. Insert the M3x6 screw (with the two toothed lock washers and ring tongue terminal) into the grounding screw hole and tighten

the screw.

Step 4: Connect the power

If the device is not powered via HDBT PoE, connect the 5V DC power adapter to the WP-211T and plug the adapter into the mains.

Safety Instructions

Caution:

There are no operator serviceable parts inside the unit.

Warning:

Use only the Kramer Electronics power supply that is provided with the unit.

Warning:

Disconnect the power and unplug the unit from the wall before installing.

See www.KramerAV.com for updated safety information.
