AFM-20DSP Quick Start

P/N:

2900- 301204QS

Rev:

Scan for full manual

AFM-20DSP Quick Start Guide

This guide helps you install and use your AFM-20DSP for the first time.

Go to www.kramerav.com/downloads/AFM-20DSP to download the latestuser manualand check if

firmware upgrades areavailable.

Step 1: Check what’s in the box

AFM-20DSP 20 Port Audio Matrix

1 Set of rack ears

1 Quick start guide

1 Power cord

4 Rubber feet

Step 2: Get to know your AFM-20DSP

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

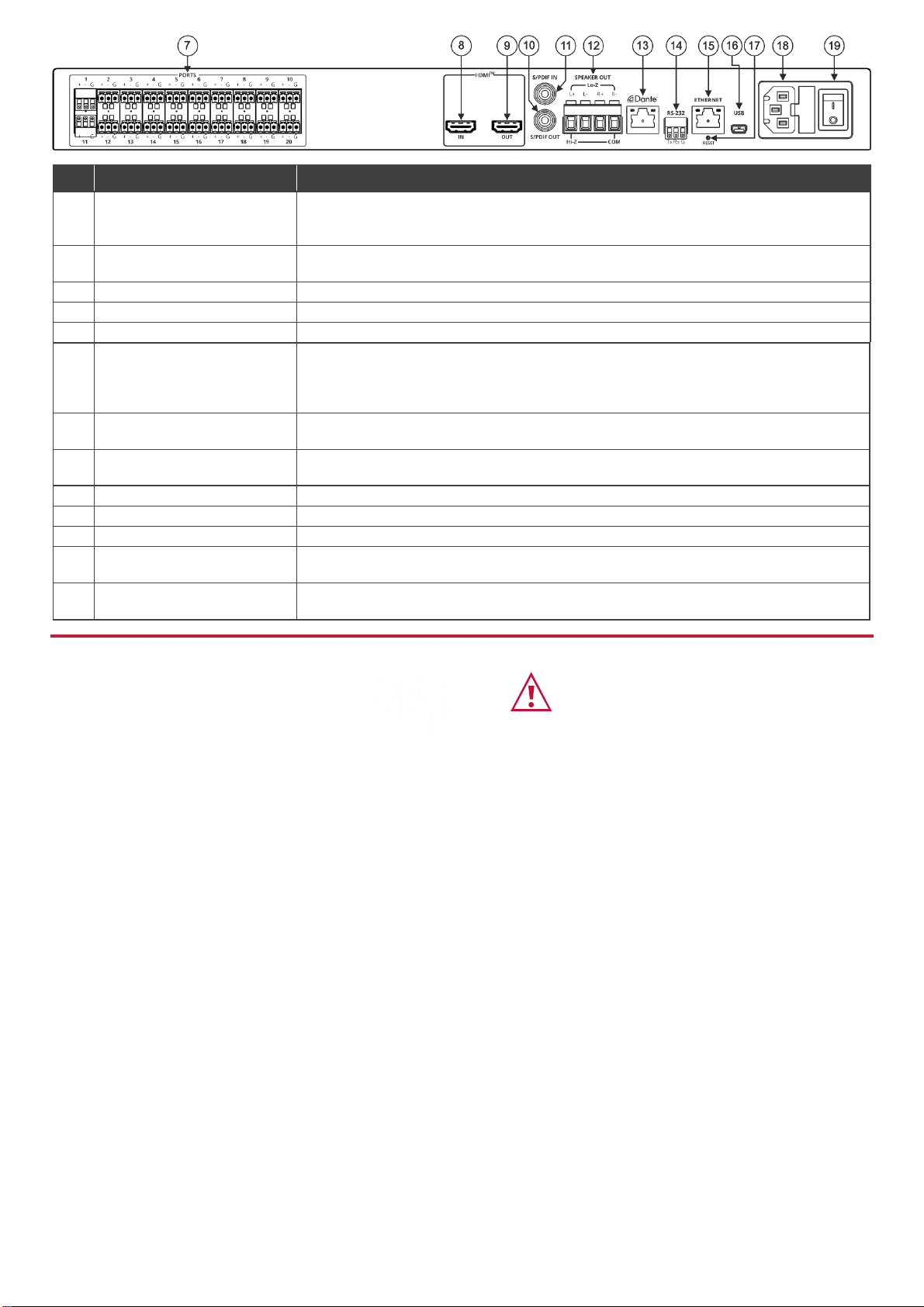

Feature

Function

STATUS LED

Indicates system status:

•Almost 3 cycles of red/blue/off/green

LEDs flashing in sequence for about

30 seconds when system is starting

up, and the application has not been

launched yet.

•Flashing green when application is

initializing.

•Green when system is ready for operation.

PORTS LEDs (1 to 20)

Indicate port status:

•Green when an input signal is present,

and the port is defined as line in.

•White when defined as line out.

•Blue when defined as mic in.

•Red when in clipping state.

•Orange when in limiting state.

•Off when there is no signal on the input.

IN OUT DANTE™ LEDs

(1 to 4)

Indicate Dante signal status:

•Green when a signal is detected.

•Red when clipping occurs.

•Orange when in Limiting state.

•Off when no signal is detected.

HDMI™ LEDs

EMBED

Lights green when an analog audio signal is associated with the HDMI OUT signal.

Otherwise remains OFF.

DE-EMBED

Lights green when the HDMI IN audio signal is present. Otherwise remains OFF.

IN OUT S/PDIF LEDs

Indicate S/PDIF status:

•Green when a signal is detected.

•Off when no signal is detected.

If a signal is detected only on one channel, either left only or right only, the status

LED lights green.

CH 1(L)/CH 2(R) AMPLIFIER

LEDs

Indicates amplifier signal status:

•Green when a signal is detected.

•Off when no signal is detected.

In the web page, Ch1 and CH2 are referred to as AMP 1 and AMP 2, respectively.

Feature

Function

PORTS 3-pin Terminal Block

Connectors (1 to 20)

Interchangeable balancedmono audio ports. Connect to an audio source or acceptor in

one of 7 selectable I/O configurations: 16x4, 14x6, 12x8, 10x10, 8x12, 6x14, 4x16

Each port can be defined as line in, mic in, mic + 48V in, or line out.

HDMI™ IN Connector

Connect to an HDMI source for de-embedding the audio signal (the video signal is passed

through to the output).

HDMI™ OUT Connector

Connect to an HDMI acceptor for embedding an audio signal from the matrix.

S/PDIF OUT RCA Connector

Connect to a digital stereo audio acceptor.

S/PDIF IN RCA Connector

Connect to a digital stereo audio source.

SPEAKER OUT

Outputs two selected audio signals in two channels.

For Lo-Z: connect stereo output to Lo-Z speakers: L+ and L- to the left speaker; R+R- to

the right speaker.

For Hi-Z (70V or 100V): connect Hi-Z and COM to mono Hi-Z speakers.

Dante PoE RJ-45 Port

Connect to Dante audio via the network. Provides 4 Tx channels and 4 Rx channels.

By default, DHCP is enabled.

RS-232 3-pin Terminal Block

Connector

Connect to a PC/serial controller to control the device.

ETHERNET RJ-45 Connector

Connect to a PC via a LAN to control the device and for firmware upgrade.

Mini USB Connector

Connect to your PC to control the device.

RESET Recessed Button

Press and hold for about 5 seconds to reset the configuration to its default parameters.

Mains Power Connector and

Fuse

Plug in the power cord.

POWER Illuminated Power

Switch

Turn the device on and off.

Step 3: Mount AFM-20DSP

To rack mount the machine, attach both rack ears

(by removing the screws from each side of the

machine and replacing those screws through the

rack ears) or place the machine on a table.

•Ensure that the environment (e.g., maximum ambient temperature &

air flow) is compatible for the device.

•Avoid uneven mechanical loading.

•Appropriate consideration of equipment nameplate ratings should be

used for avoiding overloading of the circuits.

•Reliable earthing of rack-mounted equipment should be maintained.

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your AFM-20DSP.

For optimum range and performance use the recommended Kramer cables available at

www.kramerav.com/product/AFM-20DSP. Using third-party cables may cause damage!

Step 5: Connect the power

Connect the power cord to AFM-20DSP and plug it into the mains electricity.

Safety Instructions (See www.kramerav.com for updated safety information)

Caution:

•There are no operator serviceable parts inside the unit.

Warning:

•Use only the power cord that is supplied with the unit.

•Disconnect the power and unplug the unit from the wall before installing.

•Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only.

•To ensure continuous risk protection, replace fuses only according to the rating specified on the product label which located on the bottom of the unit.

Step 6: Operate the AFM-20DSP

Operate AFM-20DSP via:

•Embedded web pages via the

Ethernet.

•RS-232 serial commands

transmitted by a touch screen

system, PC, or other serial

controller.

RS-232 Control / Protocol 3000

Baud Rate:

115,200

Parity:

None

Data Bits:

Command Format:

ASCII

Stop Bits:

Example: (adjust the amplified audio from analog audio 1 to -10dB):

#x-aud-lvl out.amplified_audio.1.audio.1,-10

Default Ethernet Parameters

IP Address:

192.168.1.39

UDP Port #:

50000

Subnet mask:

255.255.0.0

TCP Port #:

5000

Gateway:

192.168.0.1

Security User/Password

Admin/Admin

Factory Reset

Recessed Button

Press and hold for 5 seconds to reset the configuration to its

default parameters.

Protocol 3000:

“#factory” command.

Web Pages:

In the Settings page, click Reset.

Using the embedded web pages

To route an input to an output / outputs:

In the DSP Matrix page, click the lower area of cross-point buttons to connect an audio input (analog, Dante, HDMI audio

signal, S/PDIF or a signal generator) to one or several outputs (analog, Dante, HDMI or S/PDIF). The button lights green.

Click the dB area on a cross-point button to set the output volume.

To process an input/output signal:

In the DSP Main page, process each input and output audio signal and view the routing state of the matrix. Click AMP to

select the amplifier audio signal.

To mix the audio signals:

In the DSP Mixer page, control the audio level (or mute) each input/output, define an analog input as line or mic, and so on.

You can also store/recall snapshots of the current mixing setting.

To define the audio and video settings:

In the A/V Settings page, select the I/O port configuration, save and load system presets, define Dante and Ethernet

parameters and set HDMI labels and input pattern.

To define device parameters:

In the Settings page, enter the device name, Ethernet settings, firmware upgrade, date and time settings or perform a factory

reset.
