Kramer ASPEN-32UFX Manual de usuario

ASPEN-32UFX Quick Start (P/N: 2900-300942QS REV 2)

P/N:

2900- 300942QS

Rev:

Scan for full manual

ASPEN-32UFX Quick Start Guide

This guide helps you install and use your ASPEN-32UFX for the first time.

Go to www.kramerav.com/downloads/ASPEN-32UFX to download the latest user manual and check if

firmware upgrades are available.

Step 1: Check what’s in the box

ASPEN-32UFX Programmable 32 port 12G SDI Router

1 Set of rack ears

1 Quick start guide

1 Power adapter and cord

4 Rubber feet

Step 2: Get to know your ASPEN-32UFX

Feature

Function

RS-232 (G,Rx,Tx) Terminal Block Connector

Connect to a PC or remote controller.

POWER 12V DC Terminal Block Connector

Dual power supply for redundancy:

PS 1 –primary power connector

PS 2 –redundant power connector (optional).

Connect each power adapter into a separate branch circuit employing a

separate service ground.

RESET Button

Press briefly to restart the system.

Press for 5 seconds to reset IP settings to factory default values.

The device powers up and loads the factory default values:

IP address: 192.168.1.39; Mask: 255.255.255.0; Gateway 192.168.1.1.

ETHERNET RJ-45 Connector

Connect to a PC via LAN and also used for firmware upgrade.

LOOP BNC Connector

Connect to the GENLOCK connector of the next unit in the daisy chain or

terminate with 75Ω.

GENLOCK BNC Connector

Connect to the GENLOCK source.

PORTS BNC Connectors (32)

Connect to sources and acceptors.

Step 3: Install ASPEN-32UFX

Install ASPEN-32UFX using one of the following methods:

•Remove the three screws from each side of the unit, reinsert those screws through the

rack ears and mount on a 19" rack.

•Attach the rubber feet and place the unit on a flat surface.

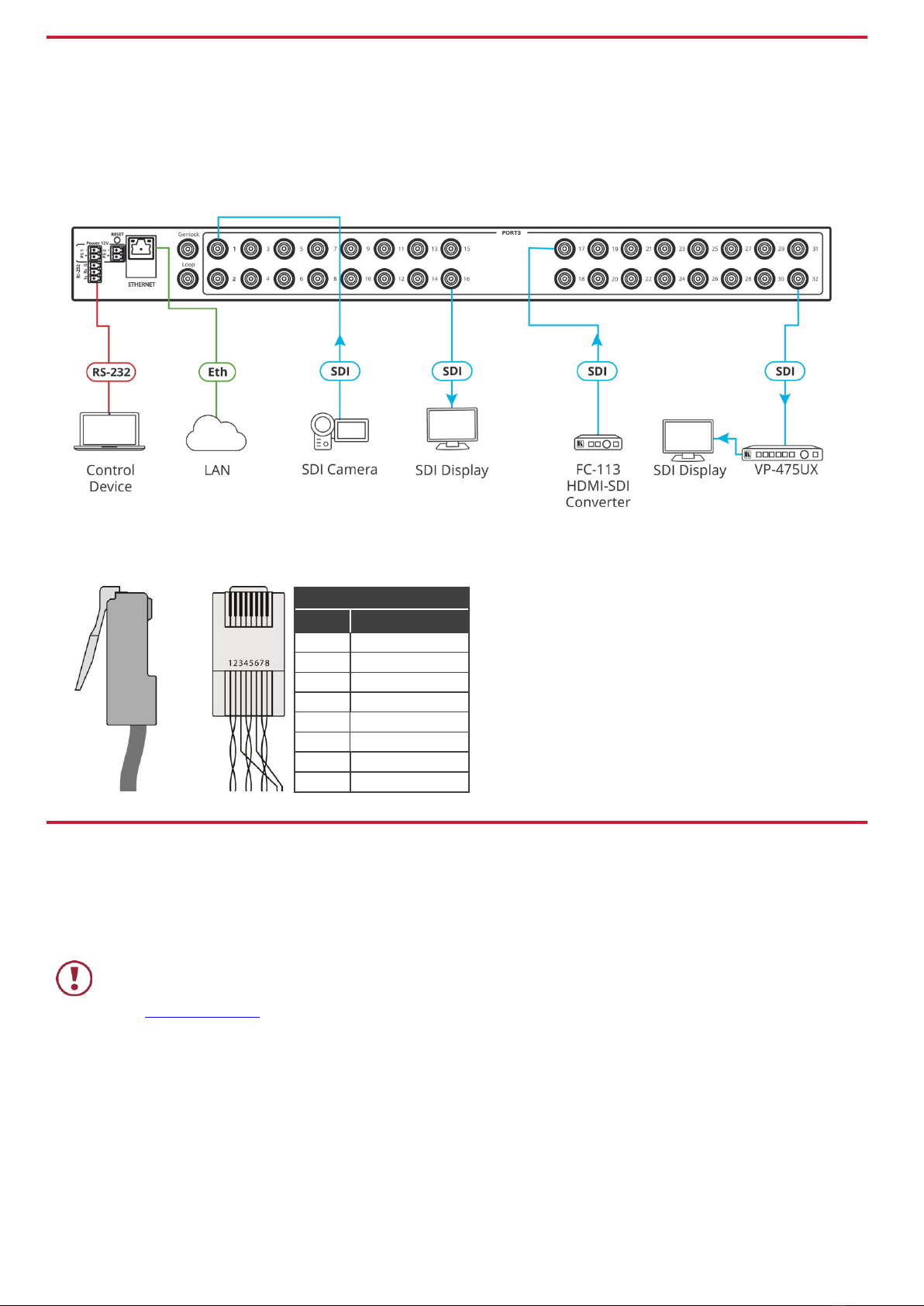

Step 4: Connect the inputs and outputs

Each ASPEN-32UFX port can be defined as an input or an output, enabling flexible configurations such as 1x31distribution

amplifiers, 31x1 routers or any other possible input-output combination. By default, the ASPEN-32UFX is set to operate as a 16x16

router: PORT 1 to PORT 16 as the inputs, and PORT 17 to PORT 32 as the outputs.

Always switch OFF the power on each device before connecting it to your ASPEN-32UFX.

Optionally, daisy-chain the ASPEN-32UFX by looping the genlock source to the next machine.

RJ-45 Pinout:

PIN EIA /TIA 568B

Wire Color

Orange / White

Orange

Green / White

Blue

Blue / White

Green

Brown / White

Brown

Step 5: Connect the power

Connect the 12V DC power supply to ASPEN-32UFX and plug it into the mains electricity. You can add a second power supply (not

supplied in the package) for backup.

Safety Instructions

Caution:

There are no operator serviceable parts inside the unit.

Warning:

Use only the Kramer Electronics power supply that is provided with the unit.

Warning:

Disconnect the power and unplug the unit from the wall before installing.

See www.KramerAV.com for updated safety information.

Step 6: Control ASPEN-32UFX

Web Pages:

RS-232 and Ethernet:

RS-232

Protocol 3000

Baud Rate:

115,200

Stop Bits:

Data Bits:

Parity:

None

Command format example (define

port 1 as an input port):

#PORT-DIRECTION 1,IN

~01@PORT-DIRECTION 1,IN

TCP/IP Parameters

IP Address:

192.168.1.39

UDP Port #:

50000

Subnet mask:

255.255.0.000

Maximum UDP Connections:

Default gateway:

192.168.0.1

TCP Port #:

5000

Maximum TCP Connections:

Unlimited

Full Factory Reset

Web Page:

Device Settings Web page.

Protocol 3000:

Use “Factory” command: #FACTORY<CR>

Rear panel

RESET button:

Press RESET for 5 seconds while the machine is on. The device

automatically resets and powers up again, loading factory default

values.

Authentication

User:

Admin

Password:

Admin

Configure the ports via the Video Switching Web page:

•Define each port as an input or output by clicking a port number.

•Toggle Mute (M) on each output.

•Click a white button in the matrix to switch an input to an output.

= current input to output routing state

= optional input to output routing

Technical Specifications

Ports

32 12G HD-SDI/HD-SDI/SDI

Video

75Ω on BNC connectors (by default, 1 to 16 are set as inputs and

17 to 32 are set as outputs)

1 Genlock

75Ω on a BNC connector

1 Genlock Loop

Passive loop output on a BNC connector

SMPTE Standards

12G-SDI

SMPTE ST-2082-1

3G HD-SDI

SMPTE 424M

HD-SDI

SMPTE 292M

SDI

SMPTE 259M/344M

Video

Max Resolution

4K@60Hz (4:2:2)

Max Bandwidth

12Gbps

Controls

Remote

RS-232

Ethernet

Web pages

Reach

SD Signals

Up to 300m

HD Signals

For 1.5GHz, up to 200m

For 3GHz, up to 100m

For 6GHz, up to 100m

UHD Signals

For 12GHz, up to 80m

Coupling

Power

Consumption

12V DC, 2A

Source

12V DC, 5A

Environmental

Conditions

Operating Temperature

0° to +40°C (32° to 104°F)

Storage Temperature

-40° to +70°C (-40° to 158°F)

Humidity

10% to 90%, RHL non-condensing

Regulatory

Compliance

Safety

Environmental

RoHs, WEEE

Enclosure

Size

19”, 1U

Type

Aluminum

Cooling

Fan ventilation

General

Net Dimensions (W, D, H)

43.64cm x 10cm x 4.36cm (17.18" x 4" x 1.72")

Shipping Dimensions (W, D, H)

55cm x 27.6cm x 10.7cm (21.7" x 10.87" x 4.21")

Net Weight

1kg (2.2lbs)

Shipping Weight

1.9kg (4.2lbs) approx.

Accessories

Included

Power cord

Specifications are subject to change without notice at www.kramerav.com
