USER MANUAL







Model:

VP-8x8

8x8 VGA / UXGA Matrix Switcher

Contents

Introduction 1

Getting Started 1

2.1

Quick Start 1

Overview 3

3.1

Terminology Used in this User Manual 4

Your VP-8x8 8x8 VGA / UXGA Matrix Switcher 4

4.1

Using the IR Transmitter 7

Installing on a Rack 8

Connecting the VP-8x8 9

6.1

Connecting the VP-8x8 Rear Panel 9

6.2

Controlling via RS-232 (for example, using a PC) 11

6.3

Controlling via RS-485 12

6.4

Control Configuration via the Ethernet Port 13

6.4.1

Connecting the ETHERNET Port directly to a PC (Crossover Cable) 13

6.4.2

Connectingthe ETHERNET Port via a Network Hub (Straight-Through Cable) 14

6.4.3

Control Configuration via the Ethernet Port 15

6.5

Setting the Dipswitches 15

6.5.1

Setting the Delay 16

6.5.2

Setting the Machine # Dipswitches 16

6.6

Cascading Machines 17

Operating the VP-8x8 18

7.1

Displaying Unit Characteristics 19

7.2

Confirming Settings 19

7.2.1

Toggling between the At Once and Confirm Modes 20

7.2.2

Confirming a Switching Action 20

7.3

Storing/Recalling Input/Output Configurations 20

7.3.1

Storing an Input/Output Configuration 21

7.3.2

Recalling an Input/Output Configuration 21

7.3.3

Deleting an Input/Output Configuration 21

7.4

Locking the Front Panel 22

Flash Memory Upgrade 23

8.1

Downloading from the Internet 23

8.2

Connecting the PC to the RS-232 Port 23

8.3

Upgrading Firmware 24

Technical Specifications 29

Table of Hex Codes for Serial Communication 30

Kramer Protocol 2000 31

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Contents

Figures

Figure 1: VP-8x8 8x8 VGA / UXGA Matrix Switcher – Front and Rear View 5

Figure 2: VP-8x8 8x8 VGA / UXGA Matrix Switcher – Underside View 7

Figure 3: Connecting the VP-8x8 8x8 VGA / UXGA Matrix Switcher 10

Figure 4: Connecting a PC without using a Null-modem Adapter 11

Figure 5: Controlling via RS-485 (for example, using an RC-3000) 12

Figure 6: Local Area Connection Properties Window 14

Figure 7: Internet Protocol (TCP/IP) Properties Window 14

Figure 8: VP-8x8 Dipswitches 15

Figure 9: Control Configuration via RS-232 and RS-485 18

Figure 10: Storing and Recalling using the Input/Output Buttons 20

Figure 11: Splash Screen 24

Figure 12: Atmel – Flip Window 24

Figure 13: Device Selection Window 25

Figure 14: Selecting the Device from the Selection Window 25

Figure 15: Loading the Hex 26

Figure 16: RS-232 Window 26

Figure 17: Atmel – Flip Window (Connected) 27

Figure 18: Atmel – Flip Window (Operation Completed) 28

Tables

Table 1: Terminology Used in this User Manual 4

Table 2: Front Panel VP-8x8 8x8 VGA / UXGA Matrix Switcher Features 6

Table 3: Rear Panel VP-8x8 8x8 VGA / UXGA Matrix Switcher Features 6

Table 4: VP-8x8 Underside Panel Features 7

Table 5: Dipswitch Settings 15

Table 6: DELAY Dipswitch Settings 16

Table 7: Machine # Dipswitch Settings 16

Table 8: STATUS 7-segment Display 19

Table 9: Technical Specifications of the VP-8x8 8x8 Video Matrix Switcher 29

Table 10: VP-8x8 Hex Codes for Switching via RS-232/RS-485 30

Table 11: Protocol Definitions 31

Table 12: Instruction Codes for Protocol 2000 32

Introduction

1 Introduction

Welcome to Kramer Electronics (since 1981): a world of unique, creative and

affordable solutions to the infinite range of problems that confront the video,

audio and presentation professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

500-plus different models now appear in 8 Groups

, which are clearly defined

by function.

Congratulations on purchasing your VP-8x8 8x8 VGA / UXGA Matrix

Switcher, which is ideal for the following typical applications:

Any professional display system requiring a true 8x8 computer graphics

matrix operation

Multimedia and presentation source, and acceptor selection

The package includes the following items:

VP-8x8 8x8 VGA / UXGA Matrix Switcher

Windows®-based Kramer control software

Windows®-based Configuration Manager XPort software and Com Port

Redirector

Kramer RC-IR2 Infra-Red Remote Control Transmitter (including the

required battery and a separate user manual

)

Power cord, Null-modem adapter and this user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Use Kramer high performance high resolution cables

2.1 Quick Start

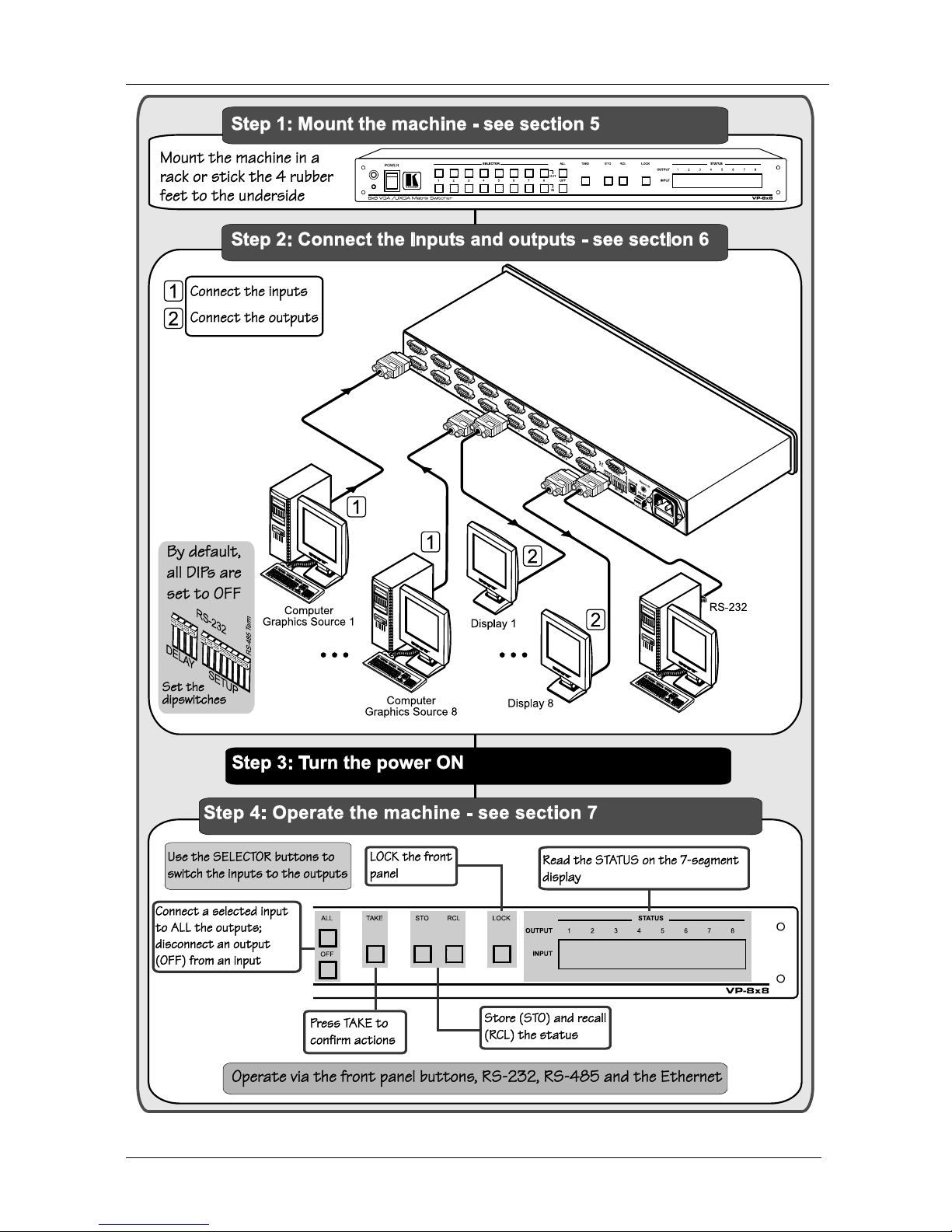

This quick start chart summarizes the basic setup and operation steps.

1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:

Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;

GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors

2 Downloadable from our Web site at http://www.kramerelectronics.com

3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com

4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

Overview

3 Overview

The VP-8x8 is a high performance 8x8 RGBHV Matrix Switcher for high

resolution video. The VP-8x8 lets you simultaneously route any or all of the

8 inputs to any or all of the 8 outputs.

The VP-8x8 8x8 VGA / UXGA Matrix Switcher:

Has a video bandwidth of 400MHz that ensures transparent performance

even in the most critical applications

Has 16 preset memory locations for quick access to common configurations

Has a delayed switching mode (ranging from 0 to 3.5sec

) for clean

transitions (seamless switching) when switching between non-genlocked

sources

Has DC coupled inputs and outputs

Includes a TAKE button, which allows you to place multiple switches in a

queue and then activate them simultaneously with one touch of this button

Consists of a LOCK button to prevent tampering with the front panel

Automatically detects connected input signals (respective button illuminates)

Control the VP-8x8 using the front panel buttons, or remotely via:

RS-485 or RS-232 serial commands transmitted by a touch screen

system, PC, or other serial controller

The Kramer Infra-Red remote control transmitter

Ethernet

The VP-8x8 is dependable, rugged, and fits into one vertical space (1U) of a

standard 19” professional rack

. To achieve the best performance:

Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise

levels (often associated with low quality cables)

Avoid interference from neighboring electrical appliances that may

adversely influence signal quality and position your Kramer VP-8x8

away from moisture, excessive sunlight and dust

1 In increments of 0.5sec

2 The RGBHV signals are connected on HD15 pin connectors to reduce enclosure size

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VP-8x8 8x8 VGA / UXGA Matrix Switcher

3.1 Terminology Used in this User Manual

Table 1 defines some terms that are used in this user manual:

Table 1: Terminology Used in this User Manual

Term Definition

802.3 The standard specification for ETHERNET that is maintained by the Institute of Electrical

and Electronics Engineers (IEEE).

Dynamic Host

Configuration

Protocol (DHCP)

Allows the network administrator to distribute IP addresses from a central point and

automatically send a new IP address when an Ethernet point is plugged into a different

network location

Gateway A network position serving as an entry to another network. On the Internet, a node or

stopping point can be either a gateway node or a host (end-point) node.

IP Address A 32-binary digit number that identifies each sender or receiver (within a network via a

particular server or workstation) of data (HTML pages or e-mails) that is sent in packets

across the Internet. Every device connected to an IP network must have a unique IP

address. This address is used to reference the specific unit.

Local Area Network

(LAN) Computers sharing a common communications line or wireless link, which often share a

server within a defined geographic area.

Media Access

Control (MAC)

Address

A computer's unique hardware number (or address) in a LAN or other network. On an

Ethernet LAN, the (MAC) address is identical to the Ethernet address.

Transmission

Control

Protocol/Internet

Protocol (TCP/IP)

The basic communication language or protocol of the Internet that breaks the message

into appropriately sized packets for the network, and can be used as a communications

protocol in an intranet or an extranet.

4 Your VP-8x8 8x8 VGA / UXGA Matrix Switcher

Figure 1, Table 2 and Table 3 define the VP-8x8 8x8 VGA / UXGA Matrix

Switcher.

Your VP-8x8 8x8 VGA / UXGA Matrix Switcher

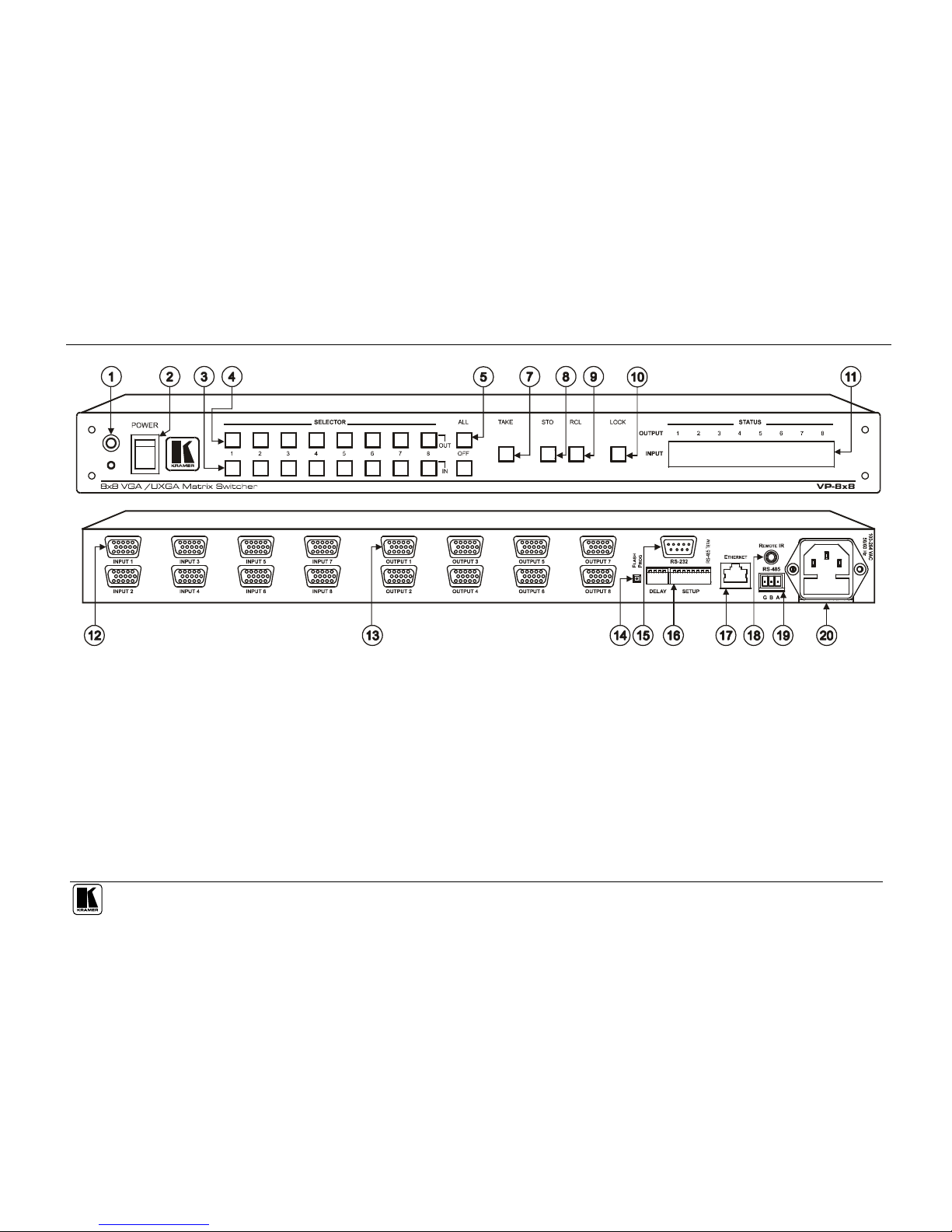

Figure 1: VP-8x8 8x8 VGA / UXGA Matrix Switcher – Front and Rear View

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VP-8x8 8x8 VGA / UXGA Matrix Switcher

Table 2: Front Panel VP-8x8 8x8 VGA / UXGA Matrix Switcher Features

# Feature Function

1 IR Receiver The red LED is illuminated when receiving signals from the Infra-red remote

control transmitter

2 POWER Switch Illuminated switch for turning the unit ON or OFF

3 IN SELECTOR

Buttons Select the input to switch to the output.

When a signal is detected, the input button illuminates in green

4 OUT SELECTOR

Buttons Select the output to which the input is switched

5 ALL Button Pressing ALL followed by an INPUT button, connects that input to all outputs

6 OFF Button Press an OUT SELECTOR button and then an OFF button to disconnect that

output from the inputs

Press the ALL button and then the OFF button to disconnect all the outputs

7 TAKE Button Pressing TAKE toggles the mode between the Confirm mode

and the

At Once mode (user confirmation per action is unnecessary)

8 STO (Store) Button Pressing STO followed by an input/output button stores the current setting

9 RCL (Recall) Button Pressing the RCL button and the corresponding IN/OUT button recalls a

setup from the non-volatile memory. The stored status blinks. Pressing a

different IN/OUT button lets you view

another setup. After making your

choice, pressing the RCL button again implements the new status

10 LOCK Button Disengages the front panel switches

11 STATUS 7-segment

Display

Displays the selected input switched to the output (marked above each

input)

Table 3: Rear Panel VP-8x8 8x8 VGA / UXGA Matrix Switcher Features

# Feature Function

12 HD15F INPUT Connectors Connect to the video sources (from 1 to 8)

13 HD15F OUTPUT Connectors Connect to the output acceptor (from 1 to 8)

14 FLASH PROG Button Push in for “Program” to upgrade to the latest Kramer firmware

(see section 8), or release for Normal (the factory default)

15 RS-232 DB 9F Port Connects to the PC or the Remote Controller

16 DELAY and SETUP Dipswitches

Dipswitches for setup of the unit (DELAY dips 1, 2, 3 are for

setting the delay time; SETUP dips 1, 2, 3, 4 are for setting

machine #; 8 is for RS-485 Termination)

17 ETHERNET Connector Connects to the PC or other Serial Controller through computer

networking

18 RS-485 Terminal Block Port Pin G is for Ground connection; Pins B (-) and A (+) are for RS-485

19 REMOTE IR 3.5mm Mini Jack Connect to an external IR receiver unit for controlling the machine via

an IR remote controller (instead of using the front panel IR receiver)

20 Power Connector with Fuse AC connector enabling power supply to the unit

1 For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs

2 When in the Confirm mode, the TAKE button illuminates

3 For example, press STO and then the Output button # 3 to store in Setup # 3

4 Only view, nothing is implemented at this stage

5 Also displays the number of IN and OUT ports, the firmware version number, and the MACHINE #. Refer to section 7.1

6 The FLASH PROG “Reset” button is located on the underside of the unit

7 Optional. Can be used instead of the front panel (built-in) IR receiver to remotely control the machine (only if the internal

IR connection cable has been installed)

Your VP-8x8 8x8 VGA / UXGA Matrix Switcher

Figure 2 illustrates the underside of the VP-8x8 unit, and Table 4 defines the

underside features.

Table 4: VP-8x8 Underside Panel Features

Feature Function

RESET FOR

PROGRAM Button Press to reset unit prior to

firmware upgrade (see

section 8.3)

Figure 2: VP-8x8 8x8 VGA /

UXGA Matrix Switcher –

Underside View

4.1 Using the IR Transmitter

You can use the RC-IR2 IR transmitter to control the machine via the built-in

IR receiver on the front panel or, instead, via an optional external IR

receiver

. The external IR receiver can be located 15 meters away from the

machine. This distance can be extended to up to 60 meters when used with

three extension cables

Before using the external IR receiver, be sure to arrange for your Kramer

dealer to insert an internal IR connection cable

, which is required so that the

REMOTE IR 3.5mm connector can be used. Connect the external IRreceiver

to the REMOTE IR 3.5mm connector.

Control the matrix switcher using the front panel buttons, or remotely via the

Kramer RC-IR2 Infra-Red Remote Control Transmitter, via an external

remote IR receiver (optional), or via RS-485 or RS-232 serial commands

transmitted by a touch screen system, PC, or other serial controller.

1 P/N: C-A35M/IRR-50

2 P/N: C-A35M/A35F-50

3 P/N: 505-70434010-S

Otros manuales para VP-8x8

Tabla de contenidos

Otros manuales de Conmutador de matriz de Kramer

Kramer

Kramer Sierra Pro XL 1208V5 Manual de usuario

Kramer

Kramer TailorMade Manual de usuario

Kramer

Kramer Sierra Video 1208V5S Manual de usuario

Kramer

Kramer Sierra Video 3216SXL Manual de usuario

Kramer

Kramer Sierra Video 6448V5Sxl Manual de usuario

Kramer

Kramer VS-66H Manual de usuario

Kramer

Kramer XL 1616V Manual de usuario

Kramer

Kramer Sierra Video 1208V3 Manual de usuario

Kramer

Kramer VP-4x4K Manual de usuario

Kramer

Kramer XL 1208V4 Manual de usuario

Kramer

Kramer VS-88H Manual de usuario

Kramer

Kramer VS-84UT Manual de usuario

Kramer

Kramer XL 1204V4 Manual de usuario

Kramer

Kramer VS-88A Manual de usuario

Kramer

Kramer VS-48HDCPxI Manual de usuario

Kramer

Kramer 88V3S Manual de usuario

Kramer

Kramer VS-6464DN Manual de usuario

Kramer

Kramer Sierra Video 1616V5S Manual de usuario

Kramer

Kramer XL 1204VS Manual de usuario

Kramer

Kramer VS-42HN Manual de usuario

Kramer

Kramer VS-88H2A Manual de usuario

Kramer

Kramer VS-42H2 Manual de usuario

Kramer

Kramer VS-88DT Manual de usuario

Kramer

Kramer 88D Manual de usuario

Manuales populares de Conmutador de matriz de otras marcas

Broadcast Tools

Broadcast Tools SS 8.2 Manual de usuario

Altimium

Altimium MATF32 Manual de usuario

ALFAtron

ALFAtron ALF-MUK44N Manual de usuario

Monoprice

Monoprice Blackbird 15377 Manual de usuario

PTN

PTN FMX12 Manual de usuario

CYP

CYP nT15GX01 Manual de usuario

TESmart

TESmart HMA0402A40 Manual de usuario

Octava

Octava HD4XSTPMX Manual de usuario

Intelix

Intelix FLX-88 Instrucciones de funcionamiento

Roland

Roland XS-1HD Manual de usuario

Atlona

Atlona AT-HDMI-22M Manual de usuario

Link

Link HD8X8 Manual de usuario

AMX

AMX AVS-OP-2020-117 Instrucciones y recetas

Lindy

Lindy 38042 Manual de usuario

Extron electronics

Extron electronics MTPX Plus Series Manual de usuario

Key Digital

Key Digital Champion KD-16x16CS Manual de usuario

Shinybow USA

Shinybow USA SB-8811 Manual de usuario

Optimus

Optimus Compact Manual de usuario
