Operation Manual
Operation Manual

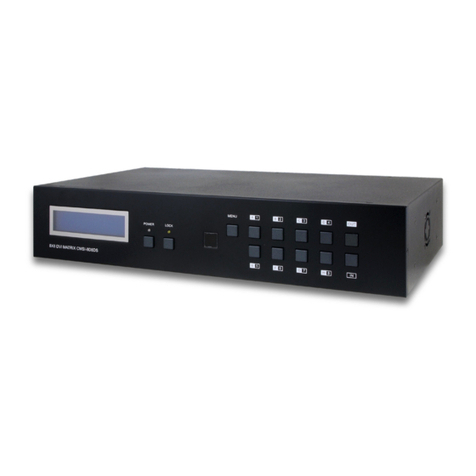

8×8 DVI Matrix with Audio
nT15GX01 | CMSI-8D8DSA
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 05/03/12 Preliminary Release
RDV2 10/07/12 Control's Function
VS0 23/07/12 Telnet and Web GUI sections
updated
RDV3 04/10/12 Add Web GUI page
RDV4 04/06/13 RS-232 & Telnet's SetIP Command
CONTENTS
1. Introduction ............................................ 1
2. Applications ........................................... 1
3. Package Contents ................................ 1
4. System Requirements ............................ 1
5. Features .................................................. 2
6. Operation Controls and Functions ....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel .........................................4
6.3 Side Panel .........................................5
6.4 Remote Control ................................5
6.5 RS-232 Pin Assignment .....................6
6.6 RS-232 and Telnet Commands .......7
6.7 Telnet Control ...................................8
6.8 Web GUI Control ............................10
7. Connection Diagram .......................... 12
8. Specications ......................................13
9. Acronyms ............................................. 14
1
1. INTRODUCTION
The 8×8 DVI Matrix with Audio is the perfect choice for the switching
and distribution of DVI sources. Connect up to eight DVI sources to
eight DVI displays allowing any source to be independently displayed
on any monitor. Each DVI input and output has a corresponding 3.5mm
mini-jack connection allowing for audio to be distributed. The Matrix
can be controlled via its front panel, IR, RS-232 or Telnet and Web GUI
over IP.The matrix supports a full range of PC and HDTV timings up to
WUXGA and 1080p, 2.25Gbps bandwidth, 12-bit Deep Color, and 3D.
2. APPLICATIONS
• Commercial computer display matrixing
• Commercial advertising display
• University lecture hall display
• Retail sales demonstration
3. PACKAGE CONTENTS
• 8×8 DVI Matrix with Audio
• 1×24V/6.25A DC Adaptor
• 1×Remote Control
• 1×IR Extender
• Operation Manual
4. SYSTEM REQUIREMENTS
• DVI source with DVI connection cables and output DVI displays with
DVI connection cables
• Analog audio output, such as AV receivers with 3.5mm mini-jack
cables
2
5. FEATURES
• HDMI, HDCP 1.1 and DVI compliant
• Supports HDMI 3D feature (with HDMI to DVI adaptor cable)
• Supports resolutions to VGA ~ WUXGA and 480i~1080p dependent
upon the output display's EDID settings
• Supports stereo audio input and output via 3.5mm mini-jack cable
• Supports 3D signal dependent upon the output display's EDID
settings
• Supports IR extension
• Supports RS-232, remote control, on-panel control and IP Control
(Telnet & Web GUI)
• 2U size design
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
POWER LOCK
MENU OUTA 1B2C3D4
IN
E5F6G7H8
8X8 DVI MATRIX CMSI-8D8DSA
2 3 4 5 61
1 LCM: Displays the setting information of each input and output
setting.
2 POWER: Press this button to power the device on/off. The LED will
illuminate green when the power is on, red when it is in 'Standby'
mode.
3 LOCK: Press this button to lock all the buttons on the panel; press
again to unlock. The LED will illuminate green when locked.
4 IR: IR Receiver window (accepts the remote control signal of this
device only).
5 MENU: Press this button once to select EDID setting from STD
(internal) 1 or TV (external) 2 then press it again to conrm the
selection. Press this button every to conrm the selection.
Note: For the 'TV' EDID setting, the unit will read and store the
EDID information of the display connected to HDMI output A. For
the 'STD' EDID setting the unit's built-in EDID setting will be used
(1080p@60/12-bit for video and LPCM 2CH for audio).
6 1~8/A~H and IN/OUT: Press the OUT or IN button to select the
output or input mode and then press the required number button
to make the selection accordingly.
For example, if outputs A~D need to be set to input 1 and outputs
E~H need to be set to input 2, then the following sequence of
button presses need to be performed:
Press: OUTABCDIN1MENU,
and then press: OUTEFGHIN2MENU.
Note: If the MENU button is not pressed the selection will not be
changed.
4
6.2 Rear Panel
IR-IN
RS-232 SERVICE
AUDIO OUT
AUDIO IN
A B
1 2
C D E F G H
3 4 5 6 7 8
A
1 2 3 4 5 6 7
B C D
DVI IN
DVI OUT
E F G
DC 24V
1
2
3
4
V+
GND
GND GND
V+
CONTROL
2 3 54 6 71
1 CONTROL: This port is the link for Telnet and Web GUI controls,
connect to an active Ethernet link with an RJ45 terminated cable (for
further details, please refer to section 6.7 & 6.8).
2 RS-232: Connect to a PC or control system with D-Sub 9-pin cable
for the transmission of RS-232 commands.
3 IR-IN: Connect to the supplied IR extenders for IR signal reception
from the remote control of the Matrix. Ensure that the remote is
within the direct line-of-sight of the IR extender when used.
4 SERVICE: Manufacturer use only.
5 DVI IN 1~8 with Audio: Connect to DVI sources such as PC/Laptop
or DVD/Blu-ray player with HDMI to DVI adaptor cables. Connect
the audio input to the source with 3.5mm mini-jack cables
6 DVI OUT A~H with Audio: Connect to a DVI equipped TV/monitor
for display of the DVI input source signal. Connect the audio
outputs to AV receivers or active speakers with 3.5mm mini-jack
cables
7 DC 24V: Plug the supplied 24 V DC power supply into the unit and
connect the adaptor to an AC outlet.
5
6.3 Side Panel
1
1 Fan Ventilator: These are air ventilation areas, DO NOT block these
areas or cover it with any object. Please allow adequate space
around the unit for air circulation.
6.4 Remote Control
1 POWER ; Press this button to switch on the
device or set it to standby mode.
2 IN: Input port selection 1~8.
3 OUT: Output port selection A~H.
1
23
