Installation Guide

Fan Speed Controllers

CEE-3009, 3010

Mounting

1. Install a 2" x 4" metal or plastic enclosure mounted near the fan unit.

2. Install the controller in the box using the provided hardware.

3. Check that air moves freely over the heat sink faceplate.

Wiring

The CEE-3009 and 3010 are designed to work with a

CSE-1002 Static Pressure Controller. The CEE-3010

uses 0 to 10 VDC input from a KMC Digital

Controller.

1. Complete connections per the wiring diagram(s).

2. Branch circuit protection (fuses or circuit

breakers) is required.

a. Voltage equal to or greater than the drive’s.

b. Current equal to or less than four (4) times the

drive’s full load rating.

3. Grounding is through the mounting screws to the

grounded enclosure.

CEE 3009 with CSE-1002 Static Pressure Controller CEE-3010

Adjustments and Calibration

Access the speed adjustment potentiometer

through the side opening.

To set the minimum speed:

1. Set the input (the controller’s output) to 1 VDC or

disconnect the input.

2. The fan speed controller output must be wired in

series with the fan motor with power applied.

3. Adjust the potentiometer to the desired minimum

speed.

CAUTION!

The fan speed controller will allow the fan motor to

stall. Maximum current occurs at less than full fan

speed. Do not set the minimum speed at less than

1/2 full synchronous speed. Do not exceed the given

current rating at any speed.

Maintenance

No routine maintenance is required. Each

component is designed for dependable, long term

reliability and performance.

Careful installation will also ensure long term

reliability and performance.

KMC Controls

P.O. Box 497

19476 Industrial Drive

New Paris, IN 46553

U.S.A.

TEL: 574.831.5250

FAX: 574.831.5252

E-mail: [email protected]

899-019-01C

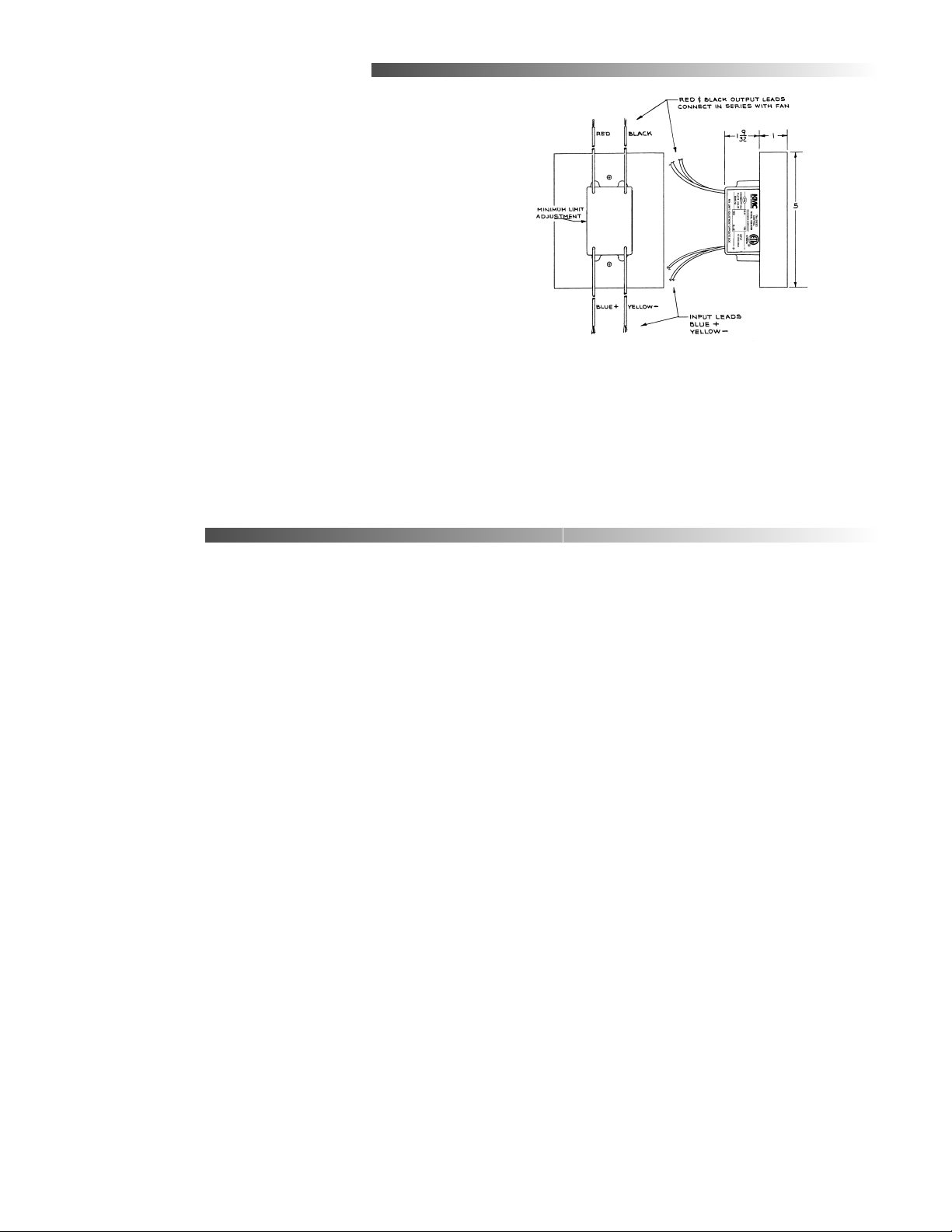

CEE-3009 Shown
