KMC Controls KMD-5210 Instrucciones de funcionamiento

Revision E

Installation and Operation Guide

KMD-5210 LAN Controller

KMD-5210–001 LAN Controller with BACnet 802.3

KMD-5210–002 LAN Controller with BACnet MS/TP

883-019-07E

KMC Controls

Revision E2

WinControl and WinControl XL is a registered trademark of KMC Controls, Inc.

TotalControl is a trademark of KMC Controls, Inc.

transcribed, stored in a retrieval system, or translated into any language in any form

by any means without the written permission of KMC Controls, Inc.

Printed in U.S.A.

Disclaimer The material in this manual is for information purposes only. The contents

and the product it describes are subject to change without notice. KMC

Controls, Inc. makes no representations or warranties with respect to this

manual. In no event shall KMC Controls, Inc. be liable for any damages, direct

or incidental, arising out of or related to the use of this manual.

KMC Controls

P.O. Box 497

19476 Industrial Drive

New Paris, IN 46553

U.S.A.

TEL: 1.574.831.5250

FAX: 1.574.831.5252

E-mail: [email protected]



KMD–5210 Installation and Operation

Revision E 3

Contents

Section 1

About the LAN controller

Introduction .......................................................................................................................... 5

BACnet options .................................................................................................................... 5

Specifications ........................................................................................................................ 6

Options and Accessories ..................................................................................................... 9

Controls and Connections ................................................................................................ 10

Safety Considerations ....................................................................................................... 11

Section 2

Installation

Mounting ............................................................................................................................ 13

Network connections ........................................................................................................ 14

EIA–485 networks .............................................................................................................. 16

BACnet networks ............................................................................................................... 18

Planning for input and output modules ........................................................................ 20

Module installation ........................................................................................................... 21

Connecting Power ............................................................................................................. 22

Connecting to a Computer ............................................................................................... 23

Section 3

Operation

Applying power .................................................................................................................27

Lights and indicators ......................................................................................................... 27

Resetting the controller ..................................................................................................... 29

Section 4

Configuration and programming

Related materials ............................................................................................................... 31

Programming Considerations .......................................................................................... 31

Configuring a controller with HCM ............................................................................... 32

Programming for BACnet in WinControl XL ................................................................ 36

Access to the LAN Controller from BACnet ................................................................. 37

Firewalls and network communications ........................................................................ 37

System time keeping ......................................................................................................... 37

KMC Controls

Revision E4



KMD–5210 Installation and Operation

Revision E 5

SECTION 1

About the LAN controller

This section provides a general introduction to the KMD-5210 LAN

Controller. It also introduces safety information. Review this

material in its entirety before installing or operating the controller.

Introduction The KMD-5210 LAN Controller is a programmable, direct digital controller

used to facilitate high-level, peer-to-peer network communications for

facilities management purposes. The LAN Controller may be operated in a

stand alone configuration or as part of a fully networked digital system to

intelligently monitor and control HVACR equipment.

The KMD-5210 uses a token passing protocol in Tier 1 networks using an

Ethernet network to communicate with other LAN Controllers. The LAN

Controller also supports Tier 2 networks with two dedicated EIA–485 ports.

Up to 32 KMD-5210 controllers can be integrated into a single peer-to-peer

network, each supporting up to 124 nodes on a Tier 2 network.

The controller also supports remote access through a modem port and

provides two ports for direct connection with up to two PCs. The firmware in

the controller uses a high-level, easy-to-learn programming language to

ensure reliability, rapid programming, and compatibility with future KMC

system. This programming function is available from within the KMC

Controls WinControl application.

BACnet options BACnet 802.3 The KMD-5210-001 adds BACnet functionality to the LAN

Controller. Through Control Basic statements the controller communicates

with 802.3 BACnet devices on the same Ethernet broadcast segment.

BACnet MS/TP The KMD-5210-002 adds BACnet MS/TP functionality to the

LAN Controller functionality. By using Control Basic programming, the

controller exchanges data with native BACnet devices on an MS/TP network.

KMC Controls

Revision E

About the LAN controller

Specifications

Processor Motorola 68360, 32–bit, 33 MHz

Memory

Flash 2 megabytes, nonvolatile, operating programs

and data storage

RAM 2 megabytes, 72–hour capacitor backup

Inputs and Outputs The KMD-5210 controller includes eight

universal I/O ports for optional input and

output modules. Connect up to eight KMD-5220

input modules, eight KMD-5221 output

modules or a combination of input and output

modules in any combination.

I/O Ports Eight, 16–pin connectors. Software selectable as

analog or digital standard or custom units of

measure.

Inputs 16–bit analog-to-digital (A/D)

Software selectable as analog or digital standard

or custom units of measure. Install up to 8, 16

input modules for up to 128 universal inputs.

Output 12–bit digital to analog (D/A)

Communications

Tier 1 EIA–485 protocol at rates up to 38 kilobaud.

Connector type is a three-screw terminal block,

12–22 AWG wire.

Note: Use the Tier 1 connection only when

replacing KMD–5110 MultiNet controllers and

Ethernet is not available. Contact KMC Controls

techncial support for networking details.

Tier 2 A and B EIA–485 protocol at rates up to 38 kilobaud.

Connectors are three-screw terminal blocks,

12–22 AWG wire. Two ports, each of which

support up to 124 KMC Tier 2 controllers.

EIA–485 EIA–485 protocol at rates up to 38 kilobaud.

Connector is a three-screw terminal block,

12–22 AWG wire. Supports BACnet MS/TP in

KMD-5210–002.

Modem EIA–232 in parallel with Computer B. Dial-in

and dial-out for with alarm and paging

capability, 9–Pin (DB-9).

Computer A and B Two EIA–232 ports, operate up to 38.4 kilobaud.

Connectors are three-screw terminal blocks,

12–22 AWG wire.

Ethernet 10baseT, RJ–45 supports up to 31 networked

Tier 1 controllers and BACnet 802.3 in KMD-

5210–001



KMD–5210 Installation and Operation

Revision E

About the LAN controller

Specifications

Programmable Features

Control Basic Programs 128 user-definable program areas

Networked Points In 512 from each Tier 2 network

127 from Tier 1 network

Networked Points Out 64 to each Tier 2 network

64 out to a Tier 1 network

PID Control Loops 64 PID control loops

Program Variables 256 - Software selectable as analog or digital

with standard or custom ranges, manually set or

program driven values

Time keeping Real-time clock with power backup.

Programmable for automatic daylight saving

time by date, day of month and time of day.

Tables 5 user defined

Logging

Trend Logs 96 trend logs each supporting up to 6 analog,

digital, or virtual elements or points

Runtime Logs 28 runtime logs with time/date stamp and

cumulative runtime

Schedules

Weekly Schedule 32 schedules with 2 override days

Annual Schedule 16 for holiday schedules

Alarms Alarm buffering for up to 128 alarms

50 alarm messages for distribution

On-board 68-character alarm or maintenance

text messages

Power Loss Power fail with auto restart

On-board real-time clock with 72–hour

capacitor backup.

Security Six operator access levels

256 operator names with passwords

Custom Graphics 64 system groups each of which can manage 160

points with animated and color graphics.

Regulatory UL 916 Energy Management Equipment listed

CE compliant

FCC Class B, Part 15, Subpart B

SASO PCP Registration KSA R-103263

KMC Controls

Revision E

About the LAN controller

Specifications

Power Supply Requires KMD–5563, International-ready 120/

240 VAC, 1.35 ampere power supply

Environmental Limits

Operating 32° to 120° F (0° to 49° C)

Shipping –40° to 140° F (–40° to 60° C)

Humidity 0–95% RH, non-condensing

Weight 1.8 pounds (816 grams)

Compatibility

Software WinControl XL Plus 1.06 or later

TotalControl 1.8.1 or later

Controllers Compatible with Tier 1 controllers firmware

build 2.01 or later

Dimensions

Illustration 1-1 KMD-5210 Components

Table 1-1 KMD-5210 Dimensions

ABCDEF

Height

(not shown)

10.50 in. 6.50 in. 0.25 in. 10.00 4.00 in. 1.25 in. 0.98 in.

267 mm 165 mm 6 mm 254 mm 102 mm 32 mm 25 mm



KMD–5210 Installation and Operation

Revision E

About the LAN controller

Options and Accessories

Options and

Accessories Modules

KMD-5220 Input Module

KMD-5221 Output Module

Ribbon Cables for Input and Output Modules

KMD-5660 6 inch (15 cm) ribbon cable

KMD-5668 9 inch (23 cm) ribbon cable

KMD-5661 14 inch (36 cm) ribbon cable

KMD-5662 19 inch (48 cm) ribbon cable

KMD-5663 24 inch (61 cm) ribbon cable

Power

KMD-5563 International-ready power supply, 120/240

volts AC, 1.35 amperes

XEE-6112-100 100 VA Transformer, 24 volts AC (required only

for KMD-5221 output module)

Upgrades

HTO-1102 Flash Kit Module; KMD/BAC-5XXX,

BAC-7XXX (Replaces KMD-5696)

Enclosures

HCO-1035 Panel Enclosure (20 x 24 x 6 inches)

(508 x 610 x 152 mm)

HCO-1036 Panel Enclosure (24 x 36 x 6 inches)

(610 x 914 x 152 mm)

KMC Controls

Revision E

About the LAN controller

Controls and Connections

Controls and

Connections Before installing the KMD-5210 LAN Controller, take some time to become

familiar with the controller layout and components.

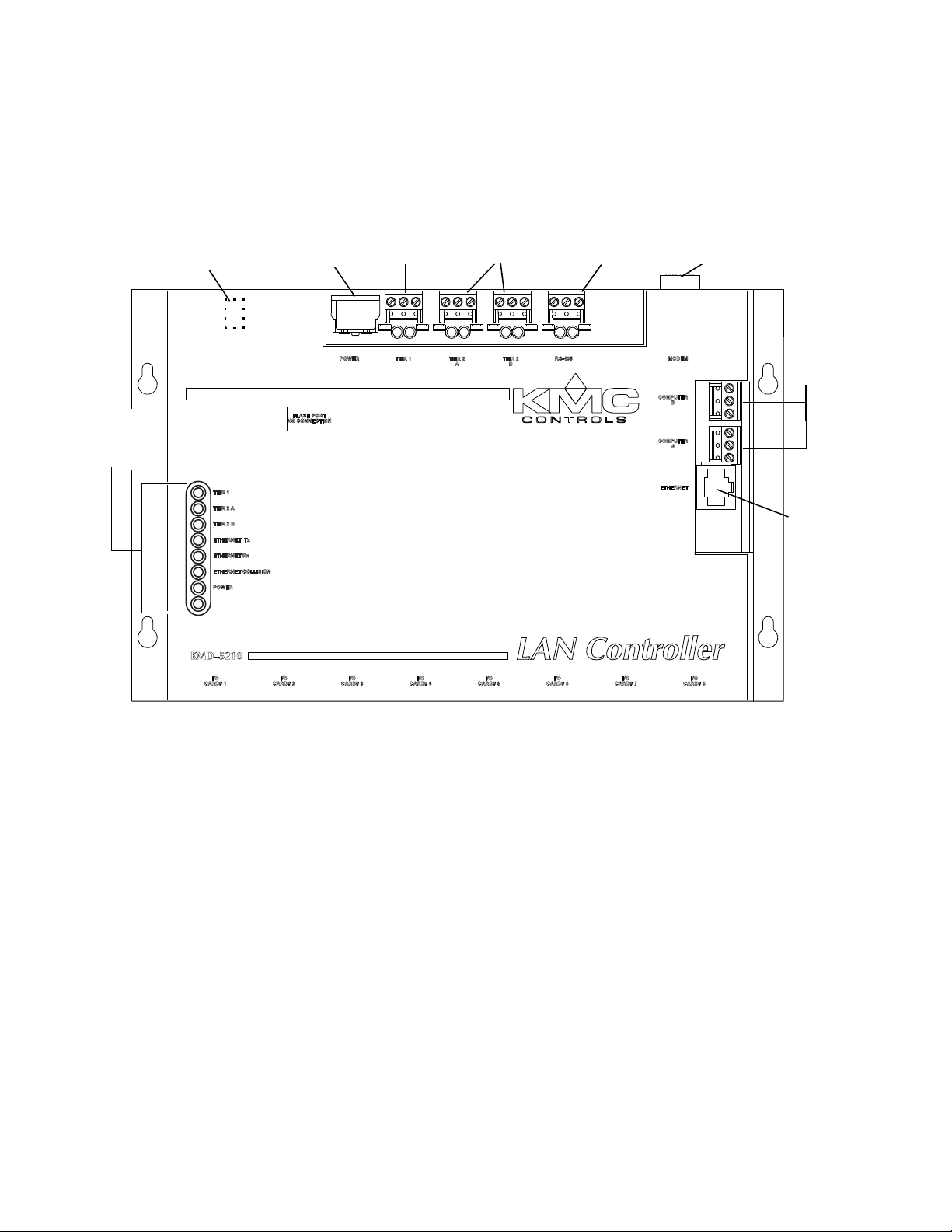

Illustration 1-2 Controls and indicators

Reset button

(Beneath cover) Power Tier 1

EIA–485 Tier 2

EIA–485 Modem

BACnet

MS/TP

EIA–232

for PC

Ethernet

and

BACnet

802.3

LED

Status

Display

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Controladores de KMC Controls

KMC Controls

KMC Controls MCP-1040 Series Manual de usuario

KMC Controls

KMC Controls BAC-7001 Manual de usuario

KMC Controls

KMC Controls CSC-3501 Manual de usuario

KMC Controls

KMC Controls FlexStat BAC-120063CW-ZEC Manual del operador

KMC Controls

KMC Controls MCP-1020 Series Manual de usuario

KMC Controls

KMC Controls BAC-9300 Series Manual de usuario

KMC Controls

KMC Controls MEP-46 Q Series Manual de usuario

KMC Controls

KMC Controls CEE-3009 Manual de usuario

KMC Controls

KMC Controls MCP-1060 Series Manual de usuario

KMC Controls

KMC Controls BAC-7302 Instrucciones de funcionamiento

KMC Controls

KMC Controls BAC-5900 Series Manual de usuario

KMC Controls

KMC Controls MEP-3001 Instrucciones de funcionamiento

KMC Controls

KMC Controls BAC-7003 Manual de usuario

KMC Controls

KMC Controls KMD-7001 Instrucciones de funcionamiento originales

KMC Controls

KMC Controls CSC-2000 Series Manual de usuario

KMC Controls

KMC Controls MEP-7 Series Guía del usuario

KMC Controls

KMC Controls CSC 3000 Series Guía del usuario

KMC Controls

KMC Controls MEP-4201 Manual de usuario

KMC Controls

KMC Controls FlexStat BAC-12 63 Series Manual de usuario

KMC Controls

KMC Controls KMD-5205 Instrucciones de funcionamiento

KMC Controls

KMC Controls MCP-1160 Series Manual de usuario

KMC Controls

KMC Controls MEP-5062 Manual de usuario

KMC Controls

KMC Controls KMD-5831 Instrucciones de funcionamiento originales

KMC Controls

KMC Controls SimplyVAV BAC-8001 Guía del usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
