Klein Tools 93MCLG Manual de usuario

INSTRUCTION MANUAL

FRANÇAIS p. 25

ESPAÑOL pg. 13

Self-Leveling Mini

Cross Line Laser Level

ENGLISH

• HORIZONTAL AND VERTICAL

CROSS LINES

IP54

93MCLG

93MCLS

GENERAL SPECIFICATIONS

Klein Tools 93MCLS and 93MCLG are self-leveling laser alignment

instruments that can be used to deliver horizontal and vertical cross

lines for alignment and layout applications. Their compact size

allows for easy storage with convenient storage pouch.

• Operating Altitude: 6562 ft. (2000 m)

• Relative Humidity: <80% non-condensing

• Operating Temp: 20°F to 115°F (-10°C to 45°C)

• Storage Temp: -5°F to 140°F (-20°C to 60°C)

• Lasers: • 93MCLS: 630-642 nm, =<1 mW each beam,

Class II laser Product

• 93MCLG: 508-530 nm, =<1 mW each beam,

Class II laser Product

• Accuracy: ±3/16" (±5 mm) per 33 ft (10 m).

• Battery Type:

2 × 1.5V AA Alkaline

• Dimensions: 3.1"

2.9"

2.2 ( 79

73.7

55.9 mm)

• Weight: 7.4 oz. (210 g) without battery

• Calibration: Accurate for one year

• Standards: Conforms to: EN 50689:2021, IEC 60825-1:2014.

Complies with 21 CFR 1040.10 and 1040.11 except

for conformance with IEC 60825-1 Ed. 3., as

described in Laser Notice No. 56, dated May 8, 2019.

• Ingress Protection: IP54 Dust & Water Resistant

Specifications subject to change.

ENGLISH

WARNINGS

To ensure safe operation and service of the instrument, follow

these instructions. Failure to observe these warnings can result

in serious personal injury, re, or electrical shock. Retain these

instructions for future reference.

WARNING: LASER RADIATION. DO NOT STARE INTO BEAM.

Class 2 Laser.

• Exposing eyes to laser radiation can result in severe and

permanent eye injuries.

• NEVER look directly into the laser beam emitted by this

instrument.

• DO NOT use the instrument if it appears to be damaged.

• DO NOT modify the instrument in any way, as to do so could result

in emission of hazardous laser radiation than could result in severe

eye injuries.

• DO NOT use optical equipment such as lenses, prisms, optical

scopes, etc. to transmit, retransmit, or view the laser beam as this

could result in severe eye injuries.

• This product should not be used by untrained operators or

operators who have not read and fully understood the instructions.

• DO NOT remove warning labels from this instrument as this could

result in serious personal injury and increases the risk of exposure

to hazardous laser irradiation.

• This instrument is IP54 dust & water resistant. Following any

contact with water, thoroughly dry the instrument with a dry,

lint-free cloth.

• There are no user serviceable parts in this instrument.

ENGLISH

FEATURE DETAILS

SIDE BOTTOMFRONT

BRACKET

NOTE: No user-serviceable

parts inside.

Power/Pendulum

Lock/Unlock Switch

2. Pendulum with Lasers

3. Battery Compartment Door

4. Battery Door Screw

5. 1/4-20 Tripod Mount

6. Magnetic Mount Bracket

7. Magnets

1 2

SYMBOLS ON INSTRUMENT

Ingress Protection IP54 Rating – Dust & Water Resistant

WEEE: Electronics

disposal Hazardous laser radiation

Laser Class 2 Warning or Caution

Battery Polarity DO NOT stare into beam or view directly

with optical instruments

Read instructions UKCA: UK Conformity Assessment

Conformité Européenne:

Conforms with European Economic Area directives

Side warning labels

TURNING LASER BEAMS ON/OFF

Set the Power/Pendulum Lock/

Unlock Switch

to the unlock

position to turn on the laser lines.

Move the Power/Pendulum Lock/

Unlock Switch

to the locked

position to turn off the laser lines.

PENDULUM SLIDER SWITCH &

SELF-LEVELING

The laser assemblies are mounted on a pendulum so that the

instrument can self-level. Set the Power/Pendulum Lock/Unlock

Switch

must be in the unlocked position for the instrument

to self-level. If the instrument is tilted by >4°from the horizontal

plane, the pendulum will not be capable of self-leveling; the active

laser beams will flash to indicate that the instrument is not level and

cannot self-level. The instrument must be repositioned on a more

level surface for the self-leveling pendulum to function appropriately.

NOTE: Following use, the Power/Pendulum Lock/Unlock Switch

must be placed in the Locked position prior to storage.

ENGLISH

OPERATING INSTRUCTIONS

Lasers OnLasers On

OPERATING INSTRUCTIONS

MAGNETIC MOUNTING BRACKET

The instrument can be attached to a magnetic mounting bracket

via the 1/4-20 Tripod Mount

. The bracket may be magnetically

attached to any ferromagnetic structure such as steel studs, ducts,

structural beams, and steel doors. The bracket also features a

key-hole for mounting the instrument using a screw or nail to non-

magnetic structures. Once mounted to a structure via the mounting

bracket the instrument can be rotated on the bracket through 360°to

direct the laser beams.

Mounted via keyholeMounted via keyhole

Mounted via magnetMounted via magnet

VERIFYING ACCURACY OF LASER LINES

HORIZONTAL BEAM LEFT/RIGHT TILT

Position the instrument on the floor xdistance from front of the device to

the vertical wall as shown. Rotate the instrument on the bracket to the left

so that the right side of the beam is projected on the wall directly across

from the instrument, mark the vertical location on the wall (a). Rotate the

instrument to the right and repeat marking the vertical location of the left

side of the beam (b).

The maximum distance (delta) between aand b

is shown in the table below.

HORIZONTAL BEAM LEFT/RIGHT TILT

Distance From Wall (x) Delta

15' (4.6 m)

~3/32" (2.7mm)

30' (9.1 m)

~7/32" (5.5mm)

ENGLISH

VERIFYING ACCURACY OF LASER LINES

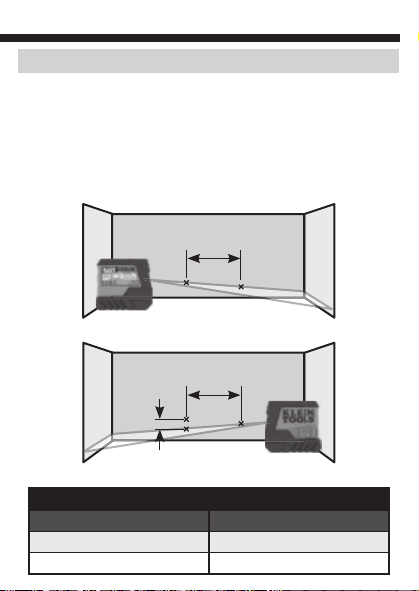

HORIZONTAL BEAM OUT-OF-PLANE TILT

Position the instrument parallel to a wall and project a beam along the

wall, from left to right as shown. Mark two locations (a, b) along the beam

separated by distance x. Position the laser at the other side of the wall and

project the beam back through mark b, from right to left as shown, and

mark position c.

The maximum distance (delta) between aand cis

shown in the table below.

HORIZONTAL BEAM OUT OF PLANE TILT

Distance From Wall (x) Delta

10' (3.1 m)

~1/8" (3.1 mm)

25' (7.6 m)

~5/16" (7.6 mm)

VERTICAL BEAM TILT

Position the instrument on the floor 10' (3.05 m) away from the center

of a door opening. Project the vertical beam through the doorway,

marking points aand cin the center of the door opening. Mark point

bon the floor 10' (3.05 m) past the doorway. Move the device behind

point band project the vertical laser line through points band a.

Measure the distance between point cand the laser line (point d). For

the vertical height of the doorway, distance x, the maximum distance

(delta) between cand dis shown in the table below.

10'

(3.05 m)

10'

(3.05 m)

VERTICAL BEAM TILT

Door Height (x) Delta

8' (2.5 m) ~3/32" (2.5 mm)

14' (4 m) ~5/32" (4 mm)

VERIFYING ACCURACY OF LASER LINES

ENGLISH
