Klein Tools CL210E Manual de usuario

INSTRUCTIONMANUAL

400A AC Auto-Ranging

Digital Clamp Meter

• AUTO-RANGING

• DATA HOLD

• RANGE HOLD

• TEMPERATURE

• AUDIBLE

CONTINUITY

600V

400A

20M

CL210E

ENGLISH

FRANÇAIS pg. 29

DEUTSCHE pg. 15

ESPAÑOL pg. 43

-40° –

1000° C

5001748

GENERAL SPECIFICATIONS

Klein Tools CL210E is an automatically ranging digital clamp meter

that measures AC current via the clamp, AC/DC voltage, resistance and

continuity via test leads, and temperature via a thermocouple probe.

• Operating altitude: 2000 m

• Relative humidity: <95% non-condensing

• Operating temp: 0°C to 50°C

• Storage temp: -10°C to 50°C

• Accuracy: Values stated at 18°C to 28°C

• Temp coefcient: 0.1 × (quoted accuracy) per °C above 28°C

or below 18°C. Corrections are required when the ambient

working temp is outside the accuracy temp range

• Dimensions: 220 mm × 77 mm × 41 mm

• Weight: 280 g including batteries

• Calibration: Accurate for one year

• Standards: Conforms to: UL 61010-1, UL 61010-2-032 and

UL 61010-2-033.

Certified to: CAN/CSA C22.2 NO. 61010-1,

61010-2-032, 61010-2-033, IEC EN 61010-1,

61010-2-032, 61010-2-033 and IEC EN 61326-1

• Pollution degree: 2

• Accuracy: ± (% of reading + number of least significant digits)

• Drop protection: 1m

• Safety rating: CATIII 600 V, Class 2, Double insulation

• Electromagnetic environment: IEC EN 61326-1. This

equipment meets the requirements for use in basic and

controlled electromagnetic environments, such as residential

properties, business premises and light-industrial locations.

Specifications subject to change.

ENGLISH

ELECTRICAL SPECIFICATIONS

Function Range Resolution Accuracy

AC voltage

(V AC)

200.0 mV 0.1 mV ±(2.5% + 10 digits)

2.000 V 1 mV

±(2.0% + 5 digits)

20.00 V 10 mV

200.0 V 100 mV

600 V 1V

DC Voltage

(V DC)

200.0 mV 0.1 mV ±(1.0% + 8 digits)

2.000 V 1 mV

±(1.0% + 3 digits)

20.00 V 10 mV

200.0 V 100 mV

600 V 1V

Input impedance: 10 MΩ

Frequency range: 45 to 400 Hz

Maximum input: 600 V AC RMS or 600 V DC

AC current

(A AC)

2.000 A 1 mA ±(2.5% + 30 digits)

20.00 A 10 mA

±(2.0% + 10 digits)200.0 A 100 mA

400 A 1A

Frequency range: 50 to 60 Hz

Resistance

200.0 Ω 0.1 Ω ±(1.2% + 5 digits)

2.000 KΩ 1 Ω

±(1.2% + 3 digits)

20.00 KΩ 10 Ω

200.0 KΩ 100 Ω

2.000 MΩ 1 KΩ

20.00 MΩ 10 KΩ ±(2.0% + 5 digits)

Maximum input: 600 V AC RMS or 600 V DC

Temperature

-40°F to 1,832°F

°F

≤0°F ±(2.8% + 12 digits)

>0°F ±(2.8% + 6 digits)

-40°C to 1,000°C

°C ±(2.8% + 6 digits)

OTHER MEASUREMENT APPLICATIONS

Maximum input: 600 V AC RMS or 600 V DC

• Continuity check: Audible signal <10 Ω, max. current 1.5 mA

• Sampling frequency: 3 samples per second

• Auto power off: After ~15 minutes of inactivity

• Overload: 'OL' indicated on display

• Polarity: '-' on the display indicates negative polarity

• Display: 3 ½ digit, 2000 count LCD

WARNINGS

To ensure safe operation and service of the meter, please follow

these instructions. Failure to observe these warnings can result

in severe injury or death.

• Before every use, verify meter operation by measuring a

known voltage or current.

• Never use the meter on a circuit with voltages that exceed the

category-based rating of this meter.

• Do not use the meter during electrical storms or in wet weather.

• Do not use the meter or test leads if they appear to be damaged.

• Use only with CAT III- or CAT IV-rated test leads.

• Ensure that meter leads are fully seated and keep fingers away

from the metal probe contacts when taking measurements.

• Do not open the meter to replace batteries while the probes

are connected.

• Use caution when working with voltages above 25 V AC RMS

or 60 V DC. Such voltages pose a shock hazard.

• To avoid false readings that can lead to electric shock, replace

batteries when a low-battery indicator appears.

• Do not attempt to measure resistance or continuity on a live circuit.

• Always adhere to local and national safety codes. Use personal

protective equipment to prevent shock and arc blast injury

where hazardous live conductors are exposed.

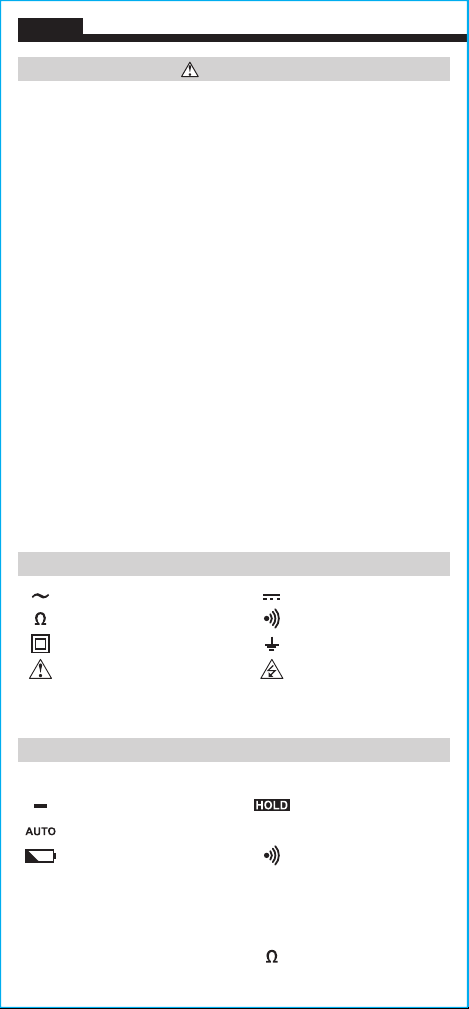

SYMBOLS ON THE METER

AC (alternating current) DC (direct current)

Resistance (in Ohms) Audible continuity

Double-insulated Class II Ground

Warning or caution

Risk of electric shock

V Voltage (volts) A Amperage (amps)

Temperature (Fahrenheit/Celsius)

SYMBOLS ON THE LCD

AC AC (alternating current) DC DC (direct current)

Negative reading Data hold

Auto-ranging MAX Maximum value hold

Low battery Audible continuity

Degrees (Fahrenheit)

Degrees (Celsius)

Mega (value × 10

)

kilo (value × 10

)

milli (value × 10

-3

)

Volts

Amps Ohms

ENGLISH

FEATURE DETAILS

1. 2,000 count LCD display 7. 'RANGE' button

2. Function selector switch 8. 'MAX' (maximum) button

3. Clamp 9. Data hold button

4. 'COM' jack 10.

Clamp trigger (press to open clamp)

5. 'VΩ' jack 11. Arrow markings

6. Backlight button 12. 'SELECT' button

NOTE: There are no user-serviceable parts inside the meter.

FUNCTION BUTTONS

ON/OFF

To switch the meter ON, rotate the Function selector switch

from

the OFF setting to any measurement setting. To switch the meter OFF,

rotate the Function selector switch

to the OFF setting. By default,

the meter will automatically switch itself OFF after 15 minutes of

inactivity. If the meter automatically switches itself OFF while in a

measurement setting, rotate the Function selector

switch to any

other setting (excluding the OFF setting) to switch the meter ON.

'SELECT' BUTTON (FOR SECONDARY FUNCTIONS)

The 'SELECT' button

activates the secondary function for the

temperature setting, switching between °F and °C. The default

setting (°F) is printed on the meter in white, while the secondary

setting (°C) is printed on the meter in orange.

BACKLIGHT

Press the Backlight button symbol

to turn the backlight ON

orOFF. The backlight does not automatically switch itself OFF.

RANGE

The meter defaults to auto-ranging mode . This mode

automatically determines the most appropriate measurement range

for the testing that is being conducted.

To manually force the meter

tomeasure in a different range, use the

'RANGE'

button

1. Press the 'RANGE' button

to select the measurement

rangemanually ( will be deactivated on the LCD). Press

the 'RANGE' button repeatedly

to cycle through the ranges

available, stopping once the desired range has been reached.

2. To return to auto-ranging mode, press and hold the 'RANGE'

button

for more than one second ( will be reactivated).

MAX

When the 'MAX' button

is pressed, the meter keeps track of the

maximum value as the meter continues to take samples.

1. When measuring, press the 'MAX' button

to display the

maximum value. If a new maximum occurs, the display will

update with the new value.

2. Press the 'MAX' button

again to return to normal measuringmode.

DATA HOLD

Press the Data hold button

to hold the current measurement

onthe display. Press again to return to live measuring mode.

ENGLISH

OPERATING INSTRUCTIONS

CONNECTING TEST LEADS

Do not test if the leads are improperly seated. Results could cause

intermittent display readings. To ensure a proper connection, press

the leads firmly into the input jack.

TESTING IN CAT III/CAT IV MEASUREMENT LOCATIONS

Ensure that the test lead shield is pressed firmly into place. Failure

to use the CATIII/CATIV shield increases the risk of arc flash.

TESTING IN CAT II MEASUREMENT LOCATIONS

CAT III/CAT IV shields may be removed for CAT II locations. This

will allow testing on recessed conductors such as standard wall

outlets. Take care not to lose the shields.

5/32"

(4 mm)

.7" (18 mm)

INCORRECT

CORRECT

ENGLISH

OPERATING INSTRUCTIONS

AC CURRENT (LESS THAN 400 A)

AC current is measured by pressing the clamp trigger

to open

the clamp and placing it around a wire carrying a current. When

measuring, care should be taken to ensure that the clamp is

completely closed, with the trigger

fully released, and that the

wire passes perpendicularly through the centre of the clamp in line

with the arrow markings

To measure current:

1. Rotate the Function selector switch

to the 200/400 A setting.

2. Place the clamp around the wire. The current measurement will

be shown in the display.

NOTE: If the measurement is less than 20 A, rotate the Function

selector switch

to the 2/20 A setting for improved resolution.

Disconnect test leads when measuring with the clamp.

WIRE

OPERATING INSTRUCTIONS

AC/DC VOLTAGE (LESS THAN 600 V)

1. Insert the RED test lead into the VΩ jack

and the BLACK

test lead into the COM jack

, and rotate the Function selector

switch

to the DC voltage or AC voltage setting.

Note 'DC' or 'AC' on the display.

2. Apply test leads to the circuit to be tested to measure the

voltage. The meter will auto-range to display the measurement

in the most appropriate range.

NOTE: If '–' appears on the LCD, the test leads are being applied

to the circuit in reverse. Change the position of the leads to

correct this.

NOTE: When in a voltage setting and the test leads are open,

readings of the order mV may appear on the display. This is noise

and is normal. By touching the test leads together to close the

circuit, the meter will measure zero volts.

NOTE: To access the mV range for V AC, the 'RANGE' button

must be used.

Red leadBlack lead

ENGLISH

OPERATING INSTRUCTIONS

RESISTANCE MEASUREMENTS

1. Insert the RED test lead into the VΩ jack

and the BLACK test

lead into the COM jack

, and rotate the Function selector switch

to the Resistance setting. The resistance symbol will

appear on the display.

2. Stop the power to the circuit.

3. Measure resistance by connecting the test leads to the circuit.

The meter will auto-range to display the measurement in the

most appropriate range.

NOTE: When in the Resistance setting and the test leads are open

(not connected across a resistor), or when a failed resistor is under

test, the display will indicate OL. This is normal.

DO NOT attempt to measure resistance on a live circuit.

CONTINUITY

1. Insert the RED test lead into the VΩ jack

and the BLACK test

lead into the COM jack

, and rotate the Function selector switch

to the Continuity setting.

2. Stop the power to the circuit.

3. Test for continuity by connecting the conductor or circuit with test

leads. If resistance is measured at less than 10 Ω, an audible signal

will sound and the display will show a resistance value indicating

continuity. If the circuit is open, the display will show 'OL'.

DO NOT attempt to measure continuity on a live circuit.

Red leadBlack lead

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Instrumento de medición de Klein Tools

Klein Tools

Klein Tools NCVT-1XTKIT Manual de usuario

Klein Tools

Klein Tools NCVT-1 Manual de usuario

Klein Tools

Klein Tools LAN Scout Jr. 2 Manual de usuario

Klein Tools

Klein Tools CL310 Manual de usuario

Klein Tools

Klein Tools ET50 Manual de usuario

Klein Tools

Klein Tools CL120 Manual de usuario

Klein Tools

Klein Tools CL800E Manual de usuario

Klein Tools

Klein Tools CL360 Manual de usuario

Klein Tools

Klein Tools PROBEplus Manual de usuario

Klein Tools

Klein Tools CL320 Manual de usuario

Klein Tools

Klein Tools VDV512-110 Manual de usuario

Klein Tools

Klein Tools ET300 Manual de usuario

Klein Tools

Klein Tools Coax Explorer 2 Manual de usuario

Klein Tools

Klein Tools IR3000 Manual de usuario

Klein Tools

Klein Tools CL1100 Manual de usuario

Klein Tools

Klein Tools CL600 Manual de usuario

Klein Tools

Klein Tools CL450 Manual de usuario

Klein Tools

Klein Tools MM5000 Manual de usuario

Klein Tools

Klein Tools CL120KIT Manual de usuario

Klein Tools

Klein Tools CL320 Manual de usuario

Klein Tools

Klein Tools CL3000 Manual de usuario

Klein Tools

Klein Tools CL200 Manual de usuario

Klein Tools

Klein Tools Probe-Pro Manual de usuario

Klein Tools

Klein Tools CL310 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
