Keysight Technologies PNA-L N5230A Manual de usuario

Keysight Technologies

PNA Series

Microwave Network Analyzers

Configuration Guide

PNA-L N5230A 300 kHz to 6, 13.5, or 20 GHz

PNA-L N5230A 10 MHz to 20, 40, or 50 GHz

PNA-X N5242A 10 MHz to 26.5 GHz

PNA E8362B 10 MHz to 20 GHz

PNA E8363B 10 MHz to 40 GHz

PNA E8364B 10 MHz to 50 GHz

PNA E8361A 10 MHz to 67 GHz

PNA N5250A 10 MHz to 110 GHz

System Configuration Summary

This summary lists the main components required to form a

basic measurement system. Options or peripherals may be

added to provide enhanced measurement and data storage

capability.

Full S-parameter measurements

–Keysight PNA Series microwave network analyzers

–Test port cables, 50 ohms

–Calibration kit for applicable connector type

This configuration guide describes standard configurations,

options, accessories, upgrade kits and compatible periph-

erals for the PNA Series microwave network analyzers. This

guide should be used with the Keysight PNA Series Microwave

Network Analyzers Data Sheet for a complete description of

these analyzers.

Please note: This document does not contain Keysight

Technologies, Inc. most up-to-date PNA Series network

analyzer portfolio. This document is available for

reference only for customers using Keysight’s legacy

network analyzers. To view the current Keysight PNA

Series Microwave Network Analyzers Configuration

Guide click here.

Step 3: Choose additional software options (Optional)

Description Ordering

number

Time domain for 6 GHz model N52310-010

Time domain for 13.5, 20, 40 or 50 GHz model N52300-010

Frequency-offset measurements N52300-080

Scalar-calibrated converter measurements

(Option 080 required)

N52300-082

4-port measurement application N52300-550

N-port capabilities for 6, 13.5 or 20 GHz model N52310-551

N-port capabilities for 40 or 50 GHz model N52300-551

Step 4: Choose an electronic or mechanical calibration kit

(Optional)

Description Ordering

number

300 kHz to 9 GHz, 2-port, 3.5 mm 85093C

300 kHz to 13.5 GHz, 4-port, Type-N or 3.5 mm N4431B

300 kHz to 18 GHz, 4-port, Type-N N4432A

300 kHz to 20 GHz, 4-port, 3.5 mm N4433A

300 kHz to 26.5 GHz, 2-port, 3.5 mm N4691B

10 MHz to 50 GHz, 2-port, 2.4 mm N4693A

Note: For additional calibration kits refer to page 16

Step 5: Accessories (Optional)

Description Ordering

number

Rack mount kit without handles N5230A-1CM

Rack mount kit with handles N5230A-1CP

USB CD R/W drive N4688A

USB Hub N4689A

Note: For additional accessories refer to page 16

Step 6: Calibration documentation (Optional)

Description Ordering

number

ISO 17025 compliant calibration N5230A-1A7

Commercial calibration certificate with test data N5230A-UK6

ANSI Z540 compliant calibration N5230A-A6J

Documentation

The PNA Series instruments are equipped with an Online

Help system available within the instrument in the following

languages: English, Japanese, Chinese, German, Spanish,

and French. The PNA Service Guide and Online Help system

are available on the Web: www.na.tm.keysight.com/pna

Connector type

Option 020, 025, 120, 125, 140, 145, 146, 220, 225, 240,

245, 246: 3.5 mm ruggedized male, 50 ohm

Option 420, 425, 520, 525:

2.4 mm ruggedized male, 50 ohm

Additional product information

For additional PNA-L (N5230A) product information, refer

to the PNA-L brochure available on our Web site:

www.keysight.com/find/pnal

PNA-L (N5230A)

Step 1: Select N5230A model number

Step 2: Choose your frequency range and test set (Mandatory,

choose only one)

Description Ordering

number

300 kHz to 6 GHz 2-port standard test set N52300-020

300 kHz to 6 GHz 2-port configurable test set

and extended power range

N52300-025

300 kHz to 13.5

GHz

2-port standard test set N52300-120

300 kHz to 13.5

GHz

2-port configurable test set

and extended power range

N52300-125

300 kHz to 13.5

GHz

4-port standard test set N52300-140

300 kHz to 13.5

GHz

4-port configurable test set

and extended power range

N52300-145

300 kHz to 13.5

GHz

4-port configurable test set,

extended power range and

internal second source (Option

080 recommended)

N52300-146

10 MHz to 20 GHz 2-port standard test set N52300-220

10 MHz to 20 GHz 2-port configurable test set

and extended power range

N52300-225

300 kHz to 20 GHz 4-port standard test set N52300-240

300 kHz to 20 GHz 4-port configurable test set

and extended power range

N52300-245

300 kHz to 20 GHz 4-port configurable test set,

extended power range and

internal second source (Option

080 recommended)

N52300-246

10 MHz to 40 GHz 2-port standard test set N52300-420

10 MHz to 40 GHz 2-port configurable test set

and extended power range

N52300-425

10 MHz to 50 GHz 2-port standard test set N52300-520

10 MHz to 50 GHz 2-port configurable test set

and extended power range

N52300-525

4-port standard test set

4-port configurable test set and extended

power range

4-port configurable test set, extended power

range and internal second source

PNA-L (N5230A)

This guide is intended to assist you in the ordering process.

Additional information and products (such as calibration kits

and cables) are described throughout this document.

Test set options

–Standard test set and power range (Option xx0)

The 13.5 and 20 GHz versions are available in 2- or 4-ports.

–Configurable test set and extended power range (Option xx5)

Adds front panel access loops and one or two 60 dB step

attenuators as shown in the figures below. This provides the capabil-

ity to improve instrument sensitivity for measuring low-level signals,

to reverse the directional couplers to achieve even more dynamic

range or to add components and other peripheral instruments for a

variety of measurement applications. The 13.5 and 20 GHz versions

are available in 2- or 4-ports.

–Configurable test set, extended power range and internal second

source (Option x46)

Available with 4-port models only, this option adds an internal

second source, nine front panel access loops and two 60 dB step

attenuators as shown in the figure below. This provides |an additional

signal (fixed or swept) for two-tone third-order-intercept (TOI) and

intermodulation testing of amplifiers; or it can be used as a fast

swept-LO signal for fixed-IF testing of mixers and converters. In

either case, sweep speed is more than twenty times faster than

using an external source (Option 080 recommended. Please note,

Option 080 is needed in order to have independent control of the two

internal sources.)

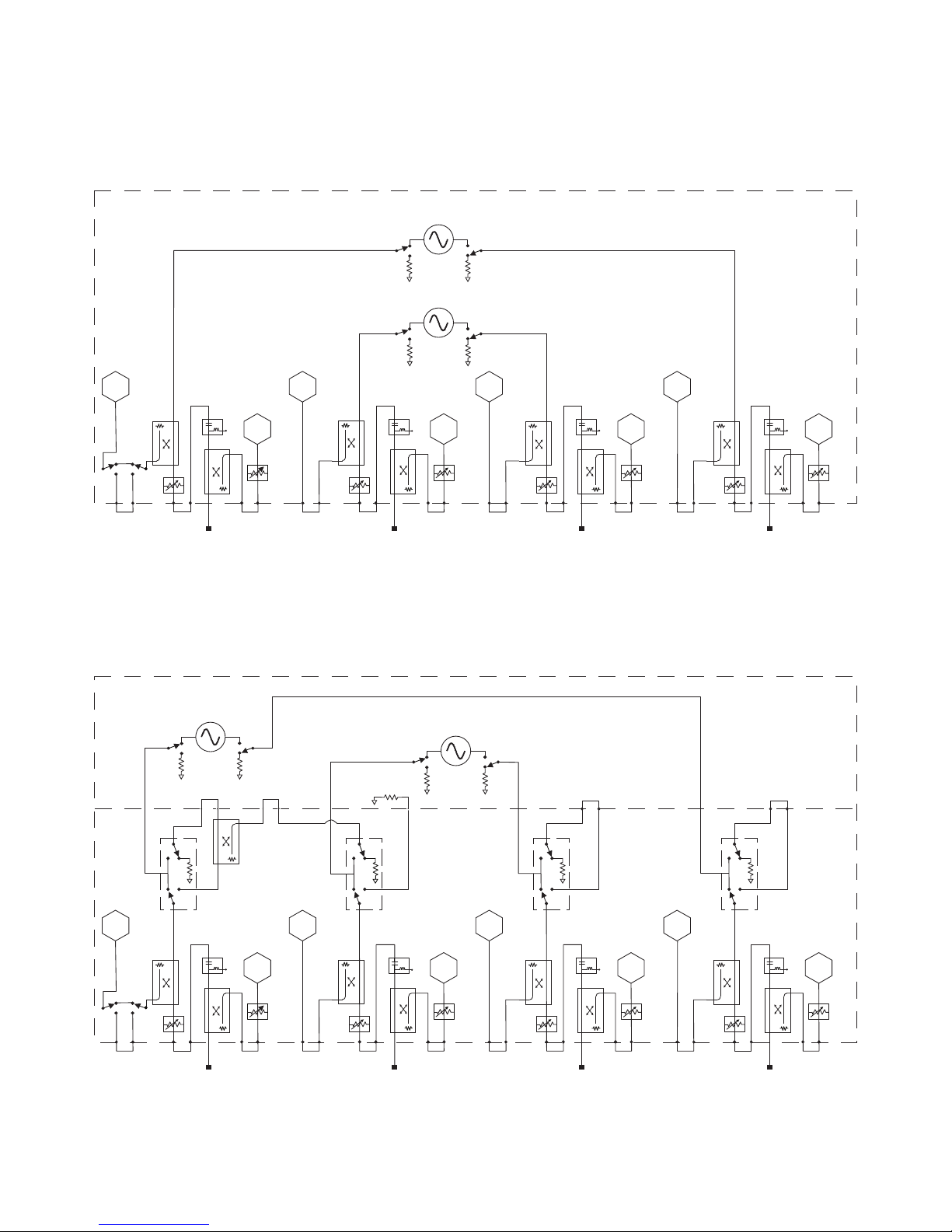

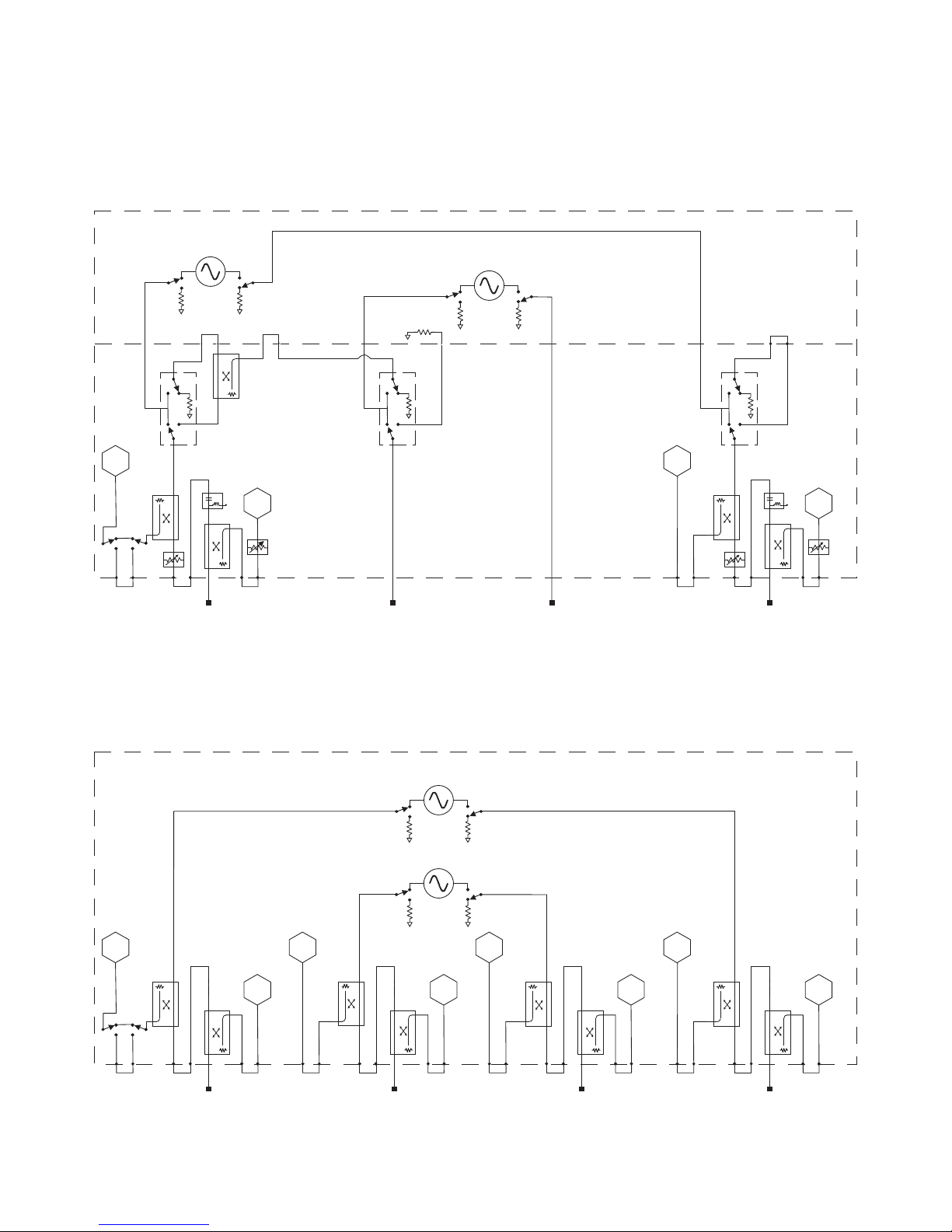

2-port standard test set

2-port configurable test set and extended

power range

Source

Switch

PORT 4

Coupler arm

Receiver D in

Source out

Coupler thru

PORT 3

Coupler arm

Receiver C in

Source out

Coupler thru

PORT 2

Coupler thru

Source out

Receiver B in

Coupler arm

PORT 1

Coupler thru

Source out

Receiver A in

Coupler arm

Reference

receiver

Source out

Receiver R in

60 dB

Source 1 Source 2

Test port 2Test port 1 Test port 4

Test port 3

60 dB 60 dB

A B C D

Source

Switch/splitter

Reference

receiver

Reference

receiver

Measurement

receivers

Port 1 Port 2

R1 R2

Source

Switch/splitter

Reference

receiver

Reference

receiver

Measurement

receivers

Port 1 Port 2

60 dB

R1 R2

Source

out

Rcvr

SRC

out

Cplr

thru

Cplr

arm

Rcvr

Source

out

Rcvr

Cplr

arm

Cplr

thru

SRC

out

Source

Switch

PORT 4

PORT 3

PORT 2

PORT 1

Reference

receiver

PNA-L (N5230A)

Additional options

–Time domain (Option 010)

This option enables the PNA Series to view reflection and

transmission responses in both time or distance domain.

Use time domain to tune filters, gate out the response of

fixtures and cables, characterize the impedance of trans-

mission line, and more.

–Frequency offset (Option 080)

This option enables the PNA Series to set the source fre-

quency independently from where the receivers are tuned.

This ability is important for two general classes of devices:

mixers (and converters) and amplifiers.

–Scalar-calibrated converter measurements (Option 082)

With a simple setup and calibration, this application

provides the highest accuracy for conversion-loss (or gain)

measurements by combining one-port and power-meter

calibrations to remove mismatch errors. Option 080

required.

–4-port measurement application (Option 550)

Enables full 4-port error correction and differential mea-

surements on a 2-port network analyzer with configurable

test set (Option x25). External test set required. User

installable.

–N-port capabilities (Option 551)

Adds full N-port error correction and measurement capa-

bilities to any PNA-L network analyzer with configurable

test set (Option xx5 or x46). External test set required.

User installable.

Certification options

–Commercial calibration certification with test data (Option UK6)

Complete set of measurements which tests unit to manufac-

turer’s published specifications. Includes calibration label,

calibration certificate, and data report. Conforms to ISO

9001.

–ISO 17025 compliant calibration (Option 1A7)

Complete set of measurements which tests unit to manufac-

turer’s published specifications. Includes calibration label,

ISO 17025 calibration certificate, and data report, mea-

surement uncertainties and guardbands on all customer

specifications. Conforms to ISO 17025 and ISO 9001.

–ANSI Z540 compliant calibration (Option A6J)

Complete set of measurements which tests unit to man-

ufacturer’s published specifications. Includes pre- and

post-adjustment data with measurement uncertainty

information compliant to the ANSI/NCSL Z540 standard.

PNA-X Network Analyzers N5242A, 10 MHz to 26.5 GHz, 2 or 4 Ports

Options

To add options to a product, order the corresponding item number.

Description For N5242A Additional information

Test set

Option 200 2 ports, single source N5242A-200

Option 224 2 ports, add internal 2nd source, combiner and mechanical

switches

N5242A-224 Requires Options 200, 219 and 080

Option 400 4 ports, dual source N5242A-400 Recommends Option 080

Option 423 4 ports, add internal combiner and mechanical switches N5242A-423 Requires Options 400, 419, and 080

Power configuration

Option 219 2 ports, extended power range and bias-tees N5242A-219 Requires Option 200

Option 419 4 ports, extended power range and bias-tees N5242A-419 Requires Option 400

Option H85 High-power configuration N5242AH85

Measurement applications

Option 010 Time-domain measurements N5242A-010

Option 0291Fully-corrected noise figure measurements N5242A-029 Requires one of these options: 219,

224, 419 or 423

Option 080 Frequency offset N5242A-080

Option 0822Scalar-calibrated converter measurements N5242A-082 Requires Option 080

Option 0832Vector- and scalar-calibrated converter measurements N5242A-083 Requires Option 080

Option 084 Embedded LO measurements N5242A-084 Requires Options 080 and 083,

requires firmware A.07.50 and above

Option 086 Gain compression application N5242A-086 Recommend Options 219 or 419,

requires firmware A.08.00 and above

Option 5513N-port capabilities N5242A-551

Pulse, antenna, mm-wave

Option H08 Pulse measurements N5242A-H08 Requires Option 025

Option 020 Add IF inputs for antenna and mm-wave N5242A-020

Option 021 Add pulse modulator to internal 1st source N5242A-021

Option 022 Add pulse modulator to internal 2nd source N5242A-022 Requires Options 224 or 400

Option 025 Add four internal pulse generators N5242A-025

Accessories

Option 1CM Rack mount kit for use without handles N5242A-1CM

N1966A Pulse I/O adapter N1966A

N4688A USB CD R/W drive N4688A

N4689A USB Hub N4689A

Calibration Software

Option 8974Perpetual license for built-in performance test software for

Keysight inclusive calibration

N5242A-897

Option 8984Perpetual license for built-in performance test software for

standards compliant calibration

N5242A-898

Calibration documentation

Option 1A7 ISO 17025 compliant calibration N5242A-1A7

Option UK6 Commercial calibration certificate with test data N5242A-UK6

Option A6J ANSI Z540 compliant calibration N5242A-A6J

1. In addition to the list of required PNA-X options, Option 029 requires an N4691B ECal module for use as an impedance tuner, and a Keysight 346 series noise source for calibration.

2. Option 082 is a subset of Option 083, and therefore, they can not be ordered together.

3. When congured as a multiport analyzer with Option 551, the combiner feature of Option 224 or 423 is not available.

When congured as a standalone analyzer, the combiner feature is available.

4. Additional hardware required. Please refer to chapter 2 of the Service Guide for required service test equipment.

PNA-X Network Analyzer

The PNA-X is an integrated vector network analyzer

featuring a built-in S-parameter test set, one or two

synthesized sources used for device stimulus, a hard disk

drive, USB interfaces, and a 10.4” LCD touch screen display.

The N5242A analyzer has 50 ohm, ruggedized 3.5 mm (m)

test ports. Included with each instrument is a mouse and a

keyboard (U.S. style).

–N5242A Network analyzer, 10 MHz to 26.5 GHz, 2 or 4

ports

Test set options

–2-port standard test set and power range (Option 200)

The standard 2-port test set comes with six front-panel access

loops. The loops provide access to the signal path between (a) the

source output and the reference receiver, (b) the source output

and directional coupler thru arm and (c) the coupled arm of the

directional coupler and the port receiver. The standard test set

also includes a solid-state internal RF transfer switch in the R1

reference-receiver path.

–4-port standard test set, power range and an internal second

source (Option 400)

The standard 4-port test set comes with 12 front-panel access

loops and a built-in second source. The loops provide access to

the signal path between (a) the source output and the reference

receiver, (b) the source output and directional coupler thru arm and

The internal second source provides an additional signal (fixed or

swept) for two-tone third-order-intercept (TOI) and intermodulation

testing of amplifiers, or it can be used as a fast swept-LO signal for

fixed-IF testing of mixers and converters. With two sources, source

1 is accessible through test ports 1 and 2, and source 2 is accessi-

ble through test ports 3 and 4. The standard test set also includes a

solid-state internal RF transfer switch in the R1 reference-receiver

path. Recommends Option 080.

–Extended power range and bias-tees (Option 219, 419)

Adds to the standard test set one 65 dB source attenuator (settable

in 5 dB increments), one 35 dB receiver attenuator (settable in 5

dB increments), and one bias-tee to each test port. Option 219

requires Option 200, and Option 419 requires Option 400.

–Add an internal second source, a combiner and mechanical

switches to 2-port analyzer (Option 224)

Available with 2-port model only, this option adds an internal

second source, a combiner and mechanical switches. The internal

second source provides an additional signal (fixed or swept) for

two-tone third-order-intercept (TOI) and intermodulation testing of

amplifiers, or it can be used as a fast swept-LO signal for fixed-IF

testing of mixers and converters. The mechanical switches provide

increased flexibility by having rear panel access to signal paths for

advanced applications. Access to the second source is available

through two output (SMA) connectors on the front panel. Requires

Options 200, 219 and 080.

–Add an internal combiner and mechanical switches to 4-port

analyzer (Option 423)

Available with 4-port model only, this option adds a combiner and

mechanical switches. The mechanical switches provide increased

flexibility by having rear panel access to signal paths for advanced

applications. Requires Options 400, 419 and 080.

PNA-X Network Analyzer

2-port standard test set and power range (Option 200)

2-port extended power range and bias-tees (Option 219, requires Option 200)

Test port 1

Source 1

OUT 1

OUT 2

Test port 2

Test port 1

Source 1

OUT 1

OUT 2

Test port 2

35 dB

65 dB

35 dB

65 dB

A B

Source 2

Output 1

Test port 1

Source 1

OUT 1

OUT 2 Source 2

OUT 1 OUT 2

Source 2

Output 2

Test port 2

35 dB

65 dB

35 dB

65 dB

Rear

panel

A B

Add an internal second source, a combiner, and mechanical switches to 2-port analyzer

(Option 224 requires Options 200, 219 and 080)

Test port 3

Test port 1

Source 1

OUT 1

OUT 2

Source 2

OUT 1 OUT 2

Test port 4

Test port 2

D B

4-port standard test set, power range, and an internal second source (Option 400,

recommends Option 080)

4-port extended power range and bias-tees (Option 419, requires Option 400)

Add an internal combiner and mechanical switches to 4-port analyzer

(Option 423 requires Options 400, 419 and 080)

Test port 3

Test port 1

Source 1

OUT 1

OUT 2

Source 2

OUT 1 OUT 2

Test port 4

Test port 2

35 dB

65 dB

35 dB

65 dB 65 dB

35 dB

65 dB

35 dB

D B

Test port 3

Test port 1

Source 1

OUT 1

OUT 2 Source 2

OUT 1 OUT 2

Test port 4

Test port 2

35 dB

65 dB

35 dB

65 dB 65 dB

35 dB

65 dB

Rear

panel

35 dB

D B

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Instrumento de medición de Keysight Technologies

Keysight Technologies

Keysight Technologies EPM Series Manual de usuario

Keysight Technologies

Keysight Technologies N9040B Manual de instalación y operación

Keysight Technologies

Keysight Technologies M9485A Guía del usuario

Keysight Technologies

Keysight Technologies BT2152A Manual de servicio

Keysight Technologies

Keysight Technologies N9030B Guía de inicio rápido

Keysight Technologies

Keysight Technologies X Series Manual de usuario

Keysight Technologies

Keysight Technologies E5061B Manual de usuario

Keysight Technologies

Keysight Technologies 34980A Manual de usuario

Keysight Technologies

Keysight Technologies EXA N9010B Manual de instalación y operación

Keysight Technologies

Keysight Technologies E2655C Manual de usuario

Keysight Technologies

Keysight Technologies X Series Manual del propietario

Keysight Technologies

Keysight Technologies E5260 Series Instrucciones de funcionamiento

Keysight Technologies

Keysight Technologies N99xxA Series Manual de usuario

Keysight Technologies

Keysight Technologies C Series Manual de usuario

Keysight Technologies

Keysight Technologies N1060A Manual de usuario

Keysight Technologies

Keysight Technologies 16034G Manual de usuario

Keysight Technologies

Keysight Technologies N9030B Manual de instalación y operación

Keysight Technologies

Keysight Technologies N5252A Manual de usuario

Keysight Technologies

Keysight Technologies M980xA PXIe Manual de usuario

Keysight Technologies

Keysight Technologies 34136A Manual de usuario

Keysight Technologies

Keysight Technologies FieldFox B Series Manual de usuario

Keysight Technologies

Keysight Technologies FieldFox N9913A Manual de usuario

Keysight Technologies

Keysight Technologies M9391A PXIe Manual de usuario

Keysight Technologies

Keysight Technologies FieldFox N9923A Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
