VG1000 Series Forged Brass Ball Valves Installation Instructions

Refer to the QuickLIT website for the most up-to-date version of this document.

Applications

The VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water (and for some models, low

pressure steam) in response to the demand of a controller in HVAC systems.

Installation

Install VG1000 Series Ball Valves with the actuator at or above the centerline of the horizontal piping, as shown in

Figure 1.

To minimize heat transfer in steam applications, wrap the valve and piping with insulation. Allow sufficient

clearance to remove the actuator (as illustrated in the dimension drawings, Figure 6 through Figure 11).

When mounting the actuator in the field (before installation), use an adjustable wrench to manually rotate the valve

stem several times. This rotation breaks the torque that may have built up during long-term storage.

For the valve to move in the proper direction, wire the input lines to the electric actuator correctly.

IMPORTANT: Use the VG1000 Series Valves as an operating control. Where failure or malfunction of the

VG1000 Series Valve could lead to personal injury or property damage to the controlled equipment or other

property, additional precautions must be designed into the system. Incorporate and maintain other devices, such

as supervisory or alarm systems or safety or limit controls, intended to warn of or protect against failure or

malfunction of the VG1000 Series Valve.

IMPORTANT: In steam applications, install the valve with the stem horizontal to the piping. Failure to follow

these guidelines may shorten the life of the actuator.

FIG:mntpos

Figure 1: Mounting Positions for Chilled Water and Condensing Atmosphere Applications

VG1000 Series Forged Brass Ball Valves

Installation Instructions

Part No. 14-1201-5, Rev. X

Issued December 2018

*1412015RevX*

14-1201-5 Rev. X

VG1000 Series Forged Brass Ball Valves Installation Instructions

For more detailed installation information about the specific equipment used, refer to the appropriate document

from the following list:

•VA9104-xGA-2S Series Electric Non-Spring Return Valve Actuators Installation Instructions

(Part No. 14-1336-15)

• VA9104-xGA-3S Series Electric Non-Spring Return Valve Actuators Installation Instructions

(Part No. 14-1336-23)

• M9102-AGA-2S and M9104-xGA-2S SeriesElectric Non-Spring ReturnActuators Installation Instructions (Part

No. 34-636-1220)

• M9102-AGA-3S and M9104-xGA-3S SeriesElectric Non-Spring ReturnActuators Installation Instructions (Part

No. 34-636-1433)

• VA9300 Series Electric Non-Spring Return Valve Actuators Installation Instructions

(Part No. 34-636-2421)

• VA9203-AGx-2Z Series On/Off and Floating Point Electric Spring Return Valve Actuators Installation

Instructions (Part No. 14-1380-8)

• VA9203-Bxx-2 Series On/Off Spring Return Valve Actuators Installation Instructions

(Part No. 14-1380-16)

• VA9203-GGx-2Z Series Proportional Spring Return Valve Actuators Installation Instructions

(Part No. 14-1380-24)

• VA9208-AGx-x Series On/Off and Floating Point Electric Spring Return ValveActuators Installation Instructions

(Part No. 14-1379-5)

• VA9208-Bxx-x Series On/Off Spring Return Valve Actuators Installation Instructions

(Part No. 14-1379-13)

• VA9208-GGx-x Series Proportional Spring Return Valve Actuators Installation Instructions

(Part No. 14-1379-21)

• M9000-560 Ball Valve Linkage Kit and M9000-561 Thermal Barrier Installation Instructions

(Part No. 34-636-2227)

• M9000-342 Series Weather Shield Enclosures Installation Instructions (Part No. 34-636-2499)

• M9000-551 Ball Valve Linkage Kit Installation Instructions (Part No. 34-636-1816)

Note: To avoid excessive wear or drive time on the motor for VA9104 and M9104 models, use a controller or

software that provides a time-out function to remove the signal at the end of rotation (stall). The IGx and GGx

models have an auto shutoff to avoid excessive wear or drive time on the motor.

On models with the flow-characterizing disk, the disk is located in Port A. Port A must be the inlet. On three-way

models, use Port A as the coil inlet and Port B as the bypass inlet.

IMPORTANT: Take care to prevent foreign material such as weld slag, thread burrs, metal chips, and scale

from entering the piping system. This debris can damage or severely impede the operation of the valve by

embedding itself in the seats, scoring the valve, and ultimately resulting in seat leakage. If the debris becomes

embedded in the seats, subsequent flushing and filtering of the piping system with the valve installed does not

remedy the problem.

VG1000 Series Forged Brass Ball Valves Installation Instructions

VG1841 and VG1845 Series Three-Way Ball Valves have a different port configuration from VG1644 Series Three-

Way valves. See Figure 2, Figure 3, and Figure 4 for details.

Contact your local Johnson Controls® representative for compatibility concerns before using VG1000 Series Ball

Valves to control the flow of fluids other than those outlined in the Technical Specifications table in this document.

IMPORTANT: Protect the actuator from dripping water, condensation, and other moisture. Water or moisture

could result in an electrical short, which may damage or affect the operation of the actuator.

IMPORTANT: Do not cover the actuator with thermal insulating material. High ambient temperatures may

damage the actuator, and a hot water pipe, steam pipe, or other heat source may overheat it.

FIG:VGAtoC

Port A

Coil

Port C

Common

Port B Bypass

Figure 2: VG1841 or VG1845 Series Three-

Way Ball Valve (Port A Connected to Port C)

Port A

Coil

Port C

Common

Port B Bypass

FIG:vgBtoC

Figure 3: VG1841 or VG1845 Series Three-

Way Ball Valve (Port B Connected to Port C)

Common

Port

Normally

Open Port Normally

Closed Port

FIG:vg1644ccw

Figure 4: Top View of VG1644 Series Three-

Way Ball Valve (Actuator Fully

VG1000 Series Forged Brass Ball Valves Installation Instructions

Press Valve Installation

VG1000 press end connection valves are installed using RIDGID® press tools.Always refer to the operator’s

manual supplied with the RIDGID press tool that is used to make the valve end connections. The manual should

provide proper instructions for the safe operation of the tool, proper crimping procedures, and methods of

inspecting the finished connection. If you use a battery-operated press tool, ensure its proper operation by fully

charging the unit. To avoid damage to the integral O-ring, never use sealant or pipe dope with a press connection.

Always inspect the end connections of the valve before making the connection. The end connection should not be

deformed, and the internal, integral O-ring must be in place for a proper seal.

Sweat Valve Installation

When soft soldering sweat ball valves, be sure to use a low temperature solder with a melting point that does not

exceed 450°F (232°C). For lead-free RoHS compliance, a 96.5% tin/3.5% silver solder is recommended. Never

install the actuator on the valve until you have completed the soldering operation and the valve body has cooled.

Before soldering, minimize the risk of damage to the ball seals by positioning the ball so that PortA is fully open.

When soldering, always apply a wet rag around the valve’s neck and cover as much of the valve body with the rag

as possible. Direct the tip of the flame away from the valve and always heat the copper tubing directly, but never

the valve body. Solder Port A first, then the remaining ports. These steps provide maximum protection to the

internal valve components. See Figure 5 for details.

Figure 5: Sweat Valve Installation

Use only low meltin

temperature soft solder.

Place a wet rag around

the neck of the valve.

FIG:sv_ins

VG1000 Series Forged Brass Ball Valves Installation Instructions

See Figure 6 for dimension drawings of the Non-Spring Return VA9104 Series Actuated VG1241, VG1245,

VG1841, and VG1845 Series NPT End Connection Ball Valves. See Table 1 and Table 2 for specific model linkage

dimensions.

Table 1: VA9104 or M9104 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve with

Optional M9000-551 Linkage Dimensions, in. (mm)

Valve Size,

in. (DN)1

1. Port A must always be connected to the coil.

(Without

Thermal

Barrier)

(With

Thermal

Barrier)

BC D E F G

1/2 (DN15) 3-7/8

(98) 5-11/32

(135) 21/32

(17) 1-7/32

(31) 5-7/64

(129) 2-33/64

(64) 11/32

(9) 1-1/4

(32)

3/4 (DN20) 3-7/8

(98) 5-11/32

(135) 21/32

(17) 1-7/32

(31) 5-7/32

(133) 2-51/64

(71) 11/32

(9) 1-13/32

(36)

1 (DN25) 3-11/16

(100) 5-27/64

(137) 3/4

(19) 1-19/64

(33) 5-9/16

(141) 3-13/32

(87) 11/32

(9) 1-11/16

(43)

Table 2: VA9104 Actuated VG1275 and VG1875 Series Ball Valve with Sweat End Connections and VA9104

Actuated VG1295 and VG1895 Series Ball Valves with Press End Connections Dimensions,

in. (mm)

Valve Size,

in. (DN)1

1. Port A must always be connected to the coil.

ABC D EFG

1/2 (DN15) 3-7/8 (98) 21/32 (17) 1-7/32 (31) 5-45/64 (145) 3-25/32 (96) 11/32 (9) 2-13/16 (55)

3/4 (DN20) 3-7/8 (98) 21/32 (17) 1-7/32 (31) 5-57/64 (150) 4-3/32 (104) 11/32 (9) 2-15/32 (62)

1 (DN25) 3-15/16 (100) 3/4 (19) 1-19/64 (33) 6-1/8 (156) 4-21/32 (118) 11/32 (9) 2-27/32 (72)

Figure 6: VA9104 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve

with NPT End Connections Dimensions, in. (mm)

2-13/16

(71)

3-1/2 (89)

Clearance Required

Port Marking

Locations

FIGVA9104X_dims

6-1/2

(153.5)

VG1000 Series Forged Brass Ball Valves Installation Instructions

See Figure 7 for dimension drawings of the Spring Return VA9203 Series Actuated VG1241, VG1245, VG1841,

and VG1845 Series NPT End Connection Ball Valves. See Table 3 and Table 4 for specific model linkage

dimensions.

Table 3: VA9203 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve with NPT End

Connections Dimensions, in. (mm)

Valve Size,

in. (DN)1

1. Port A must always be connected to the coil.

(Without

Thermal

Barrier)

(With

Thermal

Barrier)

BCDEFG

1/2 (DN15) 4-1/4

(108) 6

(152) 21/32

(17) 1-7/32

(31) 6-23/32

(171) 2-33/64

(64) 11/32

(9) 1-1/4

(32)

3/4 (DN20) 4-1/4

(108) 6

(152) 21/32

(17) 1-7/32

(31) 6-7/8

(175) 2-51/64

(71) 11/32

(9) 1-13/32

(36)

1 (DN25) 4-9/32

(109) 6-1/16

(154) 3/4

(19) 1-19/64

(33) 7-7/64

(181) 3-13/32

(87) 11/32

(9) 1-45/64

(43)

Table 4: VA9203 Actuated VG1271, VG1275, VG1871, and VG1875 Series Sweat Ball Valve and VA9203

Actuated VG1291, VG1295, VG1891, and VG1895 Series Press Ball Valve Dimensions, in. (mm)

Valve Size,

in. (DN)1

1. Port A must always be connected to the coil.

ABC D EFG

1/2 (DN15) 4-5/8 (117) 21/32 (17) 1-7/32 (31) 7-13/64 (183) 3-25/32 (96) 11/32 (9) 1-1/4 (32)

3/4 (DN20) 4-5/8 (117) 21/32 (17) 1-7/32 (31) 7-3/4 (197) 4-3/32 (104) 11/32 (9) 1-13/32 (36)

1 (DN25) 4-11/16 (119) 3/4 (19) 1-19/64 (33) 8-3/16 (208) 4-41/64 (118) 11/32 (9) 1-45/64 (43)

Figure 7: Spring Return VA9203 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve with

Optional M9000-561 Thermal Barrier Installed Dimensions, in. (mm)

Port Marking

Locations

FIG:VA9203X_dimsthbr

2-7/8

(73)

3-1/4

(82)

3-1/2 (89)

Clearance Required

VG1000 Series Forged Brass Ball Valves Installation Instructions

See Figure 8 for dimensions of the Non-Spring Return VA9300 Actuated VG1241, VG1245, VG1841, and VG1845

Series Ball Valve with Optional M9000-561 Thermal Barrier. See Table 5 for specific model linkage dimensions.

Table 5: VA9300 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve with Optional

M9000-561 Thermal Barrier Dimensions, in. (mm)

Valve

Size, in.

(DN)

A (With

Thermal

Barrier)

A (Without

Thermal

Barrier)

BC D EFG

1/2

(DN15) 5-3/4 (146) 4-3/8 (111) 21/32 (17) 1-7/32 (31) 6-13/32 (163) 2-33/64 (64) 11/32 (9) 1-1/4 (32)

3/4

(DN20) 5-3/4 (146) 4-3/8 (111) 21/32 (17) 1-7/32 (31) 6-13/32 (163) 2-51/64 (71) 11/32 (9) 1-13/32 (36)

(DN25) 5-13/16 (148) 4-7/16 (113) 3/4 (19) 1-5/16 (33) 6-13/32 (163) 3-13/32 (87) 11/32 (9) 1-45/64 (43)

1-1/4

(DN32) 6-1/4 (159) 4-7/8 (124) 1-1/32 (26) 1-23/32 (44) 6-13/32 (163) 3-15/16 (100) 11/32 (9) 1-31/32 (50)

1-1/2

(DN40) 6-13/32 (163) 5-1/32 (128) 1-1/8 (29) 1-7/8 (48) 6-13/32 (163) 4-21/64 (110) 11/32 (9) 2-11/64 (55)

(DN50) 6-5/8 (168) 5-1/4 (133) 1-15/32 (37) 2-1/16 (53) 6-13/32 (163) 4-27/32 (123) 11/32 (9) 2-27/64 (62)

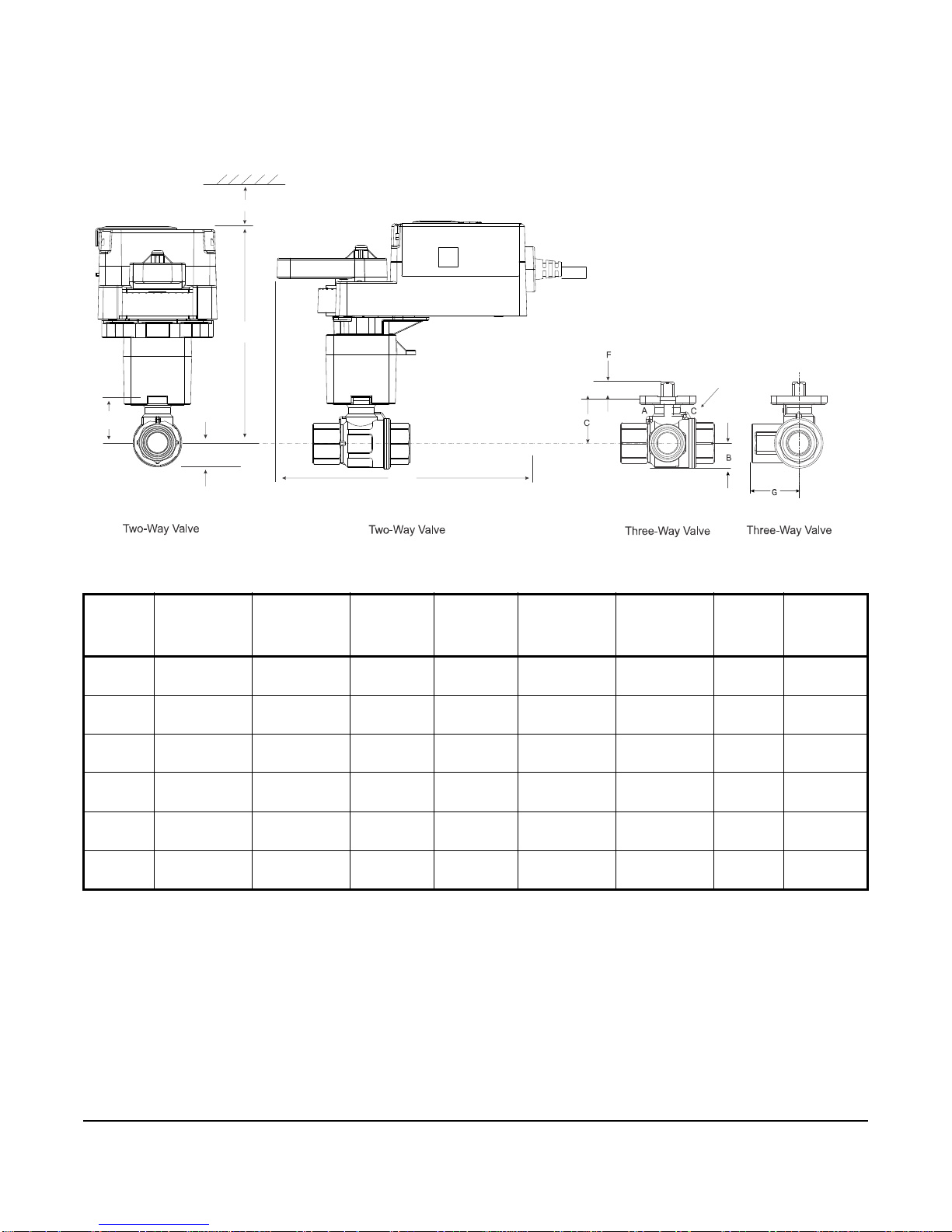

Figure 8: Non-Spring Return VA9300 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball

Valve with Optional M9000-561 Thermal Barrier Dimensions, in. (mm)

3-1/2 in. (89 mm)

Optional

Thermal

Barrier

Optional

Thermal

Barrier

FIG:Thermal Barrier

Port Marking

Locations

VG1000 Series Forged Brass Ball Valves Installation Instructions

See Figure 9 for dimensions of the Non-Spring Return VA9300 Actuated VG1241, VG1245, VG1841, and VG1845

Series Ball Valve with Optional M9000-561Thermal Barrier and M9300-2 Switch Kit. See Table 6 for specific model

linkage dimensions.

Table 6: VA9300 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve with Optional

M9000-561 Thermal Barrier and M9300-2 Switch Kit Dimensions, in. (mm)

Valve

Size, in.

(DN)

A (With

Thermal

Barrier)

A (Without

Thermal

Barrier)

BCDEFG

1/2

(DN15) 6-3/25

(155.7) 4-3/4

(120.7) 21/32

(17) 1-7/32

(31) 6-21/32

(169) 2-33/64

(64) 11/32

(9) 1-1/4

(32)

3/4

(DN20) 6-3/25

(155.7) 4-3/4

(120.7) 21/32

(17) 1-7/32

(31) 6-21/32

(169) 2-51/64

(71) 11/32

(9) 1-13/32

(36)

(DN25) 6-1/5

(157.7) 4-21/25

(122.7) 3/4

(19) 1-5/16

(33) 6-21/32

(169) 3-13/32

(87) 11/32

(9) 1-45/64

(43)

1-1/4

(DN32) 6-16/25

(168.7) 5-1/4

(133.7) 1-1/32

(26) 1-23/32

(44) 6-21/32

(169) 3-15/16

(100) 11/32

(9) 1-31/32

(50)

1-1/2

(DN40) 6-4/5

(172.7) 5-3/7

(137.7) 1-1/8

(29) 1-7/8

(48) 6-21/32

(169) 4-21/64

(110) 11/32

(9) 2-11/64

(55)

(DN50) 6

(177.2) 5-5/8

(142.7) 1-15/32

(37) 2-1/16

(53) 6-21/32

(169) 4-27/32

(123) 11/32

(9) 2-27/64

(62)

Figure 9: Non-Spring Return VA9300 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball

Valve with Optional M9000-561 Thermal Barrier and M9300-2 Switch Kit Dimensions, in. (mm)

FIG:Thermal Barrier

Port Marking

Locations

VG1000 Series Forged Brass Ball Valves Installation Instructions

See Figure 10 for dimension drawings of the Spring Return VA9208 Actuated VG1241, VG1245, VG1841, and

VG1845 Series NPT End Connection Ball Valves with M9000-561 Thermal Barrier. See Table 7 for specific model

linkage dimensions.

Table 7: VA9208 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve with Optional

M9000-561 Thermal Barrier Installed Dimensions, in. (mm)

Valve

Sizein.

(DN)1

1. Port A must always be connected to the coil.

Valve

Style A

(With

Thermal

Barrier)

(Without

Thermal

Barrier)

BCDEFG

1-1/4

(DN32) All 9-17/64

(235) 7-11/16

(195) 1-1/32

(26) 1-23/32

(44) 7-1/4

(184) 3-15/16

(100) 11/32

(9) 1-31/32

(50)

1-1/2

(DN40) All 9-15/16

(240) 7-7/8

(200) 1-9/64

(29) 1-57/64

(48) 7-7/16

(189) 4-21/64

(110) 11/32

(9) 2-11/64

(55)

(DN50) 2-way 9-31/32

(244) 8-1/32

(204) 1-15/32

(37) 2-1/8

(54) 7-11/16

(195) 4-27/32

(123) 11/32

(9) N/A

3-way 7-7/8

(200) 2-27/64

(62)

Figure 10: Spring Return VA9208 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve with

Optional M9000-561 Thermal Barrier Installed Dimensions, in. (mm)

3-29/32

(99)

3-1/2 (89)

Clearance Required

Port Marking

Locations

VG1000 Series Forged Brass Ball Valves Installation Instructions

Piping

Port C

Port

Port A

Port BPort A

VG184x Three-Way Valve

Return

Supply

Typical Three-Way Ball Valve Application

Typical Two-Way Ball Valve Application

VG124x Two-Way Valve

Return

Supply

Note

Mount the valve downstream from the coil to minimize heat transfer to the actuator.

FIG:VG1000_typpip

Figure 11: Typical VG1000 Piping

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de control de Johnson Controls

Johnson Controls

Johnson Controls Tyco DV-5a Series Manual de usuario

Johnson Controls

Johnson Controls Digital Vision Network 5000 Series Guía de inicio rápido

Johnson Controls

Johnson Controls tyco AMD-2 Manual de usuario

Johnson Controls

Johnson Controls GS Series Manual de usuario

Johnson Controls

Johnson Controls A19ZBC Series Manual de servicio

Johnson Controls

Johnson Controls Y20EBD Series Manual de servicio

Johnson Controls

Johnson Controls GS-20 Series Manual de usuario

Johnson Controls

Johnson Controls System 450 Series Manual de usuario

Johnson Controls

Johnson Controls P352PN-2 Manual de usuario

Johnson Controls

Johnson Controls S300 Series Instrucciones de montaje

Johnson Controls

Johnson Controls Tyco PRV-1A Manual de usuario

Johnson Controls

Johnson Controls Facility Explorer FX20 Manual de usuario

Johnson Controls

Johnson Controls VP1000 Series Manual de usuario

Johnson Controls

Johnson Controls GH-5000 Manual de usuario

Johnson Controls

Johnson Controls H Series Manual de usuario

Johnson Controls

Johnson Controls GM 20 Series Manual de usuario

Johnson Controls

Johnson Controls Tyco DV-5a Series Manual de usuario

Johnson Controls

Johnson Controls NIE39 Manual de usuario

Johnson Controls

Johnson Controls Penn System 350 S350P Manual de usuario

Johnson Controls

Johnson Controls Tyco RV-1A Manual de usuario

Johnson Controls

Johnson Controls Tyco DV-5a Series Manual de usuario

Johnson Controls

Johnson Controls Penn P28 Series Manual de usuario

Johnson Controls

Johnson Controls VG7000 Series Manual de usuario

Johnson Controls

Johnson Controls tyco AMD-1 Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
