EasyCoder XP- & F-Series

Double Serial Interface Board

P/N 1-960472-01

Edition 2

January 2001

Installation Instructions

EasyCoder XP- & F-Series Double Serial Interface Board – Installation Instructions Ed.2

Chapter 1

EasyCoder XP- & F-Series

Double Serial Interface Board

Installation Instructions

Edition 2, January 2001

Part No. 1-960472-01

Description

The Double Serial Interface Board is an optional device for

EasyCoder 501 XP, EasyCoder 601 XP, EasyCoder F2, and

EasyCoder F4, that provides the printer with two extra inter-

faces, "uart2:" and "uart3:". The printer must be ﬁtted with the

Intermec Fingerprint v7.xx ﬁrmware.

This interface can be ﬁtted with straps and circuits for one of

the following alternatives:

• RS-232

• RS-422 non isolated

• RS-422 isolated

• RS-485

This interface can be ﬁtted with straps and circuits for one of

the following alternatives:

• RS-232

• RS-422 non isolated

• 20 mA Current Loop

The Double Serial Interface Kit contains:

•One interface board ﬁtted for RS-232 on both interfaces.

•One cover plate (for EasyCoder XP-series printers only.)

•One ﬂat cable (for EasyCoder F-series printers only.)

•This Installation Instruction booklet.

Circuits for RS-422 non-isolated, RS-422 isolated, RS-485,

and 20 mA current loop can be bought separately from Inter-

mec.

Information in this manual is subject to change without prior notice and

does not represent a commitment on the part of Intermec Printer AB.

Sweden.

EasyCoder, EasyLAN, Fingerprint, and LabelShop are registered trade-

marks of Intermec Technologies Corp. The word Intermec, the Intermec

logo, InterDriver, and PrintSet are trademarks of Intermec Technologies

Corp.

Centronics is a registered trademark of Genicom Corporation.

Torx is a registered trademark of Camcar Division of Textron Inc.

Application of Use

"uart3:"

"uart2:"

Installation Kit

EasyCoder XP- & F-Series Double Serial Interface Board –Installation Instructions Ed.2

Chapter 2

•Switch off the power and disconnect the power cord.

Warning!

The electronics compartment contains high voltage com-

ponents and wires. Do not open the electronics compart-

ment before the printer is safely disconnected from any AC

supply.

•Open the right-hand door.

•Remove the four #T10 Torx screws along the lower edge of

the cover over the electronics compartment.

•Remove the four #T10 Torx screws that hold the upper edge

of the same cover.

•Remove the cover and put it aside on a soft cloth or similar

to avoid scratches.

•Remove the four #T10 Torx screws that hold the interface

cover plate above the parallel interface connector on the

printer’s rear plate. Remove the cover plate.

•Save the cover plate for possible later use. Keep the

screws.

Installation

EasyCoder 501 XP and

601 XP

#T10 Torx screws (4x)

Cover Plate

EasyCoder XP- & F-Series Double Serial Interface Board –Installation Instructions Ed.2

Chapter 2 Installation

IC304

IC305

P32

P35

1-971600-01 P01

P81

R12

R15

R14

R13

JP1

IC7

IC6

IC5

IC2

IC1

C15

C14

C13

C12

C11

RP1

C10

F10

F11

F12

F13

F14

IC3IC4

IC18

JP2

R11

R10

RS422nonisol.: IC18, S1,S4

RS232: IC2

RS422isolated: IC3, S2, S4

RS485: IC4, S3, S4*

* Term. if end of cable

R20

R21

R23

R22

R30

R35

R33

R32

R34

R31

R26

R28

R25R24

R27 R29

IC15

IC10

F32

F24

F20

F23

RP2

F31

F34

F16

F17

F18

F25

F33

F30

IC12

IC13

IC14

IC11

C119

C18

C17

C16

JP3

1-971613-00.A01

UART3

UART2

20mA CL: IC13, IC14, S6

RS232: IC11

RS422nonisol.: IC12, S5

*Term. if end of cable

RS485: IC4, S3, S4*

RS422isolated: IC3, S2, S4

RS232: IC2

RS422nonisol.: IC18, S1,S4

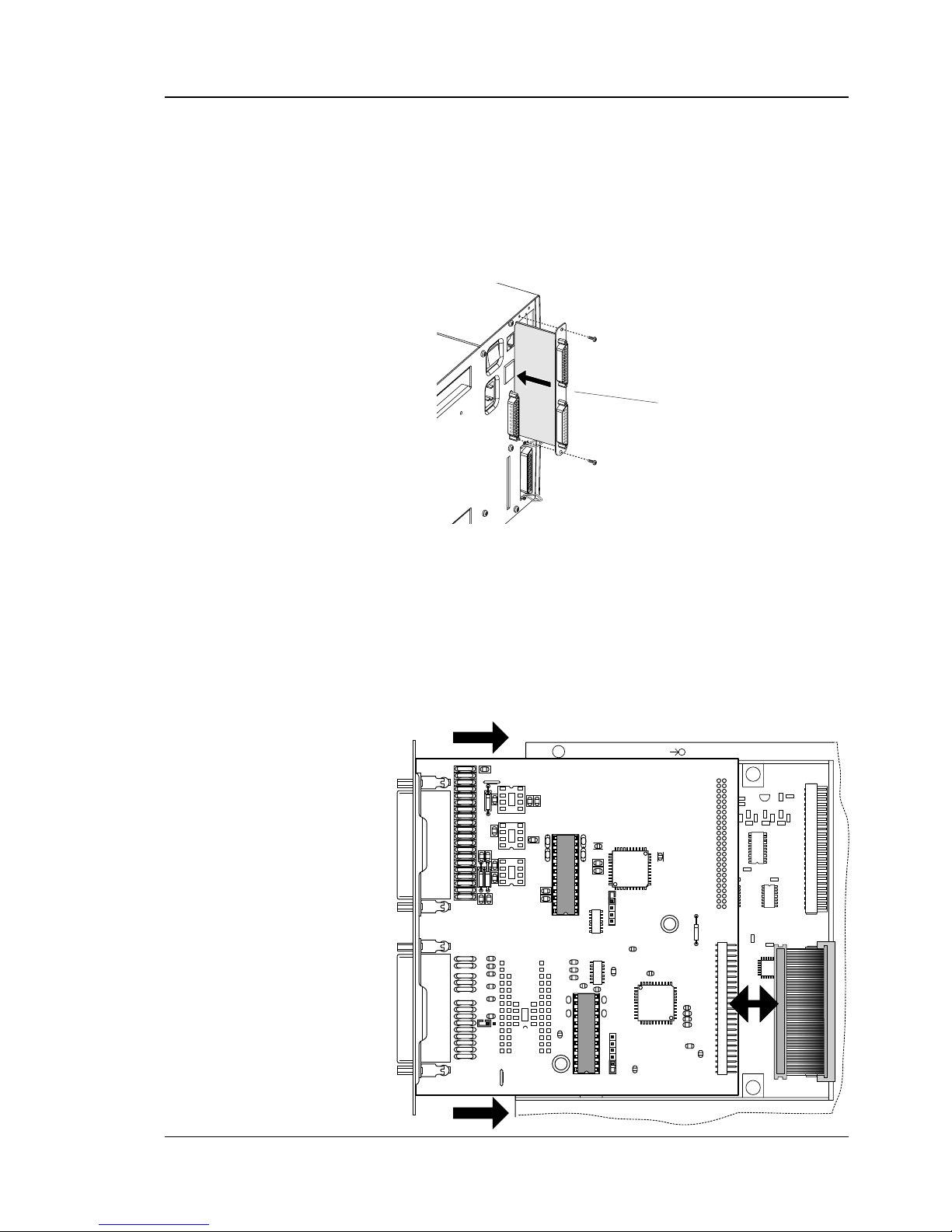

•If necessary, ﬁt or remove circuits and straps to adapt the

Double Serial Interface Board for the desired type of serial

interface as described in Chapter 3 and 4.

•Insert the Double Serial Interface Board with the compo-

nents side facing right, as seen from behind. Check that the

board ﬁts into the two square cut-outs on the left side of the

slot.

•Attach the Double Serial Interface Board to the printer’s

rear plate by means of two of the screws left over when you

removed the original cover plate.

•Using the remaining two screws, attach the narrow cover

plate included in the delivery so it covers the right side of

the slot.

•Connect the cable running from P81 on the CPU board to

connector P1 on the Double Serial Interface Board.

Double Serial Interface Board

EasyCoder 501 XP and

601 XP, cont.

EasyCoder XP- & F-Series Double Serial Interface Board –Installation Instructions Ed.2

Chapter 2 Installation

EasyCoder 501 XP and

601 XP, cont.

•Put back the cover over the electronics compartment. Press

ﬁrmly to compress the leaf springs along the front and rear

edges of the electronics compartment.

•Connect the power cord.

•Now you have two new interface connectors on the printer's

rear plate in addition to the standard serial interface "uart1:"

and the standard parallel interface "centronics:". Connect

the interface cables and switch on the power.

•Enter the Setup Mode to set the proper baud rate, character

length, parity, number of stop bits, ﬂowcontrol, new line,

and buffer size parameters for the new serial ports "uart2:"

and "uart3:".

Serial Interface

"uart3:"

Serial Interface

"uart2:"

Serial Interface

"uart1:"

Centronics Interface

"centronics:"

EasyCoder XP- & F-Series Double Serial Interface Board –Installation Instructions Ed.2

Chapter 2 Installation

•Open the electronics compartment by removing the front/

left-hand cover, which is held by three #T20 Torx screws

from the media compartment side of the center section.

Warning!

Switch off the power and disconnect the power cord. The

electronics compartment contains high voltage components

and wires. Do not open the electronics compartment before

the printer is safely disconnected from any AC supply.

•Remove the two #T10 Torx screws that hold the interface

cover plate on the printer’s rear plate. Remove the cover

plate.

•Save the cover plate for possible later use. Keep the

screws.

EasyCoder F2 and F4

#T10 Torx screw

Cover Plate

#T10 Torx screw

#T20Torx screws (x3)

EasyCoder XP- & F-Series Double Serial Interface Board –Installation Instructions Ed.2

Chapter 2 Installation

EasyCoder F2 and F4,

cont.

•If necessary, ﬁt or remove circuits and straps to adapt the

Double Serial Interface Board for the desired type of serial

interfaces as described in Chapter 3 and 4.

•Insert the interface board with the components side facing

right, as seen from behind.

•Attach the interface board to the printer’s rear plate by

means of the two screws left over when you removed the

original cover plate.

•Connect the ﬂat cable included in the kit between connector

P81 on the CPU board and connector P1 on the interface

board (also see the next page.)

P35

IC305

P32

IC304

P33

P81

R12

R15

R14

R13

JP1

IC7

IC6

IC5

IC2

IC1

C15

C14

C13

C12

C11

RP1

C10

F10

F11

F12

F13

F14

IC3IC4

IC18

JP2

R11

R10

RS422nonisol.: IC18, S1,S4

RS232: IC2

RS422isolated: IC3, S2, S4

RS485: IC4, S3, S4*

* Term. if end of cable

R20

R21

R23

R22

R30

R35

R33

R32

R34

R31

R26

R28

R25R24

R27 R29

IC15

IC10

F32

F24

F20

F23

RP2

F31

F34

F16

F17

F18

F25

F33

F30

IC12

IC13

IC14

IC11

C119

C18

C17

C16

JP3

1-971613-00.A01

UART3

UART2

20mA CL: IC13, IC14, S6

RS232: IC11

RS422nonisol.: IC12, S5

*Term. if end of cable

RS485: IC4, S3, S4*

RS422isolated: IC3, S2, S4

RS232: IC2

RS422nonisol.: IC18, S1,S4

Interface

Board

EasyCoder XP- & F-Series Double Serial Interface Board –Installation Instructions Ed.2

Chapter 2 Installation

EasyCoder F2 and F4,

cont.

•Make sure that the cable between CPU board and interface

board runs as illustrated below.

•Put back the cover over the electronics compartment.

•Connect the power cord.

•Now you have two new interface connectors on the print-

er’s rear plate in addition to the standard interfaces "uart1:"

and "usb1:". Connect the interface cables and switch on the

power.

•Enter the Setup Mode to set the proper baud rate, character

length, parity, number of stop bits, ﬂowcontrol, new line,

and buffer size parameters for the new serial ports "uart2:"

and "uart3:".

Serial Interface

"uart2:"

Serial Interface

"uart1:"

CPU Board

Interface Board

Cable

Serial Interface

"uart3:"

Serial Interface

"usb1:"

EasyCoder XP- & F-Series Double Serial Interface Board –Installation Instructions Ed.2

Chapter 3

R12

R15

R14

R13

JP1

IC7

IC6

IC5

IC2

IC1

C15

C14

C13

C12

C11

RP1

C10

F10

F11

F12

F13

F14

IC3IC4

IC18

JP2

R11

R10

RS422nonisol.: IC18, S1,S4

RS232: IC2

RS422isolated: IC3, S2, S4

RS485: IC4, S3, S4*

* Term. if end of cable

R20

R21

R23

R22

R30

R35

R33

R32

R34

R31

R26

R28

R25R24

R27 R29

IC15

IC10

F32

F24

F20

F23

RP2

F31

F34

F15

F16

F17

F18

F25

F33

F30

IC12

IC13

IC14

IC11

C119

C18

C17

C16

JP3

1-971613-00.A01

UART3

UART2

20mA CL: IC13, IC14, S6

RS232: IC11

RS422nonisol.: IC12, S5

*Term. if end of cable

RS485: IC4, S3, S4*

RS422isolated: IC3, S2, S4

RS232: IC2

RS422nonisol.: IC18, S1,S4

Fit RS-232 circuit on IC2

No circuits on IC3, IC4, or IC18

Strap on S4 deactivated

(ﬁtted on one pin only)

Strap on S1 deactivated

(ﬁtted on one pin only)

Serial Port Conﬁguration "uart2:"

The serial communication port "uart2:" can be conﬁgured for

one of four different types of serial communication:

•RS-232

•RS-422 non isolated

•RS-422 isolated

•RS-485

By ﬁtting or removing certain circuits and straps, the desired

type of interface can be selected. This is either done at factory

or by the customer. There can only be one driver circuit and its

corresponding straps ﬁtted at a time.

Caution!

When ﬁtting circuits yourself, do it before connecting the inter-

face board and make sure that the circuits are not ﬁtted upside

down (see front end markings in the illustrations in this chap-

ter.) Also take care so all “legs” of the circuits ﬁt into their

respective slots in the socket and are not bent. Also, take

proper precautions so as to protect the board and circuits from

electrostatic discharges.

Introduction

RS-232

EasyCoder XP- & F-Series Double Serial Interface Board –Installation Instructions Ed.2

Chapter 3 Serial Port Conﬁguration "uart2:"

RS-422 Non Isolated

R12

R15

R14

R13

JP1

IC7

IC6

IC5

IC2

IC1

C15

C14

C13

C12

C11

RP1

C10

F10

F11

F12

F13

F14

IC3IC4

IC18

JP2

R11

R10

RS422nonisol.: IC18, S1,S4

RS232: IC2

RS422isolated: IC3, S2, S4

RS485: IC4, S3, S4*

* Term. if end of cable

R20

R21

R23

R22

R30

R35

R33

R32

R34

R31

R26

R28

R25R24

R27 R29

IC15

IC10

F32

F24

F20

F23

RP2

F31

F34

F15

F16

F17

F18

F25

F33

F30

IC12

IC13

IC14

IC11

C119

C18

C17

C16

JP3

1-971613-00.A01

UART3

UART2

20mA CL: IC13, IC14, S6

RS232: IC11

RS422nonisol.: IC12, S5

*Term. if end of cable

RS485: IC4, S3, S4*

RS422isolated: IC3, S2, S4

RS232: IC2

RS422nonisol.: IC18, S1,S4

R12

R15

R14

R13

JP1

IC7

IC6

IC5

IC2

IC1

C15

C14

C13

C12

C11

RP1

C10

F10

F11

F12

F13

F14

IC3IC4

IC18

JP2

R11

R10

RS422nonisol.: IC18, S1,S4

RS232: IC2

RS422isolated: IC3, S2, S4

RS485: IC4, S3, S4*

* Term. if end of cable

R20

R21

R23

R22

R30

R35

R33

R32

R34

R31

R26

R28

R25R24

R27 R29

IC15

IC10

F32

F24

F20

F23

RP2

F31

F34

F15

F16

F17

F18

F25

F33

F30

IC12

IC13

IC14

IC11

C119

C18

C17

C16

JP3

1-971613-00.A01

UART3

UART2

20mA CL: IC13, IC14, S6

RS232: IC11

RS422nonisol.: IC12, S5

*Term. if end of cable

RS485: IC4, S3, S4*

RS422isolated: IC3, S2, S4

RS232: IC2

RS422nonisol.: IC18, S1,S4

No circuit on IC2

Fit RS-422 circuit on IC18

Fit strap on S4

Fit strap on S1 only

No circuit on IC2

Fit RS-422 circuit on IC3

Fit strap on S4

Fit strap on S2 only

RS-422 Isolated

Otros manuales para EasyCoder 501XP

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Accesorios de impresora de Intermec

Intermec

Intermec EasyCoder 501 SA Manual de usuario

Intermec

Intermec EasyCoder F2 Manual de usuario

Intermec

Intermec UBI EasyCoder 601 E Guía

Intermec

Intermec EasyCoder 601XP Manual de usuario

Intermec

Intermec PB42 Manual de usuario

Intermec

Intermec EasyCoder F4 Manual de usuario

Intermec

Intermec EasyCoder 501 SA Manual de usuario

Intermec

Intermec EasyCoder 501 SA Manual de usuario

Intermec

Intermec 3240 Manual de usuario

Intermec

Intermec 3400 Manual de usuario

Intermec

Intermec EasyCoder 101 Manual

Intermec

Intermec PM4I Manual de usuario

Intermec

Intermec 869 RFID Reader Instrucciones de funcionamiento

Intermec

Intermec EasyCoder 4420 Manual

Intermec

Intermec EasyCoder 3400d Manual de usuario

Intermec

Intermec Font Card Manual de usuario

Intermec

Intermec 3600 Manual de usuario

Intermec

Intermec PW50 Manual de usuario

Intermec

Intermec EasyCoder PF2i Manual de usuario

Intermec

Intermec EasyCoder PD4 Manual de usuario

Intermec

Intermec EasyCoder F4 Manual de usuario

Intermec

Intermec EasyCoder PF2i Manual de usuario

Intermec

Intermec PB50 Manual de usuario

Intermec

Intermec PB50 Manual de usuario

Manuales populares de Accesorios de impresora de otras marcas

Star Micronics

Star Micronics TSP800 Series Manual de usuario

REA

REA JET HR pro 2K Manual de usuario

HP Laserjet,Color Laserjet 4si Manual de usuario

oliser

oliser MS 45 Manual de usuario

Roland

Roland DU2-64 Instrucciones y recetas

Xerox

Xerox EFI EXP6000 Manual de usuario

Canon

Canon Finisher-T1 Manual de usuario

Sharp

Sharp FO-1MK Manual de usuario

Labelmate

Labelmate PM-300 Manual de usuario

Epson

Epson T6248 Manual de funcionamiento

Epson

Epson OT-BZ20 Manual de usuario

Canon

Canon TonerRobot EP-27 Manual de usuario

Ricoh

Ricoh LCIT RT5100 Guía de inicio rápido

GBC

GBC 16 Series Manual de usuario

Canon

Canon INNER 2-WAY TRAY-E1 Manual de operación y mantenimiento

Develop

Develop SD-509 Manual de usuario

Kyocera

Kyocera KM-6230 Manual

Triumph Adler

Triumph Adler DF-710 Manual
