Interlogix TVD-2202 Manual de usuario

TruVision IR

Dome Camera

TVD

-2202/TVD-4202

Installation

Guide

P/N 1072923 • REV A • ISS 10FEB15

Installation Guide 1

Contents

Product overview 2

Camera description 4

Installation 5

Programming 9

Specifications 10

Setup menu 11

Regulatory information 12

2 Installation Guide

Product overview

This is the TruVision IR Dome Camera Installation

Guide for models TVD-2202/TVD-4202. This guide

describes a standard installation.

Package contents:

Camera with power

and video output

cables

4 M4 screws (4 x

25 mm) and 4 dry

wall anchors (Ø7.5

x 24.5 mm) for wall

or ceiling

installation

Template

Back box

Installation Guide 3

3 M4 screws (3 x

25 mm) screws to

install the camera

to the back box

Hex wrench

•WEEE and Battery

Disposal

Monitor output

cable

CD

Installation Guide

4 Installation Guide

Camera description

1. Dome liner

2. Bubble

3. Auxiliary video

output

4. Menu button

5. Power cable

6. Video cable

7. Lens

8. Back box

Installation Guide 5

Installation

To install the camera:

1. Using the template, place it level against the

mounting surface and mark the position of the

mounting holes.

2. Following all local codes, drill and prepare the

mounting holes.

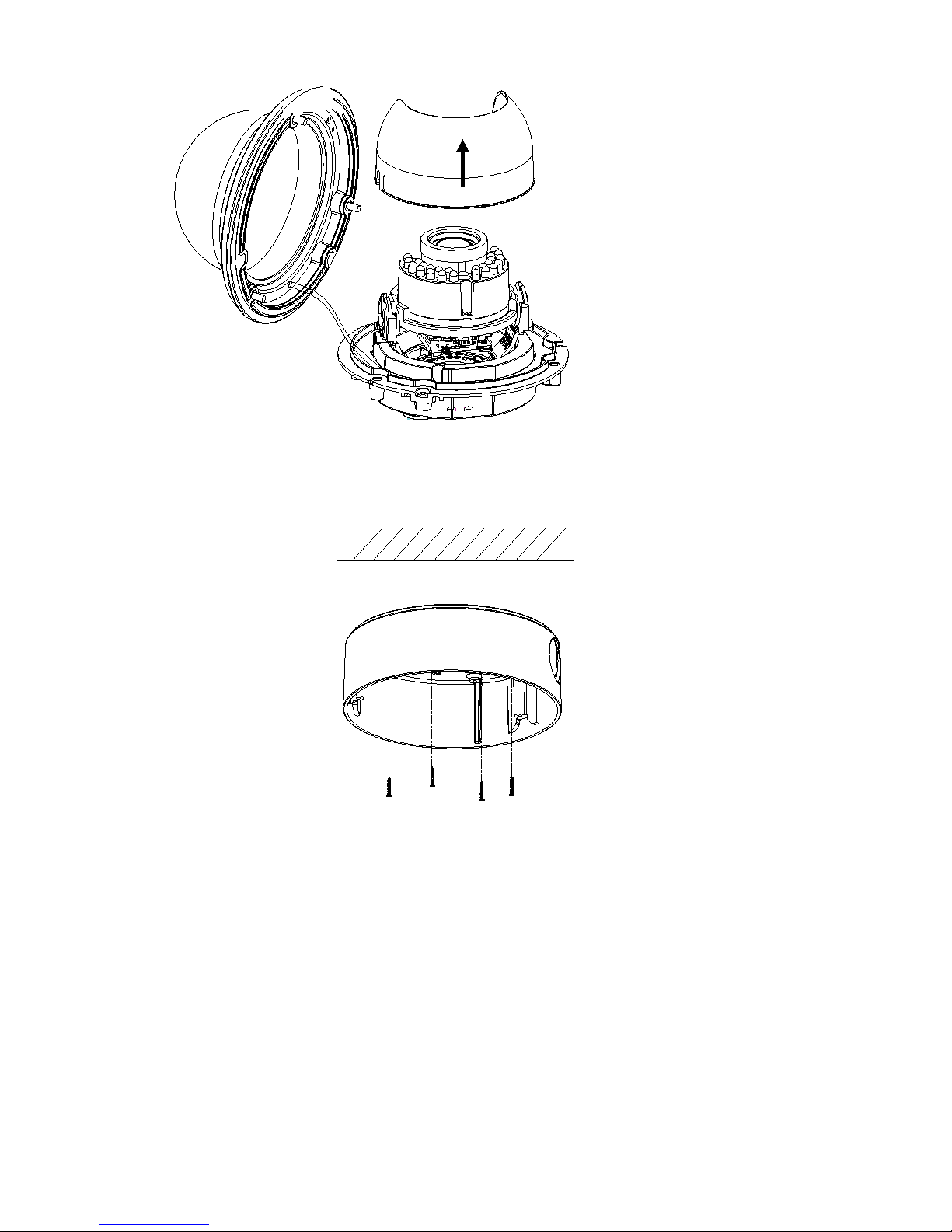

3. Remove the camera from its back box.

4. Loosen the three set screws on the edge of the

bubble with the supplied hex wrench. Remove

the bubble and the dome liner.

6 Installation Guide

4. Secure the back box to the ceiling with the

supplied screws.

5. Connect a 75-ohm coaxial video cable to the

video cable and a power supply to the power

cable.

6. Align the camera with the back box and tighten

the set screws to secure the camera to the

back box.

Installation Guide 7

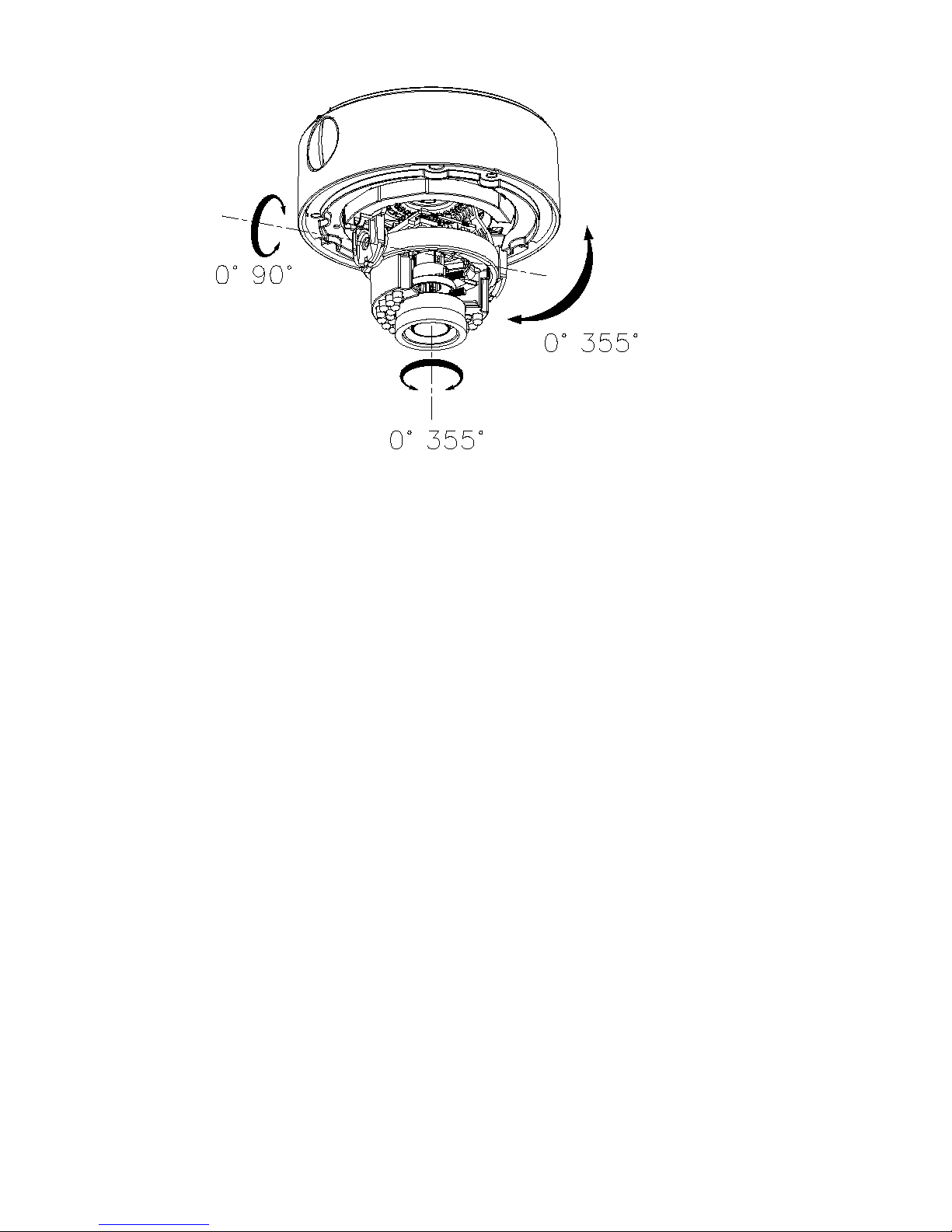

7. Adjust the surveillance angle:

1) View the camera image on a monitor.

2) Rotate the panning table to adjust the pan

direction [0 to 355°].

3) Loosen the tilting lock screw.

4) Rotate the tilting table to adjust the tilt

direction [0 to 90°].

5) Tighten the tilting lock screw.

6) Rotate the camera lens holder [0 to 355°]

to adjust the lens to the surveillance angle.

8 Installation Guide

8. Zoom and focus adjustment.

1) View the camera image using the monitor.

2) Loosen the zoom lever and move the

screw between T (Tele) and W (Wide) to

obtain the appropriate angle of view.

3) Tighten the zoom lock screw.

4) Loosen the focus lever and move the

screw between F (Far) and N (Near) to

obtain the optimum focus.

5) Tighten the focus lock screw.
