UltraSync Wi Fi IP Camera

Installation Guide

Contents

Installation environment...........................................................3

Package contents....................................................................4

Cable requirements.................................................................6

Camera description .................................................................7

Accessing the SD card ............................................................8

Wedge Camera.....................................................................9

Desktop Camera ...................................................................9

Mounting the Wedge Camera................................................10

Mounting the Desktop Camera ..............................................13

Quick Setup...........................................................................16

Setting up Ethernet/Wi Fi transmission ..................................16

Wi Fi Signal Strength.............................................................17

Add Cameras to a Wi Fi Network...........................................18

Add Cameras to UltraSync ....................................................19

Reboot Cameras ...................................................................20

View Live Stream and Latest Clip ..........................................20

Program Event Triggered camera clips..................................21

Change Default Camera Settings...........................................26

Alternatives for Adding Cameras............................................27

via Wi Fi (using Windows PC for setup)...............................27

via Ethernet (non-DHCP, using iOS Device for setup)..........27

via Ethernet (non-DHCP, using Windows PC for setup) .......28

Troubleshooting.....................................................................29

Specifications........................................................................31

Installation environment

When installing your product, consider these

factors:

•Electrical: Install electrical wiring carefully. It should be done by

qualified service personnel. Always use a proper PoE switch or

a 12 VDC UL listed Class 2 or CE certified power supply to

power the camera. Do not overload the power cord or adapter.

•Ventilation: Ensure that the location planned for the installation

of the camera is well ventilated.

•Temperature: Do not operate the camera beyond the specified

temperature, humidity or power source ratings. The operating

temperature of the camera is between -30 to +60°C (-22 to

140°F). Humidity is below 90%.

•Moisture: Do not expose the camera to rain or moisture, or try

to operate it in wet areas. Turn the power off immediately if the

camera is wet and ask a qualified service person for servicing.

Moisture can damage the camera and also create the danger of

electric shock.

•Servicing: Do not attempt to service this camera yourself. Any

attempt to dismantle or remove the covers from this product will

invalidate the warranty and may also result in serious injury.

Refer all servicing to qualified service personnel.

•Cleaning: Do not touch the sensor modules with fingers. If

cleaning is necessary, use a clean cloth with some ethanol and

wipe the camera gently. If the camera will not be used for an

extended period of time, put on the lens cap to protect the

sensors from dirt.

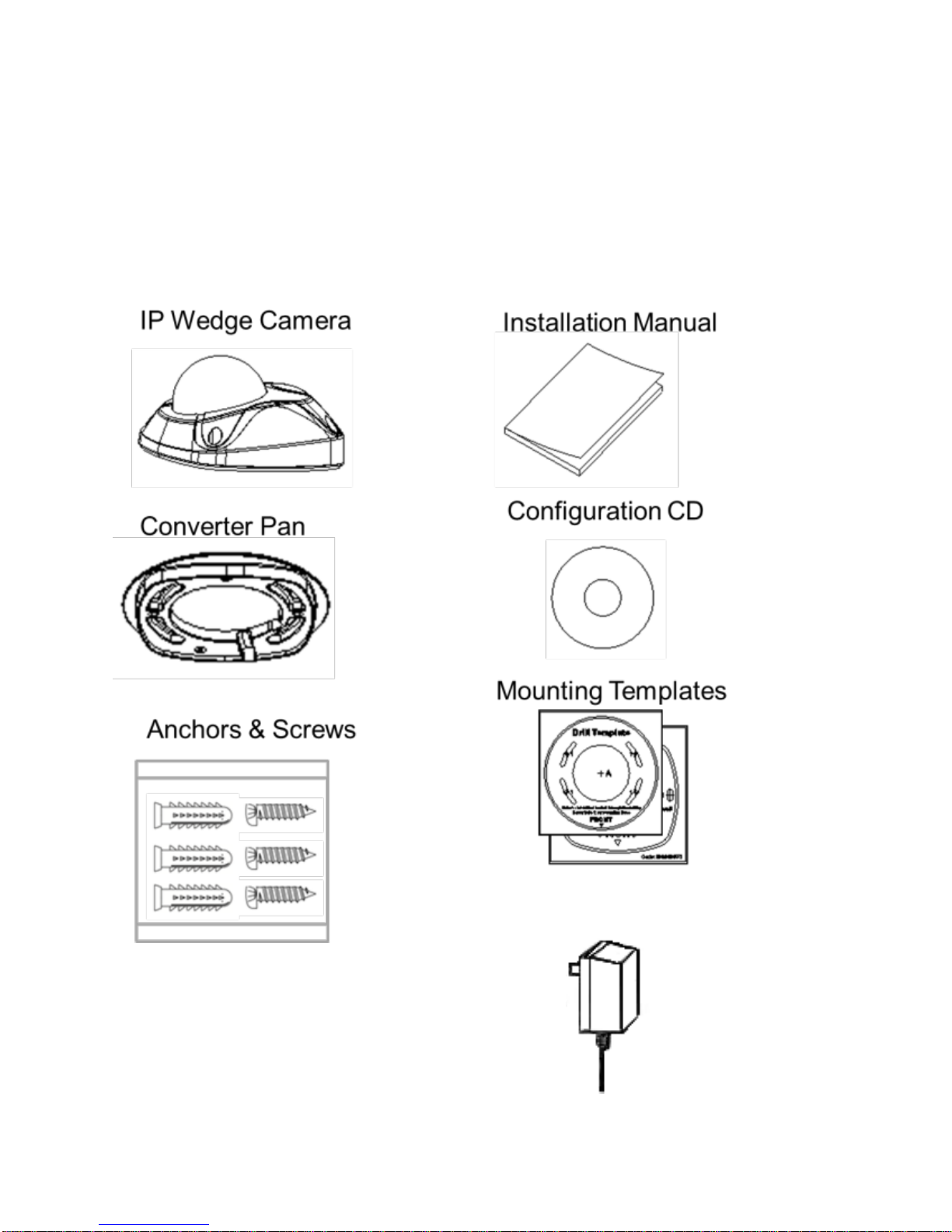

Package contents

Check the package and contents for visible damage. If any

components are damaged or missing, do not attempt to use the

unit; contact the supplier immediately. If the unit is returned, it must

be shipped back in its original packaging.

UltraSync Wi Fi IP Wedge Camera

Transformer

UltraSync Wi Fi IP Desktop Camera

Power Supply (US)

One power supply with interchangeable plugs is included for SKU

number RS-3131.

Power Supply (EU)

Power Supply (UK)

Power Supply (AUS)

CAUTION: Use direct plug-in UL listed power supplies marked

Class 2/CE certified or LPS (limited power source) of the required

output rating as listed on the unit.

Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions.

Cable requirements

For proper operation, adhere to the following cable and power

requirements for the cameras. Category 5 cabling or better is

recommended. All network cabling must be installed according to

applicable codes and regulations.

Camera description –Wedge Camera

1. Camera cover/housing

2. Lens

3. SD card

4. Ethernet RJ45 PoE port

5. Power supply

6. Base

7. Alarm and Audio port

8. Reset/WPS button

9. Converter pan

10. Antenna

11. Microphone

Camera description –Desktop Camera

1. Lens

2. Microphone

3. IR LED

4. PIR

5. Light sensor

6. SD card slot

7. Bracket stand

8. RJ45 network port

9. WPS/RET button

10. Alarm I/O

11. DC12V port

Accessing the SD card

Wedge Camera

An 8GB Micro SD card is pre-installed with the camera; (see item 3

in Camera Description, page 6).

Desktop Camera

An 8GB Micro SD card is pre-installed with the camera.

If desired, the Micro SD Card can be replaced with up to 64GB for

local storage as a backup in case, for example, the network fails.

Note: Video and log files stored on the Micro SD card can only be

accessed via the UltraSync App when validated with the UltraSync

Panel.

Mounting the Wedge Camera

To mount the wedge camera on a wall or ceiling:

1. Drill the holes for the mounting hardware in the mounting

surface using the supplied drill template. To route the cables

from the base of the camera, drill a cable access hole in the

mounting surface.

2. Mount the converter pan to the mounting surface (optional).

Note: If required, you can remove the tab (A) on the side of

the converter pan to pass the cables through.
