Interlogix TruVision Line Manual de usuario

TruVision Outdoor IP

Camera User Manual

P/N 1072587B-EN • REV 1.0 • ISS 17JAN13

2013 UTC Fire & Security Americas Corporation, Inc.

Interlogix is part of UTC Climate Controls & Security, a unit of United

Technologies

Trademarks and

patents

he TruVision and Interlogix names and logos are trademarks of

United Technologies.

Other trade names used in this document may be trademarks or

registered trademarks of the manufacturers or vendors of the

respec

tive products.

Manufacturer

UTC Fire & Security Americas Corporation, Inc.

2955 Red Hill Avenue, Costa Mesa, CA 92626

-5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification

N4131

FCC compliance

Class B:

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. T

his

equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications.

There is no guarantee that interference will not occur in a pa

rticular

installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the followin

g measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for

help.

European Union

directives

2004/108/EC (EMC directive): Hereby, UTC Fire & Security

declares that this device is in compliance with the essential

requirements and other relevant provisions of Directive

2004/108/E

2002/96/EC (WEEE directive):

Products marked with this symbol

cannot be disposed of as unsorted municipal waste in the European

Union. For proper recycling, return this product to your local supplier

upon the purchase of equivalent new equipment, or

dispose of it at

designated collection points. For more information see:

www.recyclethis.info.

Contact information

For contact information

, see www.interlogix.com or

www.utcfssecurityproducts.eu

Customer suppor

w.interlogix.com/customer-support

TruVision Outdoor IP Camera User Manual i

Content

Chapter 1 Introduction 1

Product overview 1

Features 1

Chapter 2 Installation 3

Installation environment 3

Package contents 4

Cable requirements 4

Camera descriptions 5

Setting up the camera 6

Connecting the devices 6

Accessing the SDHC card 7

Mounting the dome cameras on a ceiling 8

Mounting the bullet camera 12

Using the camera with TVR 60/ TVN 20/ TVN 40/ LNVR and other

systems 12

Using the camera with TruVision Navigator 13

Chapter 3 Network and streaming configuration 15

Checking your web browser security level 15

Accessing the camera over the internet 17

Overview of the camera web browser 18

Configuring the camera’s network settings 19

Information about the camera 22

Network parameters 22

Chapter 4 Camera configuration 25

Camera parameters 25

Defining how information is displayed 26

Defining the system time 27

Alarm parameters 28

Events scheduling 28

Defining recording parameters 29

Motion detection alarms 31

Adding extra on-screen text 33

Configuring the video image 34

Chapter 5 Camera management 37

User management 37

Formatting the SDHC card 39

Restoring default settings 40

Upgrading the firmware 40

Rebooting the camera 41

ii TruVision Outdoor IP Camera User Manual

Chapter 6 Camera operation 43

Logging on and off 43

Live view mode 43

Playing back recorded video 44

Searching event logs 46

Archiving recorded files 48

Controlling zoom and focus 49

Appendix A Specifications 51

TruVision outdoor IP dome cameras 51

TruVision outdoor IP bullet cameras 52

Appendix B Pin definitions 53

Index 55

TruVision Outdoor IP Camera User Manual 1

Chapter 1

Introduction

Product overview

This is the user manual for TruVision Outdoor IP camera models:

TVC-N225E-2M-N(-P) (IP bullet camera)

TVC-M1245E-2M-N(-P) (1.3MPX WDR bullet camera)

TVD-N225E-2M-N(-P) (IP dome camera)

TVD-M1245E-2M-N(-P) (1.3MPX WDR dome camera)

Features

This section describes the camera features.

Supports TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTCP, PPPoE, SMTP,

NTP protocols

Programming and setup through a browser interface

Live viewing over the network

50/60 Hz selectable flicker control

120dB Wide Dynamic Range (WDR models only)

Motorized lens with zoom function

Auto focus

Supports remote upgrades and maintenance

H.264 video compression with dual capability

Supports HD (1.3MPX models), CIF, VGA, QCIF

IP66 weather proof

SDHC card for local storage (dome cameras only)

Designed to ONVIF and PSIA open standards

0BChapter 1: Introduction

2 TruVision Outdoor IP Camera User Manual

TruVision Outdoor IP Camera User Manual 3

Chapter 2

Installation

This chapter provides information on how to install the TruVision Outdoor IP

dome and bullet cameras.

Installation environment

When installing your product, consider these factors:

• Electrical: Install electrical wiring carefully. It should be done by qualified

service personnel. Always use a proper PoE switch or a 12 VDC UL listed

Class 2 or CE certified power supply to power the the bullet camera, and a

proper PoE / PoE+ switch or a 24 VAC UL listed Class 2 or CE certified

power supply to power the dome camera. Do not overload the power cord or

adapter.

• Ventilation: Ensure that the location planned for the installation of the

camera is well ventilated.

• Temperature: Do not operate the camera beyond the specified temperature,

humidity or power source ratings. The operating temperature of the bullet

camera is between -10 to +60°C (14°F to 140°F) and outdoor dome is

between -40 to +60 °C (-40 to +140 °F) with the heater and fan on. Humidity

is below 90%.

• Moisture:Do not expose the camera to rain or moisture, or try to operate it in

wet areas. Turn the power off immediately if the camera is wet and ask a

qualified service person for servicing. Moisture can damage the camera and

also create the danger of electric shock.

• Servicing: Do not attempt to service this camera yourself. Any attempt to

dismantle or remove the covers from this product will invalidate the warranty

and may also result in serious injury. Refer all servicing to qualified service

personnel.

• Cleaning: Do not touch the sensor modules with fingers. If cleaning is

necessary, use a clean cloth with a some ethanol and wipe the camera

gently. If the camera will not be used for an extended period of time, put on

the lens cap to protect the sensors from dirt.

1BChapter 2: Installation

4 TruVision Outdoor IP Camera User Manual

Package contents

Check the package and contents for visible damage. If any components are

damaged or missing, do not attempt to use the unit; contact the supplier

immediately. If the unit is returned, it must be shipped back in its original

packaging.

Package contents:

•Camera

•Hex wrench

•Video cable for testing (except bullet cameras)

•Quick start guide

•CD with user manual and TruVision Device Finder.

CAUTION: Use direct plug-in UL listed power supplies marked Class 2/CE

certified or LPS (limited power source) of the required output rating as listed on

the unit.

Cable requirements

For proper operation, adhere to the following cable and power requirements for

the cameras. Category 5 cabling or better is recommended. All network cabling

must be installed according to applicable codes and regulations.

Table 1 below lists the requirements for the power cables that connect to the

camera.

Table 1: Recommended power cable requirements

Bullet camera:

12 VDC power jack

Dome camera:

24 VAC power jack

1BChapter 2: Installation

TruVision Outdoor IP Camera User Manual 5

Camera descriptions

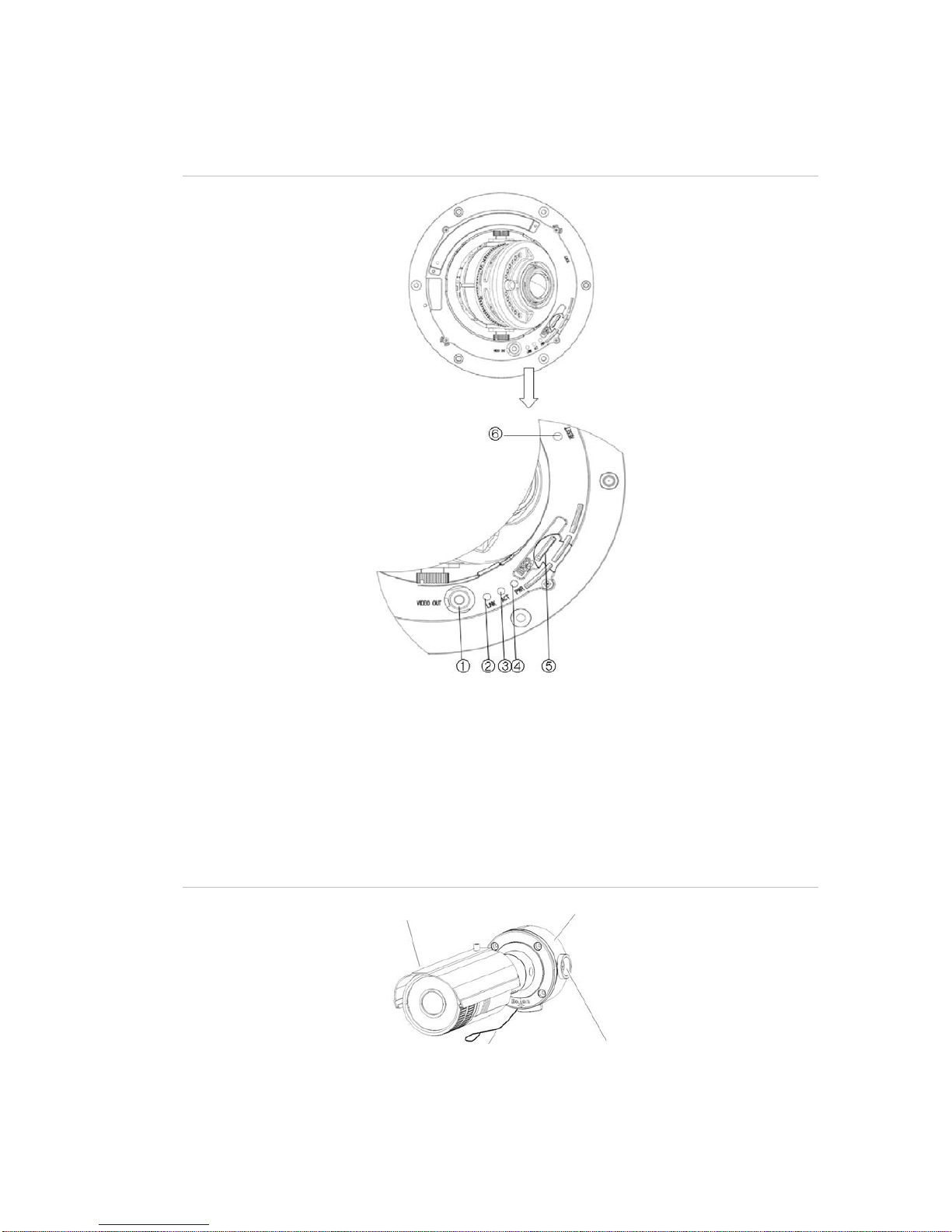

Figure 1: Outdoor IP dome camera

1. Video output interface

2. LINK LED: The yellow LED is lit when the

network is connected.

3. ACT LED: The blue LED blinks when the

network is correctly functioning.

4. PWR LED: The red LED is lit when the

camera is powered up.

5. Micro SD slot

6. Reset switch.

Figure 2: Outdoor IP bullet camera

Sun shield

Mounting bracket

Safety cable

Threaded knockout for cable access

1BChapter 2: Installation

6 TruVision Outdoor IP Camera User Manual

Setting up the camera

Note: If the light source where the camera is installed experiences rapid, wide-

variations in lighting, the camera may not operate as intended.

To quickly put the dome camera into operation:

1. Prepare the mounting surface.

2. Connect the power and network cables to the camera. See “Connecting the

devices” on page 6.

3. Mount the camera to the ceiling using the appropriate fasteners. See

“Mounting the dome cameras on a ceiling” on page 8.

4. Set up the camera’s network and streaming parameters so that the camera

can be controlled over the network. See “Chapter 3 Network and streaming

configuration” on page 15.

5. Program the camera to suit its location. See “Chapter 4 Camera

configuration” on page 25.

To quickly put the bullet camera into operation:

1. Prepare the mounting surface.

2. Connect the power and network cables to the camera. See “Connecting the

devices” on page 6.

3. Mount the camera to the ceiling using the appropriate fasteners. See

Mounting the bullet camera” on page 8.

4. Set up the camera’s network and streaming parameters so that the camera

can be controlled over the network. See “Chapter 3 Network and streaming

configuration” on page 15.

5. Program the camera to suit its location. See “Chapter 4 Camera

configuration” on page 25.

Connecting the devices

A qualified service person, complying with all applicable codes, should perform

all required hardware installation.

Otros manuales para TruVision Line

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara IP de Interlogix

Interlogix

Interlogix TruVision TVF-5201 Hoja de instrucciones

Interlogix

Interlogix TruVision Line Hoja de instrucciones

Interlogix

Interlogix TVB-2203 Manual de usuario

Interlogix

Interlogix TruVision 11 Series Manual de usuario

Interlogix

Interlogix VD-IP-XP4DNP Manual de usuario

Interlogix

Interlogix UltraSync RS-3230 Hoja de instrucciones

Interlogix

Interlogix TruVision TVB-4409 Manual

Interlogix

Interlogix TruVision Line Manual de usuario

Interlogix

Interlogix TruVision TVT-2202 Manual de usuario

Interlogix

Interlogix UltraView IP XP4 Box Day/Night Range Camera Manual de usuario

Interlogix

Interlogix UltraSync RS-3230 Manual de usuario

Interlogix

Interlogix VC-IP-XP4DN-HR Manual de usuario

Interlogix

Interlogix UVD-IP-XP4DNR-VA2 Manual de usuario

Interlogix

Interlogix UltraSync RS3130 Manual de usuario

Interlogix

Interlogix TVC-5125BE-3 Manual de usuario

Interlogix

Interlogix TruVision Line Manual de usuario

Interlogix

Interlogix TruVision Line Hoja de instrucciones

Interlogix

Interlogix TVB-1101 Manual de usuario

Interlogix

Interlogix TruVision Line Manual de usuario

Interlogix

Interlogix TruVision Series TVQ-8101 Manual de usuario

Interlogix

Interlogix TruVision TVC-1201 Hoja de instrucciones

Interlogix

Interlogix TVD-2202 Manual de usuario

Interlogix

Interlogix TruVision Line Hoja de instrucciones

Interlogix

Interlogix TruVision Bullet IR TVC-BIR6-SR Manual de usuario

Manuales populares de Cámara IP de otras marcas

FLIR

FLIR Exx series Manual de usuario

Avigilon

Avigilon H4A-BO1-IR Manual de usuario

Digital Watchdog

Digital Watchdog DWCA-C128-64 Manual de usuario

ShareTech

ShareTech AV1 Manual de usuario

Ezviz

Ezviz C6C Manual de usuario

Melchioni

Melchioni UCAM 2015 Manual de usuario

Geutebruck

Geutebruck G-Cam/ESD-4630 Manual de usuario

Arecont Vision

Arecont Vision MegaBall AV3146DN-3310-D-LG Manual de usuario

Mitel

Mitel 6800i Series Manual de servicio

Vitek

Vitek VTC-IR403-212NP Manual de usuario

THOMSON

THOMSON DSC - 323W Manual de usuario

AVer

AVer FB2027 Manual de usuario

ENFORCER

ENFORCER EV-T5105-N2SQ Manual de usuario

Wansview

Wansview NC543 Manual de usuario

Eneo

Eneo MCB-64A0003M0A Manual de usuario

deView electronics

deView electronics CBDNI36F Manual de usuario

Swann

Swann SwannEye Manual de usuario

LevelOne

LevelOne IP CamSecure Manual de usuario
