Interlogix TruVision TVB2406 Manual de usuario

P/N 1073163-EN • REV B• ISS 06DEC17

TruVision

High Resolution

TVI Bullet IR

Camera TVB-

2406/TVB

-4406 Installation

Guide

Contents

Overview ..................................................... 2

Description .................................................. 5

Installation ................................................... 7

Operating temperature range..................... 10

Program .................................................... 11

Menu tree .................................................. 16

Specifications ............................................ 17

Legal ......................................................... 18

Overview

This is the TruVision High Resolution TVI Bullet IR

Camera Installation Guide for the camera model

TVB-2406/TVB-4406. This guide describes a

standard installation.

TVB-4406 (TruVision HD-TVI Analog Bullet

Camera, 1080p, 5 to 50 mm Motorized VF

Lens, NTSC)

TVB-2406 TruVision HD-TVI Analog Bullet

Camera, 1080p, 5 to 50 mm Motorized VF

Lens, PAL

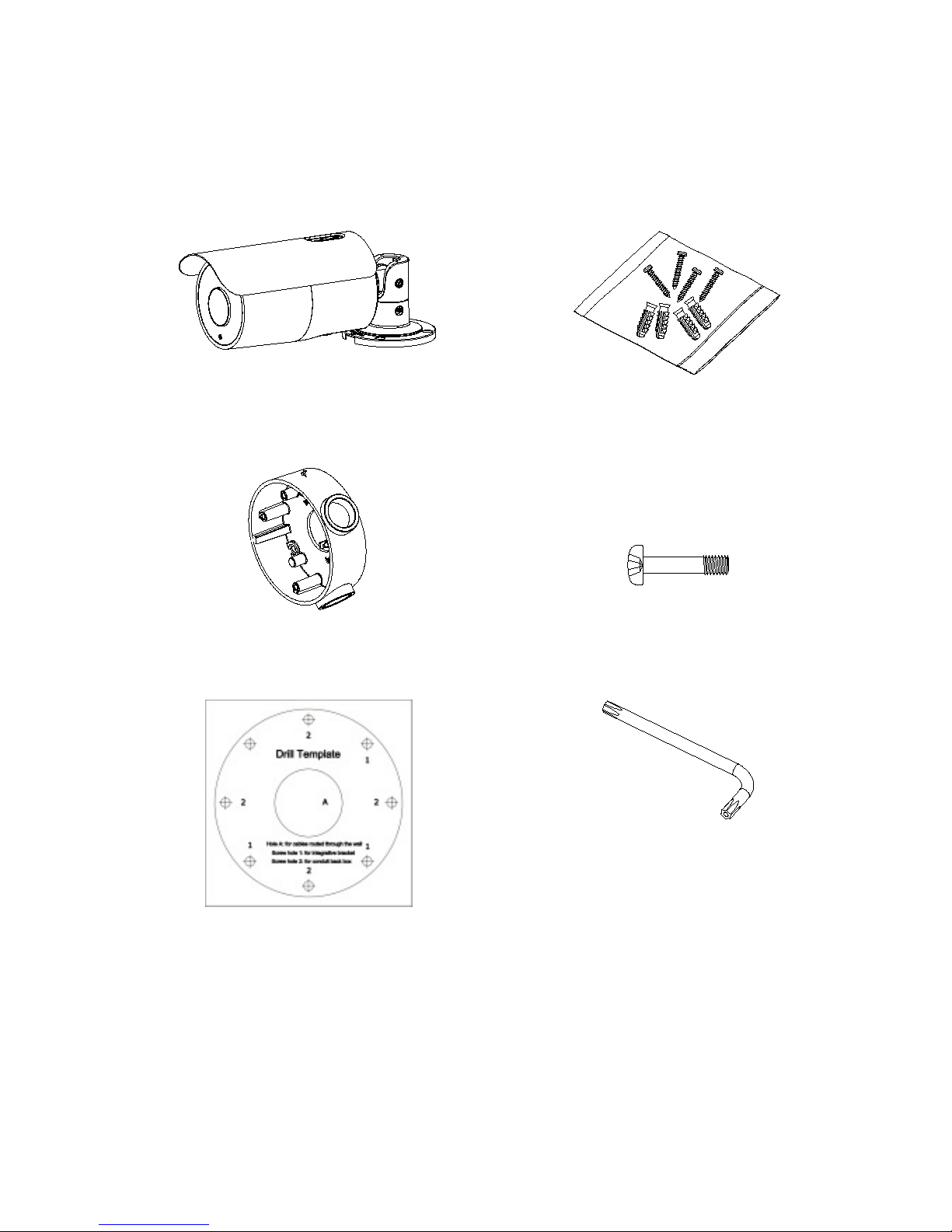

Package contents

The camera consists of the following:

Camera with power

and video output

cables

4 screws and 4

anchors for wall or

ceiling installation

Back box

Screws M4.8 ×18,

4 pcs to attach the

back box

Template

Hex wrench

•CD

•Installation guide

•WEEE and battery

disposal

•Video test cable

Description

1. Power cable

2. 960H analog output (black)

3. TVI output (gray)

4. Mounting bracket

5. Camera body

6. Sun shield

7. Lens cover

8. Back box

Note:

When making adjustments to the VF lens bullet

camera, it is important to tighten the access cover

for the area that contains the video test cable

connector, OSD menu button, and the 960H

analog/WDR/TVI selection switch. The access

cover should be rotated until it is tight up against the

camera body.

Please check the camera output settings before

setting up a system. The TVI video output can only

be connected to a DVR with a TVI signal input. The

960H analog output supports the standard monitor

(or test monitor), an encoder, or a DVR.

The built-in switch is used to enable/disable the

WDR feature. When WDR feature is enabled, the

CVBS/960H analog output will be blocked out.

Video test cable

connector

OSD button

Switch

(Up =

CVBS/960H

analog

Down = WDR)

Installation

To install the camera

1. Using the template, place it level against the

mounting surface and mark the position of the

mounting holes.

2. Following all local safety regulations, drill and

prepare the mounting holes.

3. As an optional step, install the back box on the

wall.
