ICP DAS USA ET-7218Z Manual de usuario
PET-7218z 10-ch AI, thermocouple, 5-ch DO PoE DAQ module - QuickStart (Apr/2019)
ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1
PET-7218Z
PoE Ethernet I/O Module with 10-ch Analog
Input, Thermocouple Inputs, 5-ch Digital
Output
Quick Start Guide
Congratulations!
This Quick Start will provide information needed to get started with PET-7218z. Please
also consult the User Manual for detailed information on the setup and use of
PET-7218z.
What’s In the Box?
In addition to this guide, the package includes the following items:
PET-7218z Module Software Utility CD Quick Start
Technical Support
PET-7218z User Manual
CD:\NAPDOS\NAPDOS\ET7000_ET7200\Document\
PET-7218z Website
https://www.icpdas-usa.com/pet_7218z.html
ICP DAS Website
https://www.icpdas-usa.com
PET-7218z 10-ch AI, thermocouple, 5-ch DO PoE DAQ module - QuickStart (Apr/2019)
ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
2
Init Mode: After booting, PET-7218z will not run the
default firmware and cannot surf the internet. Use this mode to
update MiniOS7 image.
Normal Mode: After booting, PET-7218z will run the default firmware and
can use all ET-7200 functions.
2
----------------------------------------------------------------------------------

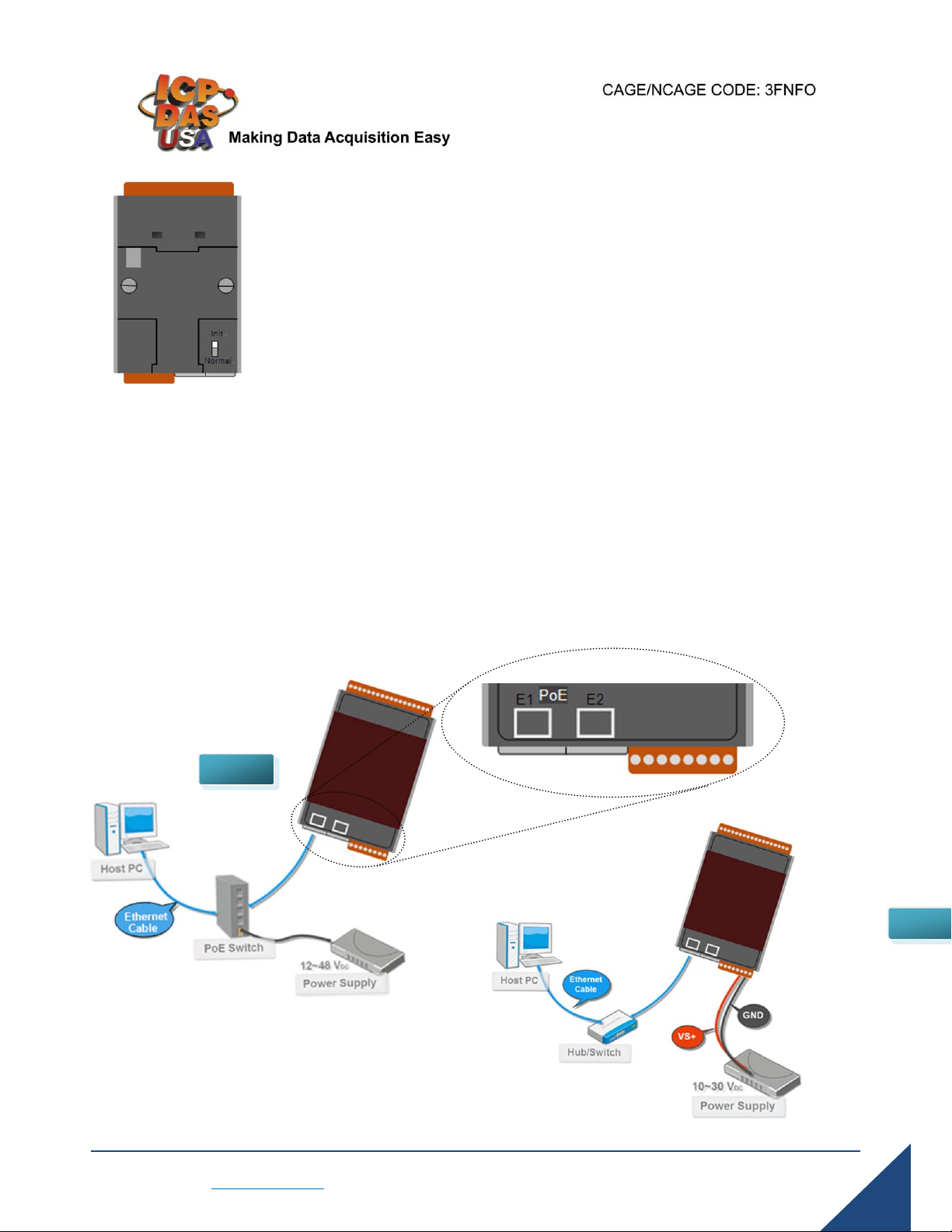

Connecting to Network, PC and Power
The PET-7218z is equipped with an RJ-45 Ethernet port for connection to an
Ethernet hub/switch and PC
1
---------------------------------------------------------
Configuring Boot Mode
PoE
PET-7218z 10-ch AI, thermocouple, 5-ch DO PoE DAQ module - QuickStart (Apr/2019)
ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
3
---------------------------------------------------------------------------------

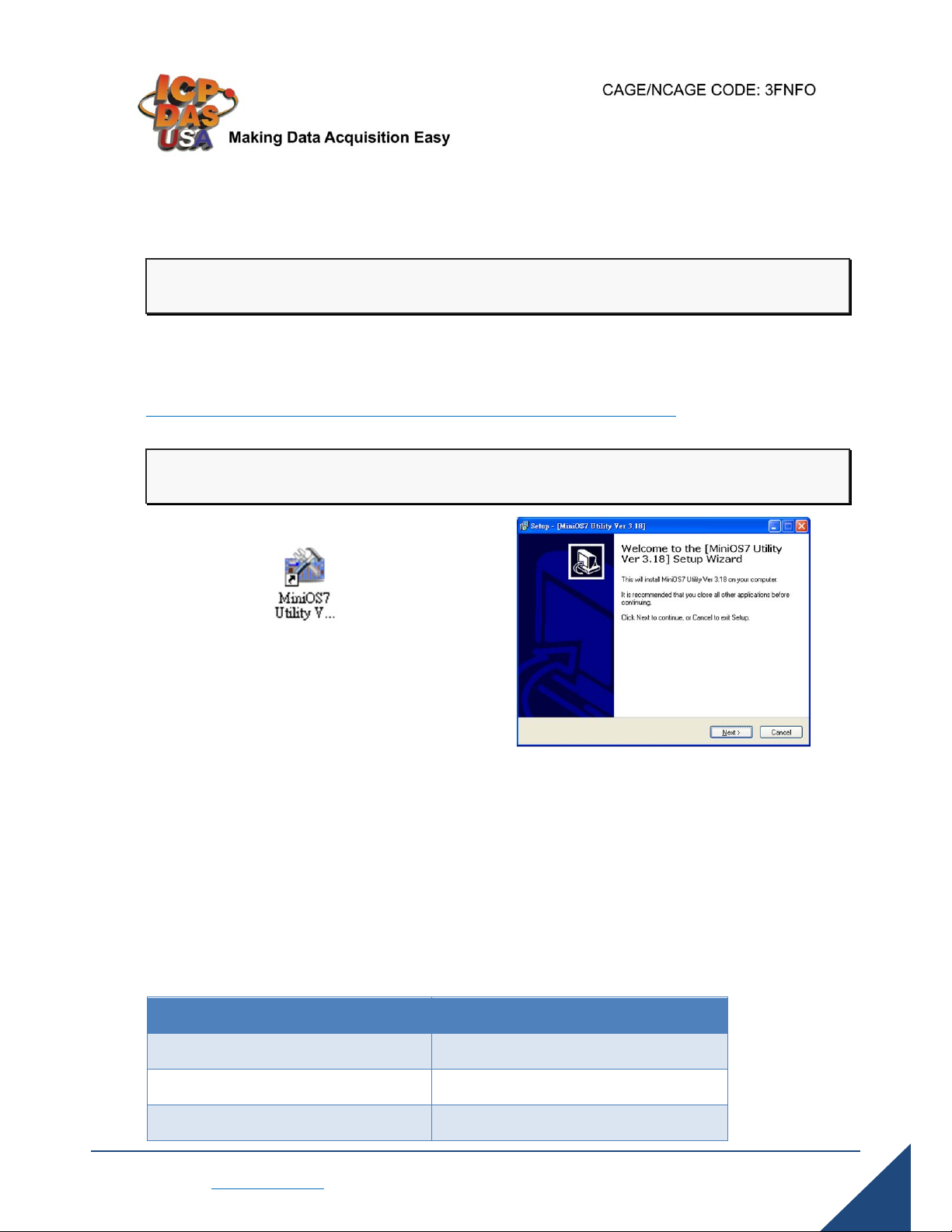

Installing the MiniOS7 Utility
Step 1：Get the MiniOS7 Utility tool
The MiniOS7 Utility can be obtained from companion CD or our FTP site:
CD:\Napdos\minios7\utility\minios7_utility\
http://ftp.icpdas.com/pub/cd/6000cd/napdos/software/minios7_utility/
Step 2：Follow the prompts to complete the installation
After the installation has been completed,
there will be a new shortcut for MiniOS7 Utility
on the desktop.
4
----------------------------------------------------------------------------------
Using MiniOS7 Utility to Assign a New IP
The PET-7218z are Ethernet devices, which comes with a default IP address, therefore,
you must first assign a new IP address to the PET-7218z
Item Default
IP Address 192.168.255.1
Subnet Mask 255.255.0.0
Gateway 192.168.0.1
PET-7218z 10-ch AI, thermocouple, 5-ch DO PoE DAQ module - QuickStart (Apr/2019)
ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
4

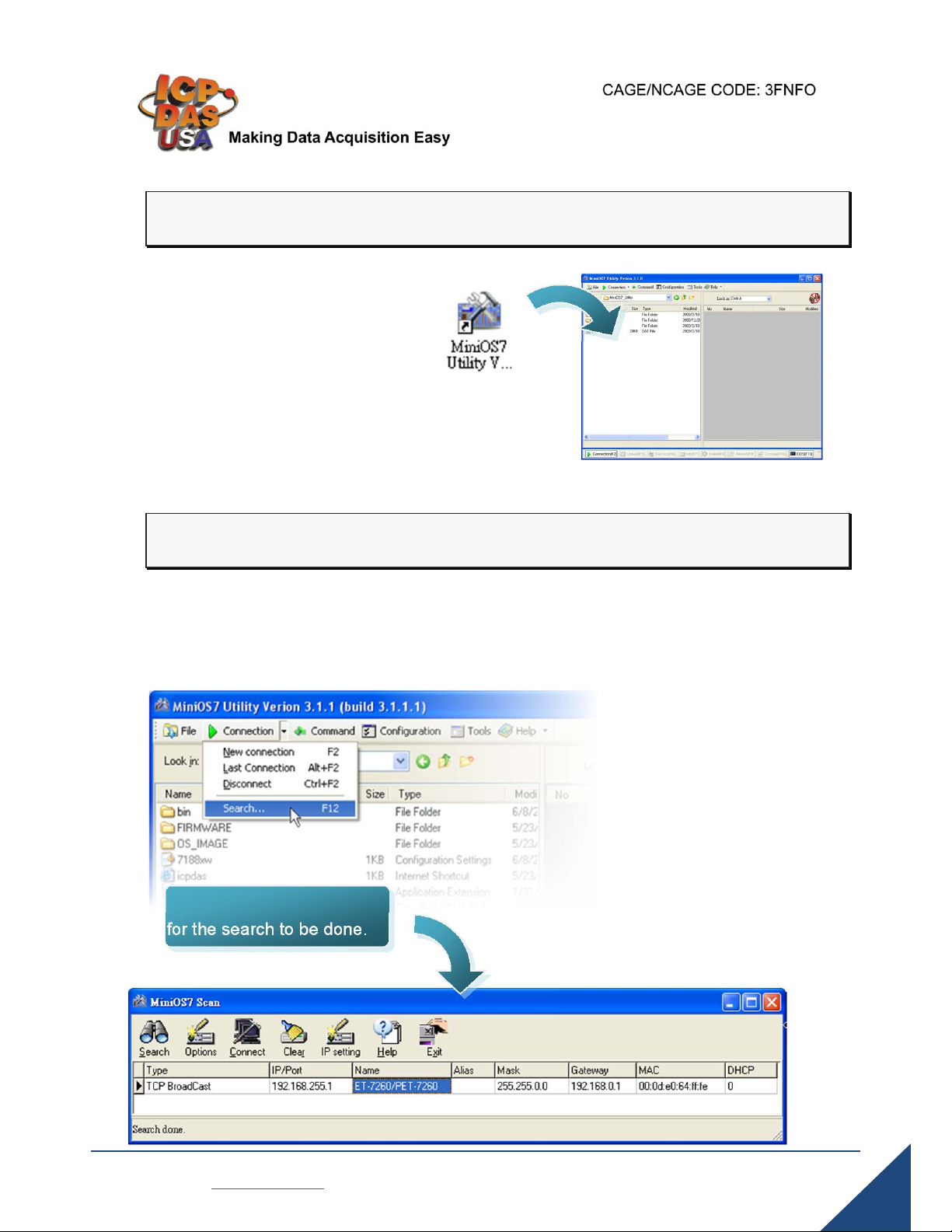

Step 1：Run the MiniOS7 Utility
Double-click the MiniOS7 Utility
shortcut on your desktop.
Step 2：Press“F12”or choose“Search”from the“Connection”menu
After pressing F12 or choosing Search from Connection menu, the MiniOS7 Scan
dialog will appear, that will display a list of all MiniOS7 modules on your network.
See the status tip, waiting
for the search to be done.
PET-7218z 10-ch AI, thermocouple, 5-ch DO PoE DAQ module - QuickStart (Apr/2019)
ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
5

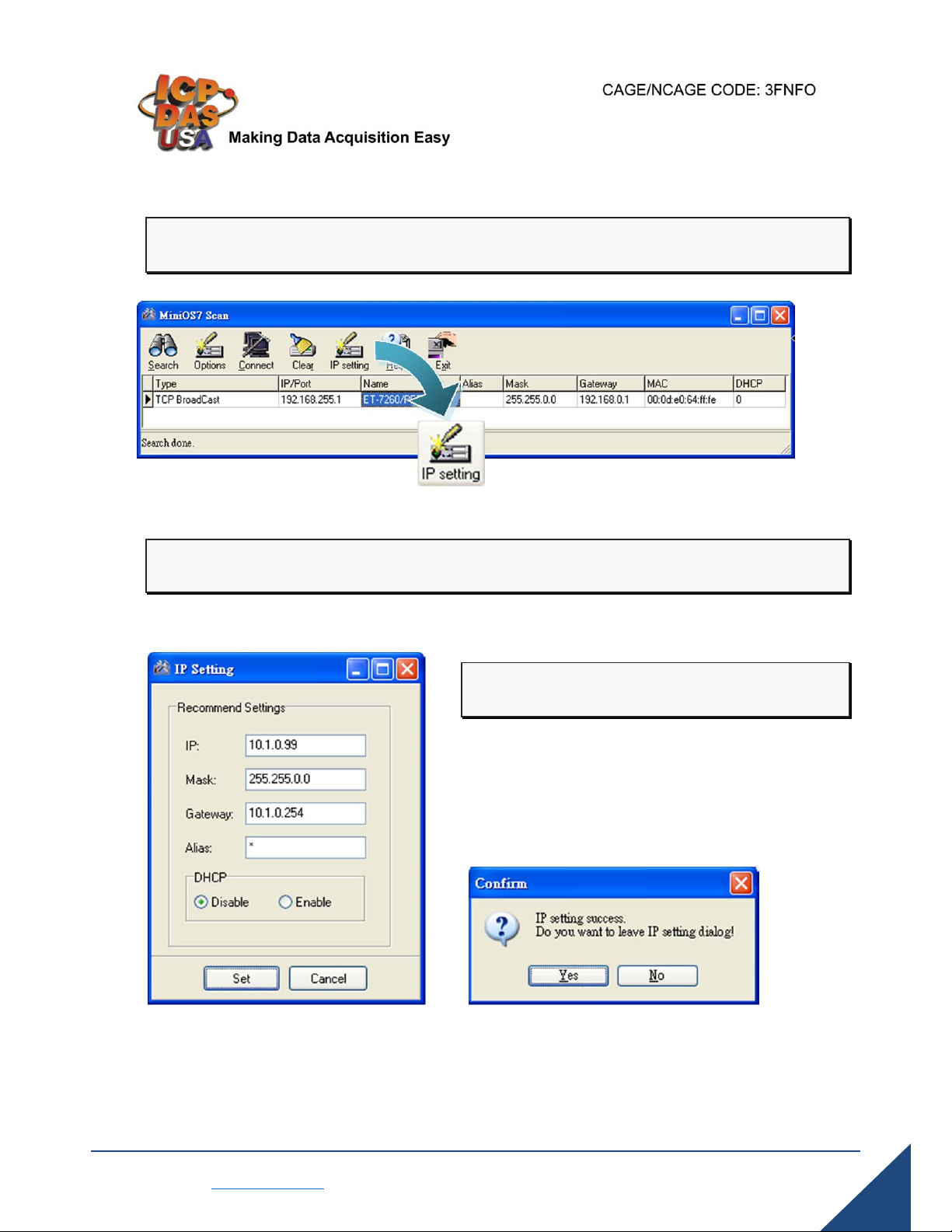

Step 3：Choose the module name and then choose“IP setting”from the toolbar
Step 4：Assign a new IP address and then choose “Set” button
Step 5：Choose “Yes” button
Press the Yes button in the Confirm dialog box
to exit the procedure.
PET-7218z 10-ch AI, thermocouple, 5-ch DO PoE DAQ module - QuickStart (Apr/2019)
ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
6

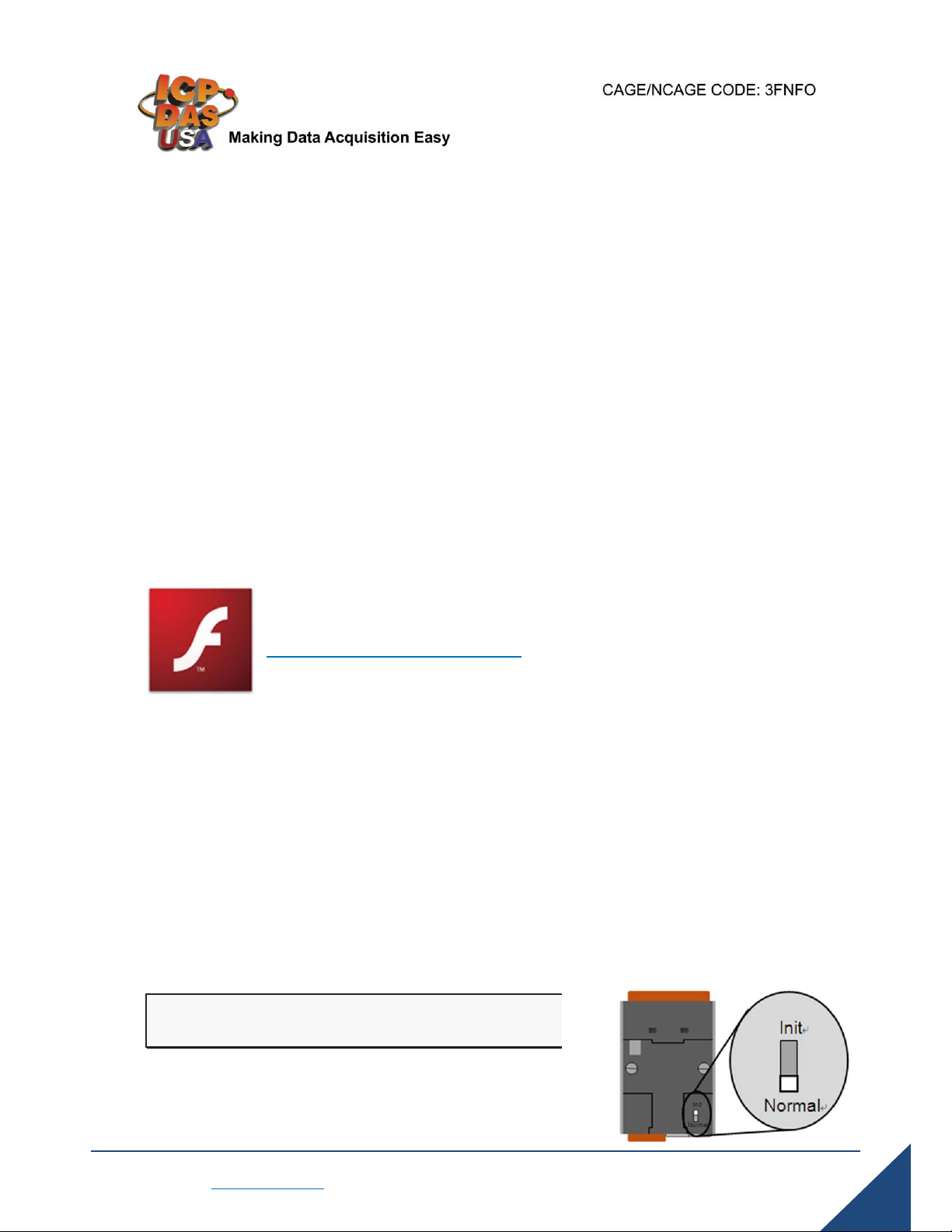

Your browser must support Adobe Flash Player and have it enabled in order to use the
PET-7218z web site.
If you do not have it installed, please go to the following website and install it.
The Adobe Flash Player Download Center：
http://get.adobe.com/flashplayer/
6
----------------------------------------------------------------------------------
Go to the PET-7218z Web Site to Check out
Functions
The PET-7218z contains an advanced web configuration system that provides users
with access PET-7218z applications through a standard web browser.
Step 1
：
Start PET-7218z
Make sure the switch placed in the “Normal”
position.
5
----------------------------------------------------------------------------------
Enabling Adobe Flash Player in Your Browser
PET-7218z 10-ch AI, thermocouple, 5-ch DO PoE DAQ module - QuickStart (Apr/2019)
ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
7
Then reboot PET-7218z.

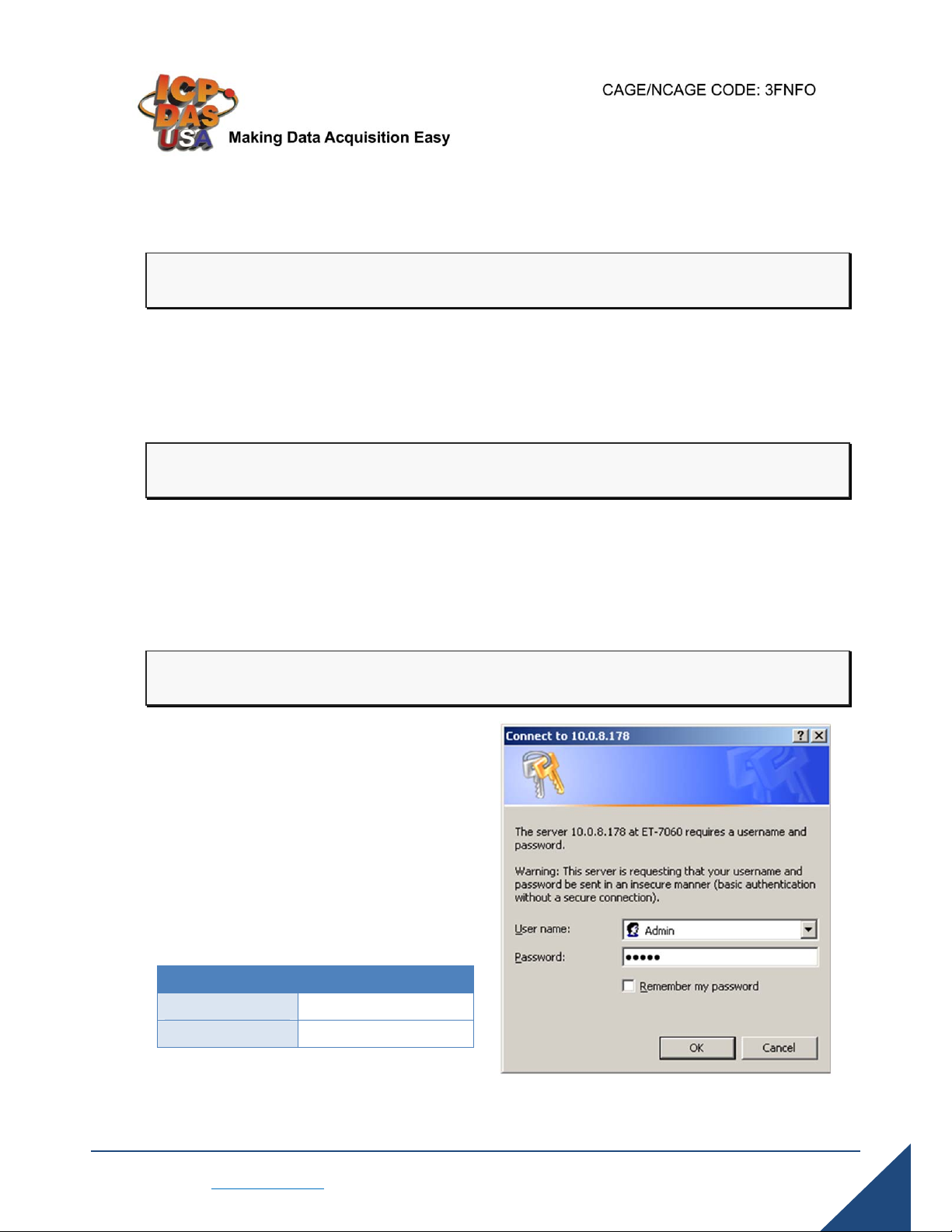

Step 2
：
Open a browser
Please use a standard internet browser to view the PET-7218z webpage, such as
Mozilla Firefox or Internet Explorer…etc.
Step 3
：
Type the URL address of PET-7218z
If you haven’t changed the default IP address of the PET-7218z, please refer to “4.
Using MiniOS7 Utility to Assign a New IP” to configure it.
Step 4
：
Fill out the User name and Password
After entering the IP address, the login
dialog box will appear and prompt you to
enter your User name and Password.
The factory default User name and
Password are as follows:
Item Default
User name Admin
Password Admin
PET-7218z 10-ch AI, thermocouple, 5-ch DO PoE DAQ module - QuickStart (Apr/2019)
ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
8

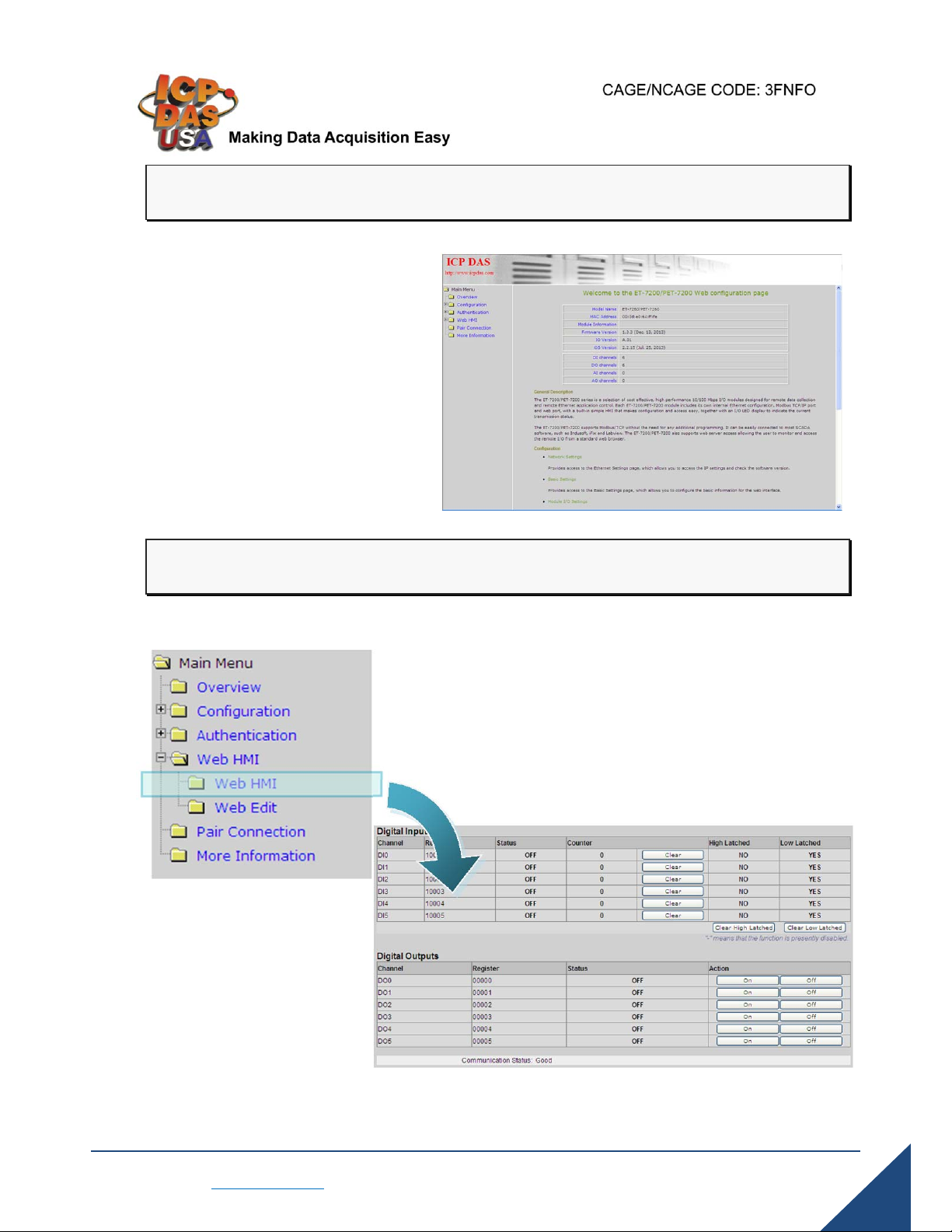

Step 5
：
Welcome to PET-7218z web site
After logging into the
ET-7000/PET-7200 web site, the
welcome page will appear.
Step 6：Check out the data acquisition services
Under the Main Menu, expand the Web HMI, and then
select the Web HMI option to check the values of the
data acquisition.
PET-7218z 10-ch AI, thermocouple, 5-ch DO PoE DAQ module - QuickStart (Apr/2019)
ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
9
----------------------------------------------------------------------------------

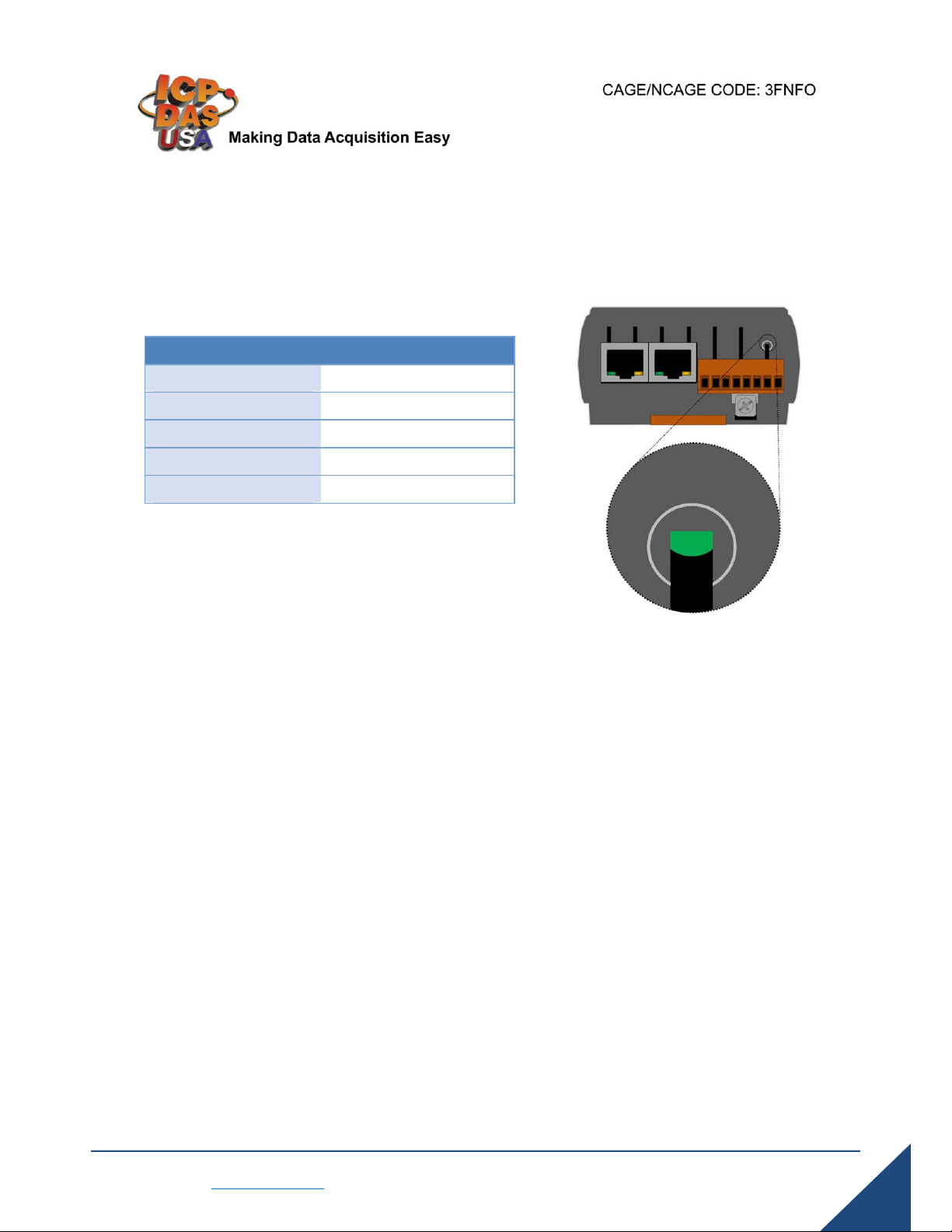

Reset to Factory Default Settings
Press the reset button for 5 seconds in order to reset the PET-7218z to factory default
settings.
Item Default
IP Address 192.168.255.1
Subnet Mask 255.255.0.0
Gateway 192.168.0.1
Login Username Admin
Login Password Admin
Reset
