EIP-2060 Quick Start Guide

EIP-2060

Screw Driver

EIP-2060 Quick Start Guide

The package includes the following items:

Install EIP-2000 Utility:

The software is located at:

Fieldbus_CD:\EtherNetIP\remote-io\EIP-2060\Utility

Quick Start Guide

(This Document)

For EIP-2000 Series

English/ January 2013/ Version 1.0

What’s in the shipping package?

Installing software on your PC

EIP-2060 Quick Start Guide

1. Make sure your PC has workable network settings.

2. Disable or well configure your Windows firewall and anti-virus firewall first, else the

“Network Scan”on step 4 may not work. (Please contact with your system Administrator)

3. Check FW/OP DIP switch if it is on OP position.

4. Connect both the EIP-2000 and your computer to the same sub network or the same

Ethernet switch, and power the EIP-2000 on.

Connecting the Power and PC

EIP-2060 Quick Start Guide

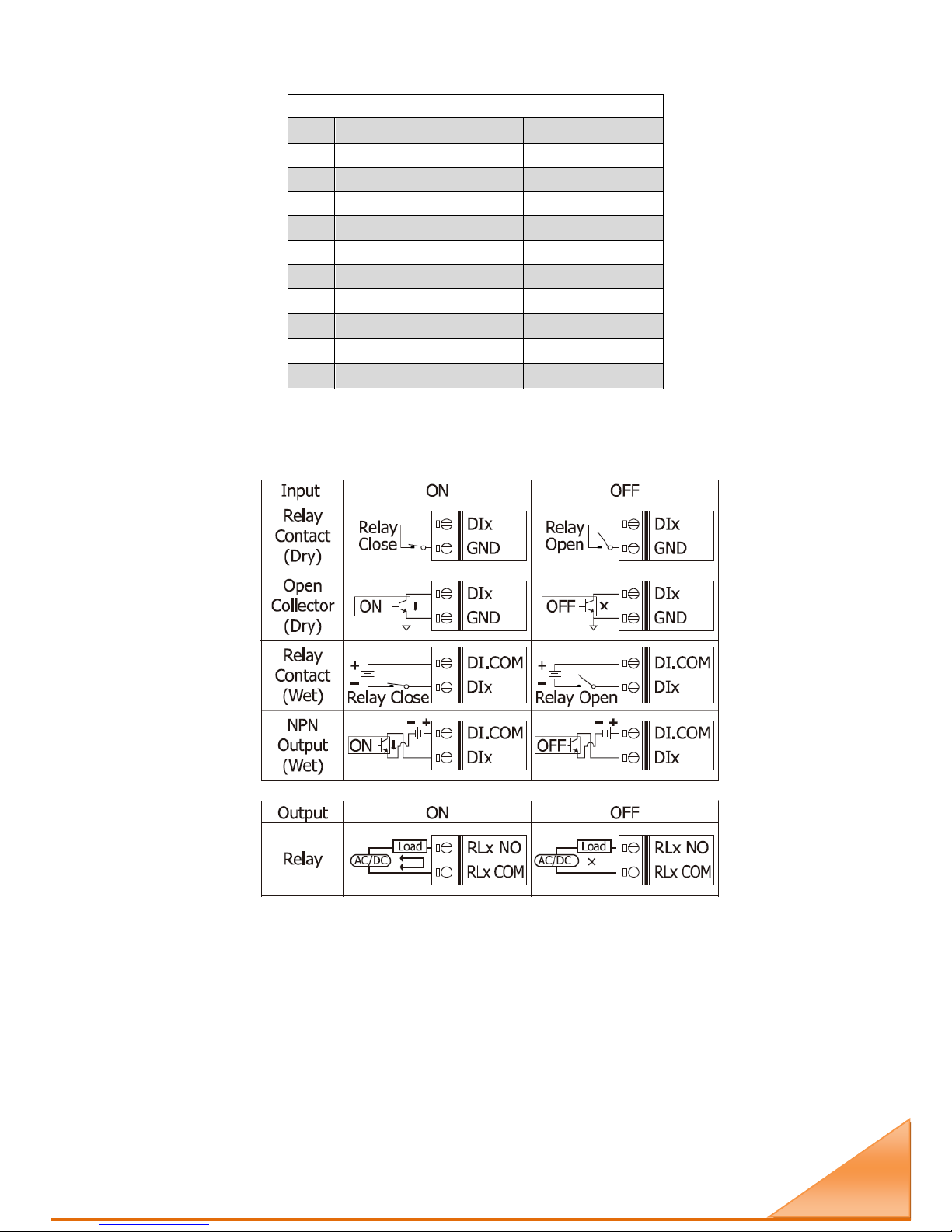

5. I/O connector –EIP-2060

6. I/O Wire Connection

20-pin Spring-type terminal connector

Description

R5_COM

R4_COM

R5_ON

R4_ON

DI.COM

R3_COM

DI5

R3_ON

DI4

R2_COM

DI3

R2_ON

DI2

R1_COM

DI1

R1_ON

DI0

R0_COM

DI.GND

R0_ON

EIP-2060 Quick Start Guide

1. Double click the “EIP-2000 Utility”shortcut on the desktop.

2. Click the “Network Scan” button to search your EIP-2000 modules.

3. Click the EIP-2060 or other EIP-2000 modules on the device list below to open the

configuration dialog of EIP-2000. Each EIP-2000 module has its own configuration

interface.

4. Test the digital outputs by clicking on the red circles, and the green circles indicate the

status of digital input status.

Using the EIP-2000 Utility

EIP-2060 Quick Start Guide

5. The “Power On Value”, “Safe Value” and “Safe Delay” for digital output can be set

without rebooting the module.

6. If the network settings have been changed, please click the “Update Network Settings”

button to update the configuration and reboot the module.

7. Configuration settings of EIP-2000

Network Settings

Item

Settings (default)

192.168.255.1

Gateway

192.168.0.1

Mask

255.255.0.0

For configuration of the Address Type, Static IP Address, Subnet Mask and Default Gateway of the EIP-2000. Please refer

to section “4.2.1 Network Settings”

LED Indicator

LED

LED Status

Description

Power LED

Always On

Module is in Run mode.

Flashing

Module is in Init mode.

Status LED

Always On

EtherNet/IP connection is failed.

Blink per second

EtherNet/IP connection is successful.

Blink per 300 ms

EtherNet/IP disconnected during communication but still in Safe-

Delay time.

Blink per 100 ms

Module is about to reboot.

I/O status LED

The DI/DO is activated.

Off

The DI/DO is inactivated.

For configuration of the Power On Value, Safe Value, Safe Delay for the EIP-2000. Please refer to section “4.2.2 Digital

Settings”

EIP-2060 Quick Start Guide

1. Open RSLogix 5000 and create a new project.

Figure5-1. Create a new project.

2. Select the PLC type and give the project a name.

Figure5-2. Set the PLC type and project name.

How to connect with Allen-Bradley PLC？

EIP-2060 Quick Start Guide

3. Create a new module in the “Ethernet”item.

Figure 5-3. Create a new module.

4. Select the “ETHERNET-MODULE”below “Communications”in the Select Module

window.

Figure5-4. Select “ETHERNET-MODULE”.

EIP-2060 Quick Start Guide

5. Configure the new module parameters. The I/O length of new module must be the same with

the length of EIP-2060 I/O data(Table 5-1). The input data size is 26 bytes and output data

size is 2 bytes. The instance ID please refer to Table 5-2.

Figure5-5. The settings of EIP-2060 module

Table 5-1. Data Assembly of EIP-2060

Data

Assembly

Byte count

Description

Input

Assembly

1st Byte: DI status

2nd Byte: DO status read back.

3rd~26th Byte: DI counters

Output

Assembly

1st Byte: DO status

2nd Byte: to set DI counters zero

Table5-2. Instance ID table of EIP-2000

Implicit Message Information of EIP-2000

Instance

Instance ID

Data length

Input(T->O)

65hex(101)

Depends on modules. e.g.26

Out(O->T)

66hex(102)

Depends on modules. e.g.2

Configuration

64hex(100)
