ICP DAS USA PET-7053 Manual de usuario

PET-7053 16-ch DI PoE DAQ module - QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

P ET-7052/ET-7052 Quick Start Guide

PET-7053

16-channel Isolated Digital Input (32-bit Counter)

PoE Ethernet I/O Data Acquisition module

Quick Start Guide

Congratulations on purchasing PET-7053 16-channel Isolated Digital Input Data Acquisition

Module with 32-bit Counters. The most popular automation solution for Ethernet remote

monitoring and control application. This Quick Start Guide will provide information needed to

get started with PET-7053. Please also consult the User Manual for detailed information on the

setup and use of PET-7053.

In addition to this guide, the package includes the following items:

PET-7053 Module Software Utility CD

-PET-7053 Website

https://www.icpdas-usa.com/pet_7053.html

-ICP DAS USA Website

http://www.icpdas-usa.com/

Phone : 1-310-517-9888

Email: sales@icpdas-usa.com

Tech Support: tech@icpdas-usa.com

PET-7053 16-ch DI PoE DAQ module - QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PET-7000/ET-7000 Quick Start Guide

-----------------------------------------------------------

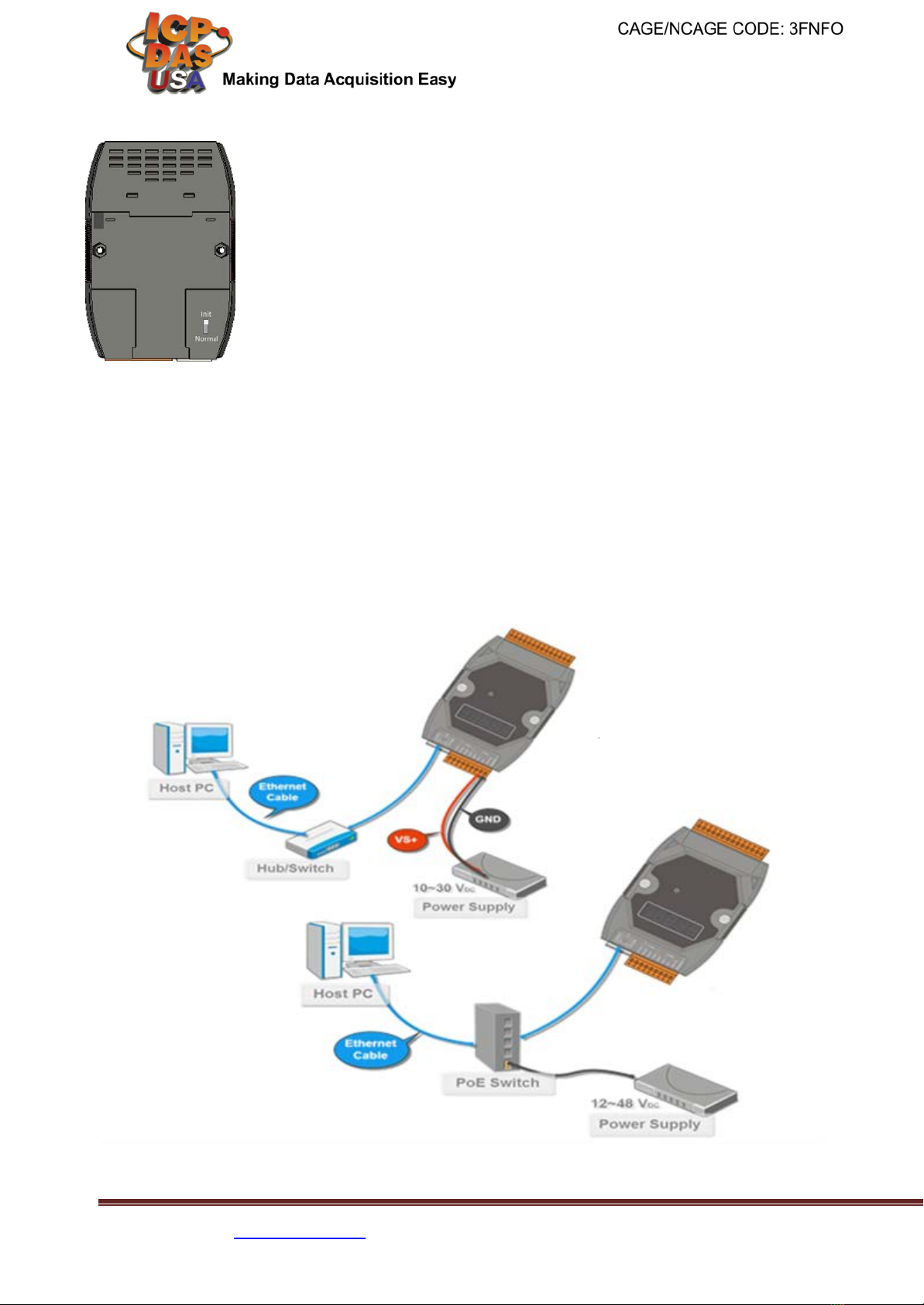

Configuring Boot Mode

Init mode: For configuration. After booting, PET-7053 will not run the

default firmware and cannot surf the internet. Use this mode to

update MiniOS7 image.

Normal mode: For normal working. After booting, PET-7053 will run the

default firmware and can use all PET-7053 functions.

----------------------------------------------------------------------------------

Connecting to Network, PC and Power

The PET-7053 is equipped with an RJ-45 Ethernet port for connection to an Ethernet

hub/switch and PC.

PET-7053 16-ch DI PoE DAQ module - QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PET-7000/ET-7000 Quick Start Guide

---------------------------------------------------------------------------------

Installing the MiniOS7 Utility

Step 1: Get the MiniOS7 Utility tool

The MiniSO7 Utility can be obtained from companion CD or our site:

CD:\Napdos\minios7\utility\minios7_utility\

http://www.icpdas-usa.com/minios7utility.html

Step 2: Follow the prompts to complete the installation

After the installation has been completed, there will

be a new short-cut for MiniOS7 Utility on the

desktop.

----------------------------------------------------------------------------------

Using MiniOS7 Utility to Assign a New IP

The PET-7053 are Ethernet devices, which comes with a default IP address, therefore, you

must first assign a new IP address to the PET-7053.

The factory default IP settings are as follows:

Item

Default

IPAddress 192.168.255.1

Subnet Mask 255.255.0.0

Gateway 192.168.0.1

PET-7053 16-ch DI PoE DAQ module - QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PET-7000/ET-7000 Quick Start Guide

Step 1: Run the MiniOS7 Utility

Double-click the MiniOS7 Utility

shortcut on your desktop.

Step 2: Press “F12” or choose “Search” from the “Connection” menu

After pressing F12 or choosing Search from Connection menu, the MiniOS7 Scan

dialog will appear, that will display a list of all the MiniOS7 modules on your network.

See the status tip, waiting

for the search to be done.

PET-7053 16-ch DI PoE DAQ module - QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PET-7000/ET-7000 Quick Start Guide

Step 3: Choose the module name and then choose “IP setting” from the toolbar

Choose the module name for fields in the list, and then choose IP setting from the

toolbar.

Step 4: Assign a new IP address and then choose “Set” button

Step 5: Choose “Yes” button

After completing the settings, press the Yes

button in the Confirm dialog box to exit the

procedure.

PET-7053 16-ch DI PoE DAQ module - QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PET-7000/ET-7000 Quick Start Guide

----------------------------------------------------------------------------------

Enabling Adobe Flash Player in Your Brower

Your browser must support Adobe Flash Player and have it enabled in order to use the

PET-7053 web site.

If you do not have it installed, please go to the following website and install it.

The Adobe Flash Player Download Center:

http://get.adobe.com/flashplayer/

----------------------------------------------------------------------------------

Go to the PET-7053 Web Site to Check out Functions

The PET-7053 contains an advanced web configuration system that provides users with access

PET-7053 applications through a standard web browser.

Step 1: Start PET-7053

Make sure the switch placed in the

“ Normal” position.

Then reboot PET-7053

Step 2: Open a browser

Please use a standard internet browser to view the PET-7053 webpage, such as Mozilla

Firefox or Internet Explorer…etc.

If you haven’t changed the default IP address of the PET-7053, please refer to “4. Using

MiniOS7 Utility to Assign a New IP” to configure it.

PET-7053 16-ch DI PoE DAQ module - QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

Step 4: Fill out the User name and Password

After entering the IP address, the login

dialog box will appear and prompt you to

enter your username and password.

The factory default user name and password

are as follows (Case sensitive) :

Item

Default

User name Admin

Password Admin

Step 5: Welcome to PET-7053 web site

After logging into the PET-7053 web site, the welcome page will appear.

PET-7053 16-ch DI PoE DAQ module - QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PET-7000/ET-7000 Quick Start Guide

Under the Main Menu, expand the Web HMI, and

then select the Web HMI option to check the

values of the data acquisition.
