HyperX Cloud ii Manual de usuario

User Manual

HyperX Cloud II Wireless

Find the language and latest documentation for your HyperX Cloud II Wireless here.

HyperX Cloud II Wireless Installation Guide

Simplied Chinese .....简体中文说明书

............For instructions in English

. . . . . . . . . . . . . . . . . . Para instrucciones en Español

.........Für Anleitungen in Deutsch

. . . . . . . . . . . . . . . . . . Pour des instructions en Français

. . . . . . . . . . . . . . . . . . Per le istruzioni in Italiano

............Por as instruções em Português

. . . . . . . . . . . . . . . . . . Instrukcje w jezyku Polskim

. . . . . . . . . . . . . . . . . . Для инструкции на Pусском

. . . . . . . . . . . . . . . . . . Turkce talimatlar icin

. . . . . . . . . . . . . . . . . .日本語マニュアル用

. . . . . . . . . . . . . . . . . .한국어 안내

. . . . . . . . . . . . . . . . . . คำ�แนะนำ�ภ�ษ�ไทย

. . . . . . . . . . . . . . . . . . Để xem hướng dẫn bằng tiếng Việt

Traditional Chinese ....繁體中文說明

ﻰﺑرﻋ. . . . . . . . . . . . .ﺔﯾﺑرﻌﻟا ﺔﻐﻠﻟﺎﺑ تﺎﻣﯾﻠﻌﺗﻟا ﻰﻠﻋ لوﺻﺣﻠﻟ

Document No. 480HX-HHSC2X.A01

HyperX Cloud II Wireless

Page 1 of 13

HyperX Cloud II Wireless

Part Numbers

HHSC2X-BA-RD/G

Document No. 480HX-HHSC2X.A01

HyperX Cloud II Wireless

Page 2 of 13

TABLE OF CONTENTS

Overview .................................................................................................................................... 3!

Specifications............................................................................................................................ 4!

Setting up with PC .................................................................................................................... 5!

Setting up with PlayStation 4 ................................................................................................... 9!

Controls ................................................................................................................................... 10!

Mic mute / mic monitoring button ........................................................................................................................ 10!

Power button / 7.1 Surround Sound button ........................................................................................................ 10!

Volume wheel ........................................................................................................................................................ 11!

Status LED ............................................................................................................................................................. 10!

Charging the Headset ............................................................................................................. 12!

Wired charging ...................................................................................................................................................... 12!

HyperX NGENUITY Software .................................................................................................. 12!

Manually Pairing the Headset and USB Adapter ................................................................. 13!

Document No. 480HX-HHSC2X.A01

HyperX Cloud II Wireless

Page 3 of 13

Overview

A. Mic mute / mic monitoring button

B. USB charge port

C. Microphone port

D. Status LED

E. Power / 7.1 Surround Sound button

F. Volume wheel

G. Detachable microphone

H. Microphone mute LED

I. USB adapter

J. Wireless pairing pin hole

K. Wireless status LED

L. USB charge cable

Document No. 480HX-HHSC2X.A01

HyperX Cloud II Wireless

Page 4 of 13

Specifications

Headphone

Driver: Dynamic, 53mm with neodymium magnets

Type: Circumaural, Closed back

Frequency response: 15Hz–20kHz

Impedance: 60 Ω

Sound pressure level: 104dBSPL/mW at 1kHz

T.H.D.: ≤ 1%

Weight: 300g

Weight with mic: 309g

Cable length and type: USB charge cable (0.5m)

Microphone

Element: Electret condenser microphone

Polar pattern: Bi-directional, Noise-cancelling

Frequency response: 50Hz-6.8kHz

Sensitivity: -20dBV (1V/Pa at 1kHz)

Battery life*

30 hours

Wireless Range**

2.4 GHz

Up to 20 meters

*Tested at 50% headphone volume. Battery life varies depending upon the usage.

**Wireless range may vary due to environmental conditions.

Document No. 480HX-HHSC2X.A01

HyperX Cloud II Wireless

Page 5 of 13

Setting up with PC

1. Connect the wireless USB adapter to the PC.

2. Power on the headset.

3. Right click speaker icon > Select Open Sound settings > Select Sound Control Panel

Document No. 480HX-HHSC2X.A01

HyperX Cloud II Wireless

Page 6 of 13

4. Under the Playback tab, click on “HyperX Cloud II Wireless” and click on the Set Default

button.

5. Right click on “HyperX Cloud II Wireless” and click on Configure Speakers.

Document No. 480HX-HHSC2X.A01

HyperX Cloud II Wireless

Page 7 of 13

6. Select 7.1 Surround as the speaker configuration and click next.

7. Under the Recording tab, click on “HyperX Cloud II Wireless” and click on the Set Default

button.

Document No. 480HX-HHSC2X.A01

HyperX Cloud II Wireless

Page 8 of 13

8. Under the Playback tab, verify that “HyperX Cloud II Wireless” is set as Default Device and

Default Communication Device. Under the Recording tab, verify that “HyperX Cloud II

Wireless” is set as Default Device.

Document No. 480HX-HHSC2X.A01

HyperX Cloud II Wireless

Page 9 of 13

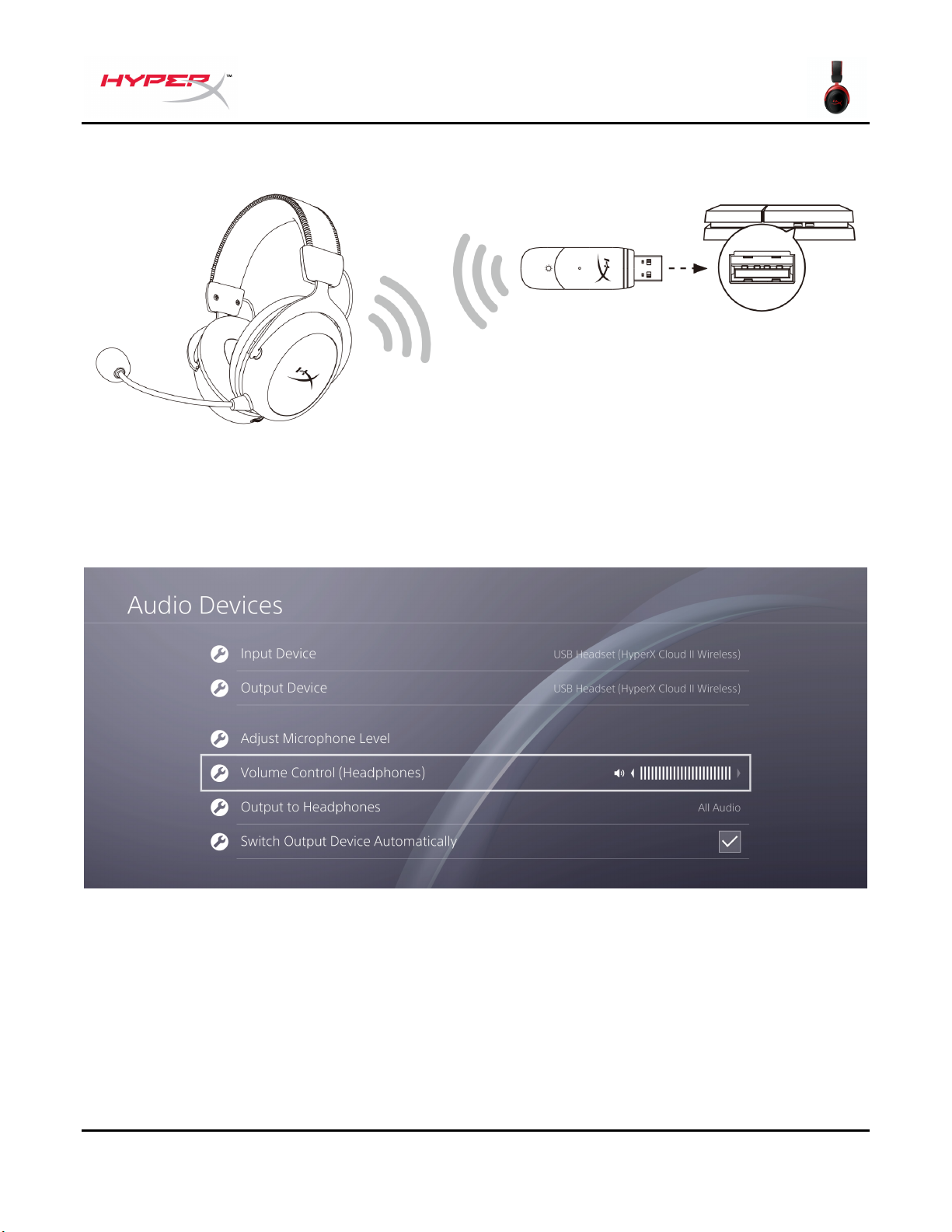

Setting up with PlayStation 4

1. Set Input Device to USB Headset (HyperX Cloud II Wireless)

2. Set Output Device to USB Headset (HyperX Cloud II Wireless)

3. Set Output to Headphones to All Audio

4. Set Volume Control (Headphones) to maximum.
