HyperX HX-HSCX-SR/AS Manual de usuario

User Manual

HyperX CloudX Headset

Find the language and latest documentation for your HyperX CloudX Headset here.

HyperX CloudX Headset Installation Guide

Simplied Chinese .....

Traditional Chinese ....

............For instructions in English

. . . . . . . . . . . . . . . . . . Para instrucciones en español

.........Für Anleitungen in Deutsch

. . . . . . . . . . . . . . . . . . Pour des instructions en français

. . . . . . . . . . . . . . . . . . Per le istruzioni in italiano

............Por as instruções em português

. . . . . . . . . . . . . . . . . . Instrukcje w jezyku polskim

. . . . . . . . . . . . . . . . . . Для инструкции на русском

. . . . . . . . . . . . . . . . . . Turkce talimatlar icin

. . . . . . . . . . . . . . . . . . Japanese

. . . . . . . . . . . . . . . . . . Korean

. . . . . . . . . . . . . . . . . . Thai

. . . . . . . . . . . . . . . . . . Vietnamese

Document No. 480HX-HSCX001.A01

HyperX CloudX Headset

Page 1 of 9

HyperX CloudX Headset

Part Numbers:

HX-HSCX-SR/AS

HX-HSCX-SR/EE

HX-HSCX-SR/EM

HX-HSCX-SR/LA

HX-HSCX-SR/NA

Document No. 480HX-HSCX001.A01

HyperX CloudX Headset

Page 2 of 9

Introduction

HyperX CloudX™Pro Gaming Headset is designed for Xbox and tested and approved by

Microsoft. It works with the Xbox Elite Wireless controller and other Xbox One controllers with

a 3.5mm stereo headset jack and provides connectivity from the headset to console and

mobile devices1. With additional Windows compatibility, it comes with a 2M PC extension

cable with stereo and mic plugs.

Document No. 480HX-HSCX001.A01

HyperX CloudX Headset

Page 3 of 9

What’s included:

HyperX CloudX Headset

Detachable microphone

Interchangeable velour ear cushions

Hard-shell carrying case

PC extension cable

Document No. 480HX-HSCX001.A01

HyperX CloudX Headset

Page 4 of 9

Features:

Award-winning comfort

In-line audio control

Durable aluminium frame

Detachable noise-cancellation microphone

Interchangeable ear cushions

53mm neodymium drivers

Technical specifications:

Headphone:

Driver: Dynamic, 53mm with neodymium magnets

Type: Circumaural, closed back

Frequency response: 15Hz–25,000 Hz

Impedance: 60 Ω

Sound pressure level: 98dBSPL/mW at 1kHz

THD: < 2%

Input power: Rated 150mW, maximum 300mW

Weight: 309g

Weight w/ mic: 322g

Cable length and type: Headset (1.3m) + PC extension cable (2m)

Connection: Headset - 3.5mm plug (4 pole) + PC extension cable - 3.5mm stereo and

mic plugs

Microphone:

Element: Electret condenser microphone

Polar pattern: Uni-directional, noise-cancelling

Frequency response: 50Hz-18,000 Hz

Sensitivity: -39dBV (0dB=1V/Pa,1kHz)

Document No. 480HX-HSCX001.A01

HyperX CloudX Headset

Page 5 of 9

Overview

A. Leatherette headband

B. Headband adjustment slider

C. Leatherette ear cushions

D. Detachable noise cancellation mic

E. Attached cable with in-line audio control

F. Interchangeable velour ear cushions

G. PC extension cable with 3.5mm stereo

and mic plugs

Document No. 480HX-HSCX001.A01

HyperX CloudX Headset

Page 6 of 9

In-line audio control operation

The in-line audio control contains a volume dial to adjust the headphone output volume and

a microphone mute slider to mute the microphone output.

To increase the headset volume rotate the volume wheel clockwise (towards the + sign).

To reduce the volume, rotate the volume wheel anticlockwise (towards the –sign).

To mute the microphone output, slide the microphone mute button to the down position.

To activate the microphone output, slide the microphone mute button to the up position.

Microphone

Active

Microphone

Mute

Headphone

Volume

Document No. 480HX-HSCX001.A01

HyperX CloudX Headset

Page 7 of 9

Usage (Xbox One™)

To use the headset with Xbox One™, connect the 3.5mm plug on the headset directly to the

3.5mm jack on the Xbox One™controller.

*If your Xbox One™controller does not have a 3.5mm jack, you will need the Xbox One™Stereo

Headset adapter (sold separately) that plugs into the Xbox One™controller (pictured below).

Using with Xbox One™

Document No. 480HX-HSCX001.A01

HyperX CloudX Headset

Page 8 of 9

Usage (PC)

To connect the headset to your computer (or other device) that has both a headphone jack and

a microphone jack, connect the headset’s 3.5mm plug to the female jack on the PC extension

cable. The PC extension cable has two 3.5mm jacks. The audio plug, which has green stripes,

plugs into the port signified by a green input or headphone symbol . The microphone plug,

which has pink stripes, plugs into the port signified by a pink input or a microphone symbol .

Using with PC extension cable

Document No. 480HX-HSCX001.A01

HyperX CloudX Headset

Page 9 of 9

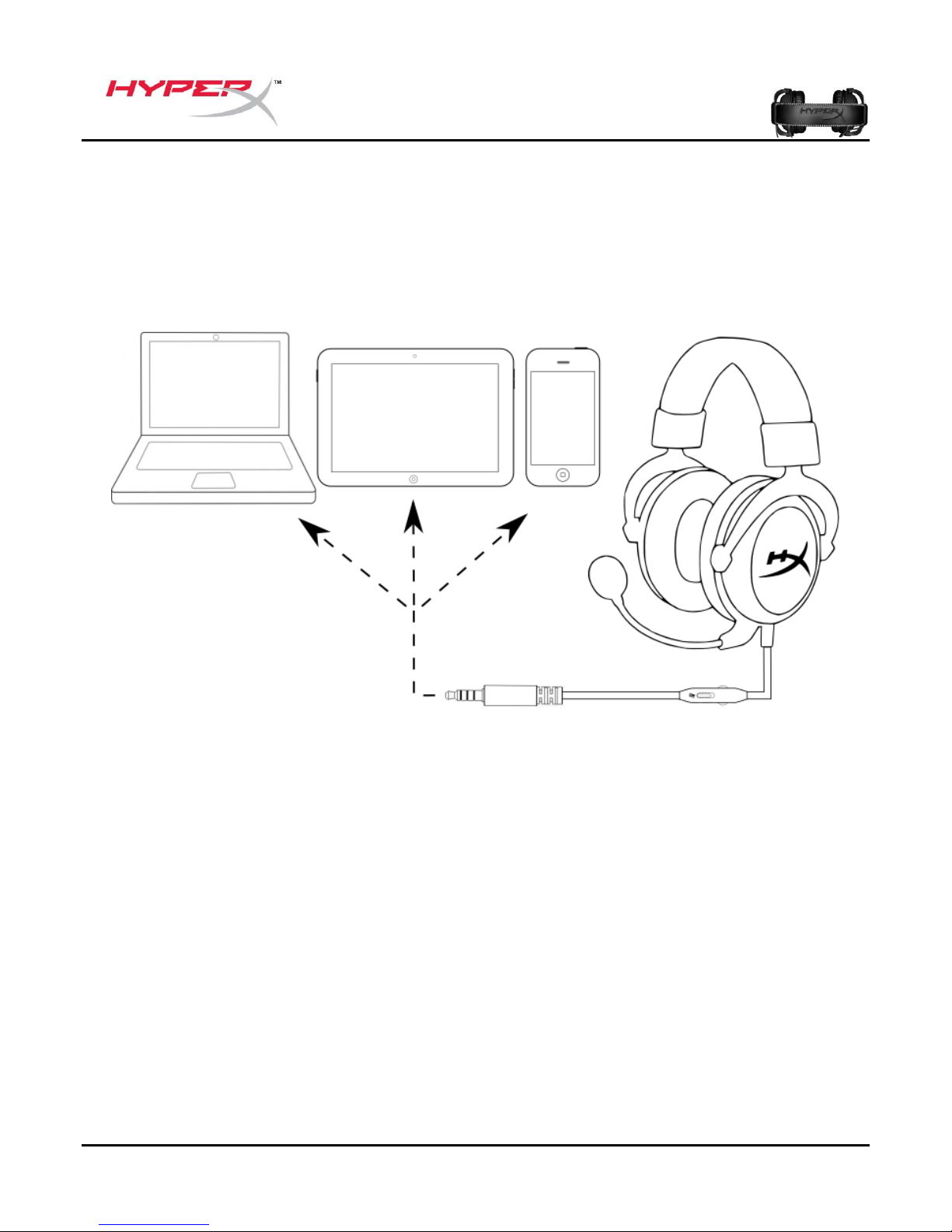

Usage (mobile device)

To use the headset with a mobile device (or other device) with a headset jack (4 pole CTIA),

connect the 3.5mm plug directly into the headset jack on your device.

Using with mobile device (phone, tablet or notebook)
