HyperX HX-HSCS-BK/AS Manual de usuario

User Manual

HyperX Cloud Stinger Headset

Find the language and latest documentation for your HyperX Cloud Stinger Headset here.

HyperX Cloud Stinger Headset Installation Guide

Simplied Chinese .....

Traditional Chinese ....

............For instructions in English

. . . . . . . . . . . . . . . . . . Para instrucciones en español

.........Für Anleitungen in Deutsch

. . . . . . . . . . . . . . . . . . Pour des instructions en français

. . . . . . . . . . . . . . . . . . Per le istruzioni in italiano

............Por as instruções em português

. . . . . . . . . . . . . . . . . . Instrukcje w jezyku polskim

. . . . . . . . . . . . . . . . . . Для инструкции на русском

. . . . . . . . . . . . . . . . . . Turkce talimatlar icin

. . . . . . . . . . . . . . . . . . Japanese

. . . . . . . . . . . . . . . . . . Korean

. . . . . . . . . . . . . . . . . . Thai

. . . . . . . . . . . . . . . . . . Vietnamese

Document No. 480HX-HSCS001.A01

HyperX Cloud Stinger Headset

Page 1 of 11

HyperX Cloud Stinger Headset

Part Numbers:

HX-HSCS-BK/AS

HX-HSCS-BK/EE

HX-HSCS-BK/EM

HX-HSCS-BK/LA

HX-HSCS-BK/NA

Document No. 480HX-HSCS001.A01

HyperX Cloud Stinger Headset

Page 2 of 11

Introduction

HyperX Cloud Stinger™is the ideal headset for gamers looking for lightweight comfort,

superior sound quality and added convenience. At just 275 grams, it’s comfortable on your

neck and its ear cups rotate in a 90-degree angle for a better fit. Its 50mm directional drivers

position sound directly into the ear for audio precision and gaming-grade sound quality. For

ultimate comfort in prolonged gaming sessions, it features high-quality HyperX signature

memory foam.

What’s included:

HyperX Cloud Stinger Headset

PC extension cable

Document No. 480HX-HSCS001.A01

HyperX Cloud Stinger Headset

Page 3 of 11

Features:

Lightweight headset with 90-degree rotating ear cups

50mm directional drivers for audio precision

HyperX signature memory foam

Adjustable steel slider

Intuitive volume control on headset ear cup

Swivel-to-mute noise-cancellation microphone

Multi-platform compatibility

Technical specifications:

Headphone

Driver: Dynamic, 50mm with neodymium magnets

Type: Circumaural, closed back

Frequency response: 18Hz–23,000 Hz

Impedance: 30 Ω

Sound pressure level: 102dBSPL/mW at 1kHz

THD: < 2%

Input power: Rated 30mW, maximum 500mW

Weight: 275g

Cable length and type: Headset (1.3m) + PC extension cable (1.7m)

Connection: Headset - 3.5mm plug (4 pole) + PC extension cable - 3.5mm stereo and

mic plugs

Microphone

Element: Electret condenser microphone

Polar pattern: Uni-directional, noise-cancelling

Frequency response: 50Hz-18,000 Hz

Sensitivity: -40dBV (0dB=1V/Pa,1kHz)

Document No. 480HX-HSCS001.A01

HyperX Cloud Stinger Headset

Page 4 of 11

Overview

A. Adjustable steel slider

B. 90° rotating ear cup

C. Swivel-to-mute noise

cancellation mic

D. Intuitive volume slider

E. PC extension cable with 3.5mm

stereo and mic plugs (1.7m)

Document No. 480HX-HSCS001.A01

HyperX Cloud Stinger Headset

Page 5 of 11

Volume control operation

The headset right ear cup contains a volume slider to adjust the headphone output volume.

To increase the volume, move the slider towards the + sign.

To reduce the volume, move the slider towards the –sign.

Headphone

Volume

Document No. 480HX-HSCS001.A01

HyperX Cloud Stinger Headset

Page 6 of 11

Microphone mute operation

The headset left ear cup contains a swivel-to-mute microphone.

To mute the microphone, rotate the microphone to the vertical (up) position. When you hear

a click, the microphone will be muted.

To activate the microphone, rotate the microphone to the horizontal (down) position. When you

hear a click, the microphone will be active.

Microphone

Active

Microphone

Mute

Document No. 480HX-HSCS001.A01

HyperX Cloud Stinger Headset

Page 7 of 11

Usage (PC)

To connect the headset to your computer (or other device) that has both a headphone jack and

a microphone jack, connect the headset’s 3.5mm plug to the female jack on the PC extension

cable. The PC extension cable has two 3.5mm jacks. The audio plug, which has green stripes,

plugs into the port signified by a green input or headphone symbol . The extension cable

microphone plug, which has pink stripes, plugs into the port signified by a pink input or a

microphone symbol .

Using with PC extension cable

Document No. 480HX-HSCS001.A01

HyperX Cloud Stinger Headset

Page 8 of 11

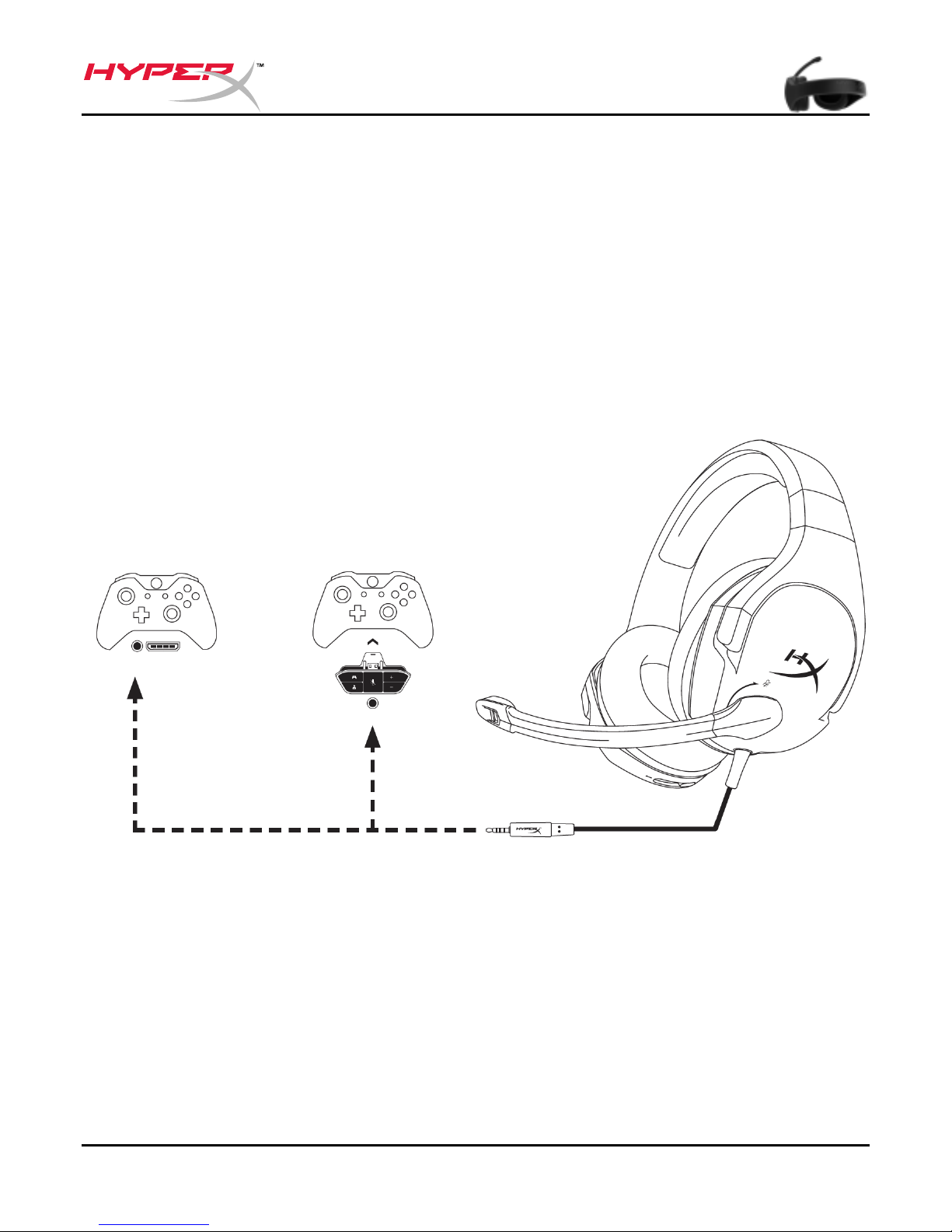

Usage (Xbox One™)

To use the headset with Xbox One™, connect the 3.5mm plug on the headset directly to the

3.5mm jack on the Xbox™One controller

*If your Xbox One™controller does not have a 3.5mm jack, you will need the Xbox One™Stereo

Headset adapter (sold separately) that plugs into the Xbox One™controller (pictured below).

Using with Xbox One™

Document No. 480HX-HSCS001.A01

HyperX Cloud Stinger Headset

Page 9 of 11

Usage (PlayStation™4)

To use the headset with PlayStation™4 (PS4™), connect the 3.5mm plug on the headset

directly to the PS4™game controller and follow these steps:

1. Turn on your PS4™game console.

2. Navigate to the Settings menu and select it.

3. Highlight the ‘Devices’ menu option and select it.

4. Scroll down to ‘Audio Devices’ and select it.

5. Choose ‘Output to Headphones’ and select ‘All Audio’.

Using with PS4™
