HyperX Cloud II Core CL005 Manual de usuario

HyperX Cloud II Core Wireless Gaming Headset/CL005

HyperX Cloud II Core Wireless Gaming Adapter/CL005WA

Quick Start Guide

Overview

[Use the following line drawings:

1. ¾ view of headset without microphone

2. Bottom view of headset (labels A-F)

3. Detachable boom microphone with mic foam (label G-H)

4. Top-down view of USB wireless adapter (labels I-K)

5. USB charge cable (label L)

]

[Reference images:

]

A. Status LED

B. Mic mute / mic monitoring button

C. USB-C charge port

D. Microphone port

E. Volume wheel

F. Detachable microphone

G. Microphone mute LED

H. USB adapter

I. Wireless pairing pin hole

J. Wireless status LED

HyperX Cloud II Core Wireless Gaming Headset/CL005

HyperX Cloud II Core Wireless Gaming Adapter/CL005WA

K. USB-C charge cable

Usage

[Use the following line drawings:

¾ view of headset with microphone attached

Wireless adapter

oArrow pointing from the USB adapter to PC USB port and PS4 USB port

]

[Reference images:

]

1. Connect the wireless adapter to your device

2. Power on the headset

Setting up with PC

Right click speaker icon > Select Open Sound settings > Select Sound control panel

[Use Windows 10 1903 Setup speaker icon menu graphic and sound settings menu graphic]

[Reference images:

]

HyperX Cloud II Core Wireless Gaming Headset/CL005

HyperX Cloud II Core Wireless Gaming Adapter/CL005WA

Playback Device

1. Set Default Device to “HyperX Cloud Core Wireless”

[Use Windows OS playback sound control panel menu graphic for selecting HyperX Cloud II Wireless as

Default Device]

[Reference image:

]

2. Right click on “HyperX Cloud Core Wireless” and click on Configure.

3. Select 7.1 Surround to configure your setup and click next.

[Use Windows OS playback sound control panel menu graphic for selecting speaker setup]

[Reference image:

]

HyperX Cloud II Core Wireless Gaming Headset/CL005

HyperX Cloud II Core Wireless Gaming Adapter/CL005WA

Recording Device

Set Default Device to “HyperX Cloud Core Wireless”

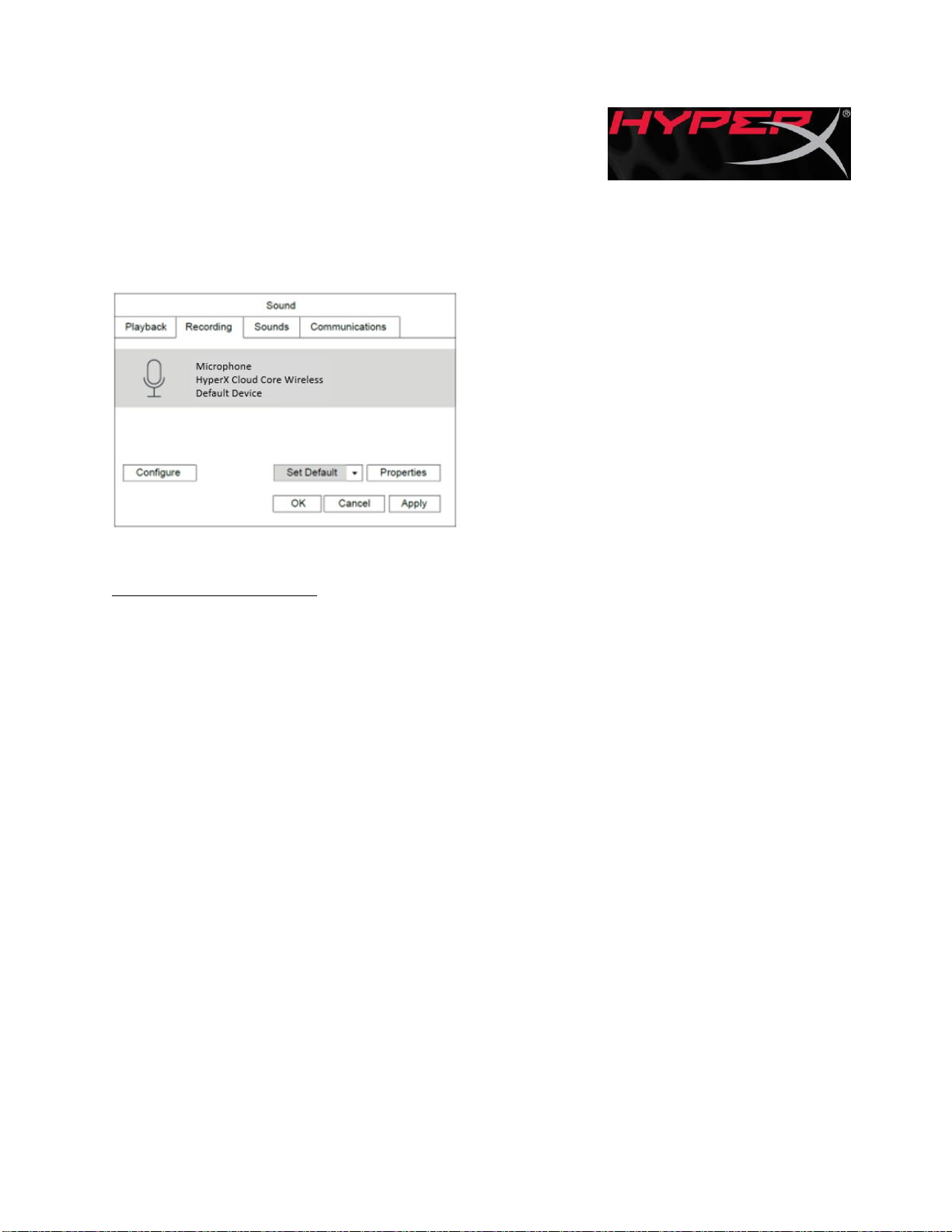

[Use Windows OS recording sound control panel menu graphic for selecting HyperX Cloud II Wireless as

Default Device]

[Reference image:

]

Setting up with PlayStation 4

Settings > Devices > Audio Devices

Input Device: USB Headset “HyperX Cloud Core Wireless”

Output Device: USB Headset “HyperX Cloud Core Wireless”

Output to headphones: All Audio

HyperX Cloud II Core Wireless Gaming Headset/CL005

HyperX Cloud II Core Wireless Gaming Adapter/CL005WA

[Use the following line drawing:

Bottom view of headset with left earcup only

oSmall label “Status LED” with an arrow pointing to the status LED on the left earcup

oSmall label “Mic mute / mic monitoring button” with an arrow pointing to the mic mute

button on the left earcup

]

[Reference image:

]

Status LED

Status

[LED]

Pairing

Flash green and red every 0.2s

Searching

Slow breathing green

Connected*

90% —100%: Solid green

15% —90%: Blinking green

< 15%: Blinking red

*Battery level indication

Mic mute / mic monitoring button

Mic mute toggle - Press button to turn the mic mute on/off

oMicrophone mute LED On –Mic muted

oMicrophone mute LED Off –Mic active

Mic monitoring toggle –Hold button for 3 seconds to toggle mic monitoring on/off

HyperX Cloud II Core Wireless Gaming Headset/CL005

HyperX Cloud II Core Wireless Gaming Adapter/CL005WA

[Use the following line drawing:

Zoomed-in crop of the right earcup with focus on volume wheel

oSmall label “Volume wheel” with an arrow pointing to the volume wheel on the right

earcup

]

[Reference image:

]

Volume wheel

Scroll up and down to adjust volume level.

Charging

It is recommended to fully charge your headset before first use.

[Use the following line drawing:

Connect the USB-C charge cable USB-A end to PC and USB-C end to headset USB charge port

]

[Reference images:

]

Status [LED]

Charge Status

Fully Charged

Solid green

HyperX Cloud II Core Wireless Gaming Headset/CL005

HyperX Cloud II Core Wireless Gaming Adapter/CL005WA

15% —99%

Breathing green

< 15%

Breathing red

HyperX NGENUITY Software

Download software and latest firmware updates at

hyperxgaming.com/ngenuity

[NGENUITY logo]

Questions or Setup Issues?

Contact the HyperX support team or see the user manual at hyperxgaming.com/support/headsets

WARNING: Permanent hearing damage can occur if a headset is used at high volumes for extended

periods of time.

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try

to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

HyperX Cloud II Core Wireless Gaming Headset/CL005

HyperX Cloud II Core Wireless Gaming Adapter/CL005WA

Radiation Exposure Statement:

The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment

and are safe for intended operation as described in this manual. The further RF exposure reduction can

be achieved if the product can be kept as far as possible from the user body or set the device to lower

output power if such function is available.

Industry Canada statement

This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils radio exempts de licence.

L’exploitation est autorisée aux deux conditions suivantes : (1) le dispositif ne doit pas produire de

brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage

susceptible de provoquer un fonctionnement indésirable.

Radiation Exposure Statement:

The product comply with the Canada portable RF exposure limit set forth for an uncontrolled

environment and are safe for intended operation as described in this manual. The further RF exposure

reduction can be achieved if the product can be kept as far as possible from the user body or set the

device to lower output power if such function is available.

Déclaration d'exposition aux radiations:

Le produit est conforme aux limites d'exposition pour les appareils portables RF pour les Etats-Unis et le

Canada établies pour un environnement non contrôlé.

Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La réduction aux expositions

RF peut être augmentée si l'appareil peut être conservé aussi loin que possible du corps de l'utilisateur

ou que le dispositif est réglé sur la puissance de sortie la plus faible si une telle fonction est disponible.
