HP Compaq NW8000 Manual de usuario

HP ProtectTools Security Manager

Introduction......................................................................................................................................... 2

The security dilemma............................................................................................................................ 2

HP ProtectTools Security Manager ......................................................................................................... 3

Security Software Modules for HP ProtectTools ........................................................................................ 4

Embedded Security for HP ProtectTools ............................................................................................... 4

BIOS Configuration for HP ProtectTools............................................................................................... 5

Smart Card Security for HP ProtectTools.............................................................................................. 7

Credential Manager for HP ProtectTools ............................................................................................. 8

Platform Support .............................................................................................................................. 9

Frequently Asked Questions .................................................................................................................. 9

Additional Resources.......................................................................................................................... 12

Introduction

As computers are getting increasingly mobile and better connected, threats to data security are

increasing in magnitude as well as complexity. Correspondingly business customers, for whom data

security can have a direct impact on the health of their business, are becoming increasingly

concerned about this problem.

HP saw the need for a better security solution very early, and started devoting resources to solving this

problem. Knowing that security needed to be addressed holistically, HP required the solution to bring

many technology areas together in a way that helps ensure not only protection for client devices, but

also helps ensure that client devices themselves do not become points of vulnerability that could be

used to threaten the entire IT infrastructure.

As a result of this proactive effort, HP has developed a solution, the HP ProtectTools Security

Manager, that not only meets the above requirements, but is also extensible and therefore can easily

grow to handle new threats and offer new technologies as they become available.

The security dilemma

Businesses trying to implement client device security face a dizzying number of choices that may not

always work well together. In addition, security solutions can be difficult to deploy and use. If a

technology is difficult to use, most users will avoid using it, and this further complicates the task of

making client devices secure.

Client device security options feature a number of capabilities based on a variety of technologies:

•Notebook and desktop computers can be configured with Smart Card readers

•The Trusted Platform Module , or TPM embedded security chip designed to the Trusted Computing

Group (TCG) standard, is available on a range of HP products

•Biometrics and RFID (Radio Frequency Identification) are expected to become more important as

those technologies mature and become more suitable for enterprise deployment

In addition, many client devices include security features that exist within the device BIOS. These

include features such as:

•Pre-boot authentication – ability to authenticate a user before allowing the system to boot

•Device configuration lock down

•Remote management capabilities

While these security features increasingly rely on established industry standards, and therefore better

integrate with other elements of IT security, there are still challenges that are keeping these features

from being widely deployed and used. These challenges include:

•Usability: technologies and features that are difficult to use

•Manageability: technologies and features that are difficult to manage, particularly on a large scale

•Awareness: IT managers and users are not aware of a feature, or do not understand its purpose

•Interoperability: features or services that span multiple technologies

•Extensibility: solutions that adapt as security needs grow and newer technologies and features

become available

The HP ProtectTools Security Manager is a security platform that addresses these challenges by using

add-on software modules, which provide important client security features. New features can easily

be added by installing new modules. This architecture gives users an easy to use all in one security

solution.

HP ProtectTools Security Manager

At the heart of the security strategy for business notebooks, desktops and workstations is the HP

ProtectTools Security Manager – this single client console application unifies security capabilities of

HP client PCs under a common architecture and single user interface. Today, a range of features is

being delivered that build on underlying hardware security building blocks such as TPM embedded

security chips designed to the Trusted Computing Group (TCG) standard and Smart Card technology.

Collectively these features are addressing business customer needs for better protection against

unauthorized PC access, as well as stronger protection for sensitive data stored locally or accessed

over a network.

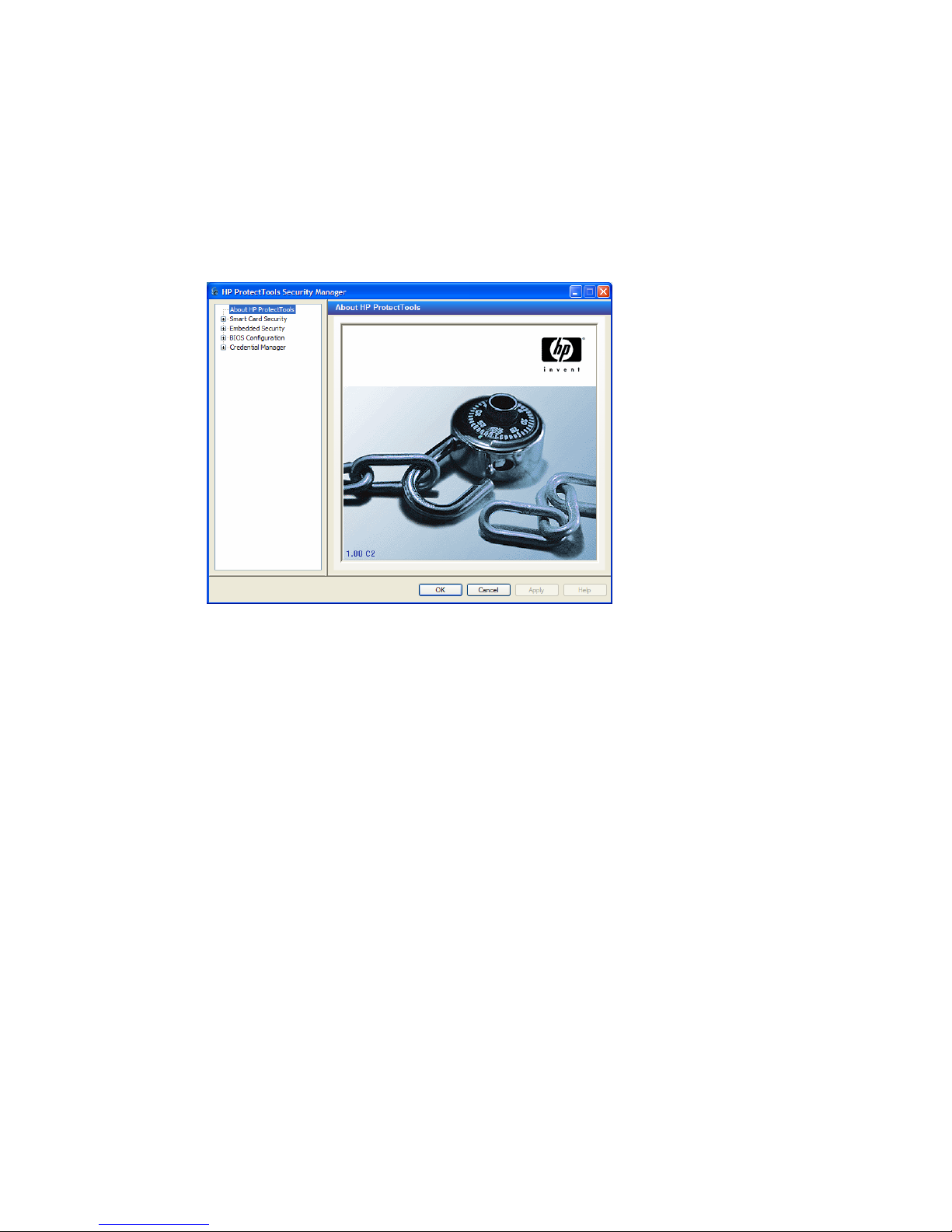

Figure 1 - HP ProtectTools Security Manager Console

HP ProtectTools Security Manager embodies an extensible framework that is designed to allow

security software functionality to be added through add-on modules. This approach supports longer

term client device security strategy by enabling HP to introduce new functionality over time, but in a

highly integrated manner. Ultimately, customers benefit from security features that are easier to use,

manage, and provide enhanced value through features that play off of multiple security hardware

attributes of the client device.

HP ProtectTools Security Manager is only the first step. The application is a security platform that gets

it’s functionality via plug in software modules. A number of software modules are also being

introduced that provide better protection against unauthorized access to the PC, while making access

to the PC and network resources simple and convenient for authorized users.

Features include support for broad multifactor user authentication where a number of different security

technologies, such as Smart Cards, biometric fingerprint readers or TPM embedded security chips,

can be used to authenticate users. Users are provided with more secure as well as convenient

alternatives to passwords when logging into a Microsoft Windows PC. HP is also extending the HP

ProtectTools Security Manager feature set to include a client-centric single sign-on capability that

conveniently stores and protects many of the credentials users need daily to access websites, network

resources and applications.

Additional modules are also available that deliver a higher degree of client device security from the

moment power is turned on. By leveraging underlying security technologies such as a TPM

embedded security chip, HP is enabling better protection against unauthorized access even prior to

allowing the operating system to load.

Security Software Modules for HP ProtectTools

This section provides more details on specific add-on security software modules available for use with

the HP ProtectTools Security Manager. The modular architecture of the HP ProtectTools Security

Manger enables add-on modules to be selectively installed by the end user or IT administrator,

providing a high degree of flexibility to customize HP ProtectTools depending on security needs and

the underlying hardware configuration. Several of the add-on modules are adapted versions of

previously released stand-alone security applications. Integrated into the HP ProtectTools platform,

they form a holistic security solution. Going forward HP expects to continue to expand its client

security offerings with additional modules for the HP ProtectTools Security Manager.

Embedded Security for HP ProtectTools1

Embedded Security for HP ProtectTools is an add-on module for the HP ProtectTools security manager

that allows users to configure how they would like to use the TPM embedded security chip. This add-

on module is intended for client devices configured with a TPM embedded security chip designed to

the Trusted Computing Group (TCG) standard.

Figure 2 - Embedded Security for HP ProtectTools

Embedded Security for HP ProtectTools provides important client security functionality where a TPM

embedded security chip is used to help protect against unauthorized access to sensitive user data or

credentials. Features accessed through Embedded Security for HP ProtectTools include:

•Administrative functions such as taking ownership and managing the owner pass phrase

•User functions such as user enrollment and managing user pass phrases

•Feature configuration including setting up enhanced Microsoft EFS and Personal Secure Drive for

helping to protect user data management functions such as backing up and restoring the key

hierarchy as well as key migration

Embedded Security for HP ProtectTools is supported on all HP business notebooks, desktops and

workstations that can be configured with a TPM embedded security chip option.

1Support for the TPM embedded security chip was previously provided as part of a standalone application called HP ProtectTools Embedded

Security Manager. Beginning in early 2004, all subsequent support for the TPM embedded security chip will be delivered through the Embedded

Security for HP ProtectTools module and will require the HP ProtectTools Security Manager application.

Table 1 – Embedded Security for HP ProtectTools Features and Benefits

Feature Benefit

Works with HP ProtectTools Security

Manager

User interface is fully integrated into the HP ProtectTools Security Manager.

Increases the functionality of the entire security solution by allowing access to the

TPM embedded security chip. For example, if the TPM embedded security chip is

present, Credential Manager for HP ProtectTools uses it to further secure the

encryption keys that encrypt sensitive user credentials such as website passwords or

network logon credentials.

Designed to the Trusted Computing

Group (TCG) standard

As a standard based technology, TPM embedded security chips are designed to

work with a growing number of third party software solutions while providing a

platform to support future hardware and operating system architectures.

Supports Microsoft CAPI and

PKCS#11 cryptographic software

interfaces??

Enables the TPM embedded security chip to enhance a broad range of existing

applications and solutions that take advantage of these interfaces (for example,

Microsoft Outlook, Netscape Navigator, RSA SecurID and public key

infrastructures solutions from leaders like Microsoft, Verisign and Entrust.)

Enhanced Microsoft EFS and

Personal Secure Drive (PSD) features

encrypt user data

Helps protect sensitive user data stored locally on a PC, where access to the

encryption is protected by the TPM embedded security chip providing a higher

degree of hardware-based protection.

For more information on trusted computing solutions from HP, including more information on the TPM

embedded security chip solution for HP business desktop, notebook and workstation PCs, refer to

www.hp.com/go/security.

BIOS Configuration for HP ProtectTools

BIOS Configuration for HP ProtectTools provides access to the BIOS security and configuration

settings from within the HP ProtectTools Security Manager application. This feature provides

authorized users with a convenient way to access system security features that are managed by the

system BIOS.

With BIOS Configuration for HP ProtectTools, authorized users can get access to power-on user and

administrator password management, and they can configure pre-boot authentication features, such

as Smart Card, power-on password and the TPM embedded security chip.

Figure 3 – BIOS configuration for HP ProtectTools

With BIOS Configuration for HP ProtectTools, authorized users can:

•Manage power-on user and administrator passwords

•Configure pre-boot authentication features such as Smart Cards, Power-on Passwords, and

Drivelock

•Enable/Disable hardware features such as CD-ROM boot.

•Configuring boot options including disabling the ability to boot to drives other than the primary

hard drive

Table 2 - BIOS Configuration for HP ProtectTools Features and Benefits

Feature Benefit

Works with HP ProtectTools Security

Manager

User interface is fully integrated into the HP ProtectTools Security Manager.

Provides access to BIOS security and

configuration features from within the

operating system

Provides an easier to use alternative to the pre-boot BIOS configuration utility

known as F10 Setup.

Enhanced security feature set that

take advantage of other HP

ProtectTools supported security

technologies such as Smart Cards

and TPM embedded security chips

Provides better protection against unauthorized access to the PC through features

that help protect the system from the moment power is turned on.

TPM embedded security chip pre-boot authentication requires that users securely

authenticate to the chip prior to allowing the system to boot, which helps protect

against attacks that exploit the ability to boot to alternative operating system

environments.

TPM embedded security chip enhanced Drivelock protects a hard drive from

unauthorized access even if removed from a system without requiring the user to

remember any additional passwords beyond the TPM embedded security chip user

pass phrase.

Working with Smart Card Security for HP ProtectTools, pre-boot Smart Card

authentication requires users to present their Smart Card prior to allowing the

system to boot.

Enabling access to BIOS security configuration from within the HP ProtectTools Security Manager

creates an integrated security solution and enables authorized users to control every aspect of security

management from a single application with a common user interface. The following table describes

the key BIOS security features2that become accessible from the HP ProtectTools Security Manager

using the BIOS Configuration Module.

Table 3- Key BIOS security features made accessible by the BIOS Configuration Module

Feature Description Benefit

TPM embedded

security chip pre-

boot

authentication

Utilizes the TPM

embedded security chip

for user authentication.

Users need to input the

basic user key pass

phrase

Helps protects against unauthorized access to the PC by preventing

access to the computer by booting from a device other than the primary

hard drive.

Provides security benefits similar to a power-on password; however, by

allowing the user to use their TPM embedded security chip pass phrase,

users are not required to remember an additional password.

TPM embedded

security chip

enhanced

Drivelock

Requires a user to

authenticate to the TPM

embedded security chip

before a Drivelock

protected hard drive can

be accessed. A separate

Drivelock password is not

required.

Drivelock helps protect a hard drive from unauthorized access even if

physically removed from a system.

Allows very strong, random Drivelock passwords to be automatically

set in a way that is completely transparent to users (does not require the

user to remember another password)

Ties a hard drive to a specific system with a specific TPM embedded

security chip, preventing other systems from accessing the hard drive if

it is physically removed from the original system.

2Pre-boot authentication features are available on select platforms. Refer to platform specific specifications for more details.

Feature Description Benefit

Smart Card pre-

boot

authentication

Requires a user to insert a

Smart Card and,

optionally, enter a PIN to

authenticate prior to an

operating system being

allowed to load

Protects a system from unauthorized access by requiring a user to insert

their Smart Card to boot the system.

The same Smart Card used to authenticate a user in the pre-boot

environment can also be used with HP ProtectTools to login into

Microsoft Windows XP or Windows 2000.

BIOS Configuration for HP ProtectTools is supported on most HP business notebooks, desktops and

workstations. Enhanced authentication features are supported on select business PCs including the nc

and nw series notebooks as well as the dc7100 desktop PC series.

Smart Card Security for HP ProtectTools

Smart Card Security for HP ProtectTools enables access to Smart Card configuration and security

features on systems equipped with a Smart Card reader. Smart Card readers can either be

integrated, or can be added using the PC card slot. For authentication, users require a Smart Card

such as the HP ProtectTools Smart Card3which can hold their passwords and PIN, and a supported

reader, such as the HP PC Card Smart Card Reader.

Figure 4 - Smart Card Security for HP ProtectTools

Smart Card Security for HP ProtectTools provides Smart Card management features such as:

•Initialize and configure an HP ProtectTools Smart Card, which enables a Smart Card to be used for

user authentication

•Interface with the BIOS to enable/disable Smart Card pre-boot authentication

•Configure separate Smart Cards for administrators and users

•Set and change the Smart Card PIN

•Backup and restore credentials stored on the Smart Card

Smart Card support was previously provided as a standalone application called HP ProtectTools

Smart Card Security Manager. All subsequent Smart Card support will be delivered through the Smart

Card Security for HP ProtectTools module and will require the HP ProtectTools Security Manager

application. The new module brings a previously separate security technology into the new integrated

security solution, giving users a single application from which to manage all security features.

3The HP ProtectTools Smart Card part number is DR032A.

Table 4- Smart Card Security for HP ProtectTools Features and Benefits

Feature Benefit

Initialize and configure Smart Card

security features such as pre-boot

Smart Card authentication.

Provides a complete Smart Card security solution for pre-boot and Windows user

authentication providing enhanced protection against unauthorized of the PC.

Backup and restore credentials stored

on a user’s Smart Card.

Provides a mechanism to recover from a situation where a user or administrator

loses their Smart Card.

Provides the ability to configure an

administrator Smart Card that can be

used on multiple systems to access

BIOS configuration settings.

Allows an administrator to configure a single Smart Card (or multiple cards) that

can be used to securely access BIOS configuration settings without requiring the

use of a BIOS administrator password.

Credential Manager for HP ProtectTools

Credential Manager for HP ProtectTools is the glue that brings the different security technologies

together to create a behavior. Credential Manager gives users the ability to specify how the different

available security technologies work together to provide protection against unauthorized access to the

client.

Figure 4 – Credential Manager for HP ProtectTools

These technologies include Smart Cards, Biometrics, USB Tokens and other future technologies.

Through the Credential Manager, users can create a unique security behavior that requires their

chosen authentication method, including alternatives to passwords when logging on to Microsoft

Windows. Credential Manager also provides a single sign-on capability that automatically

remembers credentials for websites, applications, and protected network resources. Credential

Manager effectively is a personal password vault that makes accessing protected information more

secure and convenient.

Key features of Credential Manager include:

•Fully integrated with HP ProtectTools Security Manager

•Support for Smart Cards, Biometric fingerprint security, USB Tokens, Virtual Tokens and Passwords

•Single sign-on capability protects passwords for websites, applications and network resources

Table 5- Credential Manager for HP ProtectTools Features and Benefits

Feature Benefit

Multifactor authentication support Brings together the available (integrated and add on) security technologies on a PC

into a cohesive and unique behavior that utilizes these technologies to authenticate

users based on user preferences.

Windows logon capability Enables the use of any supported security technology to logon onto Windows

providing a more secure and convenient alternative to password authentication.

Single sign-on manages user

credentials for websites, applications

and protected network resources

Users no longer need to remember multiple passwords for protected websites,

applications and network resources.

Single sign-on works with multifactor authentication capabilities to add additional

protection requiring users to re-authenticate when accessing particularly sensitive

data.

Registering new websites, applications or network logon dialogues is fully

automated making it easy for users to begin taking advantage of the added

convenience and security of the single sign-on feature.

Platform Support

HP ProtectTools Security Manager is supported across a range of HP business notebooks, desktops

and workstations. Please check the product specifications for availability.

Frequently Asked Questions

Q. What add-on modules are currently available for HP ProtectTools Security Manager?

A. Currently the following four modules are available. More modules will be developed and released

in the future.

•Smart Card Security for HP ProtectTools

•BIOS configuration for HP ProtectTools

•Embedded Security for HP ProtectTools

•Credential Manager for HP ProtectTools

Q. What authentication technologies are supported by HP ProtectTools

A. HP ProtectTools security manager is a security platform that has been designed to easily grow with

the user's needs. It supports the following authentication technologies currently, but can easily support

additional technologies as they become available.

•Smart Card authentication

•Biometric (Fingerprint) authentication

•USB Token

•Virtual Token

•Password authentication

Q. How does the Smart Card security solution compare to the Biometric solution. Why did HP select

Smart Card security over biometric security?

A. Biometric security has long term potential; however, biometric security is not yet fully suited for

enterprise deployment because of a lack of enterprise grade features such as support for PKI

encryption. Biometric security technology is also considerably higher cost compared to Smart Card

technology and because of that, while biometrics attracts a lot of attention, enterprise customers are

not ready for actual deployment.

Q. Which HP platforms support HP ProtectTools and the different add-on modules?

A. Please refer to the "Platform Support" section of this white paper.

Q. Can Smart Cards be used for pre-boot authentication?

A. Yes, Smart Cards can be used for pre-boot authentication. Please refer to the user documentation

that came with your computer for steps to configure the system for Smart Card pre-boot

authentication.

Q. Do HP clients support large scale deployment of the TPM embedded security chip?

A. Embedded Security for HP ProtectTools includes a number of configuration settings that can be

managed through a Windows security policy template. Refer to the technical White Paper on

embedded security published online (ftp://ftp.compaq.com/pub/products/security/embedded_security_-

_implementation.pdf). Additional information can also be found in the Embedded Security for HP

ProtectTools online help files.

There are also third party software solutions that can help with managing TPM embedded security

chips on a large scale. Wave Systems has a solution that enables security chip key management and

roaming. Infineon Technologies is another important HP partner in security. We have collaborated

extensively on our Embedded Security and Credential Manager for HP ProtectTools modules. As part

of Infineon’s broader portfolio of security capabilities they are in the final stages of developing a

back-end security management solution that works with HP ProtectTools. It addresses TPM embedded

security chip key management and provides highly manageable enterprise single sign-on capability

when used with Credential Manager for HP ProtectTools.

HP business PCs and business notebooks will also support large scale deployment of TPM embedded

security chips by allowing certain one time configuration processes to be scripted. This script support

is available today on business desktops today. Business notebooks that feature a TPM embedded

security chip require a BIOS update that is expected to be made available by the end of 4Q04. HP

has documented this support through a white paper and sample script that can be made available to

customers upon request (refer to Softpaq 27958).

Q.What are HP’s internal security policies?

A. HP IT is in the process of rolling out a new USB Security Token to be used for strong multifactor

authentication when accessing the corporate network over VPN. Credential Manager for HP

ProtectTools has been designed to support this token enabling it to be used not only for VPN access,

but when logging into Windows with Credential Manager or as additional protection for the

Credential Manager single sign-on service.

Q. What is the Credential Manager module for HP ProtectTools?

A. Please refer to the "Credential Manager for HP ProtectTools" section of the white paper.

Q. How does Credential Manager differ from other Single Sign On solutions?

A. Most technologies and features provided by HP ProtectTools security manager are individually

available. The value of HP ProtectTools is that it brings these technologies together into a single easy

to use security solution. As an HP ProtectTools add-on, the features provided by Credential Manager

are integrated into HP ProtectTools and work with the user authentication features of HP ProtectTools.

Otros manuales para Compaq NW8000

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Software de HP

HP AB500A - Integrated Lights-Out Advanced Manual de usuario

HP StorageWorks 2/64 - Core Switch Manual de funcionamiento

HP B6191-90015a Manual de usuario

HP HP NonStop Data Transformation Engine FTP... Manual de usuario

HP StorageWorks 1510i - Modular Smart Array Manual de usuario

HP T5725 - Compaq Thin Client Manual de usuario

HP T9576G06 Manual de usuario

HP Brio BA200 Manual de usuario

HP Blade Blade Manual de usuario

HP T1936AA - Digital Sending Software Instrucciones de instalación

HP C7791C - DesignJet 130 Color Inkjet Printer Guía de configuración

HP StorageWorks 2/32 - SAN Switch Manual de instrucciones

HP PCL 5 Manual de usuario

HP D7171A - NetServer - LPr Manual de usuario

HP Data Protector A.06.11 Guía de configuración rápida

HP NonStop RDF J-series RVUs Manual de programación

HP ProLiant DL320e Manual de usuario

HP BladeSystem Dual NC370i - Multifunction Network... Manual de usuario

HP Xw460c - ProLiant - Blade Workstation Manual de usuario

HP t5565 - Thin Client Manual de servicio

HP PROCURVE 2520 Manual de usuario

HP 4320t - Mobile Thin Client Instrucciones de montaje

HP BladeSystem bc2000 - Blade PC Manual de usuario

Manuales populares de Software de otras marcas

COMPRO

COMPRO COMPROFM Manual de usuario

Muratec

Muratec OFFICEBRIDGE ONLINE Manual de usuario

Oracle

Oracle Contact Center Anywhere 8.1 Manual de usuario

Adobe

Adobe 65007312 - Photoshop Lightroom Manual

Avaya

Avaya NULL One-X for RIM Blackberry Manual de usuario

PS Audio

PS Audio PowerPlay Manual del propietario

Brady

Brady LOCKOUT PRO 3.0 Manual de servicio

Avaya

Avaya Interaction Center Manual de usuario

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manual

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manual de usuario

Oracle

Oracle Application 9i Manual de usuario

Acer

Acer RDM Manual de usuario

Canon

Canon Vixia HF21 Manual de usuario

Canon

Canon ZR950 Manual de usuario

Samsung

Samsung Auto Backup Manual de usuario

Polycom

Polycom Vortex EF2201 Instrucciones de instalación y funcionamiento

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manual de usuario

Novell

Novell SP2 - S Manual de instrucciones
