HP LF Printing Knowledge Center

Printing a “match to screen”

Application: Adobe Photoshop CS

Printer: HP Designjet 30/90/130 series

Software: HP Driver

Operating System: Windows

1. First recommendations:

•See the Media type functionality & features and choose the most appropriate media.

•It is essential to have the media type correctly calibrated with the printer and print mode,

consult the Calibrate my printer document.

•In order to get a correct display, it’s also essential to have the monitor calibrated, consult the

Profile my monitor section.

2. Open Adobe Photoshop CS.

3. Configure the Color Settings, Edit menu > Color Settings…:

•Make sure the Advanced Mode check box is ticked.

•Working Space > RGB: sRGB IEC61966-2.1.

•Working Space > CMYK: Euroscale Coated v2 (for Europe), U.S. Web Coated (SWOP)

v2 (for US) and Japan Standard v2 (for Japan).

•Color Management Policies: Convert to working space.

•Profile Mismatches: check Ask When Opening and Ask When Pasting.

•Missing Profiles: check Ask When Opening.

•Conversion Options > Intent: Perceptual.

•Click OK.

2

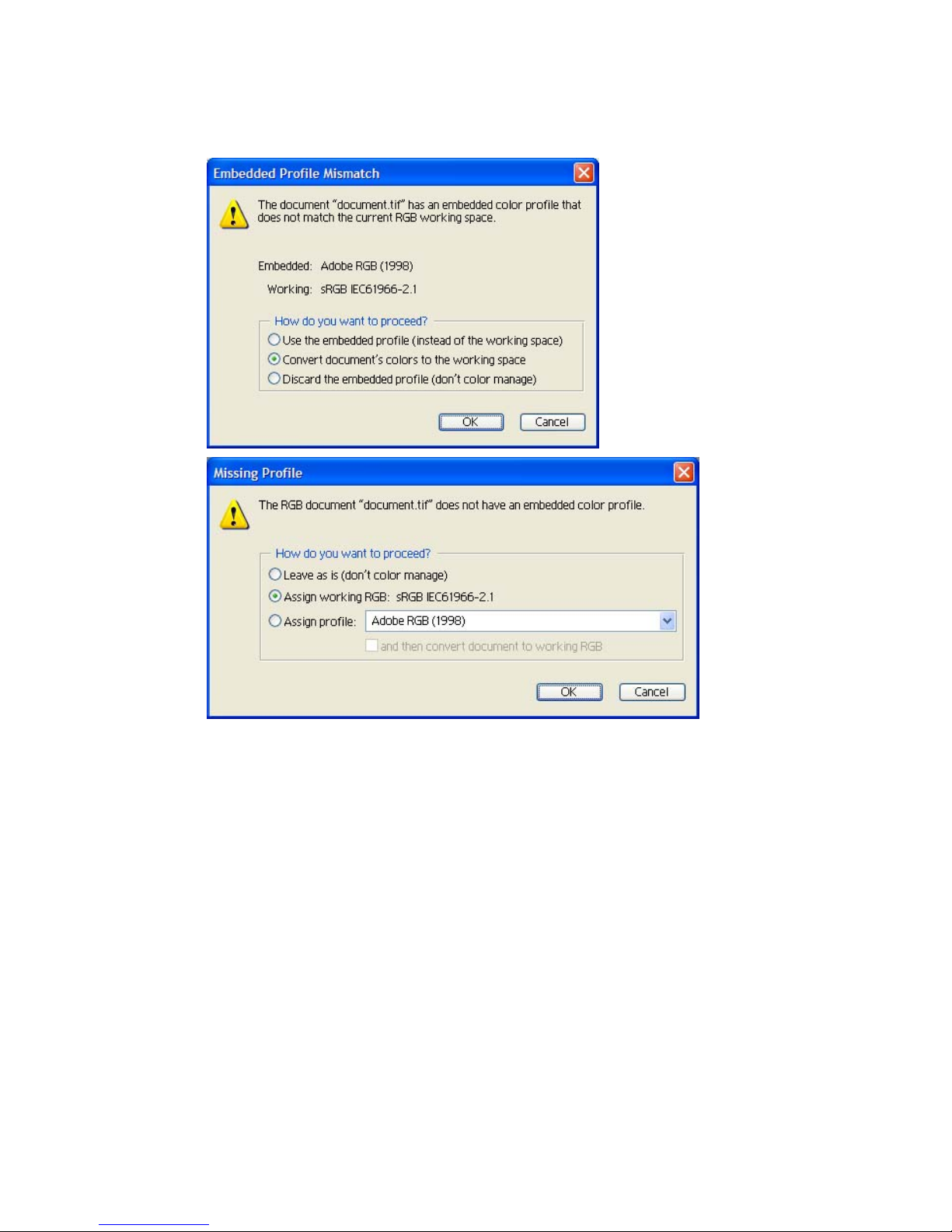

4. Open the image, File menu > Open…:

•If the document has an embedded color profile that does not match the current working

space, select Convert document’s colors to the working space. Otherwise, select

Assign working space.

•Click OK.

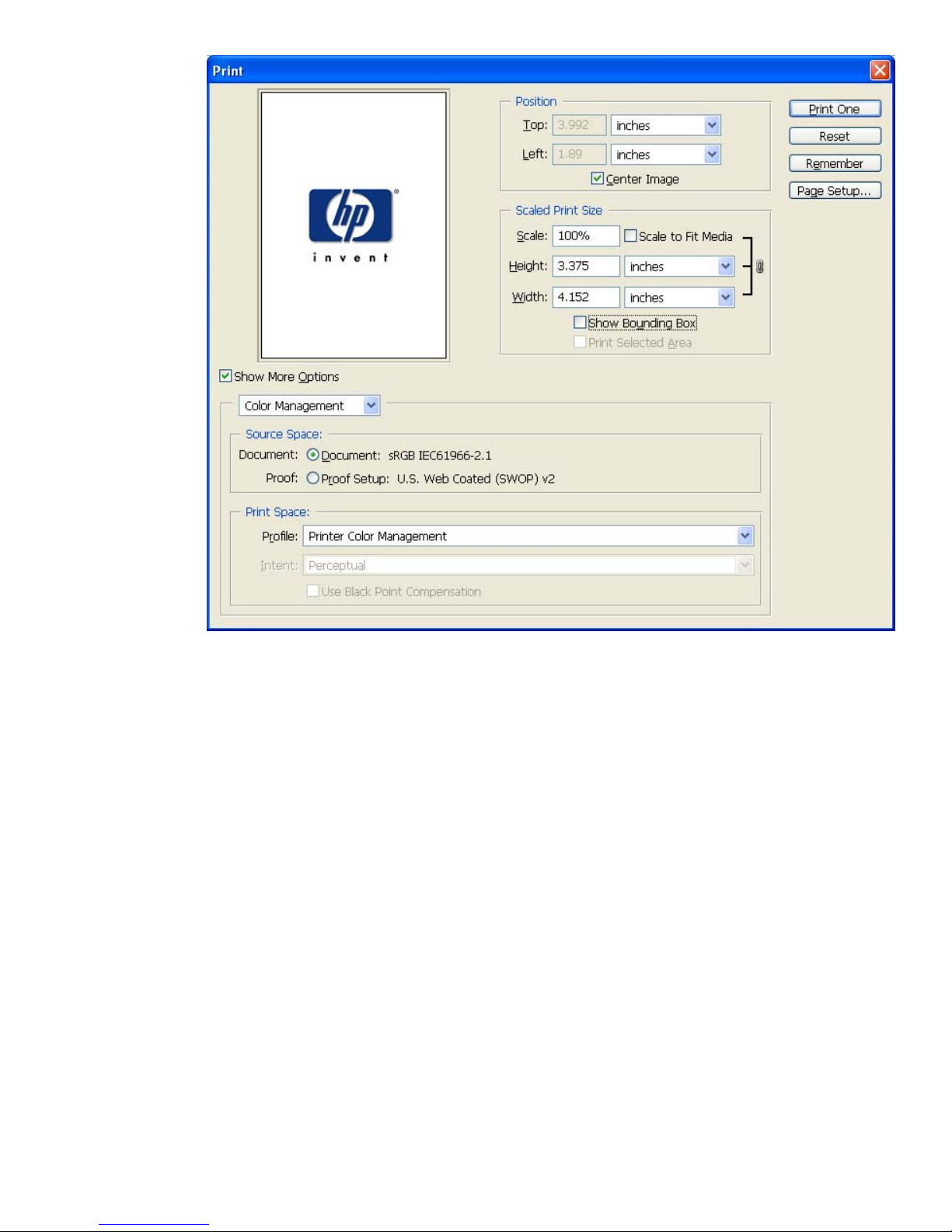

5. Adobe Photoshop Print with Preview… settings. File menu > Print with Preview…:

•Page Setup:

oPrinter...: Select the printer (ex. HP Designjet 130) and click OK.

oPaper Size: Select the paper size of the media loaded on the printer.

oOrientation: Select the orientation of your image on the paper.

oClick OK.

•Set the Position and the Scaled Print Size you need.

•Check Show More Options.

•Select the Color Management tab:

oSource Space: Document.

oPrint Space > Profile: Printer Color Management.

3

6. Driver Settings, Print… > Properties:

•Paper/Quality tab:

oType is: Select the media type that is loaded on the printer.

oPrint Quality: Best.

4

•Color tab:

oColor Management: ColorSmart/sRGB.

•Click OK twice.

5

For more information on HP Designjet products

www.hp.com/go/designjet

6

© 2005 Hewlett-Packard Development Company, L.P. The information contained

herein is subject to change without notice. The only warranties for HP products and

services are set forth in the express warranty statements accompanying such

products and services. Nothing herein should be construed as constituting an

additional warranty. HP shall not be liable for technical or editorial errors or

omissions contained herein.

Adobe Photoshop and PostScript are trademarks of Adobe Systems Incorporated.

PANTONE is Pantone, Inc.'s check-standard trademark for color.

Rev. 1.0, 09/2005
