Installation MSM20/22/24/40/42

Release

11/2014 3

Contents

Safety instructions 5

About this manual 13

Key 13

1 Description 14

1.1 General description 14

1.2 Device name and product code 15

1.3 Combination options 19

1.4 Slots in the basic module 21

1.5 Media modules 23

1.5.1 Media modules MSM20 23

1.5.2 Media modules MSM40 25

1.5.3 PoE-capable media modules MSM22 and MSM42 26

1.6 MSM24 I/O module 27

1.7 SFP Transceiver 29

1.8 Ethernet ports 29

1.9 Display elements 32

1.9.1 MSM20 media modules 32

1.9.2 MSM40 media modules 33

1.9.3 MSM22 and MSM42 media modules 34

1.9.4 MSM24 I/O module 35

2 Installation 36

2.1 Checking the package contents 36

2.2 Installing media modules 36

2.2.1 Device variants featuring customer-specific version

with the characteristic value HH 37

2.2.2 Device variants featuring customer-specific version

with the characteristic value HX 38

2.3 Connecting an I/O module 38

2.3.1 Connecting actuators and sensors 38

2.4 Installing an SFP transceiver (optional) 40

2.5 Connecting data cables 40

2.5.1 10/100 Mbit/s twisted pair port 41

2.5.2 10/100/1000 Mbit/s twisted pair port 41

4Installation MSM20/22/24/40/42

Release

11/2014

2.5.3 100/1000 Mbit/s F/O port 41

2.5.4 100 Mbit/s F/O port 41

3 Maintenance and service 42

4Disassembly 43

4.1 Removing an SFP transceiver (optional) 43

4.2 Removing a media module 43

4.2.1 Device variants featuring customer-specific version

with the characteristic value HH 43

4.2.2 Device variants featuring customer-specific version

with the characteristic value HX 44

5 Technical data 45

A Further Support 55

Installation MSM20/22/24/40/42

Release

11/2014 5

Safety instructions

General safety instructions

You operate this device with electricity. The proper and safe operation of

this device depends on proper handling during transportation, proper

storage and assembly, and conscientious operation and maintenance

procedures. Improper use of this device is associated with the risk of

personal injury or property damage.

Read this documentation as well as the safety instructions and warn-

ings before connecting any cables.

Never start operation with damaged components.

The device does not contain any service components. If the device is

not functioning correctly, or if it is damaged, turn off the power supply

and return the device to Hirschmann for inspection.

Qualification requirements for personnel

Only allow qualified personnel to work on the device.

Qualified personnel have the following characteristics:

Qualified personnel are properly trained. Training as well as practical

knowledge and experience make up their qualifications. This is the

prerequisite for grounding and labeling circuits, devices, and systems

in accordance with current standards in safety technology.

Qualified personnel are aware of the dangers that exist in their work.

Qualified personnel are familiar with appropriate measures against

these hazards in order to reduce the risk for themselves and others.

Qualified personnel receive training on a regular basis.

WARNING

UNCONTROLLED MACHINE ACTIONS

To avoid uncontrolled machine actions caused by data loss, configure all

the data transmission devices individually.

Before you start any machine which is controlled via data transmission, be

sure to complete the configuration of all data transmission devices.

Failure to follow these instructions can result in death, serious injury,

or equipment damage.

6Installation MSM20/22/24/40/42

Release

11/2014

Intended usage

Use the product only for the application cases described in the

Hirschmann product information, including this manual.

Operate the product only according to the technical specifications.

See “Technical data” on page 45.

Connect to the product only components suitable for the requirements

of the specific application case.

National and international safety regulations

Verify that the electrical installation meets local or nationally applicable

safety regulations.

Grounding the device

Grounding the device is by means of a separate ground connection on the

device.

Ground the device before connecting any other cables.

Disconnect the grounding only after disconnecting all other cables.

The overall shield of a connected shielded twisted pair cable is connected

to the ground connector on the front panel as a conductor.

Housing

Only technicians authorized by the manufacturer are permitted to open

the housing.

Never insert pointed objects (narrow screwdrivers, wires, etc.) into the

device or into the connection terminals for electric conductors. Do not

touch the connection terminals.

Keep the ventilation slits free to ensure good air circulation.

Make sure there is at least 3.94 inches (10 cm) of space in front of the

ventilation slits of the housing.

If you are operating the device in a living area or office environment,

only operate it in switch cabinets with fire protection characteristics in

accordance with EN 60950-1.

ESD Guidelines

The modules are equipped with electrostatically sensitive components.

These can be destroyed, or their life cycles reduced, by the effects of an

electrical field or by a charge equalization if the connections are touched.

You will find information about electrostatically endangered assemblies in

DIN EN 61340-5-1 (2007-08) and DIN EN 61340-5-2 (2007-08).

Installation MSM20/22/24/40/42

Release

11/2014 7

CE marking

The labeled devices comply with the regulations contained in the following

European directive(s):

2011/65/EU (RoHS)

Directive of the European Parliament and of the Council on the restriction

of the use of certain hazardous substances in electrical and electronic

equipment.

2004/108/EC (EMC)

Directive of the European Parliament and the council for standardizing the

regulations of member states with regard to electromagnetic compati-

bility.

In accordance with the above-named EU directive(s), the EU conformity

declaration will be at the disposal of the relevant authorities at the

following address:

Hirschmann Automation and Control GmbH

Stuttgarter Str. 45-51

72654 Neckartenzlingen

Germany

Tel.: +49 1805 141538

The device can be used in the industrial sector.

Interference immunity: EN 61000-6-2

Emitted interference: EN 55022

Reliability: EN 60950-1

You find more information on technical and industry standards here:

See “Technical data” on page 45.

Warning! This is a class A device. This device can cause interference in

living areas, and in this case the operator may be required to take appro-

priate measures.

LED or laser components

LED or LASER components in compliance with IEC 60825-1 (2007):

LASER CLASS 1 - CLASS 1 LASER PRODUCT, relevant for the

following F/O modules (indicated by the module code): S2, S4, G2, L2,

C1.

LED CLASS 1 - CLASS 1 LED PRODUCT, relevant for the following F/O

modules (indicated by the module code): M2, M4.

For a description of the nomenclature for module codes.

See “Device name and product code” on page 15.

8Installation MSM20/22/24/40/42

Release

11/2014

Relevant for Use as Industrial Control Equipment

(according to the Standards UL508 / CSA C22.2 No. 142-

1987)

When using the MSM20/22/24/40/42 devices as industrial control equip-

ment the following restrictions apply:

Max. surrounding air temperature: +60 °C

(... to apply for operating temperature characteristic values S, T or E)

Use Copper Conductors only.

Temperature rating of field installed conductors:

Use 75 °C conductors only.

For use in Polution Degree 2 Environment only.

Digital Output (O1, ..., O4): max. 30 V DC, 1 A, resistive load.

Relevant for Use in Hazardous Locations Class I Div. 2

Groups A, B ,C and D (according to the Standards

ANSI/ISA12.12.01-2013 / CSA C22.2 No.213-M1987)

This equipment is suitable for use in Class I, Division 2, Groups A, B ,C,

D– OR non-hazardous locations, if labeled "FOR USE IN HAZARDOUS

LOCATIONS".

Additional to the restrictions refering UL508 the following restriction-

sapply:

Ta: -40°F ... +140°F (-40°C ... +60°C), Temperature Code: T4

for temperature range characteristic value T and E

Ta: +32°F ... +140°F (0°C ... +60°C), Temperature Code: T4

for temperature range characteristic value S.

WARNING – EXPLOSION HAZARD – Do not disconnect equipment

unless power has been removed or the area is known to be non-

hazardous.

WARNING – EXPLOSION HAZARD – Substitution of any compo-

nentsmay impair suitability for Class I, Division 2.

– For installation and use of the MSM24 IO- modules the Control

Drawing No.000172850DNR is to apply - see the next two pages.

Installation MSM20/22/24/40/42

Release

11/2014 9

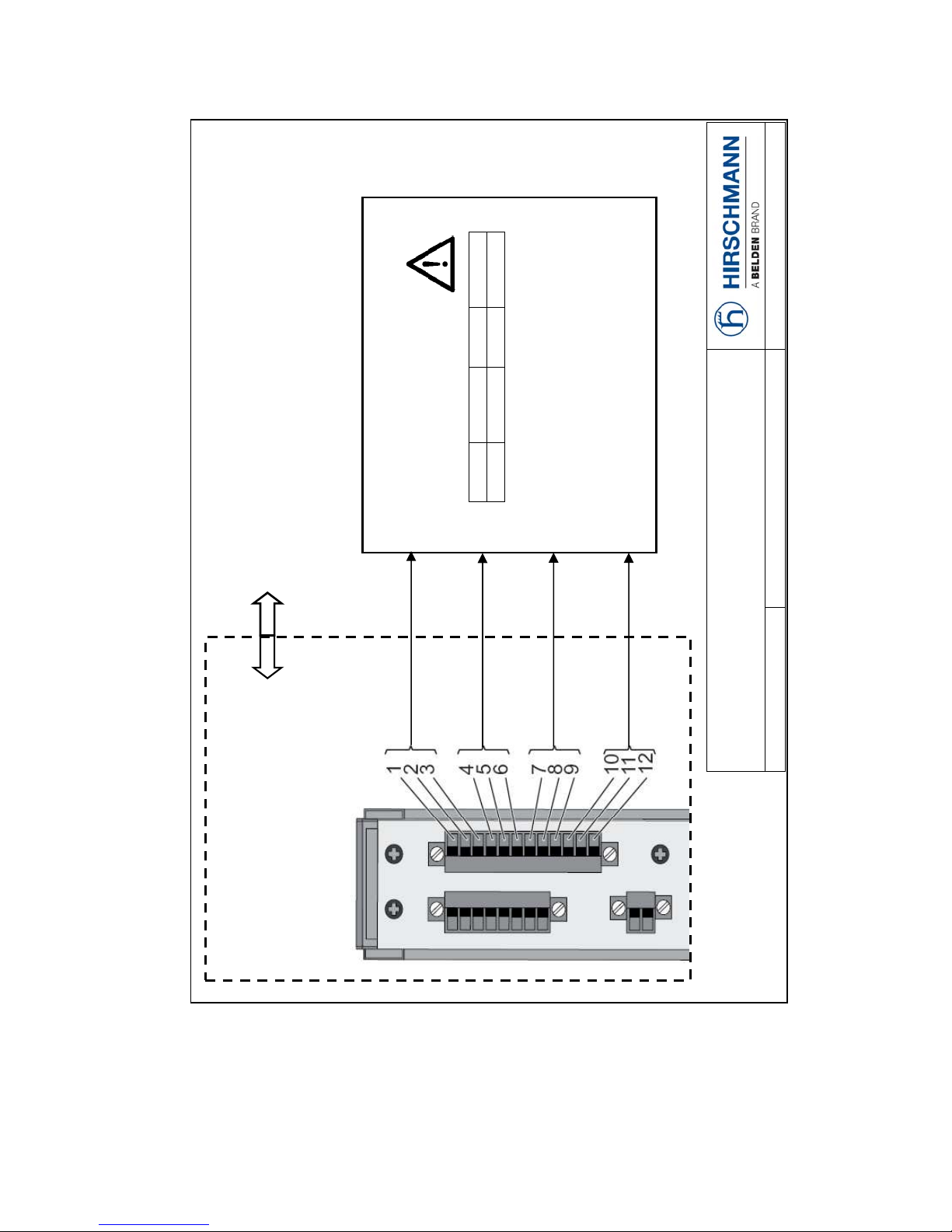

CONTROL DRAWING for MSM24-IOIOIOIO devices

for Use in Hazardous Locations

Class I Division 2 , Groups A, B, C, D

Rev. 0 Document No.:000172850DNR Page 1/2

Nonincendive field wiring parameters:

THE RELAY TERMINALS ARE DEPENDENT

UPON THE FOLLOWING

ENTY PARAMETERS: *)

30 V 90 mA 5 nF 1 µH

The Entity Parameters are to apply to

the following pin combinations:

pin 2 and pin 1; pin 2 and pin 3,

pin 5 and pin 4; pin 5 and pin 6,

pin 8 and pin 7; pin 8 and pin 9,

pin 11 and pin10; pin 11 and pin 12.

Detail of MSM24-IOIOIOIO

Class I Division 2, Groups A, B, C, D

Hazardous Location

Ordinary Location, Non-Hazardous Area,

Nonexplosive Atmosphere

10 Installation MSM20/22/24/40/42

Release

11/2014

For Use in Hazardous Locations Class I Division 2 Groups A, B ,C ,D:

Only allowed for MSP30 or MS32 model No´s. which are individually labelled ´)2586(,1+$=$5'286/2&$7,216µ

Nonincendive field wiring circuits must be wired in accordance with the

National Electrical Code (NEC), NFPA 70 , article 501.

WARNING - EXPLOSION HAZARD – SUBSTITUTION OF ANY COMPONENTS MAY IMPAIR SUITABILITY FOR

HAZARDOUS LOCATIONS OR EXPLOSIVE ATMOSPHERES.

WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS BEEN SWITCHED

OFF OR THE AREA IS KNOWN TO BE NON-HAZARDOUS.

*) Notes:

The nonincendive field wiring circuit concept allows interconnection of nonincendive field wiring apparatus and

associated nonincendive field wiring apparatus using any of the wiring methods permitted for unclassified locations when

certain parametric conditions are met.

Capacity: C

C

+ C

Cable

; Inductivity: L

L

+ L

Cable



  

The maximum cable length has to be determined as follows:

(a) max. Cable Length < max. Cable Length < (L

-L

) / Cable

(”Cable

“ denotes the inductance per unit length of used cable) and

(b) max. Cable Length < max. Cable Length < (C

-C

) / Cable

(“Cable

“ denotes the capacitance per unit length of used cable).

The lower value of (a) and (b) is to apply.

Manufactured in 72654 Neckartenzlingen / Germany by Hirschmann Automation and Control GmbH.

DOM: ww/yyyy (Date of manufactur w - week, Y - year. Refer to the device label).

CONTROL DRAWING for MSM24-IOIOIOIO devices

for Use in Hazardous Locations

Class I Division 2 , Groups A, B, C, D

Rev. 0 Document No.: 000172850DNR Page 2/2

Otros manuales para MSM20

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de Hirschmann

Hirschmann

Hirschmann RS1 Series Manual

Hirschmann

Hirschmann RS20 series Manual de usuario

Hirschmann

Hirschmann RS20 series Manual de usuario

Hirschmann

Hirschmann GECKO 4TX Manual de usuario

Hirschmann

Hirschmann GREYHOUND GRS1020 Manual de usuario

Hirschmann

Hirschmann GREYHOUND GMM42 Manual de usuario

Hirschmann

Hirschmann BRS20-0400 Series Manual de usuario

Hirschmann

Hirschmann MACH1000 Series Manual de usuario

Hirschmann

Hirschmann MSP30 Manual de usuario

Hirschmann

Hirschmann RS20 series Manual de usuario

Hirschmann

Hirschmann RS20 series Manual de usuario

Hirschmann

Hirschmann GREYHOUND GRS1020 Manual de usuario

Hirschmann

Hirschmann BATOne Manual de usuario

Hirschmann

Hirschmann MAR1042 Manual de usuario

Hirschmann

Hirschmann LRS Series Manual de usuario

Hirschmann

Hirschmann MACH1040 Manual de usuario

Hirschmann

Hirschmann RH1-CX+ Manual de usuario

Hirschmann

Hirschmann RSPM20-4Z64Z6 Series Manual de usuario

Hirschmann

Hirschmann SPIDER PL Manual de usuario

Hirschmann

Hirschmann MACH102 Series Manual de usuario

Hirschmann

Hirschmann OCTOPUS OS20 Manual de usuario

Hirschmann

Hirschmann OCTOPUS 8M Series Manual de usuario

Hirschmann

Hirschmann CS30 Manual de usuario

Hirschmann

Hirschmann RS20 series Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
