User Manual

Installation

Industrial Ethernet Ruggedized Switch

MACH1000 Family

MACH1020

LS DA

USB V.24

MACH 1020

LS DA

910

PStandByRM

FAULT

R1 R2

13 14

11 12

17 18

15 16

21 22

19 20

25 26

23 24

LS DA LS DA LS DA LS DA

MACH1030

LS DA

USB V.24

MACH 1030

LS DA

910

PStandByRM

FAULT

R1 R2

13 14

11 12

17 18

15 16

21 22

19 20

25 26

23 24

LS DA LS DA LS DA LS DA

LS DA

USB V.24

MACH 1000

LS DA

910

PStandByRM

FAULT

R1 R2

13 14

11 12

17 18

15 16

21 22

19 20

25 26

23 24

MACH1132

LS DA LS DA

LS DA

MACH1032

USB V.24

PStandByRM

FAULT

R1 R2

PStandByRM

FAULT

R1 R2 ETHERNET Service Port

1357911 13 15 17 19 21 23

246810 12 14 16 18 20 22 24

LS DA

USB V.24

MACH 1000

LS DA

910

PStandByRM

FAULT

R1 R2

13 14

11 12

17 18

15 16

21 22

19 20

25 26

23 24

USB V.24

PStandByRM

FAULT

R1 R2

01.03.2021 Installation MACH1000

Release

03/2021

The naming of copyrighted trademarks in this manual, even when not specially indicated, should

not be taken to mean that these names may be considered as free in the sense of the trademark

and tradename protection law and hence that they may be freely used by anyone.

translation, conversion into any electronic medium or machine scannable form is not permitted,

either in whole or in part. An exception is the preparation of a backup copy of the software for

your own use.

The performance features described here are binding only if they have been expressly agreed

when the contract was made. This document was produced by Hirschmann Automation and

Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right

to change the contents of this document without prior notice. Hirschmann can give no guarantee

in respect of the correctness or accuracy of the information in this document.

Hirschmann can accept no responsibility for damages, resulting from the use of the network

components or the associated operating software. In addition, we refer to the conditions of use

specified in the license contract.

You can get the latest version of this manual on the Internet at the Hirschmann product site

(www.hirschmann.com).

Hirschmann Automation and Control GmbH

Stuttgarter Str. 45-51

72654 Neckartenzlingen

Germany

Installation MACH1000

Release

03/2021 3

Contents

Safety instructions 5

About this Manual 14

Key 15

1 Description 16

1.1 General device description 16

1.2 Combination options 18

1.3 Description of the device variants 20

1.3.1 Port assignment 21

1.3.2 Front view MACH1000 with 2 × Gigabit ports 22

1.3.3 Front view MACH1000 with 4 × Gigabit ports (SFP) 23

1.3.4 Front view MACH1000 with 4 Gigabit ports (2 × SFP

and 2 × RJ45) 24

1.3.5 Front view MACH1000 with PoE 25

1.3.6 Views MACH1000, ports on the back 26

1.3.7 Connections for voltage-carrying lines 27

1.3.8 Support of PoE 29

1.4 Ethernet ports 30

1.4.1 10/100/1000 Mbit/s twisted pair port 30

1.4.2 10/100 Mbit/s twisted pair port 31

1.4.3 1000 Mbit/s F/O port 31

1.4.4 100 Mbit/s F/O port 31

1.4.5 10 Mbit/s F/O port 32

1.4.6 Pin assignments 32

1.5 Display elements 33

1.5.1 Device state 34

1.5.2 Port status 35

1.6 Management interfaces 36

1.6.1 V.24 interface (external management) 36

1.6.2 USB interface 37

1.7 Signal contact 38

2 Installation 39

4Installation MACH1000

Release

03/2021

2.1 Checking the package contents 39

2.2 Installing an SFP transceiver (optional) 39

2.3 Connecting the power unit connections for supply voltage

and signal contact 40

2.3.1 Connecting the voltage supply terminals (power

supply unit characteristic value C and G) 40

2.3.2 Connecting the plugged voltage supply (power

supply unit characteristic value L and M) 43

2.3.3 Connecting the signal contact 45

2.4 Installing and grounding the device 46

2.4.1 Mounting in a switch cabinet 46

2.4.2 Vertical mounting on the wall 48

2.4.3 Grounding the device 48

2.5 Operating the device 49

2.6 Connecting data cables 49

2.6.1 Twisted Pair ports 49

2.6.2 Optical fiber ports 49

3 Making basic settings 50

4 Monitoring the ambient air temperature 51

5 Maintenance and service 52

6Disassembly 53

6.1 Removing the device 53

6.2 Removing an SFP transceiver (optional) 53

7 Technical data 54

A Further support 68

Installation MACH1000

Release

03/2021 5

Safety instructions

General safety instructions

You operate this device with electricity. Improper usage of the device

entails the risk of physical injury or significant property damage. The

proper and safe operation of this device depends on proper handling

during transportation, proper storage and installation, and careful

operation and maintenance procedures.

Before connecting any cable, read this document, and the safety

instructions and warnings.

Operate the device with undamaged components exclusively.

The device is free of any service components. In case of a damaged

or malfunctioning device, turn off the supply voltage and return the

device to Hirschmann for inspection.

Certified usage

Use the product only for the application cases described in the

Hirschmann product information, including this manual.

Operate the product only according to the technical specifications.

See “Technical data” on page 54.

Connect to the product only components suitable for the requirements

of the specific application case.

Installation site requirements

Install this device only in a switch cabinet or in an operating site with

restricted access, to which maintenance staff have exclusive access.

Mount the device horizontally in a cabinet or vertically on a flat surface.

Operating the device as a table unit is inadmissible.

See “General technical data” on page 54.

Install the device in a fire protected shell if you are mounting it

vertically.

WARNING

UNCONTROLLED MACHINE ACTIONS

To avoid uncontrolled machine actions caused by data loss, configure all

the data transmission devices individually.

Before you start any machine which is controlled via data transmission, be

sure to complete the configuration of all data transmission devices.

Failure to follow these instructions can result in death, serious injury,

or equipment damage.

6Installation MACH1000

Release

03/2021

If you are operating the device in a 19" switch cabinet: install sliding/

mounting rails for supporting the weight of the device.

When you are selecting the installation location, make sure you

observe the climatic threshold values specified in the technical data.

Use the device in an environment with a maximum pollution degree

that complies with the specifications in the technical data.

Strain relief

Note: If the strain relief is insufficient, there is a risk of torsion, contact

problems and creeping interruptions.

Relieve the connection points of cables and lines from mechanical

stress.

Design strain relieves in such a way that they prevent any mechanical

damage to cables, wires or conductors caused by external influences

or their own weight.

To prevent damage to device connections, connectors and cables,

follow the instructions for proper installation in accordance with DIN

VDE 0100-520:2013-06, sections 522.6, 522.7 and 522.13.

Device casing

Only technicians authorized by the manufacturer are permitted to open

the casing.

Make sure there is at least 3.94 in (10 cm) of space in front of the

ventilation slits of the casing.

See “General technical data” on page 54.

Never insert pointed objects (narrow screwdrivers, wires, etc.) into the

device or into the connection terminals for electric conductors. Do not

touch the connection terminals.

Do not touch the housing during operation or shortly after switching off

the device. Hot surfaces can cause injury.

Operating the device in the maximum surrounding air temperature and

stacking devices: When installing the device, make sure there is at

least 1 free rack space (approx. 5 cm) above the device, because heat

is discharged via the housing of the device.

Qualification requirements for personnel

Only allow qualified personnel to work on the device.

Qualified personnel have the following characteristics:

Qualified personnel are properly trained. Training as well as practical

knowledge and experience make up their qualifications. This is the

prerequisite for grounding and labeling circuits, devices, and systems

in accordance with current standards in safety technology.

Qualified personnel are aware of the dangers that exist in their work.

Installation MACH1000

Release

03/2021 7

Qualified personnel are familiar with appropriate measures against

these hazards in order to reduce the risk for themselves and others.

Qualified personnel receive training on a regular basis.

National and international safety regulations

Verify that the electrical installation meets local or nationally applicable

safety regulations.

Grounding the device

The device is grounded via the separate grounding screw on the back of

the device.

Use a wire diameter for the ground conductor that is no smaller than

the diameter of the supply voltage connection, however of at least 1.0

mm² (AWG16).

Ground the device before connecting any other cables.

Disconnect the grounding only after disconnecting all other cables.

Shielded ground

The shielded ground wire of the twisted pairs cables is connected to the

front panel as a conductor.

Beware of possible short circuits when connecting a cable section with

conductive shield braiding.

Supply voltage

The supply voltage is electrically isolated from the casing.

Exclusively connect a supply voltage that corresponds to the type plate of

your device.

Every time you connect the electrical conductors, make sure that the

following requirements are met:

The power supply conforms to overvoltage category I or II.

The power supply has an easily accessible disconnecting device

(for example a switch or a plug). This disconnecting device is

clearly identified. So in the case of an emergency, it is clear which

disconnecting device belongs to which power supply cable.

The electrical wires are voltage-free.

The ground screw on the back of the device is connected to the

protective conductor.

There is a fuse in the outer conductor (AC) or the positive

conductor (DC) of the voltage supply.

Regarding the properties of this fuse: See “General technical data”

on page 54.

Supply with DC voltage: the fuse is suitable for a DC voltage.

If the neutral conductor (AC) or the negative conductor (DC) is not

grounded: there is a fuse in each of the two wires.

The wire diameter of the power supply cable is at least 1 mm²

(North America: AWG16) on the supply voltage input.

8Installation MACH1000

Release

03/2021

The cross-section of the protective conductor is the same size as

or bigger than the cross-section of the power supply cables.

The cables used are permitted for the temperature range of the

application case.

Relevant for North America:

For use in Class 2 circuits, the copper wire conforms to class 1,

140/167 °F or 167 °F (60/75 °C or 75 °C).

Start connecting the electrical wires only if all the above safety

requirements are fulfilled.

Verify that the electrical installation meets locally or nationally

applicable safety regulations.

Use undamaged parts.

Internal fuses are triggered only in the case of a detected error in the

device. In case of damage or malfunction of the device, turn off the

supply voltage and return the device to the plant for inspection.

Only switch on the device when the housing is closed.

First connect the ground screw on the back of the device with the

protective conductor before you set up the other connections. When

removing the connections, you remove the protective conductor last.

For supply voltage connections with protective conductor connection:

First connect the protective conductor before connecting the wires for

the supply voltage.

If your device comprises a second supply voltage connection of this

type: First connect the protective conductor before connecting the

wires for the supply voltages.

Installation MACH1000

Release

03/2021 9

Use in Hazardous Locations

Relevant for use in explosion hazard areas of the Hazardous

Locations category (Class I, Division 2):

This device is only suitable for use in explosion hazard areas of category

“Class I, Division 2, Groups A, B, C, D” or for use in non-explosion hazard

areas.

The maximum operating temperature (ambient air) is 70 °C for device

variants with the designation MAR1xxx-

xxxxxxxxxxxxxxxxxxxxxxxxxxUxxxxx or

MAR1xxxxxxxxxxxxxxxxxxxxxxxxxxxxxFxxxxx, where x corresponds to

the letters and numbers from the table of product designations (see page

27 “Combination options”).The maximum operating temperature (ambient

air) is 60 °C for device variants with the designation MAR1xxx-

xxxxxxxxxxxxxxxxxxxxxxxxxxSxxxxx, where x corresponds to the letters

and numbers from the table of product designations (see page 27

“Combination options”).

For operation in explosion hazard areas of the Hazardous Locations

category (Class I, Division 2), the following applies:

CLASS I; DIV. 2, GROUPS A, B, C, D

TEMPERATURE CODE T4

ENVIRONMENT:

Standard: 0 °C ... +60 °C

Extended: -40 °C ... +70 °C

List of standards: ISA 12.12.01, CSA C22.2 no. 213-M1987

Warning: When the USB port is being used, the device must be

located in a housing that is locked by means of a tool.

Only disconnect devices when the system is voltage-free or is

located in an area without inflammable concentrations or

substances.

Avertissement - Risque d'explosion - Ne pas débrancher tant que le

circuit est sous tension à moins que l'emplacement soit connu pour ne

contenir aucune concentration de gaz inflammable.

Avertissement - Risque d'explosion - La substitution de tout composant

peut rendre ce matériel incompatible pour une utilisation en classe I,

division 2.

10 Installation MACH1000

Release

03/2021

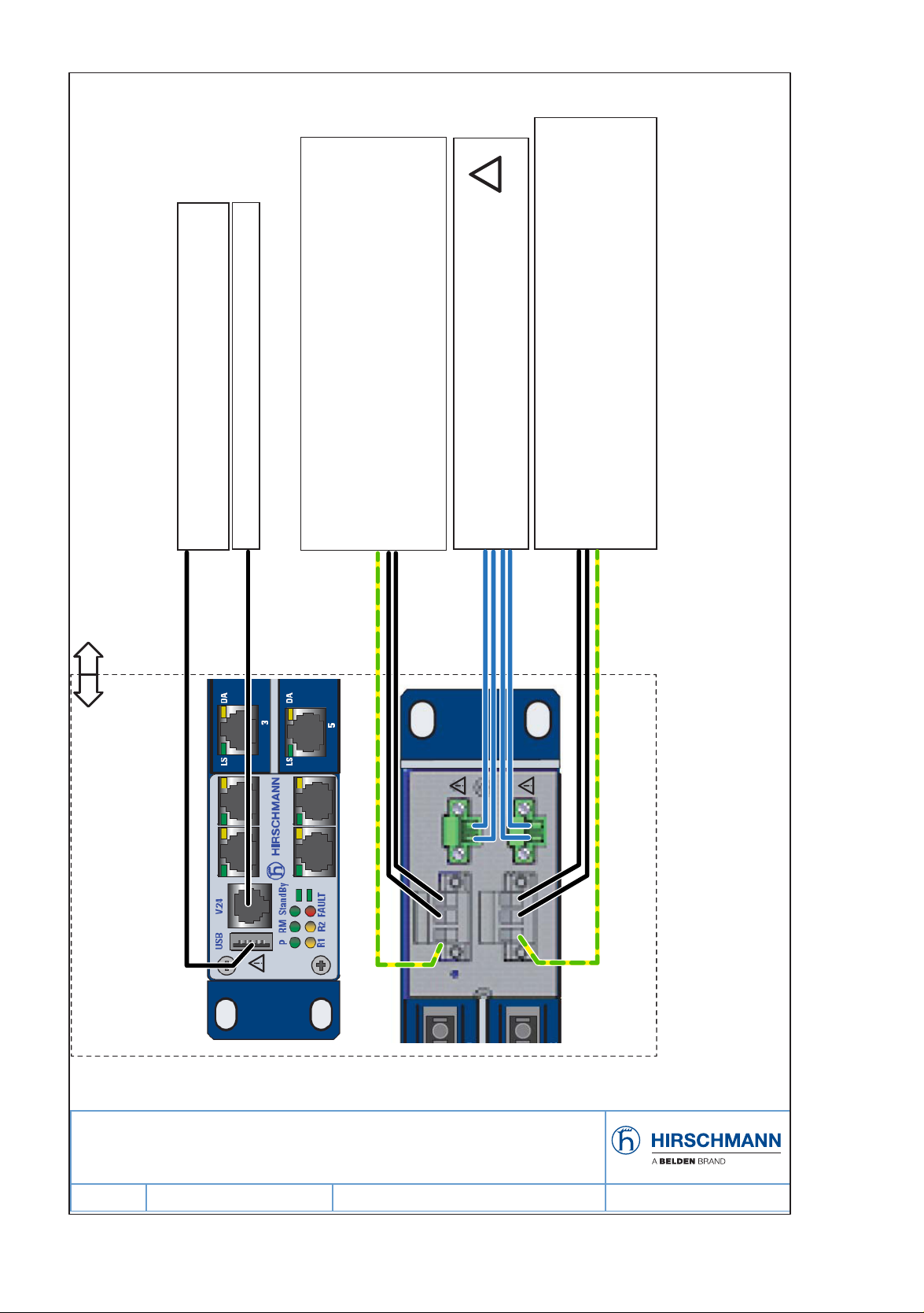

&21752/'5$:,1*IRU(WKHUQHW6ZLWFK0$&+

)DPLO\

$FFRUGLQJWR$16,,6$

5HY 'DWH 'RFXPHQW1R'15 3DJHRI

121+$=$5'286/2&$7,21

86%3RUWIRU$XWR&RQ¿JXUDWLRQ$GDSWHU

)RUPDLQWHQDQFHRQO\

&ODVV,'LYLVLRQ*URXSV$%&'

+$=$5'286/2&$7,21

'HWDLOOHIWVLGH

'HWDLOULJKWVLGH

9,QWHUIDFH([WHUQDOPDQDJHPHQW

3RZHU6XSSO\

1RWSUHVHQW

&9'&WR9'&

*9'&WR9'&9$&WR9$&

/9'&WR9'&

09'&WR9'&9$&WR9$&

5HOD\&RQWDFWV

$VVRFLDWHG$SSDUDWXV

(TXLSPHQWZLWKQRQLQFHQGLYH¿HOGZLULQJ

3RZHU6XSSO\

&9'&WR9'&

*9'&WR9'&9$&WR9$&

/9'&WR9'&

09'&WR9'&9$&WR9$&

7KH8VHLQ+D]DUGRXV/RFDWLRQVLVRQO\DOORZHGIRU0$&+)DPLO\PRGHO1RVZKLFKDUHLQGLYLGXDOO\ODEHOHG

³)2586(,1&/$66,',9,6,21+$=$5'286/2&$7,216´

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de Hirschmann

Hirschmann

Hirschmann MSP30 Manual de usuario

Hirschmann

Hirschmann RS20-0800B Manual de usuario

Hirschmann

Hirschmann PowerLION-24TP Manual de usuario

Hirschmann

Hirschmann GRS103 Series Manual de usuario

Hirschmann

Hirschmann RS20 series Manual de usuario

Hirschmann

Hirschmann PAT TRS 05 / PATB3 Guía del usuario

Hirschmann

Hirschmann GREYHOUND GRS1020 Manual de usuario

Hirschmann

Hirschmann RSPL 20 Manual de usuario

Hirschmann

Hirschmann RS20 series Manual de usuario

Hirschmann

Hirschmann ETHERNET IP67 Instrucciones de funcionamiento e instalación

Hirschmann

Hirschmann 943 686-003 Manual de usuario

Hirschmann

Hirschmann LION-GIGA-1SX Manual de usuario

Hirschmann

Hirschmann RS20 series Manual de usuario

Hirschmann

Hirschmann RS20 series Manual de usuario

Hirschmann

Hirschmann BATOne Manual de usuario

Hirschmann

Hirschmann BRS20-0400 Series Manual de usuario

Hirschmann

Hirschmann RS20 series Manual de usuario

Hirschmann

Hirschmann RSPE30 Manual de usuario

Hirschmann

Hirschmann RS20 series Manual de usuario

Hirschmann

Hirschmann GREYHOUND GMM42 Manual de usuario

Hirschmann

Hirschmann OCTOPUS 8M Series Manual de usuario

Hirschmann

Hirschmann RH1-TP Manual

Hirschmann

Hirschmann MACH 100 Manual de usuario

Hirschmann

Hirschmann Octopus II Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
