Heath Zenith 121AC Manual de usuario

Illustrations may vary from

actual chime unit.

Hardwired Multi-Tune

Chime

IMPORTANT

Proper installation requires a diode on the front door push button.

Diodes are included with all models. Some models also include a

push button with a diode already installed. See page 7 for more

information.

2598-1142-03

FEATURES

Manual Storage Slot

A convenient slot in the base has been provided to insert the manual for future reference.

Volume Control

Turn the volume control clockwise to increase the volume or counterclockwise to decrease

the volume.

Reset Button

This button has a dual purpose. 1) To return to the ﬁrst tune in a Group when using the

Tune Selection Button to cycle through the tune selections. 2) To reset the chime in case

of power failure or surge.

Cover Pin:

A notched cover pin is located on two sides of the chime base.These pins are for selected

covers which hang on the base.

Tune Selections

There are 63 tunes (divided into 9 groups of 7) available for the front door and 2 tunes

available for the rear door. The Tune Selection Guide can be found on page 36.

3598-1142-03

RESET

SCROLL TUNE

SELECTION

REAR

TUNE

456

OFF

GROUP

SELECTION

74 BASE

Wall Anchor (If Needed)

Mounting Hole (x4)

Screw (x4)

Manual Storage Slot

Wire Entrance Hole

Mounting Orientation Marking

Cover Pins

Figure 1

Volume Control

Reset Button

Tune Selections

4598-1142-03

CHIME REPLACEMENT INSTALLATION

IMPORTANT: Proper installation requires a diode on the front door push button. See

Diode Installation Instructions (page 7) after completing steps 1 through 10 below.

Note: Electrical work must be in accordance with national and local electrical codes. If in

doubt, consult a qualiﬁed electrician.

1. Verify transformer power rating. Power must be supplied from a 16 Volt AC, 10 Watt or a 16 Volt

AC, 15 Watt transformer (Heath®/Zenith models 122C, 121AC, or 125C).

2. Remove cover from existing chime.

3. Label all wires before disconnecting. Using masking tape, mark each wire according to existing

chime terminal markings.

• “F” – Front Push Button Wire

• “T” – Transformer Wire

• “R” – Rear Push Button Wire*

4. Disconnect all wires from existing chime.

5. Remove existing chime base from wall.

6. Determine proper chime base orientation. The chime cover style will determine orientation.

7. Determine cover mounting type. For hanging type covers, cover pin should be exposed (see Figures

1 and 4).

8. Route wires through wire entrance hole in new chime base.

9. Mount chime base to wall using screws and anchors provided. (Drill 7/32" diameter pilot hole for

wall anchors.)

10.Connect wire “F” to screw terminal marked “FRONT”. Connect wire “T” to screw terminal marked

“TRANS”. Connect wire “R” to screw terminal marked “REAR”* (See Figure 2).

11.Install chime cover (see page 6).

12.Connect diode to front push button (see page 7).

*Note: Some installations may not include rear door push button.

MOUNTING SUGGESTIONS

• Power must be supplied from a 16 Volt, 10 Watt transformer or 16 Volt, 15 Watt transformer (Heath®/

Zenith models 122C, 121AC, or 125C).

• Mount door chime in a central location so it can be heard throughout the home (for new installa-

tions).

• See actual unit for orientation of base (see Figure 1).

• Always use mounting wall anchors.

• Use all mounting holes located at four corners of base.

• Route the wires through the wire entrance hole (see Figure 1).

5598-1142-03

Figure 2

FRONT TRANS REAR

Wire Entrance Hole

Mounting Orientation Marking

Manual Storage Slot

Chime

Rear Push Button

(If Applicable)

Transformer

Front Push Button

with Diode

6598-1142-03

RESET

SCROLL

TUNE

SELECTION

REAR

TUNE

GROUP

SELECTION

74 BASE

Snap-On Cover

Mounted Chime Base

Figure 3

Figure 4

RESET

SCROLL TUNE

SELECTION

REAR

TUNE

456

GROUP

SELECTION

74 BASE

Cover Pin

Chime Base

ATTACHING CHIME COVERS

Snap-On Cover: Apply pressure to the cover until it snaps into place (see Figure 3). To

remove, ﬁrmly grasp cover and pull to remove from base.

Hanging Cover: Before mounting chime base to wall, slide the cover pin that will be on top

of the mounted base out of the base. Turn it over so the pin is protruding above the base.

Slide the cover pin into base (see Figure 4). Hang cover on cover pin.

Note: Cover pins are located on two sides of the chime base for use with hanging covers.

When chime base is mounted according to mounting orientation marking, use the cover pin

located on the top of the chime base for hanging the cover.

7598-1142-03

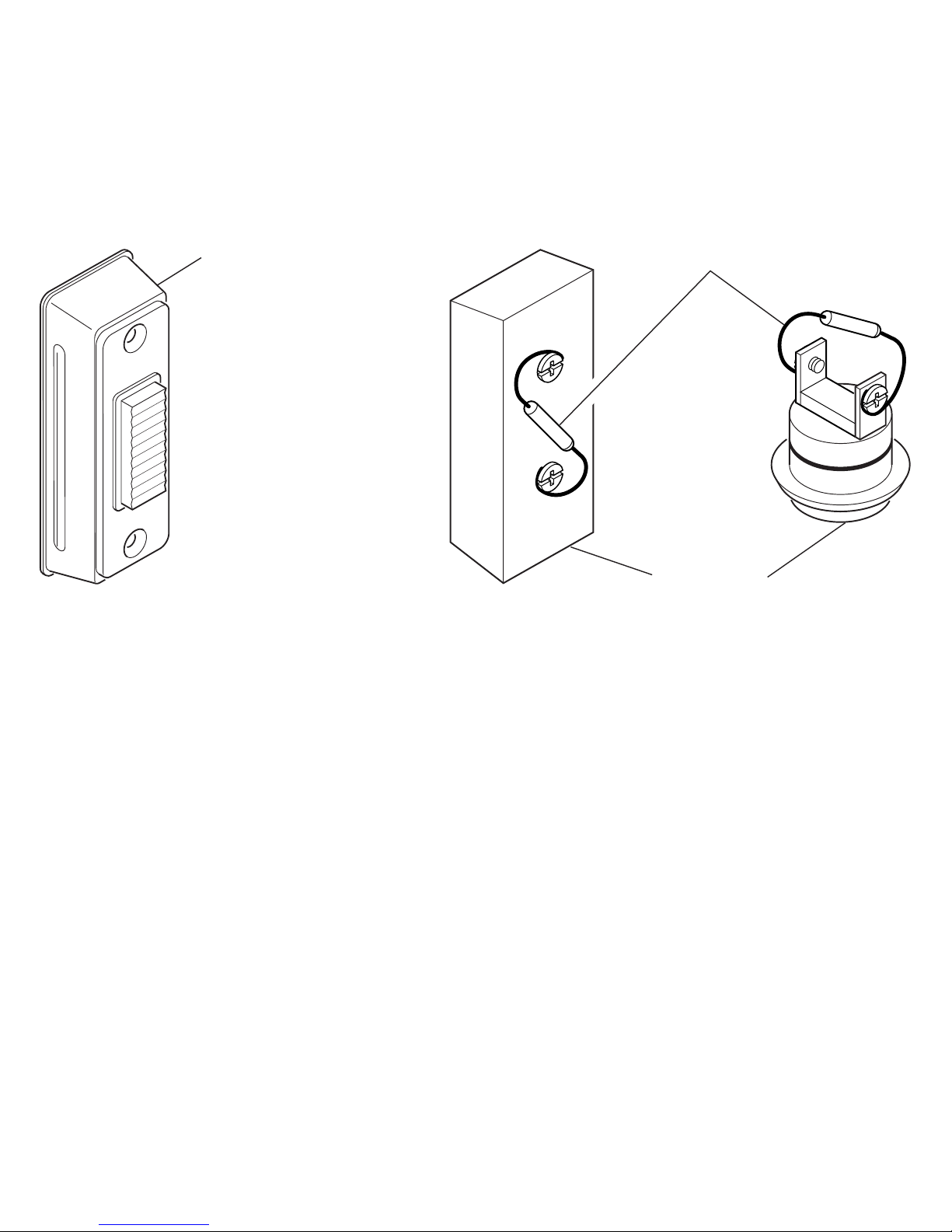

DIODE INSTALLATION INSTRUCTIONS

A small electrical component called a “diode” must be installed on the front door

push button for this chime to play the entire selected tune.

Figure 5

Push Button Diode (Included)

Push Button

Figure 6

Push Button with

Diode Pre-installed

(Not Included with

all Models)

Note:

• A push button with a factory installed diode (indicated by a decal on the back of the push button) is

included with some models.This push button may be used to replace your existing front door push

button. Additional diodes will not be needed and should not be used.

• If a diode is not already installed on the push button being used, connect the supplied diode to the

push button screw terminals as shown in Figure 6.

If, with the diode in place, the chime does not play the entire selected tune, see Trouble-

shooting, page 9.

8598-1142-03

TUNE SELECTION (FRONT DOOR)

To Select a Tune to Play Each Time the Pushbutton is Pressed:

1. Determine the group of the selected tune (see Tune Selection Guide, page 36).

2. Set “Group Selection” switch to the group number desired (see Figure 1). Note: No tune will play

when Group Selection is in the “OFF” position.

3. Set “Scroll/Tune Selection” switch to the Tune Selection position.

4. Press the “Tune Selection” button until desired tune is heard. Note: Wait for each tune to play

completely before pressing button for next tune.

5. When the desired tune plays, the tune is now selected to play each time the front door pushbutton

is pressed.

Note: The tunes within each group are sampled in order. Press the Reset button to quickly

start at the beginning of the list within a selected group.

To Select a Group of Tunes to be Played Each Time the Pushbutton is Pressed:

Note: Only one tune will play each time the pushbutton is pressed.The chime will cycle through

the tunes one at a time in the selected group each time the pushbutton is pressed.

1. Determine the group of tunes to be played (see Tune Selection Guide, page 36).

2. Set “Group Selection” switch to the group number desired (see Figure 1).

3. Set “Scroll/Tune Selection” switch to the Scroll position.

4. The group is now selected to play one tune at a time (in order) from the group each time the

pushbutton is pressed.

TUNE SELECTION (REAR DOOR)

To Select a Tune to Play Each Time the Pushbutton is Pressed:

Note: The two tunes are Beethoven’s Fifth (Position 1) and Ding-Dong (Position 2).

1. Set “Rear Tune” switch to desired position (see Figure 1).

2. The chime will now play the set tune each time the rear door pushbutton is pressed.

9598-1142-03

TROUBLESHOOTING

Chime does not sound:

• Check the Group Selection Switch: No tune will play when the Group Selection is in the “OFF”

position.

• Check Chime: Disconnect wire from terminal marked “TRANS”. Have someone operate push button

at front door while you momentarily touch the “TRANS” wire to terminal marked “FRONT”.You will

see a small spark if push button, wiring, and transformer are operating properly. Repeat the steps

for “REAR” terminal and rear push button. If wiring between transformer and push button(s) check

out properly, replace chime.

• CheckTransformer: Test transformer voltage output with a volt meter.If a volt meter is not available,

momentarily touch the two low-voltage terminals with a screwdriver. You will see a small spark if

transformer is operating properly. If no spark is evident, replace transformer.

• Check Push Button(s): Remove suspected push button from door frame, disconnect wire from

terminals and touch bare wires together. If chime operates, push button is defective. Replace push

button.

Chime sounds but does not complete entire selected tune:

• Check Diode on Front Push Button: Verify diode is attached securely to push button (see page

7). Chime may not function properly if a diode is installed on more than one push button. Note:

Some push buttons have pre-installed diodes. An additional diode should not be added if the push

button has a pre-installed diode.If selected tune still does not sound completely, replace diode (Type

1N4003-200V-1A, available at local electrical component supplier).

TECHNICAL SERVICE

Please call 1-800-858-8501 (English speaking only) for assistance before returning

product to store.

If you experience a problem, follow this guide. You may also want to visit our Web site at:

www.hzsupport.com. If the problem persists, call* for assistance at 1-800-858-8501, 7:30

AM to 4:30 PM CST (M-F).You may also write* to:

HeathCo LLC

P.O. Box 90004, Bowling Green, KY 42102-9004

ATTN: Technical Service

* If contacting Technical Service, please have the following information available: Model

Number, Date of Purchase, and Place of Purchase.

No Service Parts Available for this Product

10 598-1142-03

HeathCo LLC reserves the right to discontinue and to change speciﬁcations at any time

without notice without incurring any obligation to incorporate new features in previously

sold products.

ONE YEAR LIMITED WARRANTY

This is a “Limited Warranty” which gives you speciﬁc legal rights.You may also have

other rights which vary from state to state or province to province.

For a period of one year from the date of purchase, any malfunction caused by factory

defective parts or workmanship will be corrected at no charge to you. To obtain a

refund or a replacement, return the product to the place of purchase.

Not Covered - Repair service, adjustment and calibration due to misuse, abuse or

negligence, and expendable items are not covered by this warranty. Unauthorized

service or modiﬁcation of the product or of any furnished component will void this

warranty in its entirety. This warranty does not include reimbursement for inconve-

nience, installation, setup time, loss of use, or unauthorized service.

This warranty covers only HeathCo LLC assembled products and is not extended

to other equipment and components that a customer uses in conjunction with

our products.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES,

EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY, REPRESENTATION OR

CONDITION OF MERCHANT ABILITY OR THAT THE PRODUCTS ARE FIT FOR

ANY PARTICULAR PURPOSE OR USE, AND SPECIFICALLY IN LIEU OF ALL

SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.

REPAIRORREPLACEMENTSHALLBETHESOLEREMEDYOFTHECUSTOMER

AND THERE SHALL BE NO LIABILITY ON THE PART OF HEATHCO LLC FOR

ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES,

INCLUDING BUT NOT LIMITED TO ANY LOSS OF BUSINESS OR PROFITS,

WHETHER OR NOT FORESEEABLE. Some states or provinces do not allow the

exclusion or limitation of incidental or consequential damages, so the above limita-

tion or exclusion may not apply to you. Please keep your dated sales receipt, it is

required for all warranty requests.

Otros manuales para 121AC

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Accesorios de Heath Zenith

Heath Zenith

Heath Zenith 7750 Manual de usuario

Heath Zenith

Heath Zenith SL-6164 Manual de usuario

Heath Zenith

Heath Zenith 598-1109-06 Manual de usuario

Heath Zenith

Heath Zenith 7311 Manual de usuario

Heath Zenith

Heath Zenith Dual Brite SL-5597 Manual de usuario

Heath Zenith

Heath Zenith Wireless Push Button Accessory SL-6190... Manual de usuario

Heath Zenith

Heath Zenith Motion Sensing 3-Way Wall Switch 6107 Manual de usuario

Heath Zenith

Heath Zenith Decorative Wireless Chime 598-1000-07 Manual de usuario

Heath Zenith

Heath Zenith Weatherproof Long Range Wireless Chime with Chime Extender... Manual de usuario

Heath Zenith

Heath Zenith 29 Manual de usuario

Heath Zenith

Heath Zenith DualBrite Replacement Sensor Head 2LBN3 Manual de servicio

Heath Zenith

Heath Zenith Motion Sensor Entryway Light SL-5610/15 Manual de usuario

Heath Zenith

Heath Zenith DUAL BRITE SL-5597 Manual de usuario

Heath Zenith

Heath Zenith 5867 Manual de servicio

Heath Zenith

Heath Zenith Wireless Push Button Accessory 598-1151-02 Manual de usuario

Heath Zenith

Heath Zenith 6168 Manual de usuario

Heath Zenith

Heath Zenith Notifi elite Manual de usuario

Heath Zenith

Heath Zenith Wireless Push Button Accessory 598-1105-06 Manual de usuario

Heath Zenith

Heath Zenith Notifi Elite Manual de usuario

Heath Zenith

Heath Zenith 6180 Series Manual de usuario

Heath Zenith

Heath Zenith 7143 Manual de usuario

Heath Zenith

Heath Zenith 5610 Manual de usuario

Heath Zenith

Heath Zenith Wireless Dual Push Button Accessory SL-6200 Manual de usuario

Heath Zenith

Heath Zenith 5316 Manual de usuario

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Siemens

Siemens QSA2700D Manual del operador

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

Panasonic

Panasonic HG-T Series Manual de usuario

IFM Electronic

IFM Electronic Efector 250 Series Guía de referencia

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario
